Watts

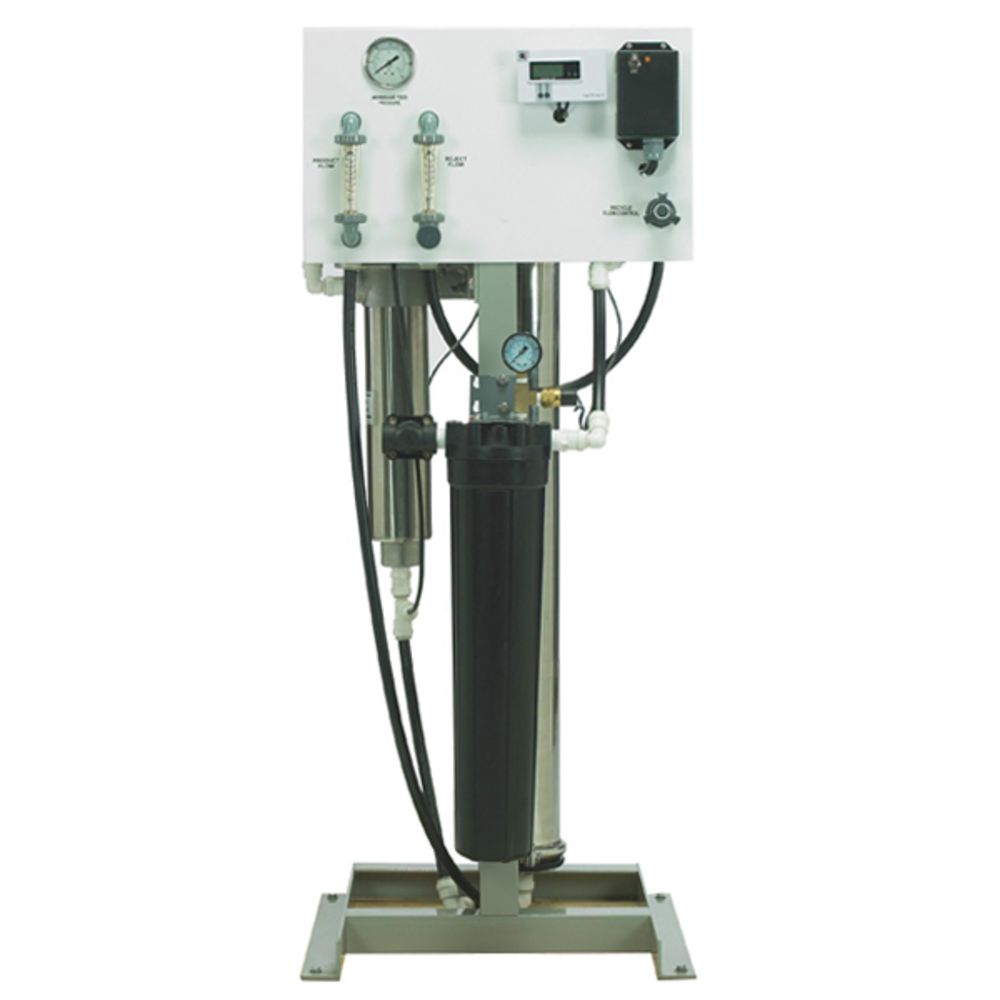

Watts R4X40-3 Commercial Reverse Osmosis System 6600 gpd

Part Number: R4X40-3-230

In Stock

out of stock

In Stock

$4,699.99


The Watts R4X40-3 light commercial reverse osmosis system is designed to provide the commercial and industrial user with the most trouble free, cost effective and reliable form of water treatment available, by providing every option necessary for a successful installation.

Features:

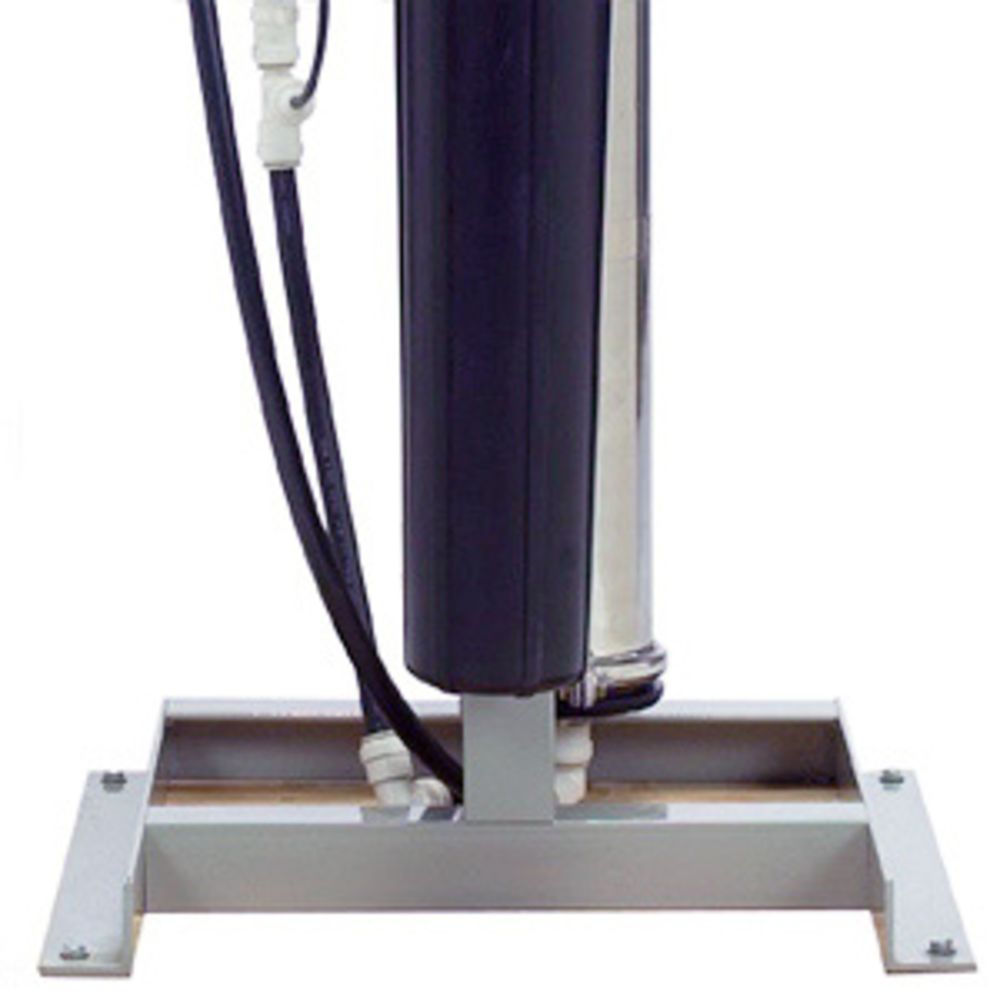

  • Powder coated steel frame
  • Inlet solenoid valve

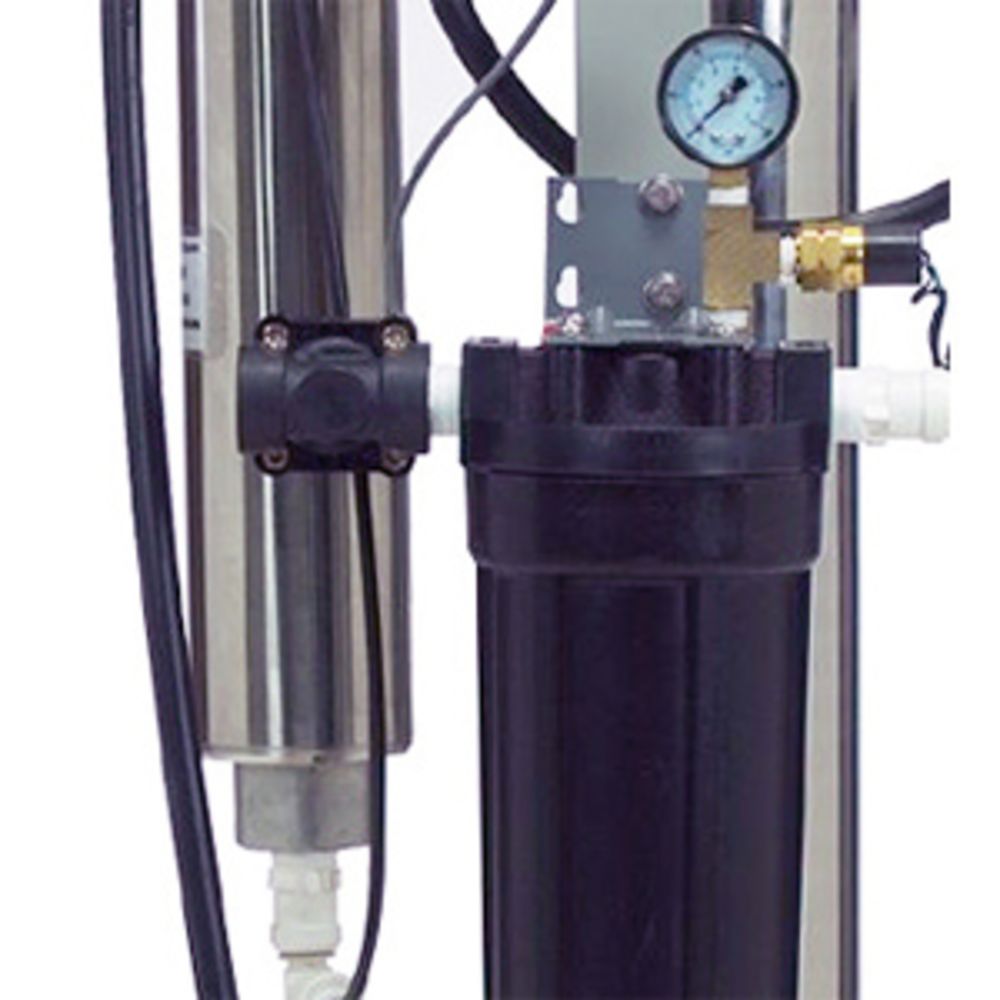

  • 20" pre-filter housing and 5 micron sediment filter
  • Prefilter pressure gauge
  • Multi-stage centrifugal pump
  • Low-pressure protection with microprocessor auto reset
  • Stainless steel pressure vessels

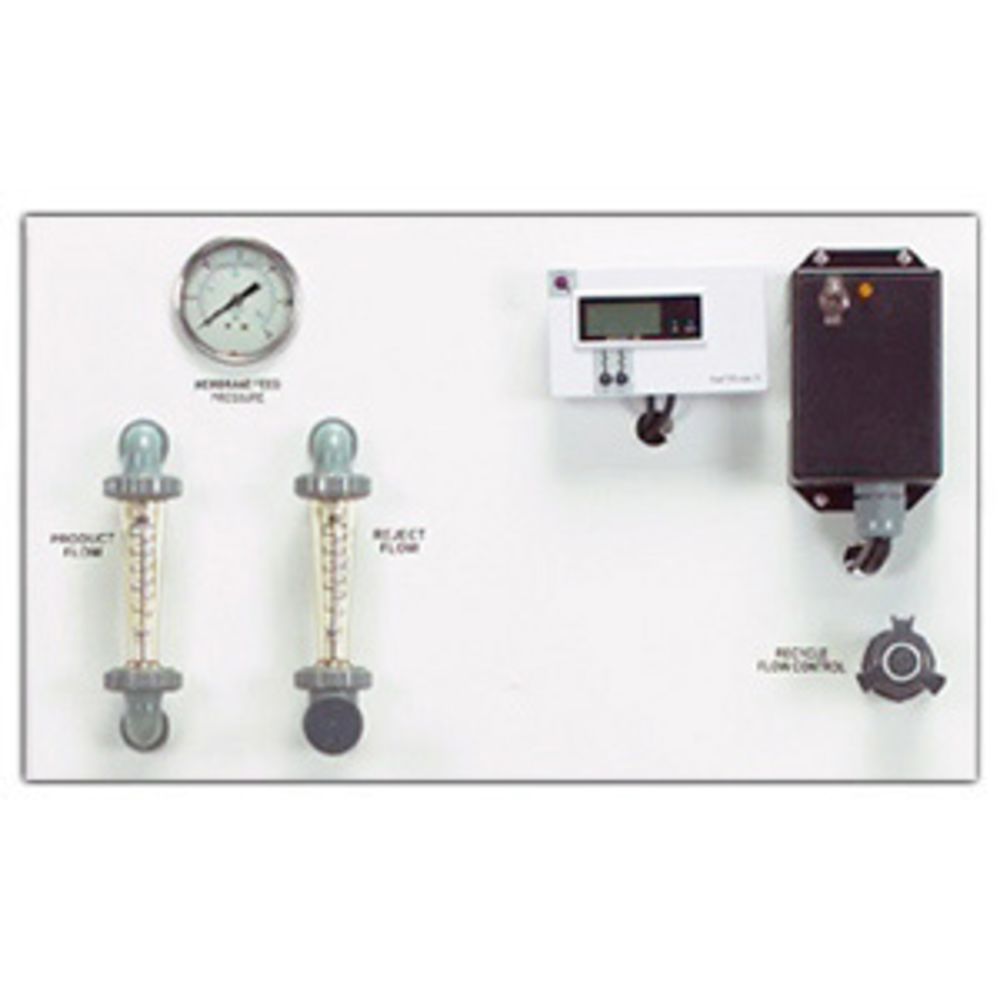

  • Flow meters installed on product and reject water lines
  • Concentrate needle valve
  • Non metallic recycle needle valve
  • TDS monitor installed on feed and product water lines

Applications:
  • Whole House
  • Boiler Feed Water
  • Humidifiers
  • Misting
  • Drinking Water
  • Bottled Water
  • Greenhouses
  • Process Water
  • Electronics
  • Pharmaceutical
  • Spot-Free Rinse
  • Food and Ice Preparation

Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.


Weight & Dimensions

Prefilter Length

2.5" x 20"

Approx Weight

180 Lbs

Dimensions

20" x 26" x 50"

Details

Feed Water Source

City Water, Well Water

Recovery Rate (Adjustable)

32-75 Percent

Max Hardness

1 Grains per Gallon

Application

Aquarium, Beverage Production, Bottled Water, Electronics, Drinking Water, Food Processing, Food & Ice Preparation, Misting, Pharmaceutical, Spot-Free Rinse, Greenhouse, Whole House, Humidifiers, Boiler Feed Water

Capacity

6600 Gallons per day

Connections

5/8" OD Tubing

Filter Application

5µm Sediment Filter

Flow Rate

Max 10 Gallons Per Minute

Inlet Size

3/4" NPTF

Liquid Temperature

40-95 Degrees Fahrenheit

Max Operating Pressure

180 PSI

Power

1.5 Horse Power

Type

Multistage centrifugal Pump, Free Standing

Voltage

220V 60Hz, 120V 60Hz

Average Nacl Rejection

98 Percent

Contaminants Reduced

1 Nephelometric Turbidity Units

Inlet Pressure

10-90 PSI

Rating

5 Silt Density Index

Ph Range

3-11

Membrane Size

4" x 40"

Max Chlorine Content

0 Parts per Million Free Chlorine

Max Tds Content

1000 Parts per Million

Membrane Quantity

3

Max Iron Content

0.01 Parts per Million

Max Manganese Content

0.05 Parts per Million

Max Silica Content

25 Parts per Million

Warranty & Certifications

Warranty

1 year


Watts
