Watts

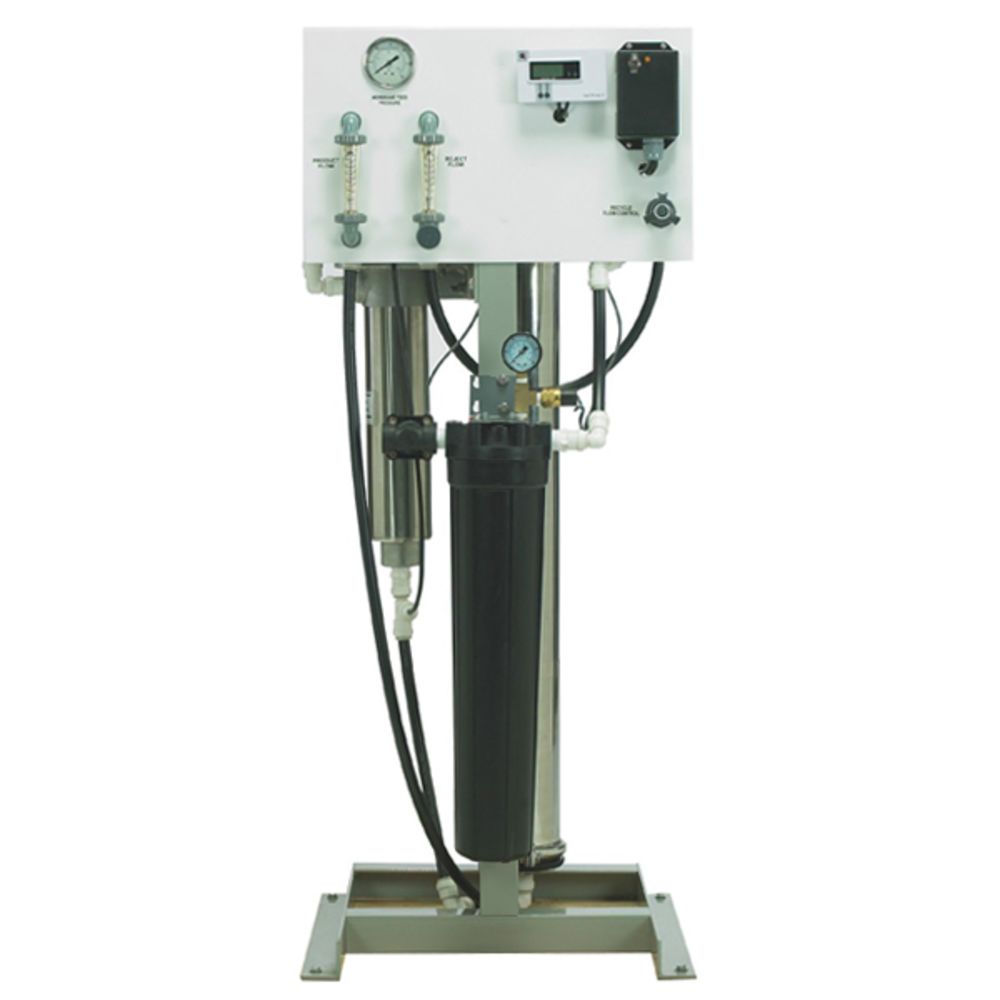

Watts R4X40-1 Commercial Reverse Osmosis System 2200 gpd

Part Number: R4X40-1

In Stock

out of stock

In Stock

$2,999.00

The Watts R4X40-1 light commercial reverse osmosis system is designed to provide the commercial and industrial user with the most trouble free, cost effective and reliable form of water treatment available, by providing every option necessary for a successful installation.    Features:

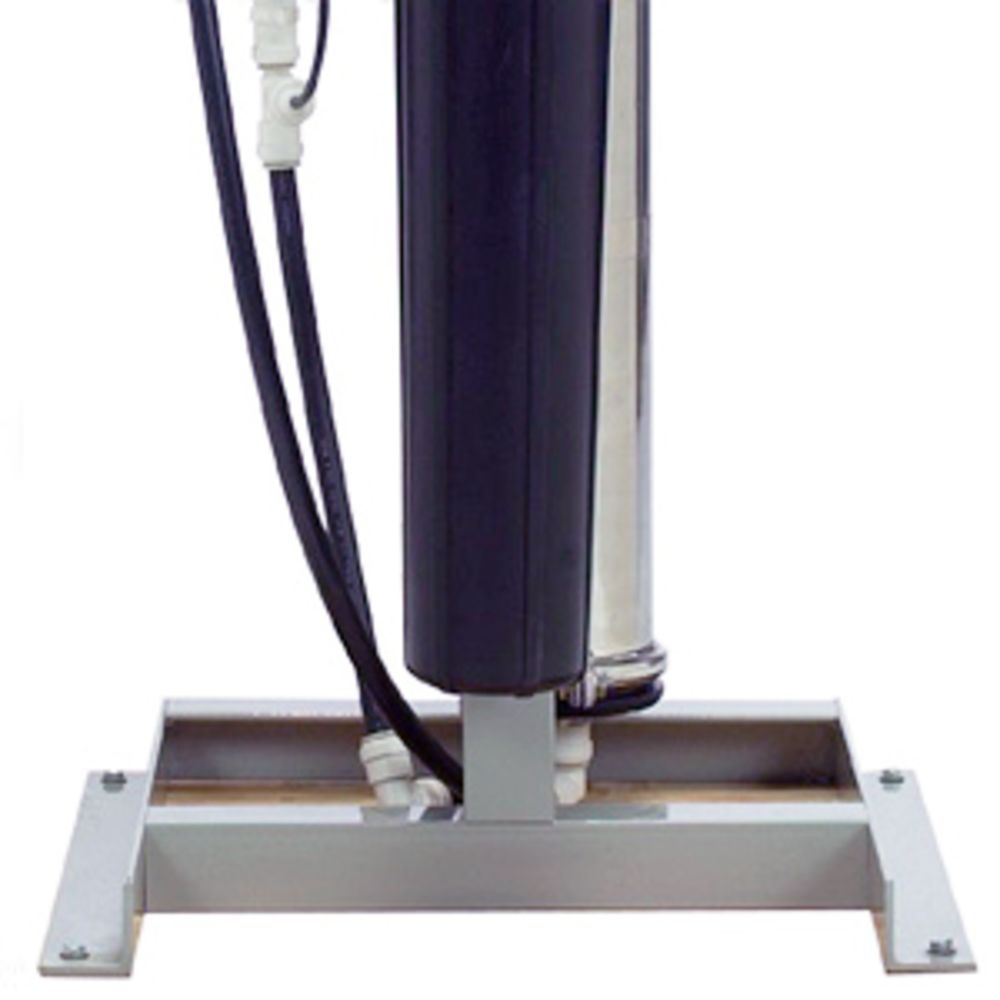

  • Powder coated steel frame
  • Inlet solenoid valve

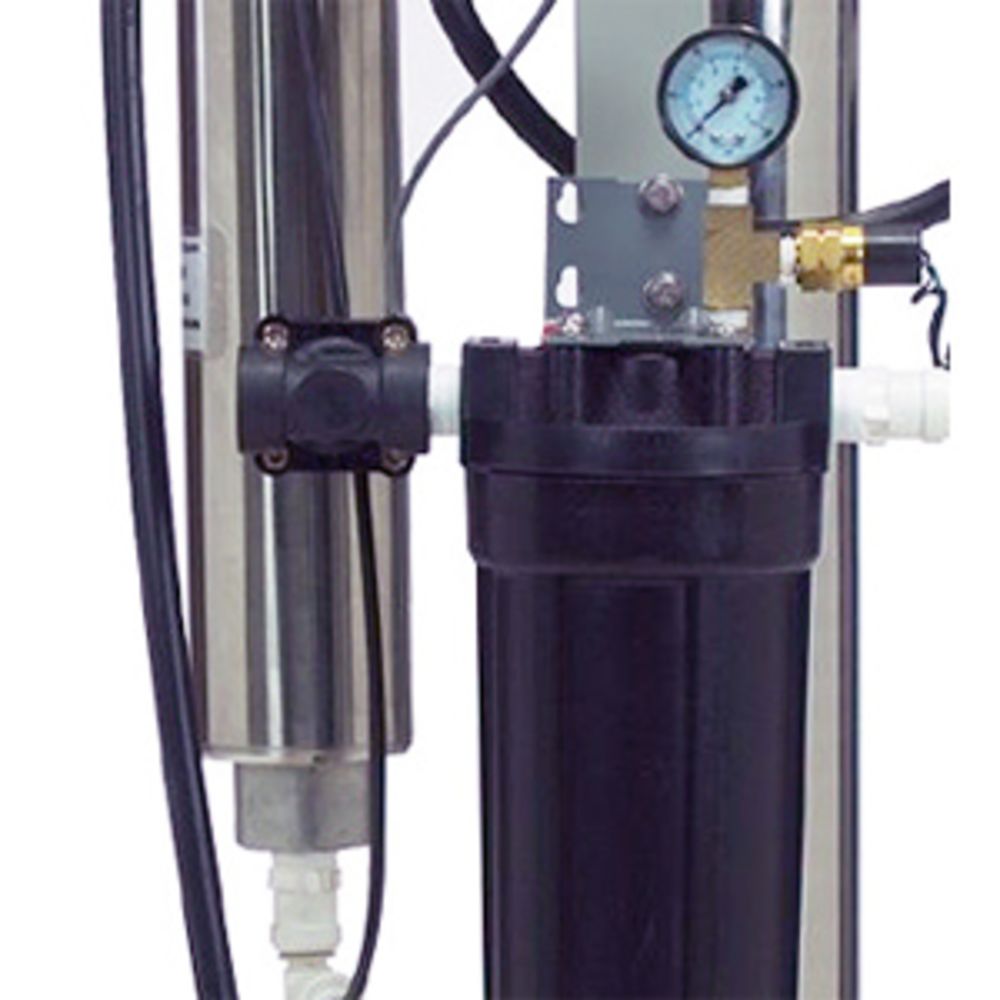

  • 20" pre-filter housing and 5 micron sediment filter
  • Prefilter pressure gauge
  • Multstage centrifugal pump
  • Low-pressure protection with microprocessor auto reset
  • Stainless steel pressure vessel

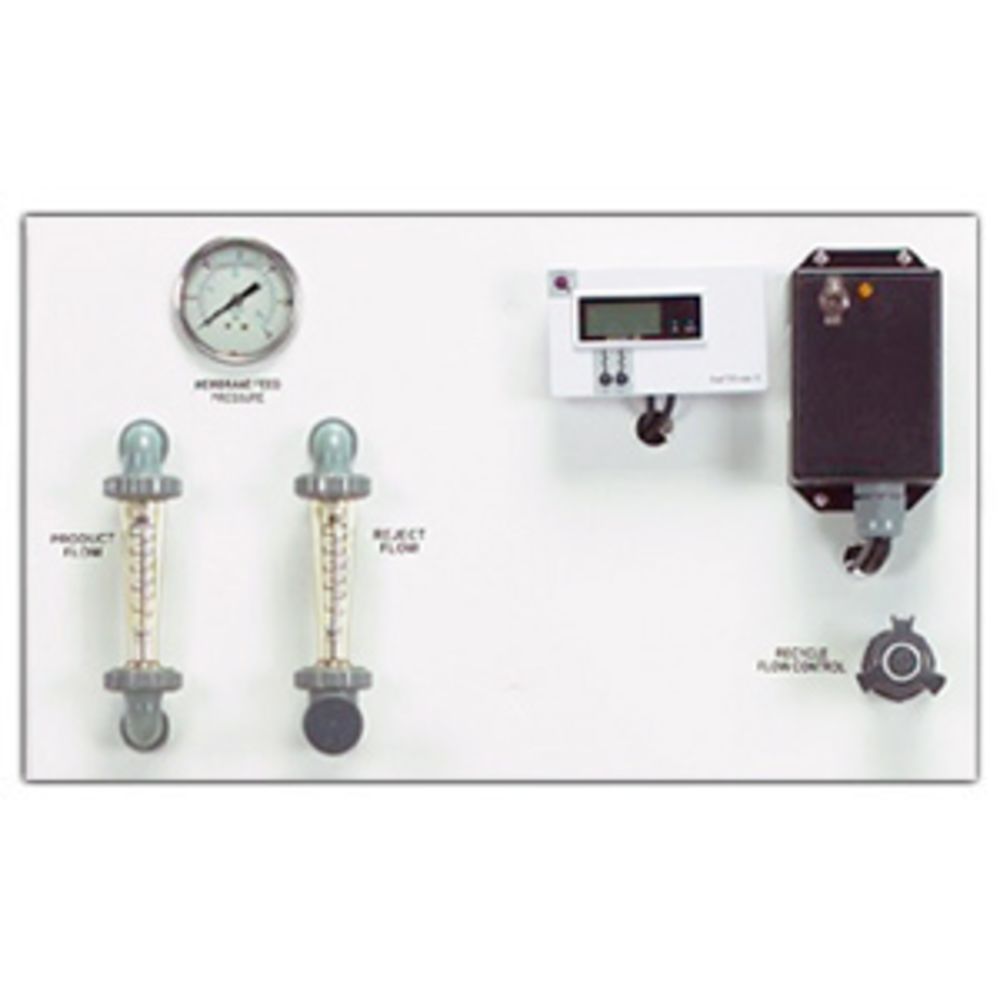

  • Flow meters installed on product and reject water lines
  • Concentrate needle valve
  • Non metallic recycle needle valve
  • TDS monitor installed on feed and product water lines
Watts R4X40-1 Commercial Reverse Osmosis System 2200 gpd Applications:
  • Whole House
  • Boiler Feed Water
  • Humidifiers
  • Misting
  • Drinking Water
  • Bottled Water
  • Greenhouses
  • Process Water
  • Electronics
  • Pharmaceutical
  • Spot-Free Rinse
  • Food and Ice Preparation


Weight & Dimensions

Prefilter Length

2.5" x 20"

Approx Weight

120 Lbs

Dimensions

20" x 20" x 50"

Details

Push In Size

5/8" OD

Feed Water Source

City Water, Well Water

Recovery Rate (Adjustable)

15-75 Percent

Max Hardness

1 Grains per Gallon

Application

Aquarium, Beverage Production, Bottled Water, Electronics, Drinking Water, Food Processing, Food & Ice Preparation, Misting, Pharmaceutical, Spot-Free Rinse, Greenhouse, Whole House, Humidifiers, Boiler Feed Water

Capacity

2200 GPD

Filter Application

5µm Sediment Filter

Liquid Temperature

40-95 Degrees Fahrenheit

Max Operating Pressure

180 PSI

Power

3/4 Horse Power

Size

3/4"

Voltage

120V 60Hz

Contaminants Reduced

Sediment

Inlet Pressure

10-90 PSI

Rating

5 Silt Density Index

Ph Range

3-11

Membrane Size

4" x 40"

Max Chlorine Content

0 Parts per Million Free Chlorine

Max Tds Content

1000 Parts per Million

Membrane Quantity

1

Max Iron Content

0.01 Parts per Million

Max Manganese Content

0.05 Parts per Million

Max Silica Content

25 Parts per Million

Inlet/Outlet Connection

3/4" | FPT

Warranty & Certifications

Warranty

1 year


Watts

Watts




The Watts R4X40-1 light commercial reverse osmosis system is designed to provide the commercial and industrial user with the most trouble free, cost effective and reliable form of water treatment available, by providing every option necessary for a successful installation.    Features:
  • Powder coated steel frame
  • Inlet solenoid valve
  • 20" pre-filter housing and 5 micron sediment filter
  • Prefilter pressure gauge
  • Multstage centrifugal pump
  • Low-pressure protection with microprocessor auto reset
  • Stainless steel pressure vessel
  • Flow meters installed on product and reject water lines
  • Concentrate needle valve
  • Non metallic recycle needle valve
  • TDS monitor installed on feed and product water lines
Watts R4X40-1 Commercial Reverse Osmosis System 2200 gpd Applications:
  • Whole House
  • Boiler Feed Water
  • Humidifiers
  • Misting
  • Drinking Water
  • Bottled Water
  • Greenhouses
  • Process Water
  • Electronics
  • Pharmaceutical
  • Spot-Free Rinse
  • Food and Ice Preparation

Weight & Dimensions

Prefilter Length

2.5" x 20"

Approx Weight

120 Lbs

Dimensions

20" x 20" x 50"

Details

Push In Size

5/8" OD

Feed Water Source

City Water, Well Water

Recovery Rate (Adjustable)

15-75 Percent

Max Hardness

1 Grains per Gallon

Application

Aquarium, Beverage Production, Bottled Water, Electronics, Drinking Water, Food Processing, Food & Ice Preparation, Misting, Pharmaceutical, Spot-Free Rinse, Greenhouse, Whole House, Humidifiers, Boiler Feed Water

Capacity

2200 GPD

Filter Application

5µm Sediment Filter

Liquid Temperature

40-95 Degrees Fahrenheit

Max Operating Pressure

180 PSI

Power

3/4 Horse Power

Size

3/4"

Voltage

120V 60Hz

Contaminants Reduced

Sediment

Inlet Pressure

10-90 PSI

Rating

5 Silt Density Index

Ph Range

3-11

Membrane Size

4" x 40"

Max Chlorine Content

0 Parts per Million Free Chlorine

Max Tds Content

1000 Parts per Million

Membrane Quantity

1

Max Iron Content

0.01 Parts per Million

Max Manganese Content

0.05 Parts per Million

Max Silica Content

25 Parts per Million

Inlet/Outlet Connection

3/4" | FPT

Warranty & Certifications

Warranty

1 year
