Home / Plumbing / Pressure Regulators / Watts PRV-15-LFN55BDU-S Pressure Regulator 1-1/2"
Watts

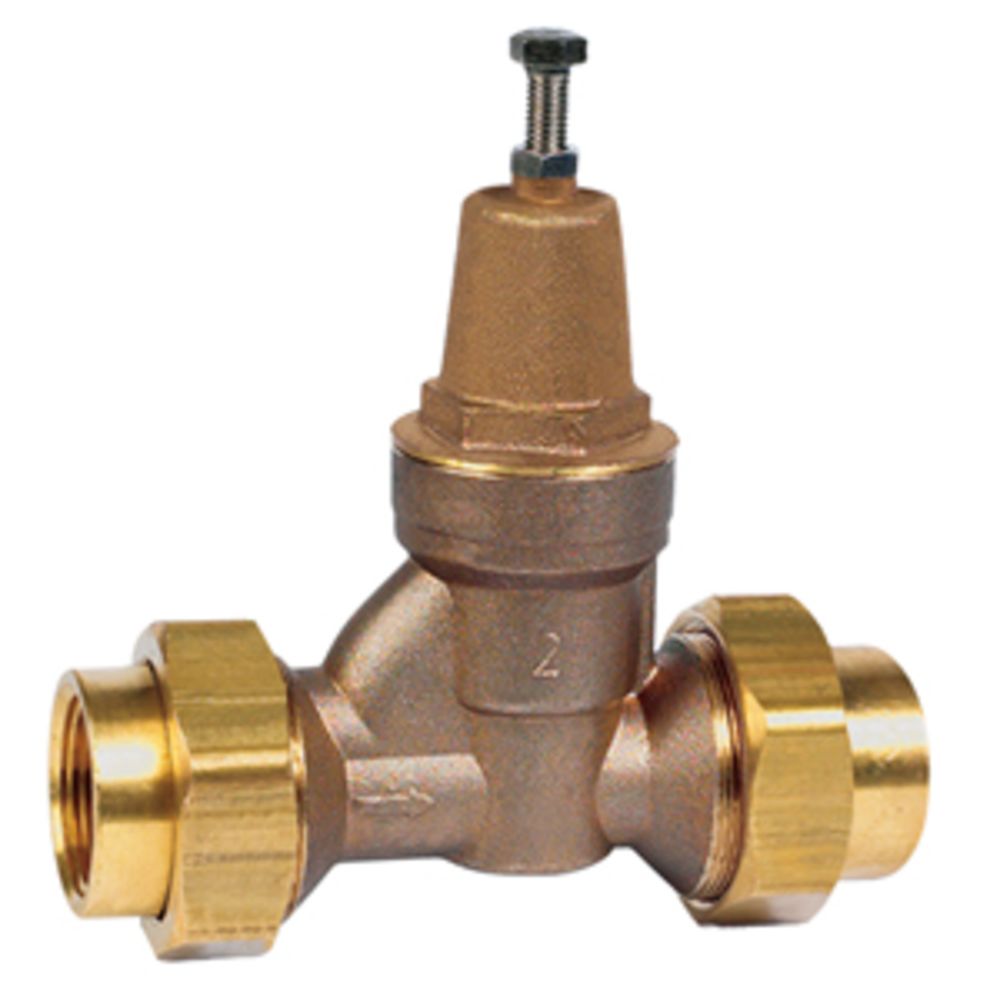

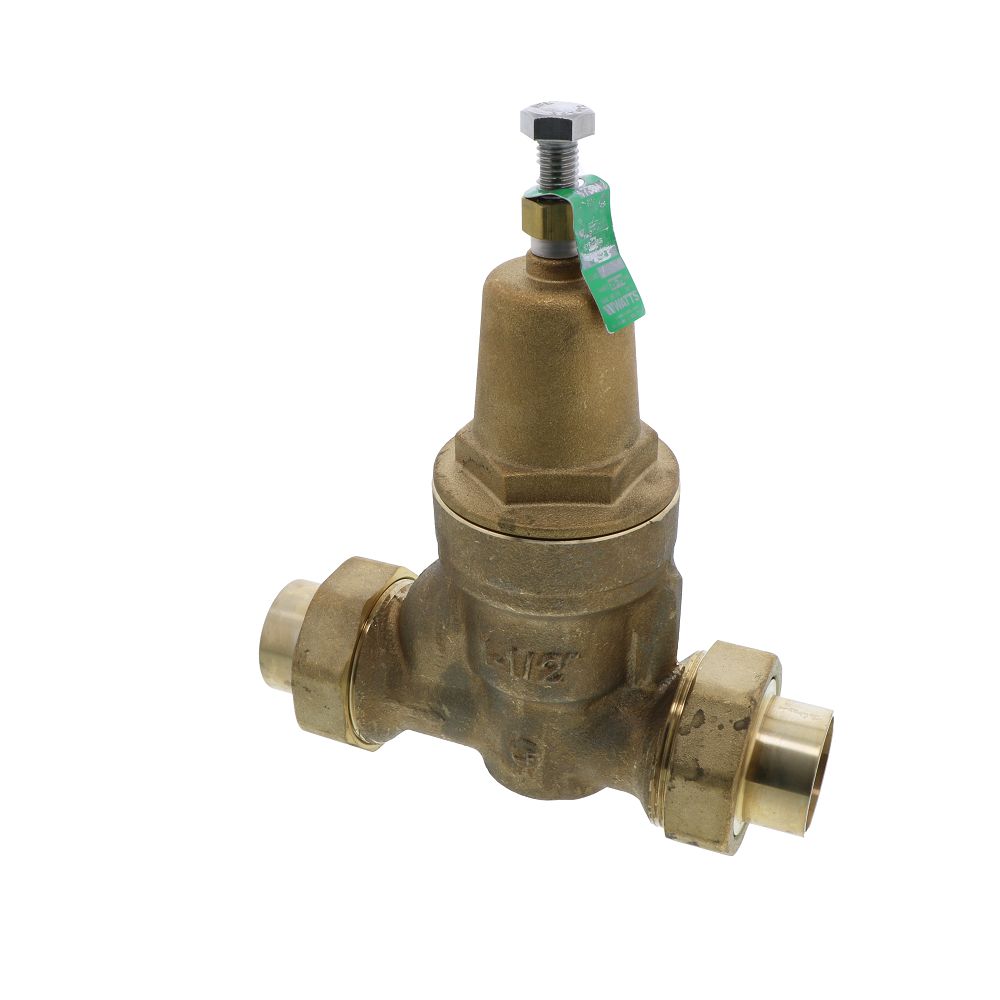

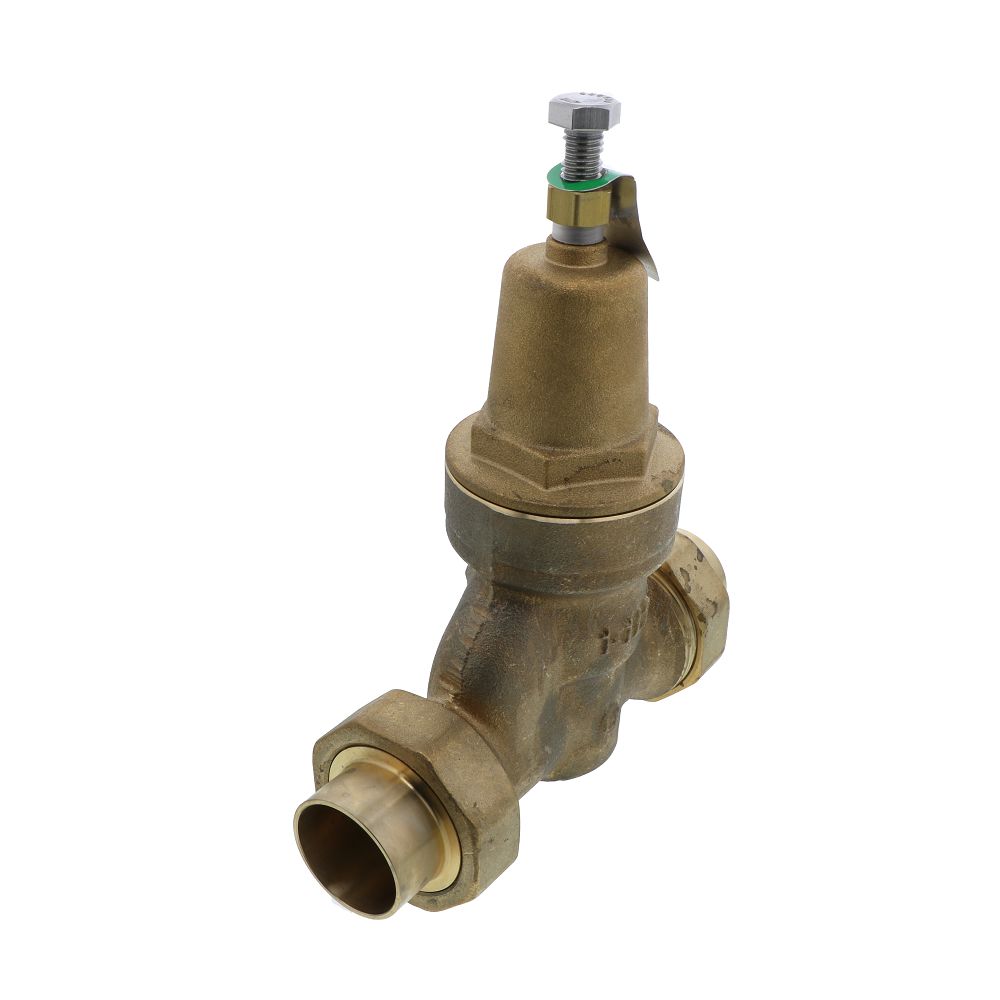

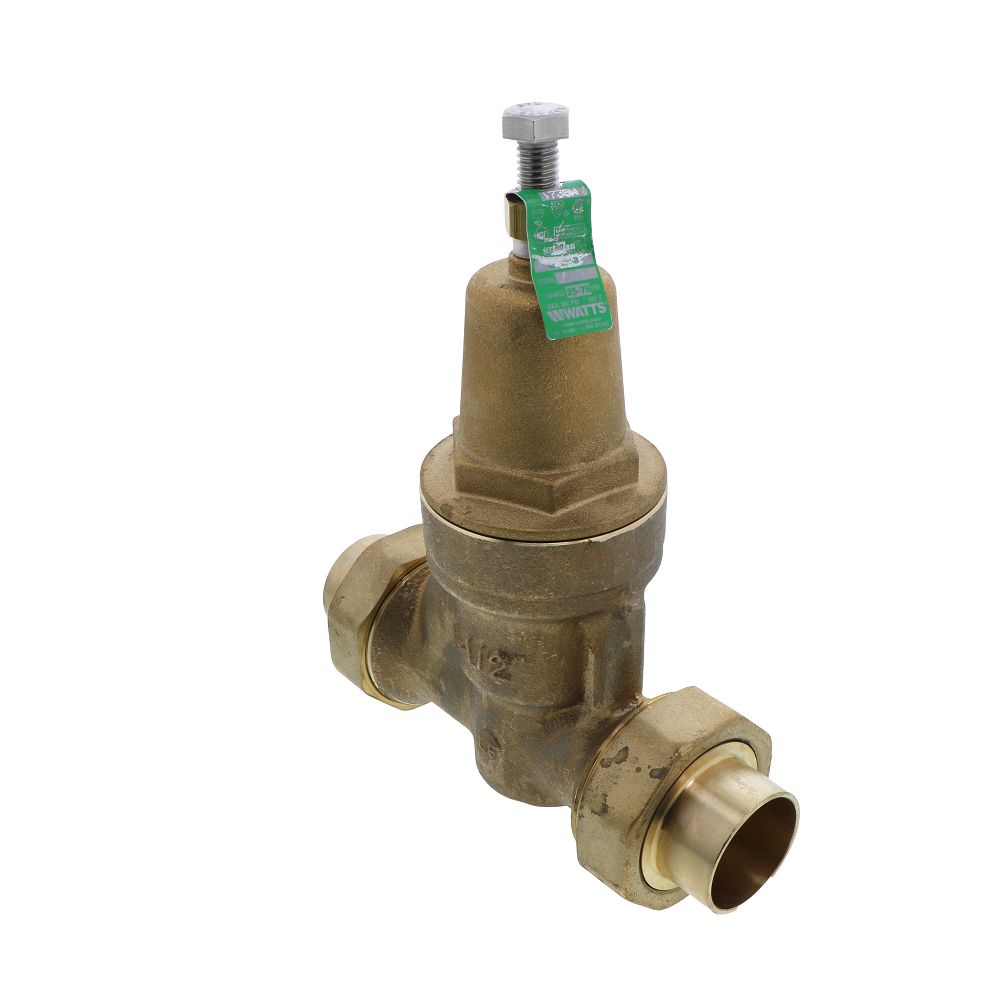

Watts PRV-15-LFN55BDU-S Pressure Regulator 1-1/2"

Part Number: PRV-15-LFN55BDU-S
Alt. Part Number: F0009681, 0009681
Main Product Image
Product image 1 Product image 2 Product image 3 Product image 4
Features:
  • Commercial and residential applications
  • Double union-solder union inlet and outlet
  • Bronze cage
  • Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
  • Integral stainless steel strainer
  • Thermoplastic seat
  • Lead-free brass body construction
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations
Specifications:
  • Size: 1-1/2"
  • Double Union – Solder Union Inlet and Outlet
  • Max Working Pressure: 300 psi (20.7 bar)
  • Adjustable Reduced Pressure Range: 25 to 75 psi (172 - 517 kPa)
  • Standard Reduced Pressure Setting: 50 psi (345 kPa)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)
  • Height: 10.5" max., Width: 8.375"
  • Standards: ASSE 1003, ANSI A112.26.2 & CSA Standard B356
