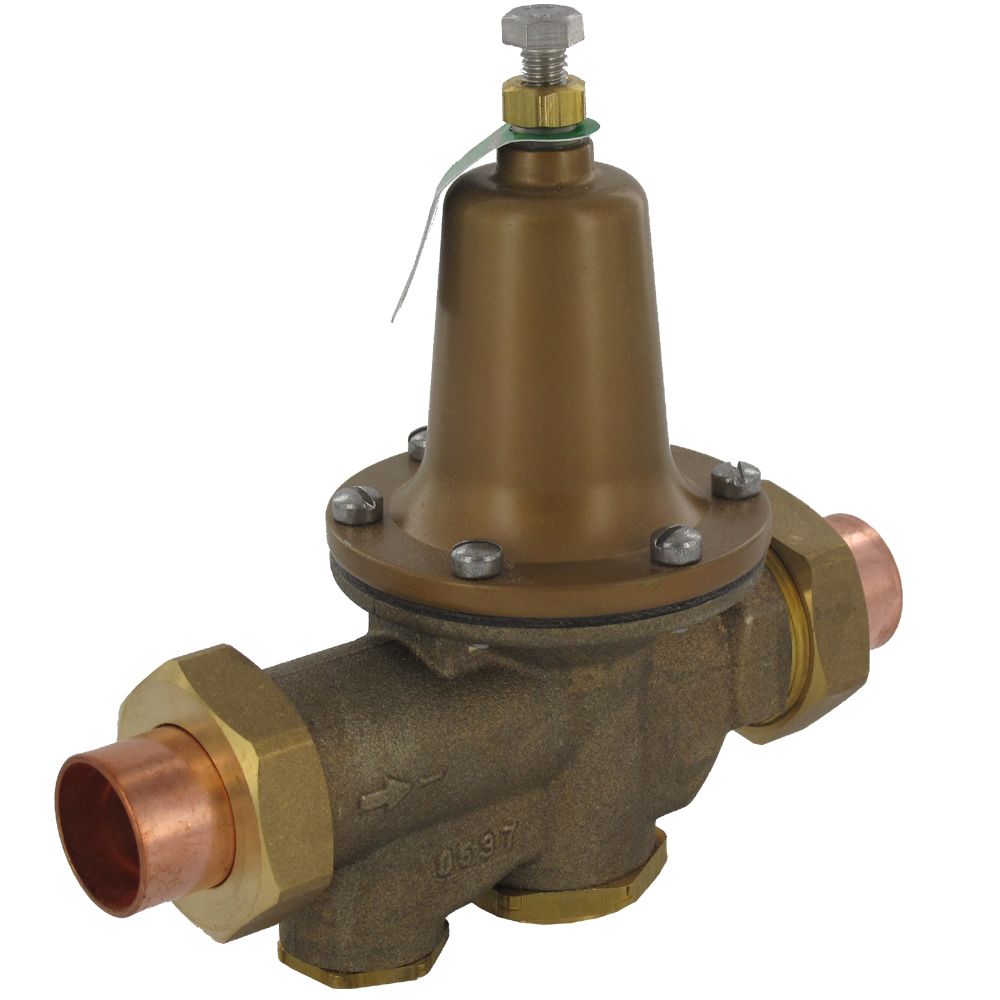

Watts Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water.
Specifications:
Specifications:
- Body: Lead Free Brass
- Maximum Temperature: 160°F
- Maximum Working Pressure: 300psi (21 bar)
- Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa)
- Standard Pressure Setting: 50psi (345kPa)
Weight & Dimensions
Length (inches) | 9 |
Height (inches) | 4 |
Width (inches) | 7.25 |
Weight (lbs) | 5.8 |
Details
Max Temp (°F) | 160 |
Min Temp (°F) | 33 |
Body Material | Lead Free Brass |
Diaphragm Materials | EPDM |
Outlet Pressure | 25-75 PSI |
Watts Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water.
Specifications:
- Body: Lead Free Brass
- Maximum Temperature: 160°F
- Maximum Working Pressure: 300psi (21 bar)
- Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa)
- Standard Pressure Setting: 50psi (345kPa)
Weight & Dimensions
Length (inches) | 9 |
Height (inches) | 4 |
Width (inches) | 7.25 |
Weight (lbs) | 5.8 |
Details
Max Temp (°F) | 160 |
Min Temp (°F) | 33 |
Body Material | Lead Free Brass |
Diaphragm Materials | EPDM |
Outlet Pressure | 25-75 PSI |
Documentation
