Flowmatic

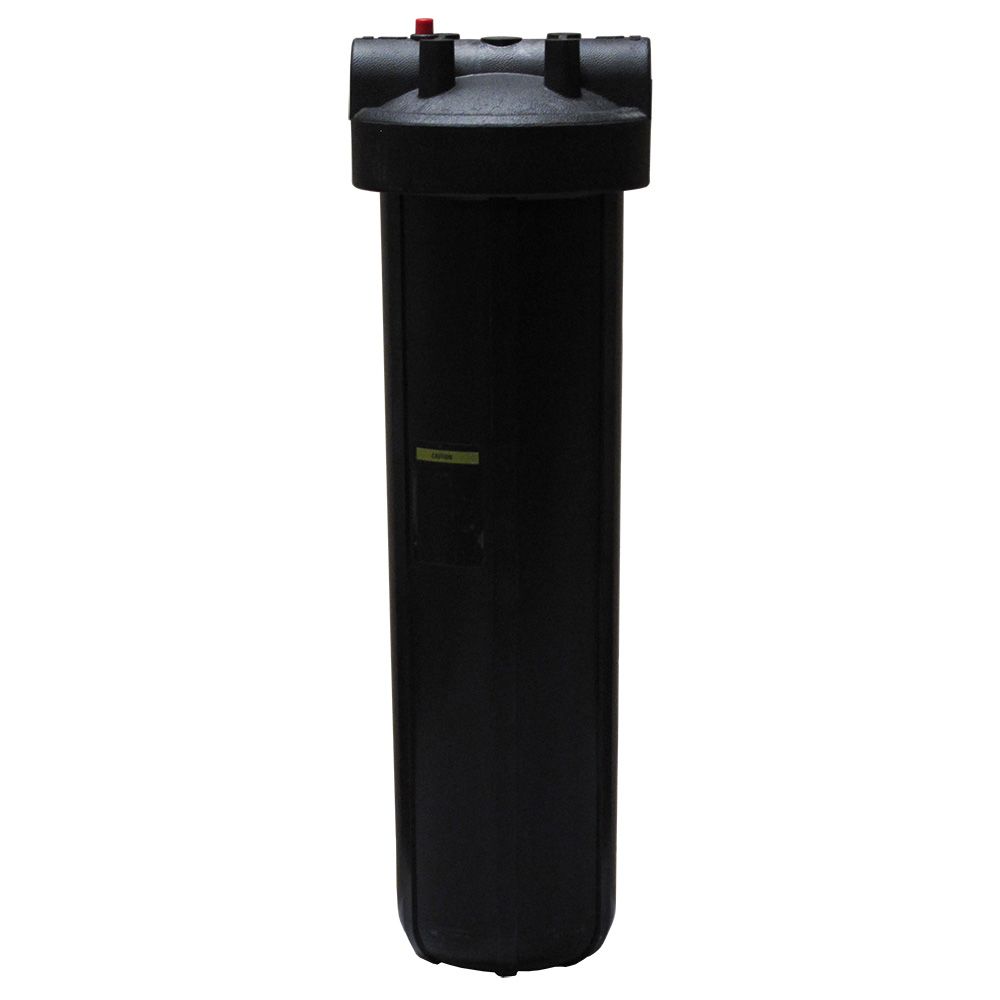

Watts Flowmatic 20" Full Flow Water Filter Housing Black/Black w/ PR - 1" FPT

Part Number: FH10000BB1PR

In Stock

out of stock

In Stock

$59.95


The Watts Flowmatic 20" Full Flow Housing is an ideal substitute for costly low pressure stainless steel vessels. Full Flow filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Made of FDA grade polypropylene
  • Buttress thread design for superior sealing
  • Thick side walls with heavy duty ribs for greater strength
  • EPDM o-ring
  • Max Temperature: 125°F
  • Max Pressure: 90 psi (6.3 bar)


Weight & Dimensions

Approx Height (Inches)

23-3/8 Inches

Approx Width (Inches)

7-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Black

Features

Pressure Relief

Flow Rate

up to 35 GPM @ 60 PSI

Housing Material

Polypropylene

Inlet/Outlet Size

1"

Max Operating Pressure

90 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Origin

Taiwan

Type

Big Blue

Button Assembly

300 series stainless steel, EPDM, Polyproylene


Watts





The Watts Flowmatic 20" Full Flow Housing is an ideal substitute for costly low pressure stainless steel vessels. Full Flow filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Made of FDA grade polypropylene
  • Buttress thread design for superior sealing
  • Thick side walls with heavy duty ribs for greater strength
  • EPDM o-ring
  • Max Temperature: 125°F
  • Max Pressure: 90 psi (6.3 bar)

Weight & Dimensions

Approx Height (Inches)

23-3/8 Inches

Approx Width (Inches)

7-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Black

Features

Pressure Relief

Flow Rate

up to 35 GPM @ 60 PSI

Housing Material

Polypropylene

Inlet/Outlet Size

1"

Max Operating Pressure

90 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Origin

Taiwan

Type

Big Blue

Button Assembly

300 series stainless steel, EPDM, Polyproylene
