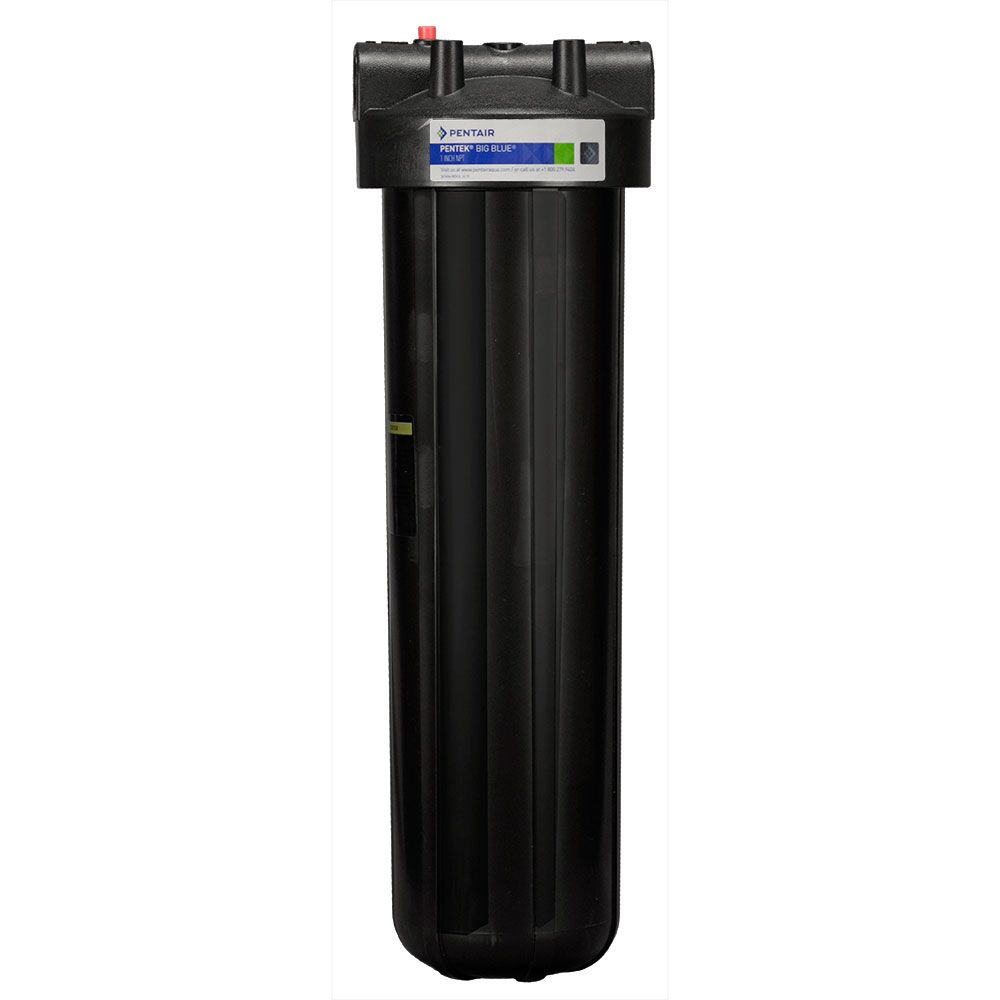

Pentek 20" Big Black Water Filter Housing With Pressure Relief - 1" FPT

Part Number: 150383

In Stock

out of stock

In Stock

$49.68

Pentek 20" Big Black Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Black filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Big Black Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Polypropylene cap and sump
  • 151122 Buna-N O-ring
  • Max Temperature: 100°F
  • Max Pressure: 90 psi (6.2 bar)
  • NSF Certified to Standard 42


Weight & Dimensions

Approx Height (Inches)

23-3/8 Inches

Approx Width (Inches)

7-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Black

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Size

1"

Material Of Construction

Polypropylene

Max Operating Pressure

90 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Type

Big Blue

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

2 psi @ 15 gpm

Warranty & Certifications

Certifications

NSF/ANSI 42


Pentek




Pentek 20" Big Black Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Black filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Big Black Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Polypropylene cap and sump
  • 151122 Buna-N O-ring
  • Max Temperature: 100°F
  • Max Pressure: 90 psi (6.2 bar)
  • NSF Certified to Standard 42

Weight & Dimensions

Approx Height (Inches)

23-3/8 Inches

Approx Width (Inches)

7-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Black

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Size

1"

Material Of Construction

Polypropylene

Max Operating Pressure

90 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Type

Big Blue

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

2 psi @ 15 gpm

Warranty & Certifications

Certifications

NSF/ANSI 42
