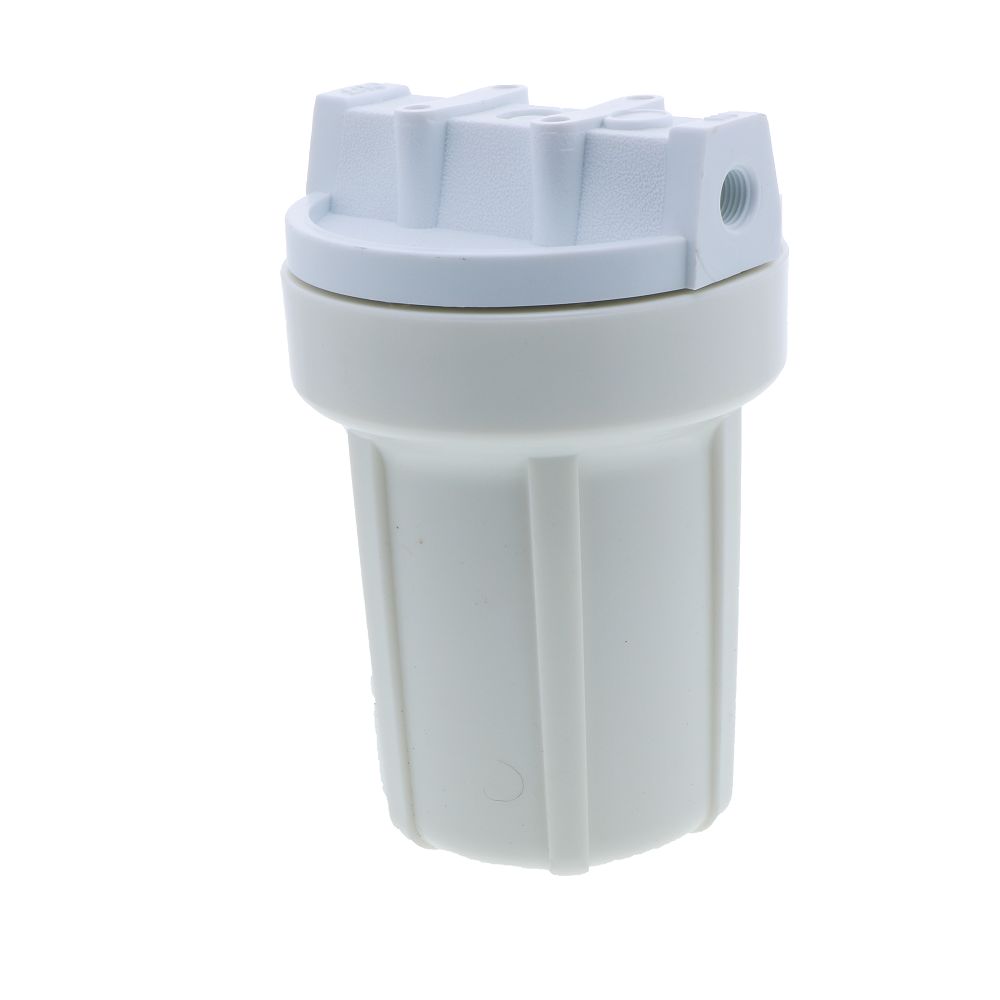

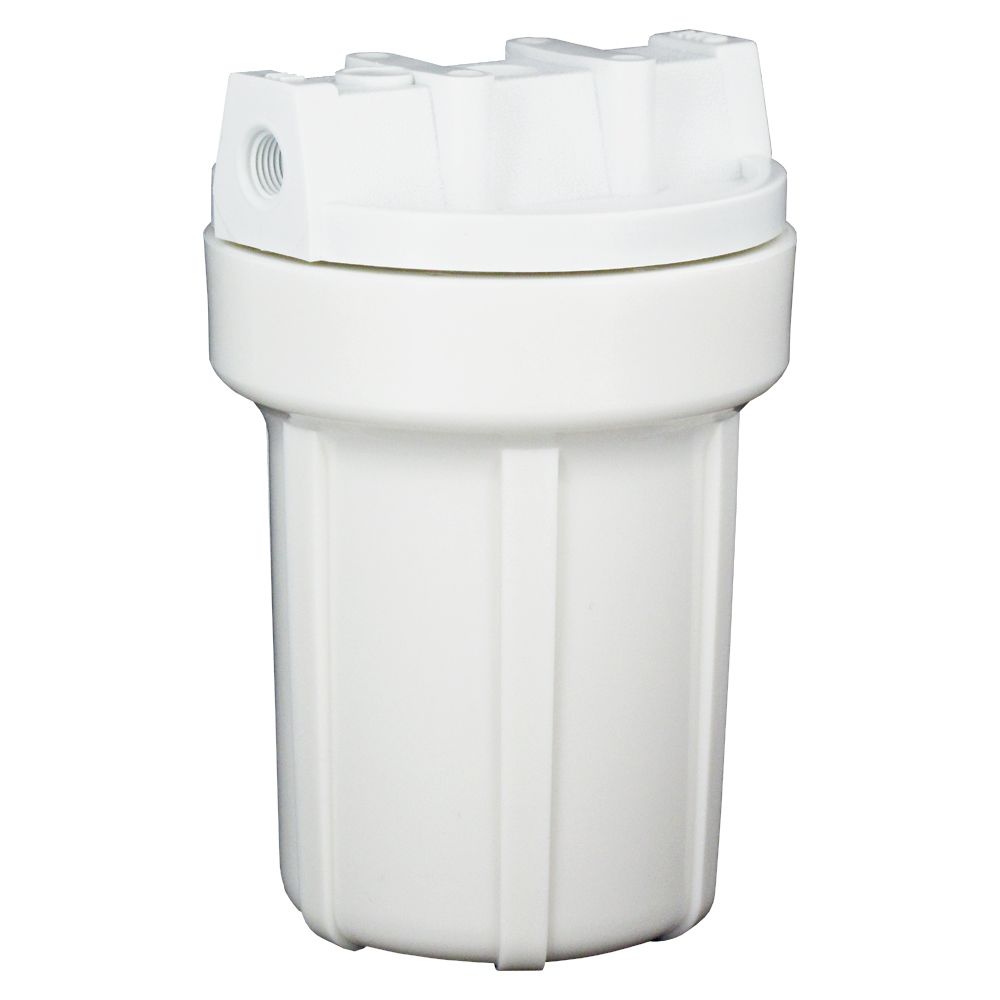

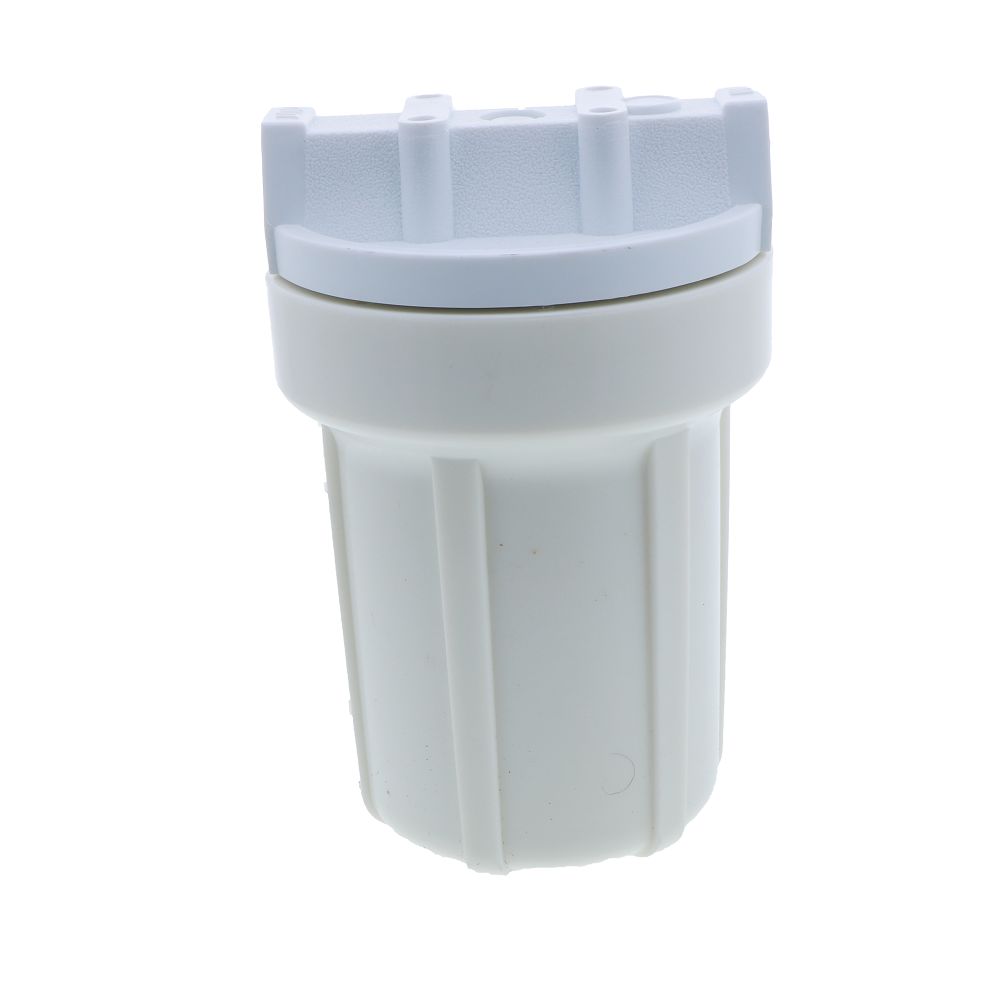

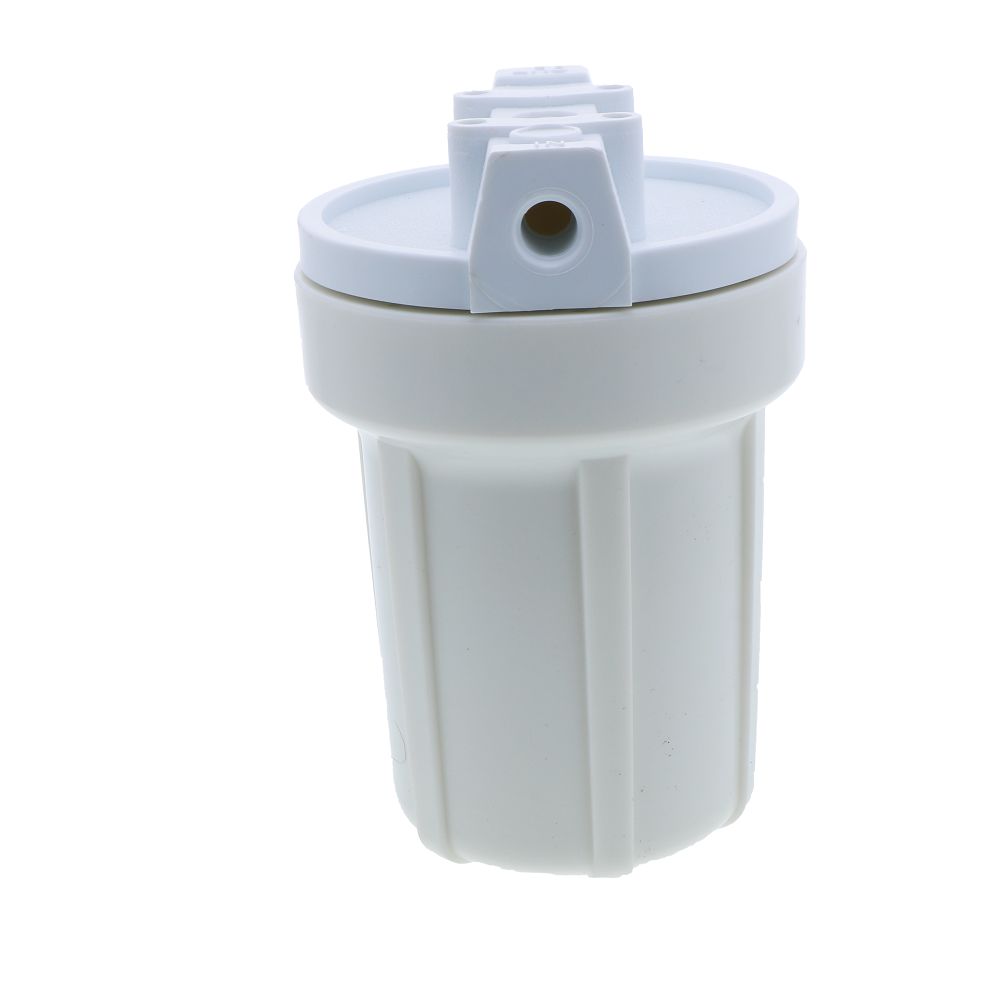

The Watts FH500WW14 5" Water Filter Housing is made from the highest quality, FDA grade, 100% polypropylene. This provides excellent chemical resistance with most acids, alcohol, ammonia, oils, plating solutions and many aggressive chemicals. The housing has thick walls and added ribs for added strength.
Specifications:
- Excellent chemical compatibility
- Inlet/Outlet: 1/4" FPT
- Color: White
- Applications: RVs, Campers, Boats, Small Sinks, Countertop Residential Filtration, Pre- and Post Reverse Osmosis Filtration, Humidifying systems
- Ideal for use in a variety of low-flow applications
Weight & Dimensions
Approx Height (Inches) | 7.5 Inches |
Approx Length (Inches) | 5" |
Approx Width (Inches) | 4.28 Inches |
Details
Cap Color | White |
Cap Material | Polypropylene |
Color / Finish | White |
Housing Material | Polypropylene |
Material Of Construction | Polypropylene |
Max Operating Pressure | 125 PSI |
Max Operating Temperature | 125 Degrees Fahrenheit |
Mounting Options | Mounting Bosses |
O Rings | EPDM |
Size | 1/4" |
Inlet/Outlet Connection | 1/4" | FPT |
