Watts

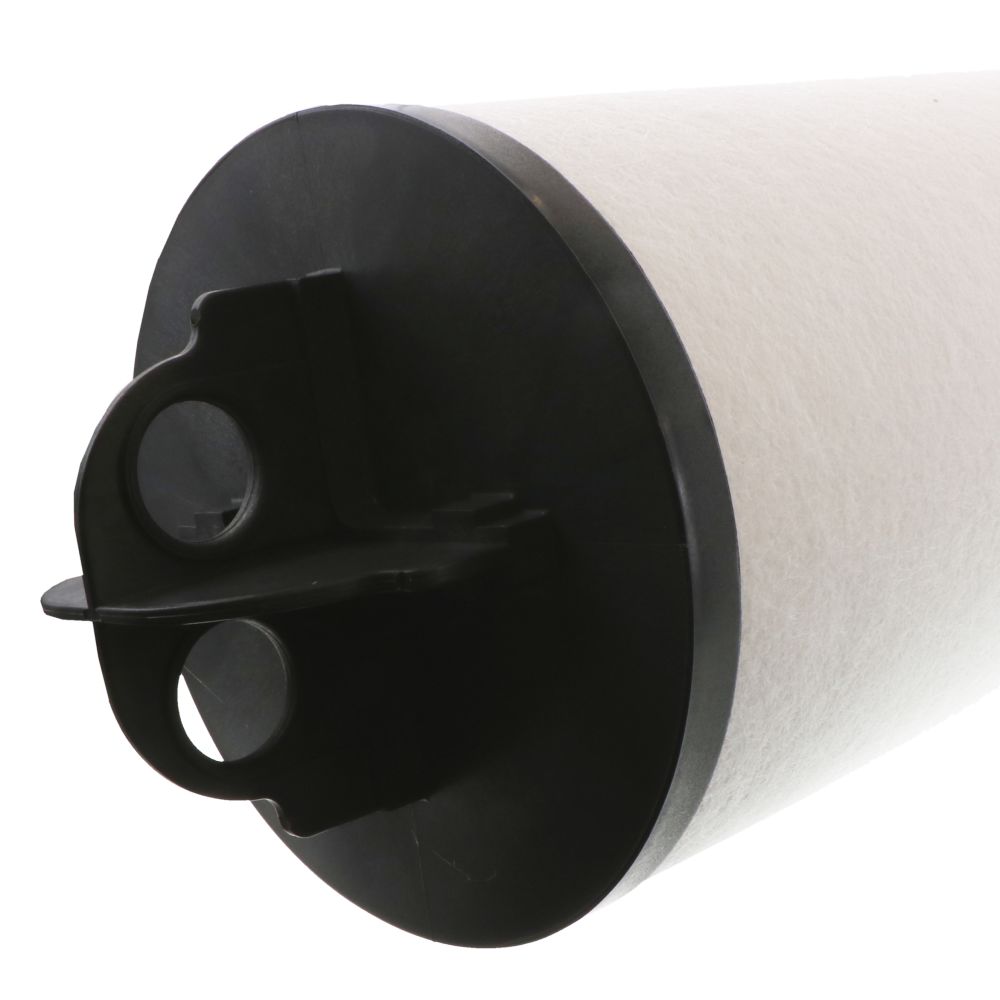

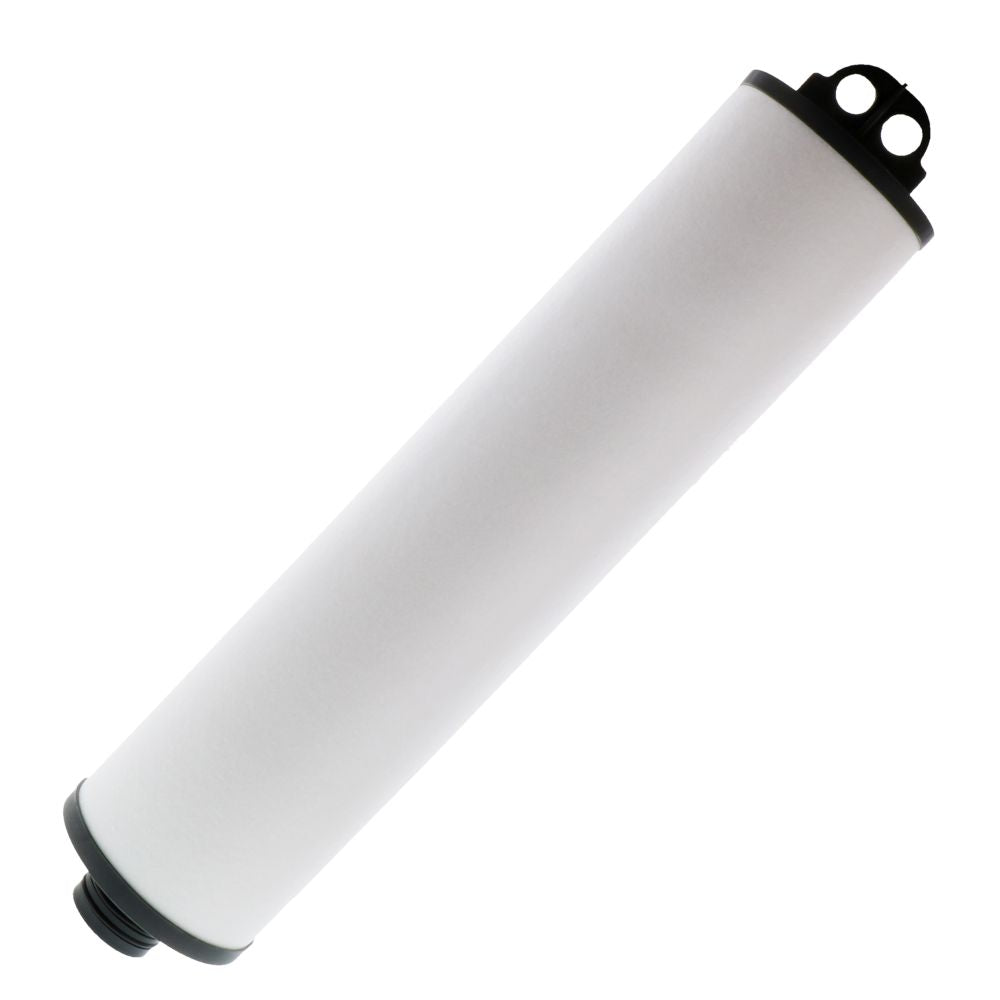

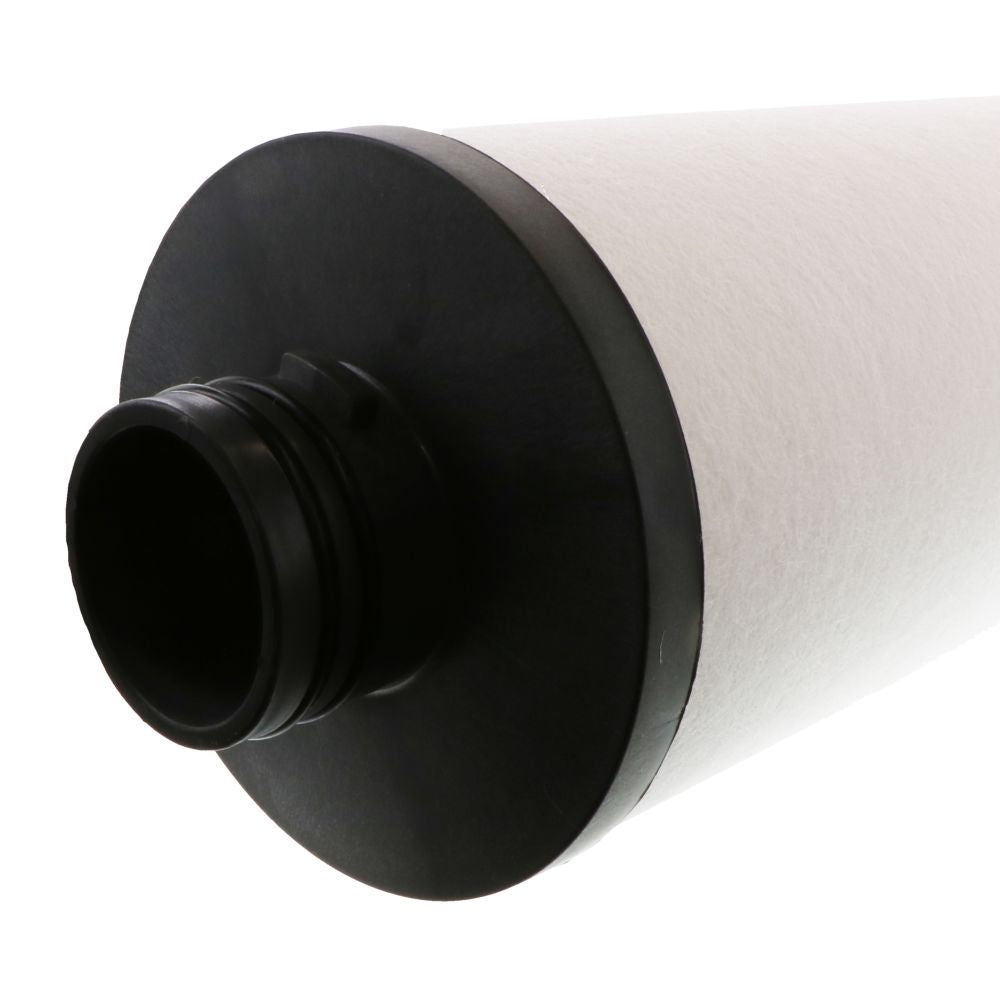

Watts Big-Bubba Depth Cartridge, 50 Micron

Part Number: BBC-150-D50

In Stock

out of stock

In Stock

$87.46

The Watts Big-Bubba Depth Filter Cartridge melt blown polypropylene cartridges are recommended when depth filtration is necessary for gelatinous substances and when chemical resistance may be a requirement.

Specifications:
  • 50 Micron
  • Double O-Ring Seals
  • Jumbo Cartridge Filters




Weight & Dimensions

Approx Length (Inches)

26-1/4" (66.7 cm)

Box Dimensions

7x6.75x31.625

Height (inches)

7

Length (inches)

32

Weight (lbs)

5

Width (inches)

7

Details

Capacity

As Needed

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

50 µm

O-Rings

EPDM

Recommended Flow Rate

100 GPM

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Single Open 222 O-Ring

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Flow Rate

100 GPM

Media Type

Thermally Bonded Polypropylene

Micron Rating

50 µm

Product Length

26-1/4"

Warranty & Certifications

Certifications

NSF/ANSI 61



The Watts Big-Bubba Depth Filter Cartridge melt blown polypropylene cartridges are recommended when depth filtration is necessary for gelatinous substances and when chemical resistance may be a requirement.

Specifications:
  • 50 Micron
  • Double O-Ring Seals
  • Jumbo Cartridge Filters



Weight & Dimensions

Approx Length (Inches)

26-1/4" (66.7 cm)

Box Dimensions

7x6.75x31.625

Height (inches)

7

Length (inches)

32

Weight (lbs)

5

Width (inches)

7

Details

Capacity

As Needed

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

50 µm

O-Rings

EPDM

Recommended Flow Rate

100 GPM

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4-1/2"

End Cap Type

Single Open 222 O-Ring

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Flow Rate

100 GPM

Media Type

Thermally Bonded Polypropylene

Micron Rating

50 µm

Product Length

26-1/4"

Warranty & Certifications

Certifications

NSF/ANSI 61
