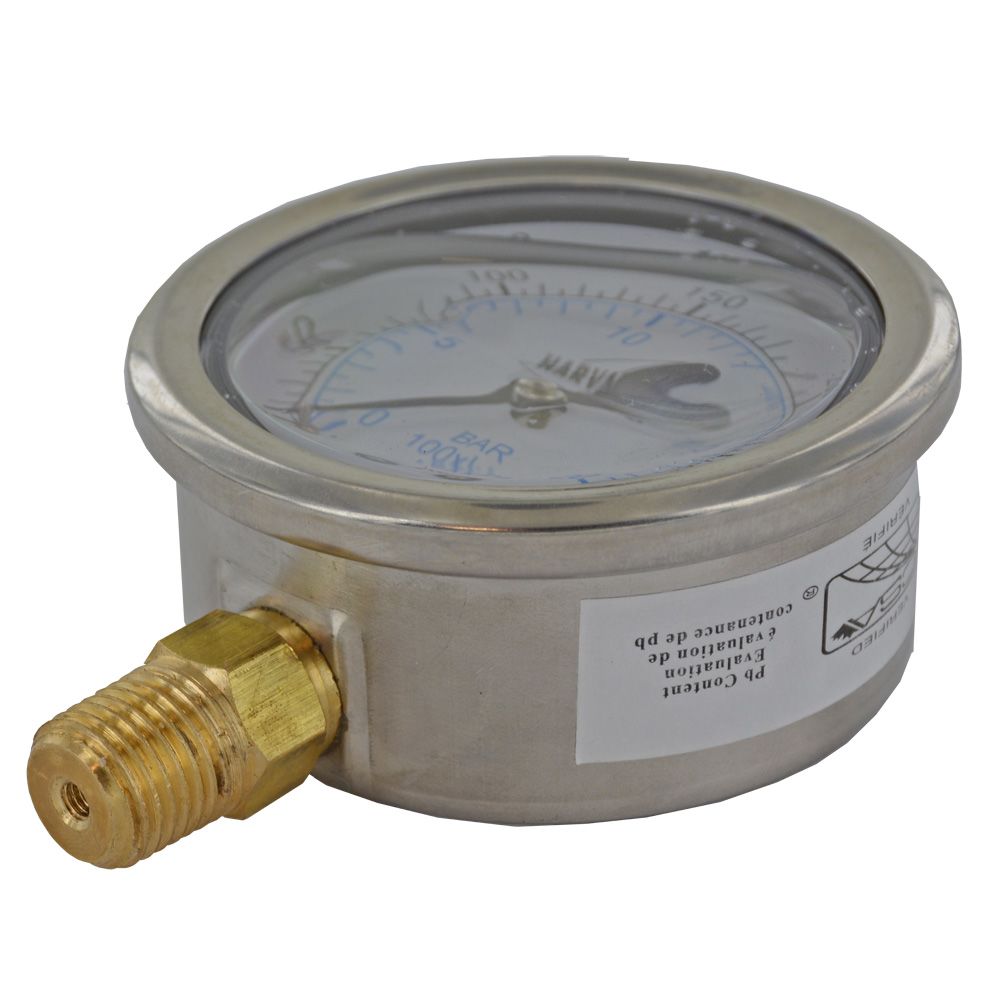

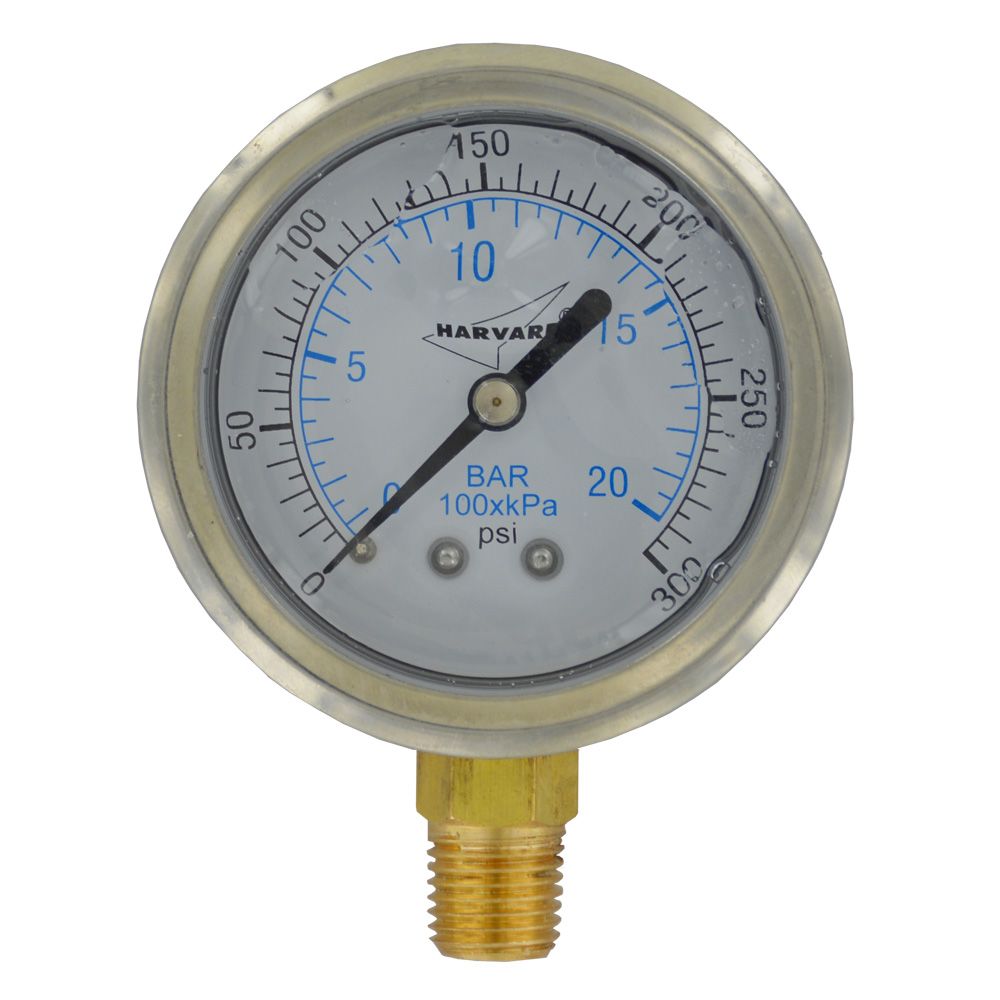

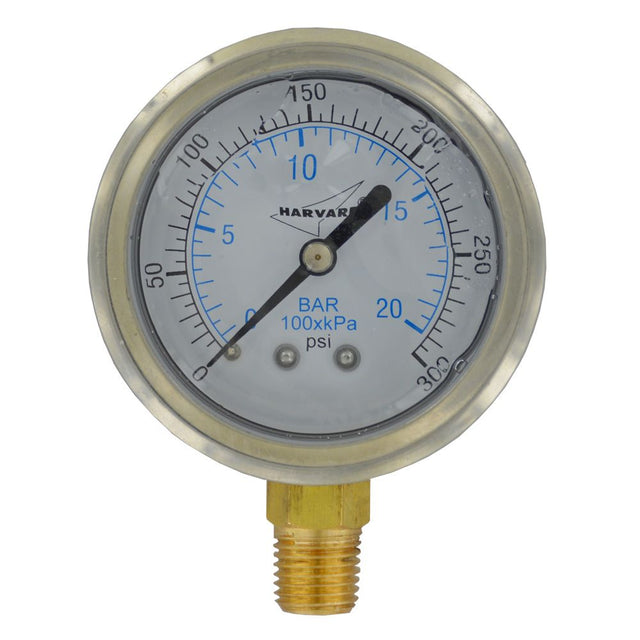

Water Pressure Gauge - 300 PSI, 1/4" MPT, 2.5" Plastic Dial, Lower Mount, SS Case

This bottom mount pressure gauge is glycerin filled and features a stainless steel case, making it suitable for use in applications where vibration or corrosion are a concern. The 1/4" MPT brass thread is lead free so the gauge can be used in potable water systems.

Specifications:

Internals: Brass
Lens: Clear acrylic
Face Diameter: 2.5"
Case: Stainless steel
Connection: 1/4" MPT
Liquid: Glycerine & water
Mount Type: Lower mount
Pressure Rating: 0 - 300 PSI
Connection: center back mount
Suitable for use in high vibration and high corrosion application

Compatible with:

Coster Engineering

62501156

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Dial Size	2-1/2" (63 mm)
Face	White Aluminum with Black/Blue Print
Fluid	Glycerine and water
Housing Material	Stainless Steel
Internal Component Material	Brass
Material Of Construction	Brass
Max Pressure (Psi)	300
Max Temp (°F)	160
Min Pressure (Psi)	0
Min Temp (°F)	30
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	A Grade: 2-1-2%
Case Filling	Glycerine
Case Type	Stainless Steel
Connection Type	1/4" MPT
Gauge Bezel	Plastic Fixed
Gauge Lens	Plastic
Mounting Style	Lower Mount
Pressure Rating	300 PSI
Type	Lower Mount
Wetted Parts	Copper Alloy (Brass)
Shipping Dimensions
Shipping Length	3.25 in.
Shipping Width	2.38 in.
Shipping Height	1.13 in.
Product Weight & Dimensions
Product Height	1.13 in.
Product Length	3.25 in.
Product Width	2.38 in.
Product Weight (lbs)	0.028125
