Bottom Mount 2.5 Pressure Gauge Liquid Filled 0-300 PSI 1/4 NPT

Part Number: PGB25300DNL

Alt. Part Number: SEC-201L-254H

In Stock

out of stock

In Stock

$12.99

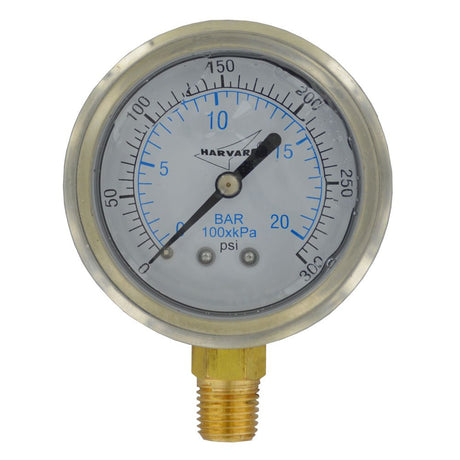

The PGB25300DNL is a lower mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:
  • Glycerine filled
  • Lens: polycarbonate
  • Case: stainless steel
  • Pointer: black aluminum
  • Bezel: stainless steel, fixed
  • Wetted Parts: copper alloy
  • Connection: bottom mount
  • Scale: Standard psi/BAR (x100 = kPa)
  • Ambient Temperature: 30º F to 160º F
  • Meets or exceeds ASME B40.100 pressure gauge standard




Weight & Dimensions

Height (inches)

1.5

Length (inches)

3.75

Weight (lbs)

0.03125

Width (inches)

1.5

Details

Dial Size

2-1/2" (63 mm)

Face

White with Black/Blue Print

Fluid

Glycerine and water

Housing Material

Stainless Steel

Lens

Polycarbonate

Max Pressure (Psi)

300

Min Pressure (Psi)

0

Mounting Options

Lower Bottom

Pointer

Aluminum - Black


Bottom




The PGB25300DNL is a lower mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:
  • Glycerine filled
  • Lens: polycarbonate
  • Case: stainless steel
  • Pointer: black aluminum
  • Bezel: stainless steel, fixed
  • Wetted Parts: copper alloy
  • Connection: bottom mount
  • Scale: Standard psi/BAR (x100 = kPa)
  • Ambient Temperature: 30º F to 160º F
  • Meets or exceeds ASME B40.100 pressure gauge standard



Weight & Dimensions

Height (inches)

1.5

Length (inches)

3.75

Weight (lbs)

0.03125

Width (inches)

1.5

Details

Dial Size

2-1/2" (63 mm)

Face

White with Black/Blue Print

Fluid

Glycerine and water

Housing Material

Stainless Steel

Lens

Polycarbonate

Max Pressure (Psi)

300

Min Pressure (Psi)

0

Mounting Options

Lower Bottom

Pointer

Aluminum - Black
