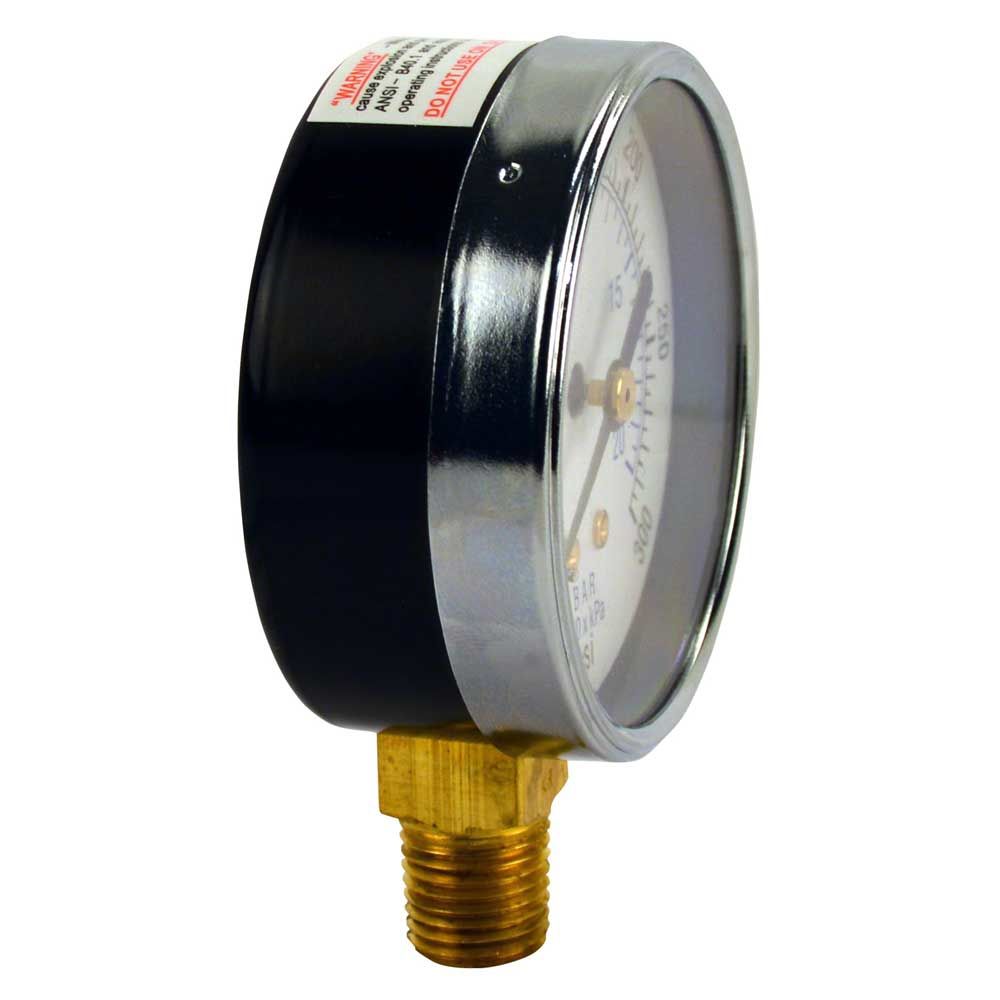

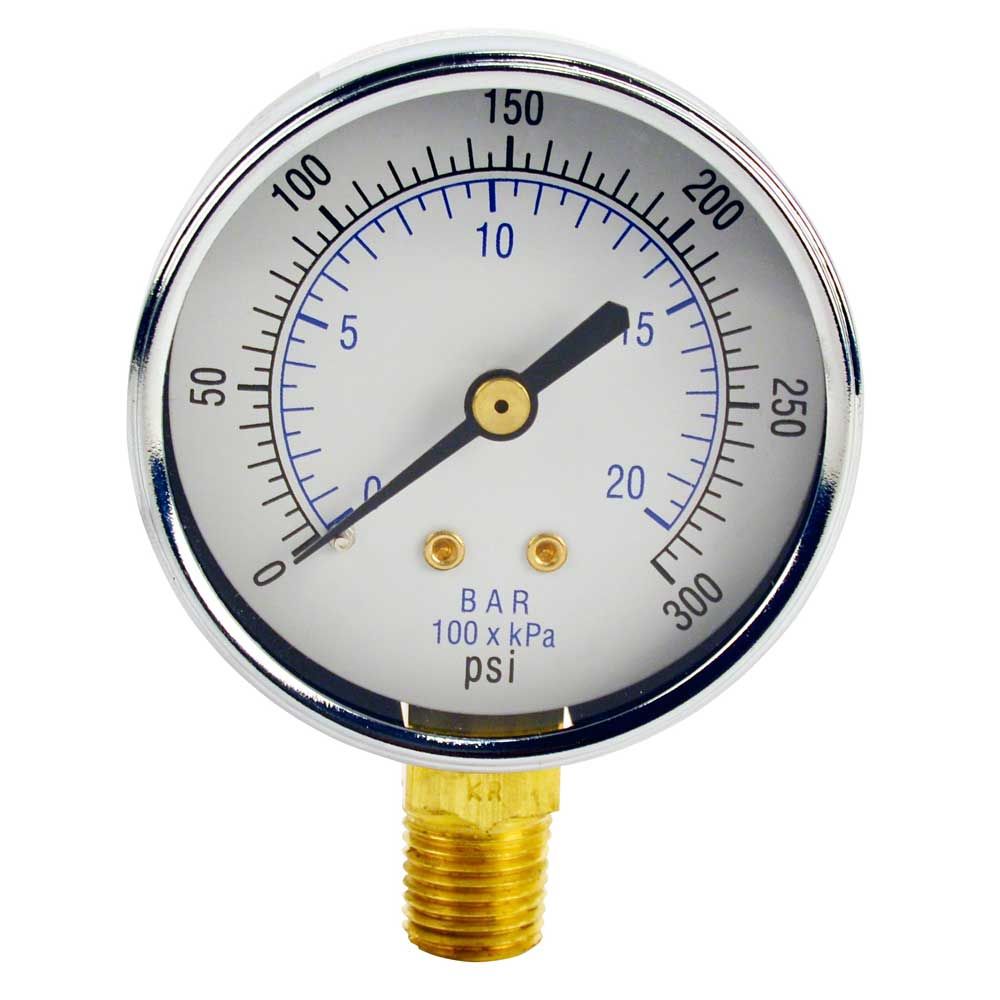

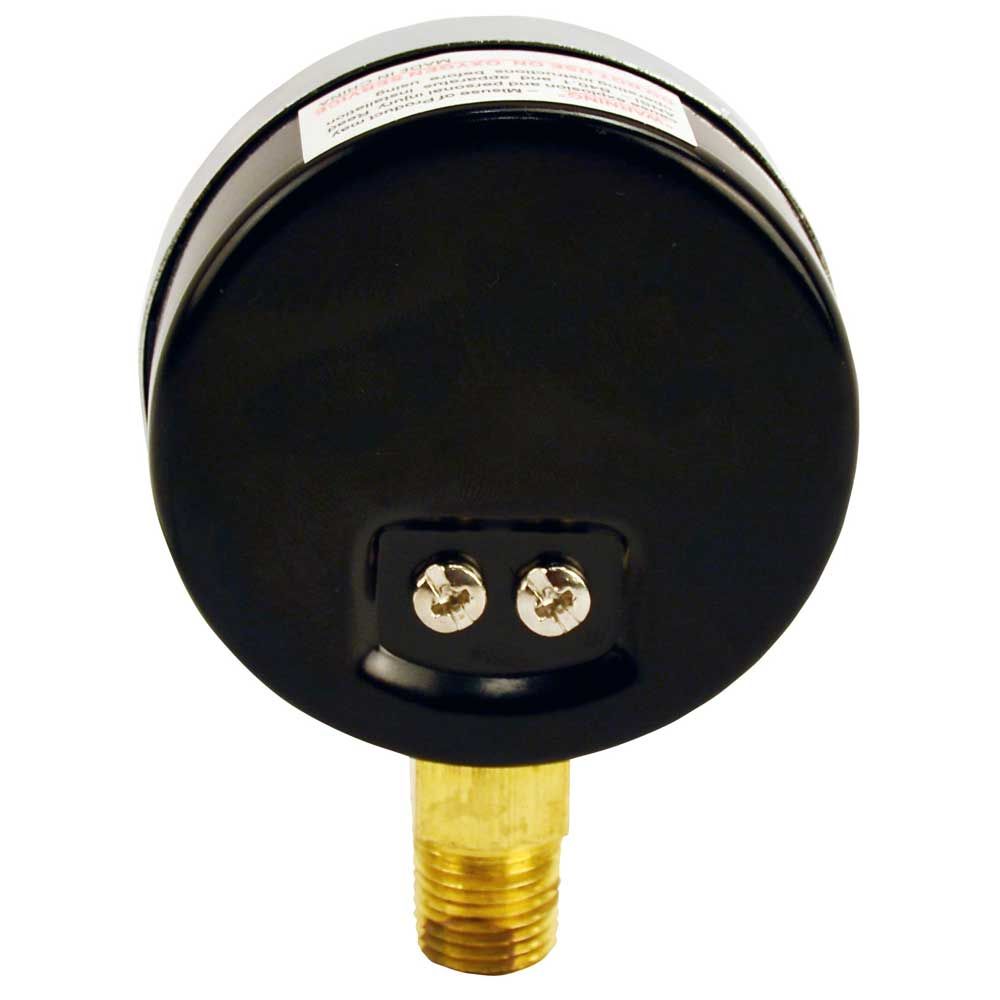

Water Pressure Gauge 300 PSI, 1/4" MPT, 2.5" Glass Dial, Lower Mount, Black Steel Case

Part Number: 90B25-L4-11B-300G

Alt. Part Number: 101D-254H

In Stock

out of stock

In Stock

$11.66

Bottom Mount Pressure Gauges are designed with two-tone dials making them easy to read. Every gauge is tested for accuracy and leakage. This Pressure Gauges is designed for demanding applications such as reverse osmosis, oil refining, chemical, food processing plants, and water treatment.

Specifications:
  • Non-Filled
  • Stem: Brass
  • Case: Black Steel
  • Face Diameter: 2.5"
  • Lens: Polycarbonate
  • Connection: 1/4" MPT
  • Mount Type: bottom mount
  • Pressure Range: 0 - 300 PSI
  • Temperature Range: -30 to 180º F
  • Internal: Brass & 316 stainless steel




Weight & Dimensions

Weight (lbs)

0.85

Details

Accuracy

B (3-2-3%)

Bezel

Chrome Plated steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black/Blue Print

Fluid

None - Dry, not fillable

Housing Material

Black Steel

Internal Component Material

Brass and 316SS

Lens

Polycarbonate

Material Of Construction

Brass

Max Pressure (Psi)

300

Max Temp (°F)

160

Min Pressure (Psi)

0

Min Temp (°F)

-50

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars

Wetted Materials

Brass, Phosphor Bronze


Water
