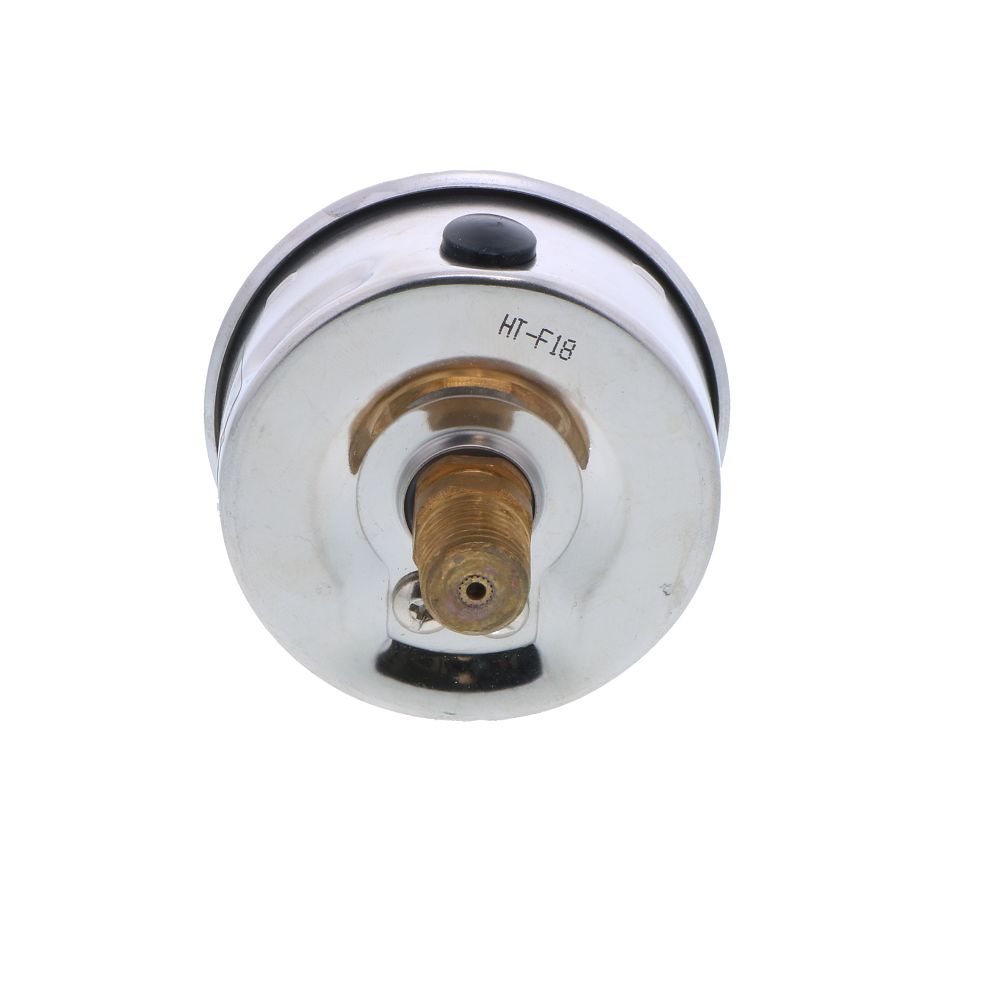

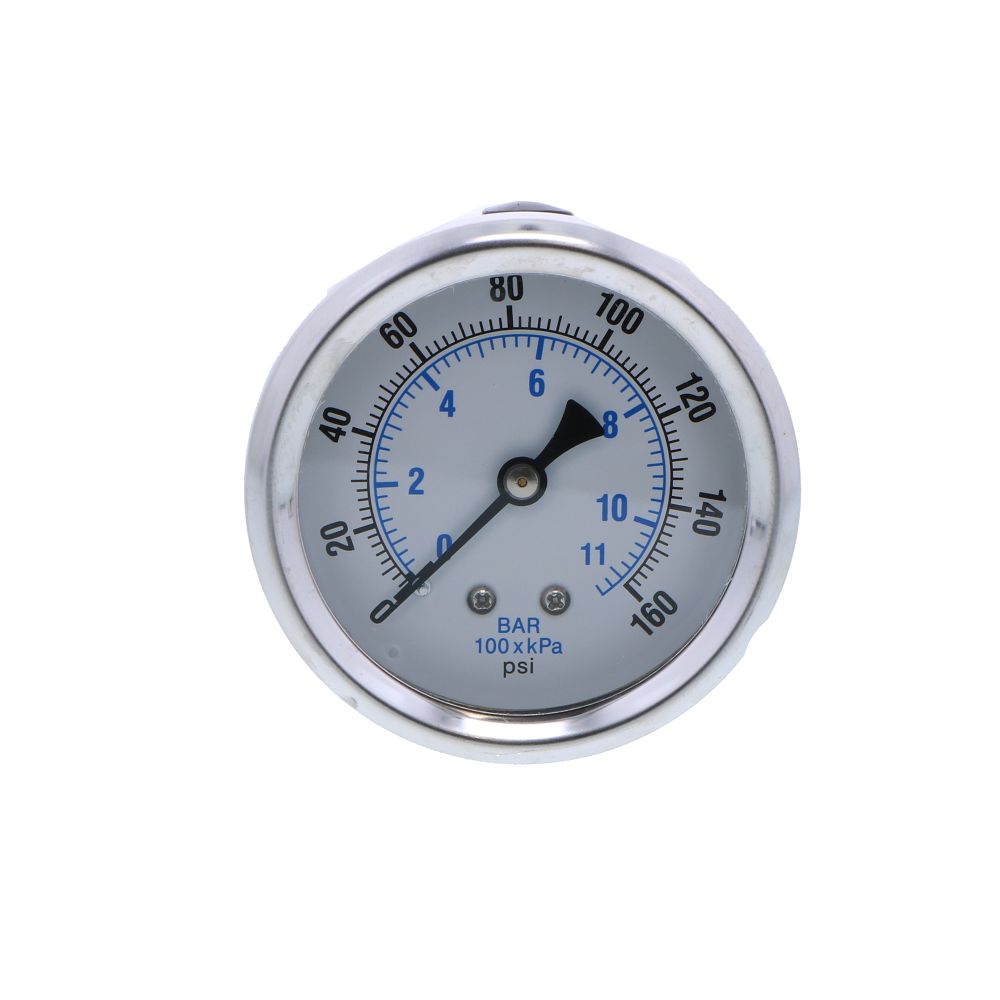

Water Pressure Gauge 160 PSI, 1/4" MPT, 2.5" Plastic Dial, Center Mount, SS Case
Part Number: 91A25-C4-43B-160P
Alt. Part Number: SEC-202L-254F
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
PG Series Pressure Gauges have easy-to-read two-tone dials printed in bold UV resisstant ink for ease of legibility even after extensive exposure to direct sunlight. Every gauge is tested for accuracy and leakage. Liquatecs pressure gauges are designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.
Specifications:
- Lens: Polycarbonate
- Face Diameter: 2.5"
- Connection: 1/4" MPT
- Mount Type: Center Mount
- Case: 304 Stainless steel
- Pressure Rating: 0 - 160 PSI
- Temperature Rating: 0 - 140º F
- Internals: Copper alloy
Product Details | |
---|---|
Accuracy | B (3-2-3%) |
Bezel | Stainless Steel |
Dial Size | 2-1/2" (63 mm) |
Face | White Aluminum with Black/Blue Print |
Fluid | Glycerine and water |
Housing Material | 304 Stainless Steel |
Internal Component Material | Brass and 316SS |
Lens | Polycarbonate |
Material Of Construction | Brass |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 30 |
Mounting Options | Center Mount |
Pointer | Aluminum - Black |
Units Of Measure (Psi, Bars, Hgvac) | PSI/Bars |
Wetted Materials | Copper Alloy |
Type | Center Mount |
Shipping Dimensions | |
Shipping Length | 2.75 in. |
Shipping Width | 2.75 in. |
Shipping Height | 2.5 in. |
Product Weight & Dimensions | |
Product Height | 2.5 in. |
Product Length | 2.75 in. |
Product Width | 2.75 in. |
Product Weight (lbs) | 0.458 |
PG Series Pressure Gauges have easy-to-read two-tone dials printed in bold UV resisstant ink for ease of legibility even after extensive exposure to direct sunlight. Every gauge is tested for accuracy and leakage. Liquatecs pressure gauges are designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.
Specifications:
- Lens: Polycarbonate
- Face Diameter: 2.5"
- Connection: 1/4" MPT
- Mount Type: Center Mount
- Case: 304 Stainless steel
- Pressure Rating: 0 - 160 PSI
- Temperature Rating: 0 - 140º F
- Internals: Copper alloy
Product Details | |
---|---|
Accuracy | B (3-2-3%) |
Bezel | Stainless Steel |
Dial Size | 2-1/2" (63 mm) |
Face | White Aluminum with Black/Blue Print |
Fluid | Glycerine and water |
Housing Material | 304 Stainless Steel |
Internal Component Material | Brass and 316SS |
Lens | Polycarbonate |
Material Of Construction | Brass |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 30 |
Mounting Options | Center Mount |
Pointer | Aluminum - Black |
Units Of Measure (Psi, Bars, Hgvac) | PSI/Bars |
Wetted Materials | Copper Alloy |
Type | Center Mount |
Shipping Dimensions | |
Shipping Length | 2.75 in. |
Shipping Width | 2.75 in. |
Shipping Height | 2.5 in. |
Product Weight & Dimensions | |
Product Height | 2.5 in. |
Product Length | 2.75 in. |
Product Width | 2.75 in. |
Product Weight (lbs) | 0.458 |
