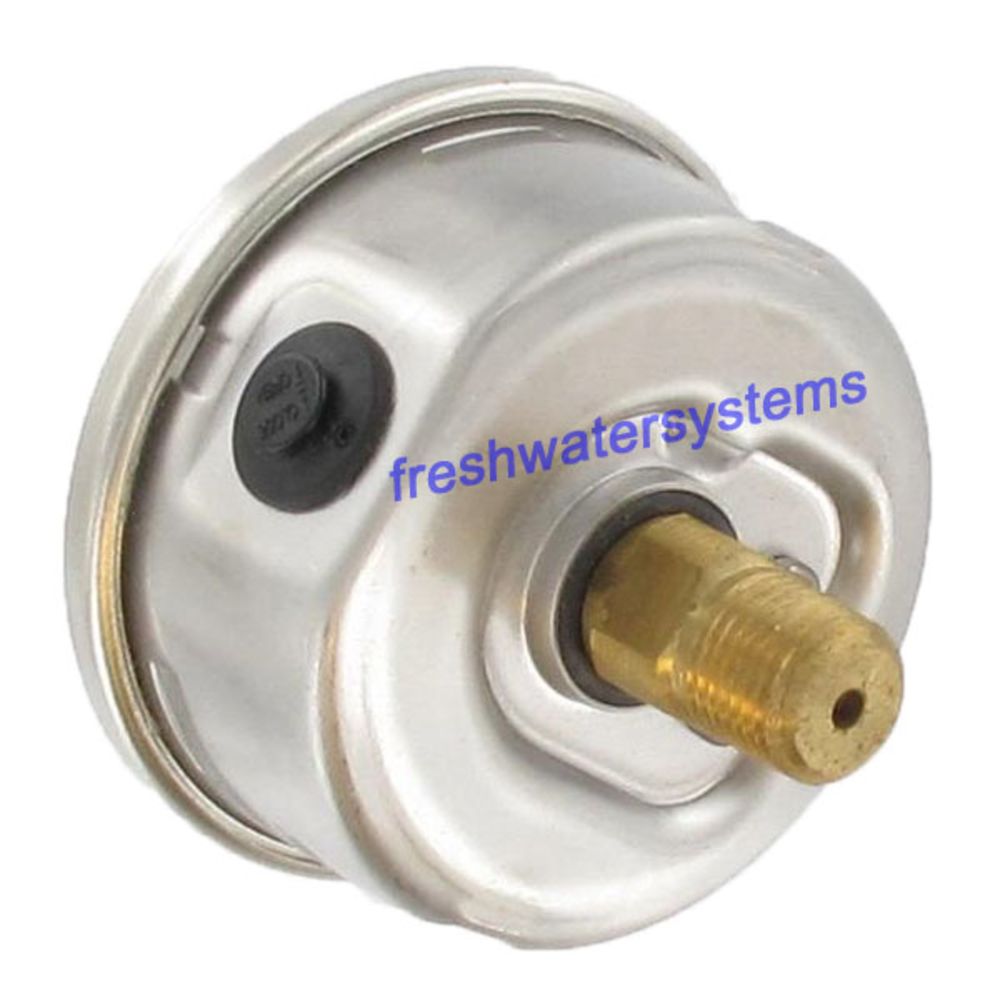

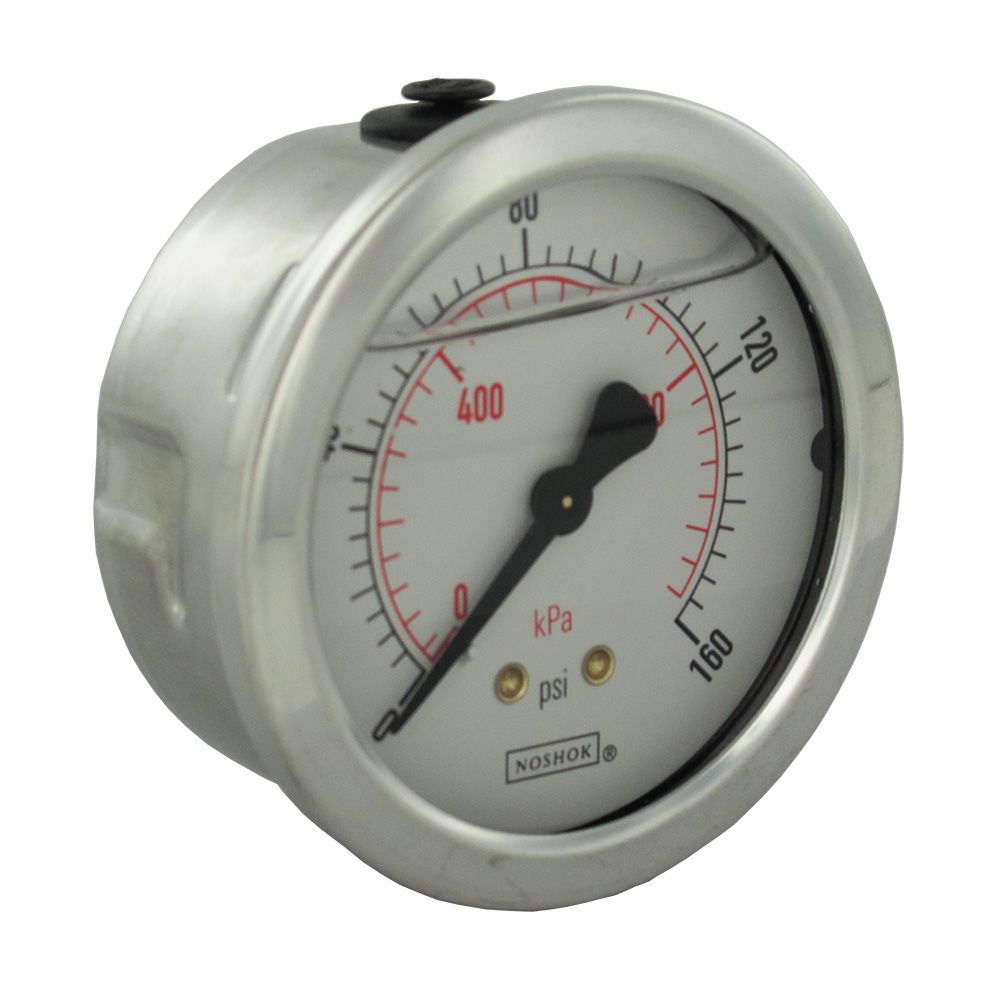

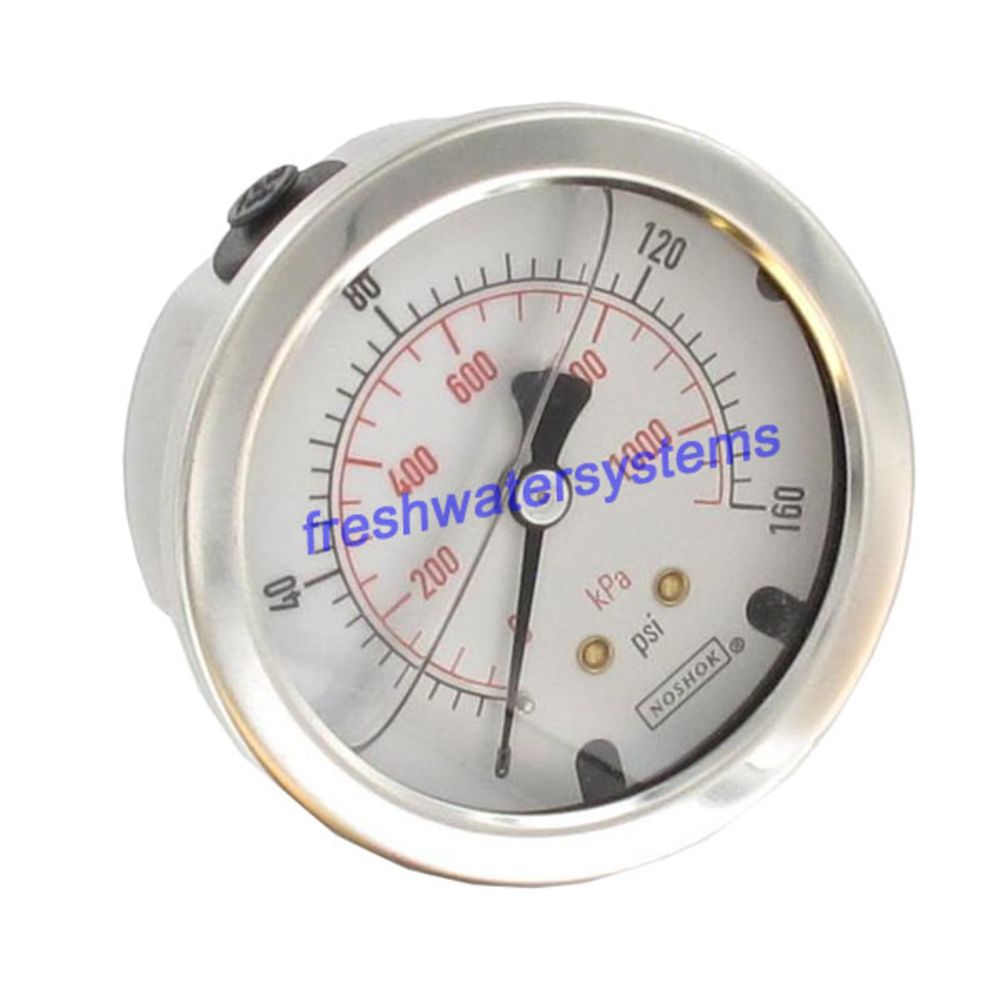

The NOSHOK 25-911-160 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.
Specifications:
- Three Year Warranty
- Extremely high quality pressure gauges
- Stainless Steel case with polycarbonate lens
- Relief disc on top and back provides positive case relief
- Liquid filled for extended service life and shock resistance
- Glycerine fill dampens the effects of pulsation, vibration and shock loads
- Unique o-ring case & connection seals for leak protection against shock & vibration
- Applications:Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard
Details
Bezel | Stainless Steel, fixed |
Connections | 1/4" MPT |
Dial Size | 2.5" (63 mm) |
Face | Molded Plastic with Black/Red Print |
Housing Material | 304 Stainless Steel |
Internal Component Material | Brass |
Lens | Polycarbonate |
Material Of Construction | Brass |
Mounting Options | Center Back |
Operating Pressure Range | 0 - 160 psi |
Pointer | Molded Plastic |
Accuracy | A (2-1-2%) |
Wetted Materials | Brass; Copper Alloy |
Fluid | Glycerine and water |
Units Of Measure (Psi, Bars, Hgvac) | PSI/kPa |
The NOSHOK 25-911-160 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.
Specifications:
- Three Year Warranty
- Extremely high quality pressure gauges
- Stainless Steel case with polycarbonate lens
- Relief disc on top and back provides positive case relief
- Liquid filled for extended service life and shock resistance
- Glycerine fill dampens the effects of pulsation, vibration and shock loads
- Unique o-ring case & connection seals for leak protection against shock & vibration
- Applications:Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard
Details
Bezel | Stainless Steel, fixed |
Connections | 1/4" MPT |
Dial Size | 2.5" (63 mm) |
Face | Molded Plastic with Black/Red Print |
Housing Material | 304 Stainless Steel |
Internal Component Material | Brass |
Lens | Polycarbonate |
Material Of Construction | Brass |
Mounting Options | Center Back |
Operating Pressure Range | 0 - 160 psi |
Pointer | Molded Plastic |
Accuracy | A (2-1-2%) |
Wetted Materials | Brass; Copper Alloy |
Fluid | Glycerine and water |
Units Of Measure (Psi, Bars, Hgvac) | PSI/kPa |
