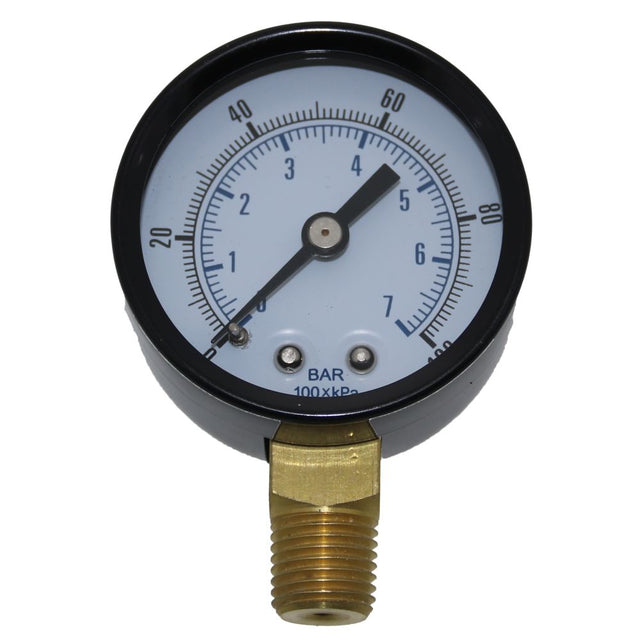

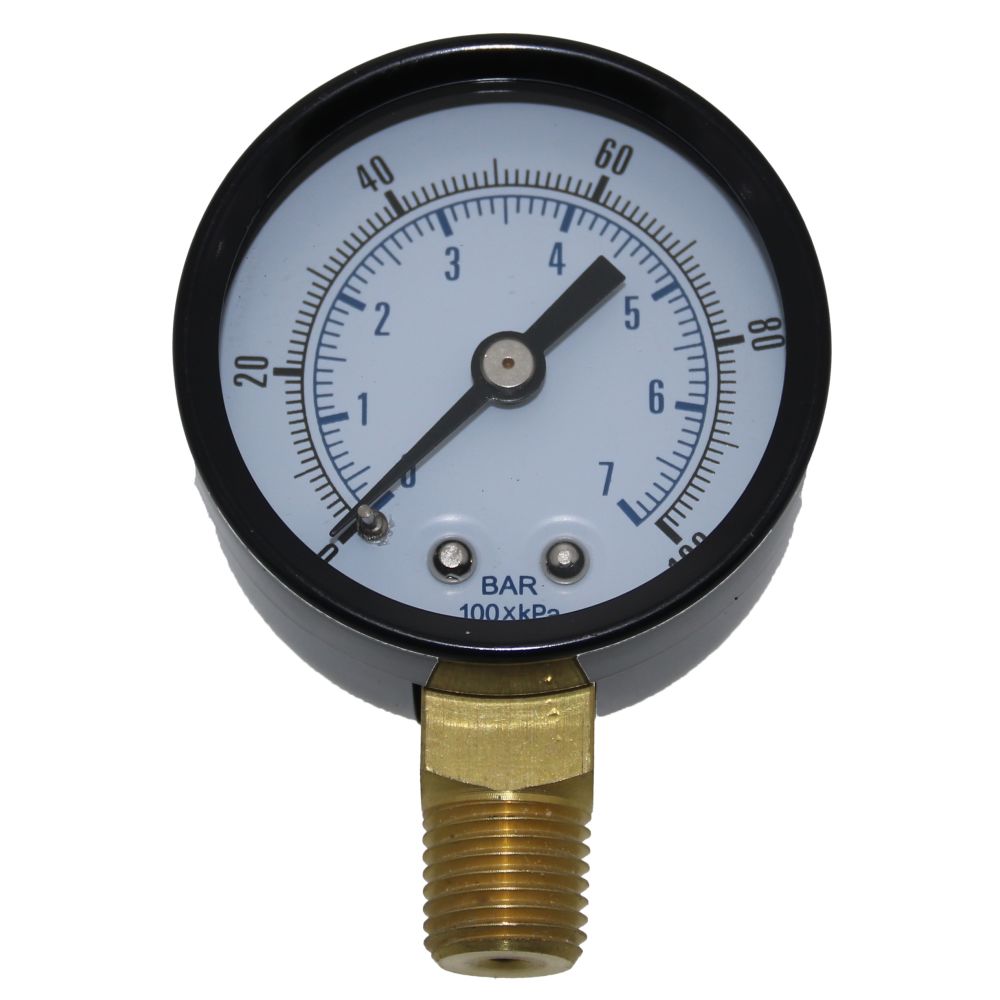

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Glass Dial , Lower Mount, Black Steel Case
Specifications:
- Lens: Glass
- Case: black steel
- Pointer: black aluminum
- Bezel: black painted steel, fixed
- Wetted Parts: copper alloy
- Connection: center back mount
- Scale: Standard psi/BAR (x100 = kPa)
- Ambient Temperature: 30º F to 160º F
- Meets or exceeds ASME B40.100 pressure gauge standard
Compatible with:
| AXEON/RO Ultratec | 205802 |
Weight & Dimensions
Height (inches) | 1.88 |
Length (inches) | 2.75 |
Weight (lbs) | 0.0125 |
Width (inches) | 1.88 |
Details
Accuracy | B (3-2-3%) |
Bezel | Black Painted Steel |
Dial Size | 2" (50 mm) |
Face | White Aluminum with Black/Blue Print |
Fluid | None - Dry, not fillable |
Housing Material | Black Steel |
Lens | Glass |
Material Of Construction | Brass |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -50 |
Mounting Options | Lower Bottom |
Pointer | Aluminum - Black |
Units Of Measure (Psi, Bars, Hgvac) | PSI/Bars |
Wetted Materials | Brass; Phosphor Bronze |
The 90B20-L4-12B-100G is a lower mount pressure gauge that features a black steel case with copper alloy internals. This non-filled pressure gauge has a glass lens and is rated for up to 100 PSI. This easy-to-read utility gauge is designed for commercial and industrial applications.
Specifications:
- Lens: Glass
- Case: black steel
- Pointer: black aluminum
- Bezel: black painted steel, fixed
- Wetted Parts: copper alloy
- Connection: center back mount
- Scale: Standard psi/BAR (x100 = kPa)
- Ambient Temperature: 30º F to 160º F
- Meets or exceeds ASME B40.100 pressure gauge standard
Compatible with:
| AXEON/RO Ultratec | 205802 |
Weight & Dimensions
Height (inches) | 1.88 |
Length (inches) | 2.75 |
Weight (lbs) | 0.0125 |
Width (inches) | 1.88 |
Details
Accuracy | B (3-2-3%) |
Bezel | Black Painted Steel |
Dial Size | 2" (50 mm) |
Face | White Aluminum with Black/Blue Print |
Fluid | None - Dry, not fillable |
Housing Material | Black Steel |
Lens | Glass |
Material Of Construction | Brass |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -50 |
Mounting Options | Lower Bottom |
Pointer | Aluminum - Black |
Units Of Measure (Psi, Bars, Hgvac) | PSI/Bars |
Wetted Materials | Brass; Phosphor Bronze |
