Viqua

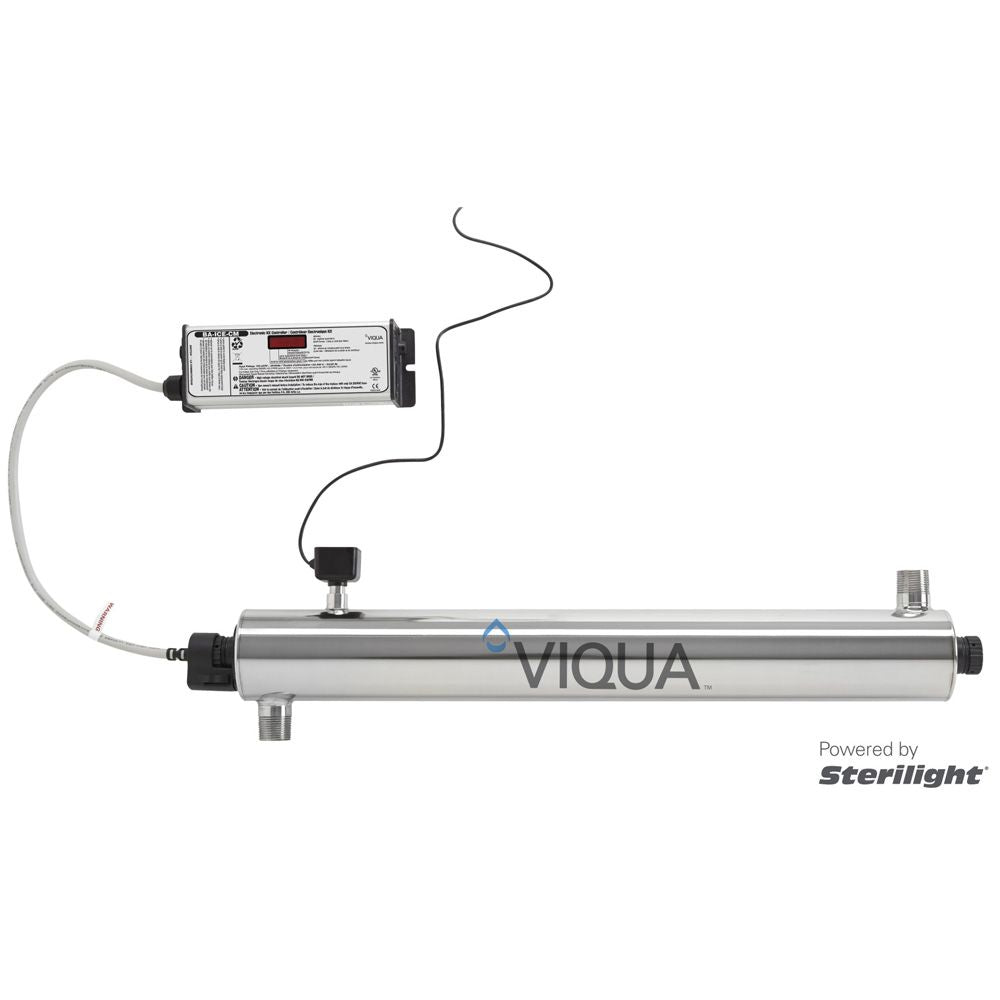

Viqua VP600M Cobalt Series Monitored UV System Powered By Sterilight 30 gpm

Part Number: VP600M

Alt. Part Number: SCM-600

In Stock

out of stock

In Stock

$1,099.00


The Viqua VP600M Cobalt Series Monitored Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shapped configuration making it more compact and easier installation.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes up less space
  • Lamp can be changed without interruption of water flow
This system is compatible with the S600RL-HO Sterilight Lamp and the QSO-600 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VP600M includes:
  • Sterilight Lamp (1): S600RL-HO
  • Sterilight Quartz Sleeve (1): QSO-600
  • Sterilight O-Rings (2): 410867

NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

30.7 Inches

Power Supply Dimensions

9.4"x3.2"x2.5"

Details

Ambient Temperature Range

32-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On; Solenoid Valve; Lamp Timer; Flow Restrictor

Flow Rate

40 Gallons Per Minute (16mJ/cm2 Dose); 30 Gallons Per Minute (30mJ/cm2 Dose); 22 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

70 Watts

Type

UVC

Voltage

100-240 V


Viqua





The Viqua VP600M Cobalt Series Monitored Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shapped configuration making it more compact and easier installation.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes up less space
  • Lamp can be changed without interruption of water flow
This system is compatible with the S600RL-HO Sterilight Lamp and the QSO-600 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VP600M includes:
  • Sterilight Lamp (1): S600RL-HO
  • Sterilight Quartz Sleeve (1): QSO-600
  • Sterilight O-Rings (2): 410867

NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Weight & Dimensions

Approx Length (Inches)

30.7 Inches

Power Supply Dimensions

9.4"x3.2"x2.5"

Details

Ambient Temperature Range

32-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On; Solenoid Valve; Lamp Timer; Flow Restrictor

Flow Rate

40 Gallons Per Minute (16mJ/cm2 Dose); 30 Gallons Per Minute (30mJ/cm2 Dose); 22 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

70 Watts

Type

UVC

Voltage

100-240 V
