Viqua

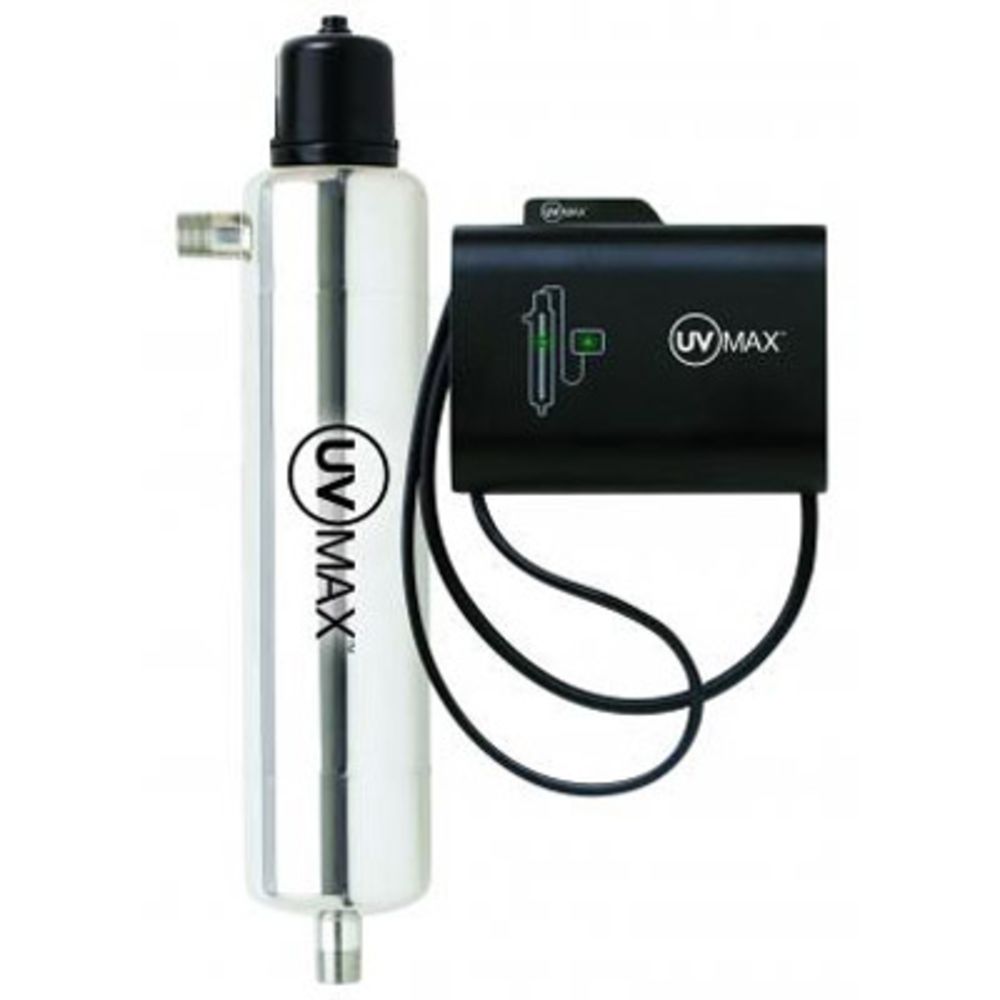

Viqua UVMax Model C4 Ultraviolet Water System 12 gpm 230V

Part Number: 650693

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua D4 Ultraviolet Water System Powered by UVMax 12 gpm as a substitute.

UV Max C4 Water Purification System SellerInstall a Viqua UVMax Model C4 Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E. coli, Giardia and Cryptosporidium causing illness. Viqua C4 UVMax is a whole house ultraviolet disinfection water treatment system that offers a 12 gpm water flow rate. The UVMax C4's compact design, simple installation, and low cost of operation is ideal for small to medium size homes. Drink confidently with quality and reliability from its 12 gpm high-output ultraviolet water purification system the Viqua UVMax C4.
Specifications:
  • Absolute H20 UV-10 controller with water-resistant case.
  • Indicator lights show the status of each system component.
  • Stainless steel chamber with safety cap and special lamp plug.
  • Universal power input.
  • High-output UV lamp.
  • Three-year warranty.
This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for C4 includes:
  • Trojan Lamp (1): 602805
  • Trojan Quartz Sleeve (1): 602732
  • Trojan O-Rings (2): 2045
Viqua UVMax C4 System Beeping After Replacing Lamp, Power Supply Issue

If you have a Viqua C4 UVMax power supply (black box with two LED light indicators) that was installed new or replaced between January 2009 through January 2010, it is possible that it could have an alarm fault and will not reset.
The issue is when the Viqua UV lamp has been installed for about 1 year, the system will start beeping indicating it is time to change. After replacing Viqua lamp there is no way to reset, and it will just keep beeping. Viqua will swap these with an upgraded power unit at no charge. You can contact Viqua directly via their website or by calling their toll free line at 1-800-265-7246.



Weight & Dimensions

Approx Length (Inches)

20-1/2"

Power Supply Dimensions

8-1/2"x6"

Weight (lbs)

11.4

Details

Ambient Temperature Range

32-122 °F

Diameter

4"

Features

Audible Lamp Failure

Flow Rate

16 GPM (16mJ/cm2 Dose); 9 Gallons Per Minute (30mJ/cm2 Dose); 7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

125

Max Temp (°F)

120

Power

50 W

Size

3/4"

Voltage

120 V; 230 V

Wetted Materials

Stainless Steel

Warranty & Certifications

Certifications

CE Standards


Viqua

Viqua

Viqua

Viqua




UV Max C4 Water Purification System SellerInstall a Viqua UVMax Model C4 Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E. coli, Giardia and Cryptosporidium causing illness. Viqua C4 UVMax is a whole house ultraviolet disinfection water treatment system that offers a 12 gpm water flow rate. The UVMax C4's compact design, simple installation, and low cost of operation is ideal for small to medium size homes. Drink confidently with quality and reliability from its 12 gpm high-output ultraviolet water purification system the Viqua UVMax C4.
Specifications:
  • Absolute H20 UV-10 controller with water-resistant case.
  • Indicator lights show the status of each system component.
  • Stainless steel chamber with safety cap and special lamp plug.
  • Universal power input.
  • High-output UV lamp.
  • Three-year warranty.
This system is compatible with the 602805 Trojan Lamp and the 602732 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for C4 includes:
  • Trojan Lamp (1): 602805
  • Trojan Quartz Sleeve (1): 602732
  • Trojan O-Rings (2): 2045
Viqua UVMax C4 System Beeping After Replacing Lamp, Power Supply Issue

If you have a Viqua C4 UVMax power supply (black box with two LED light indicators) that was installed new or replaced between January 2009 through January 2010, it is possible that it could have an alarm fault and will not reset.
The issue is when the Viqua UV lamp has been installed for about 1 year, the system will start beeping indicating it is time to change. After replacing Viqua lamp there is no way to reset, and it will just keep beeping. Viqua will swap these with an upgraded power unit at no charge. You can contact Viqua directly via their website or by calling their toll free line at 1-800-265-7246.


NOTE: This item is discontinued. We recommend the Viqua D4 Ultraviolet Water System Powered by UVMax 12 gpm as a substitute.

Weight & Dimensions

Approx Length (Inches)

20-1/2"

Power Supply Dimensions

8-1/2"x6"

Weight (lbs)

11.4

Details

Ambient Temperature Range

32-122 °F

Diameter

4"

Features

Audible Lamp Failure

Flow Rate

16 GPM (16mJ/cm2 Dose); 9 Gallons Per Minute (30mJ/cm2 Dose); 7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

125

Max Temp (°F)

120

Power

50 W

Size

3/4"

Voltage

120 V; 230 V

Wetted Materials

Stainless Steel

Warranty & Certifications

Certifications

CE Standards
