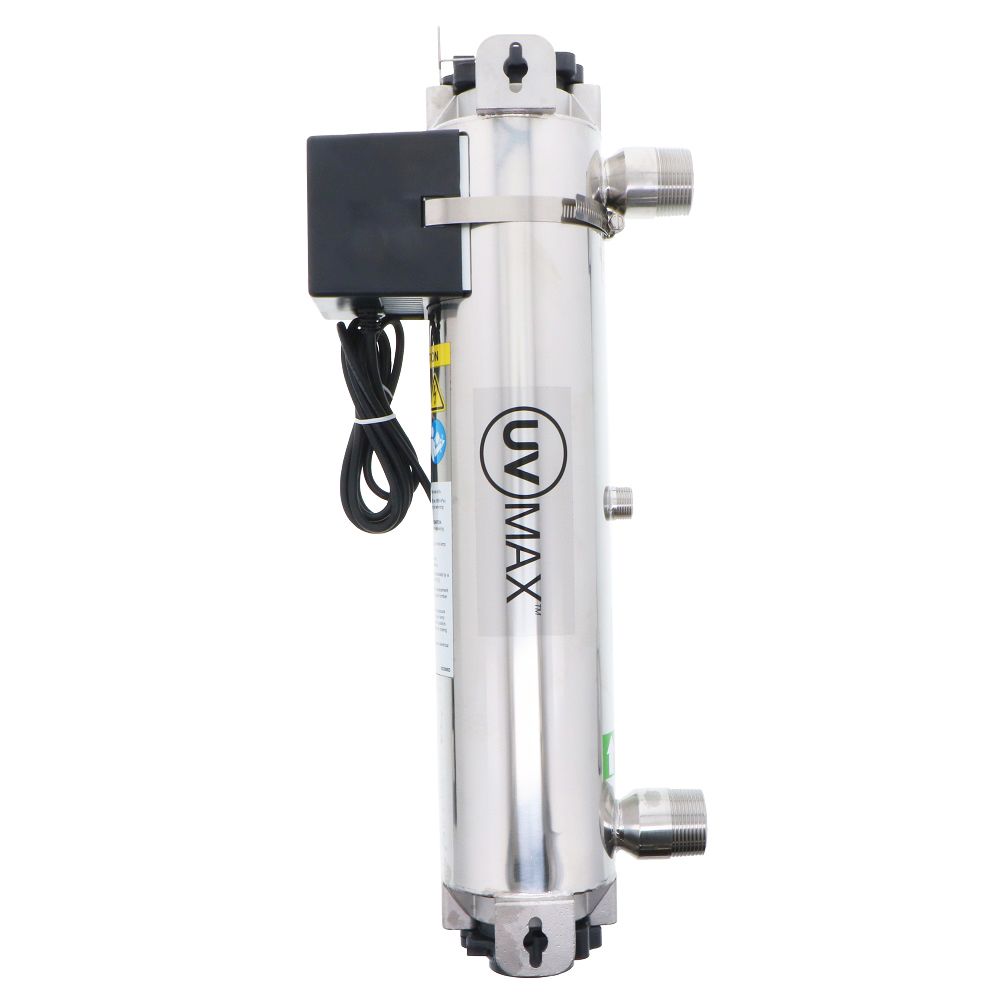

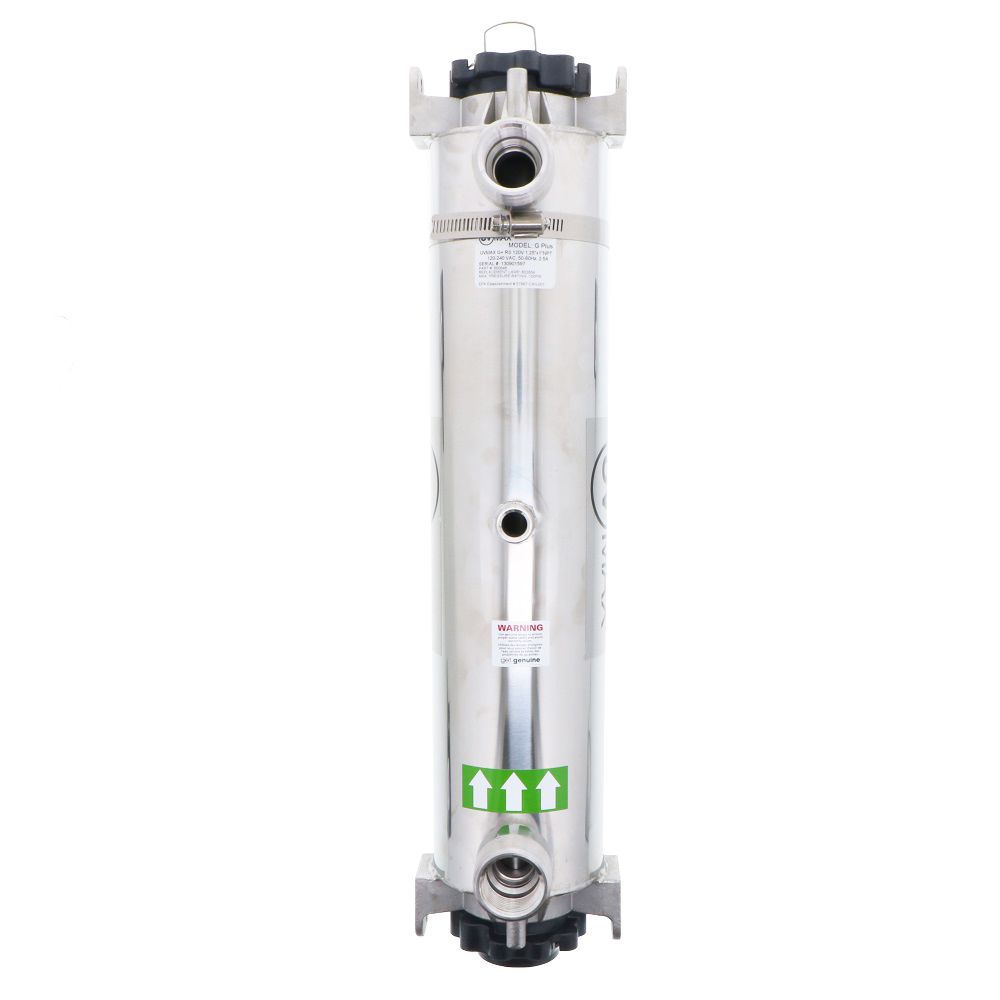

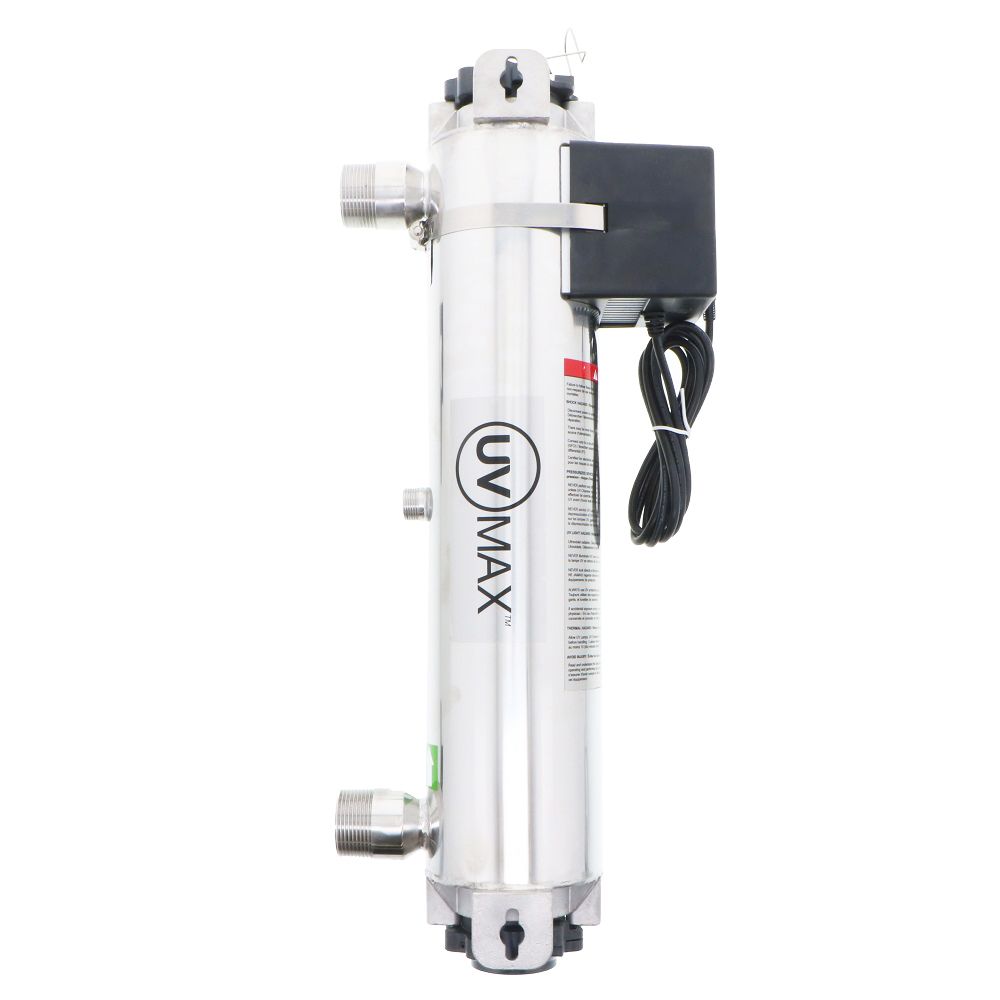

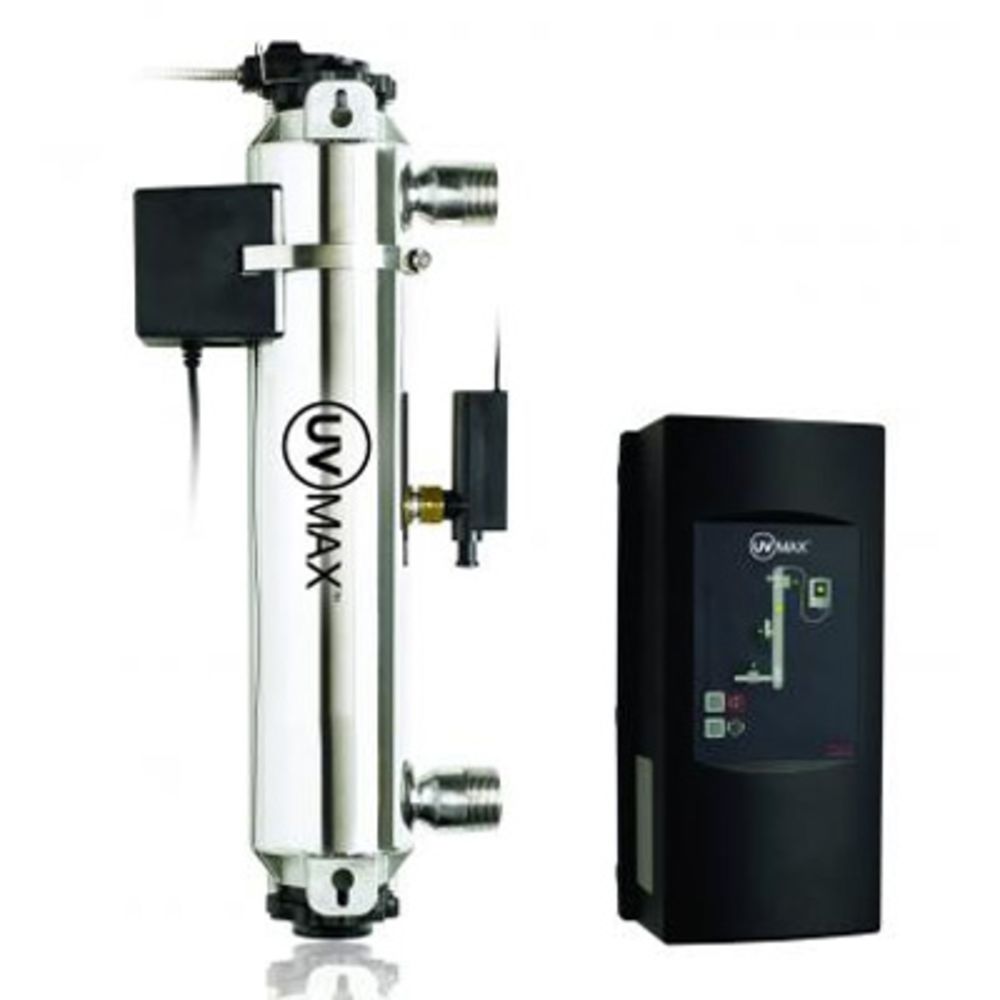

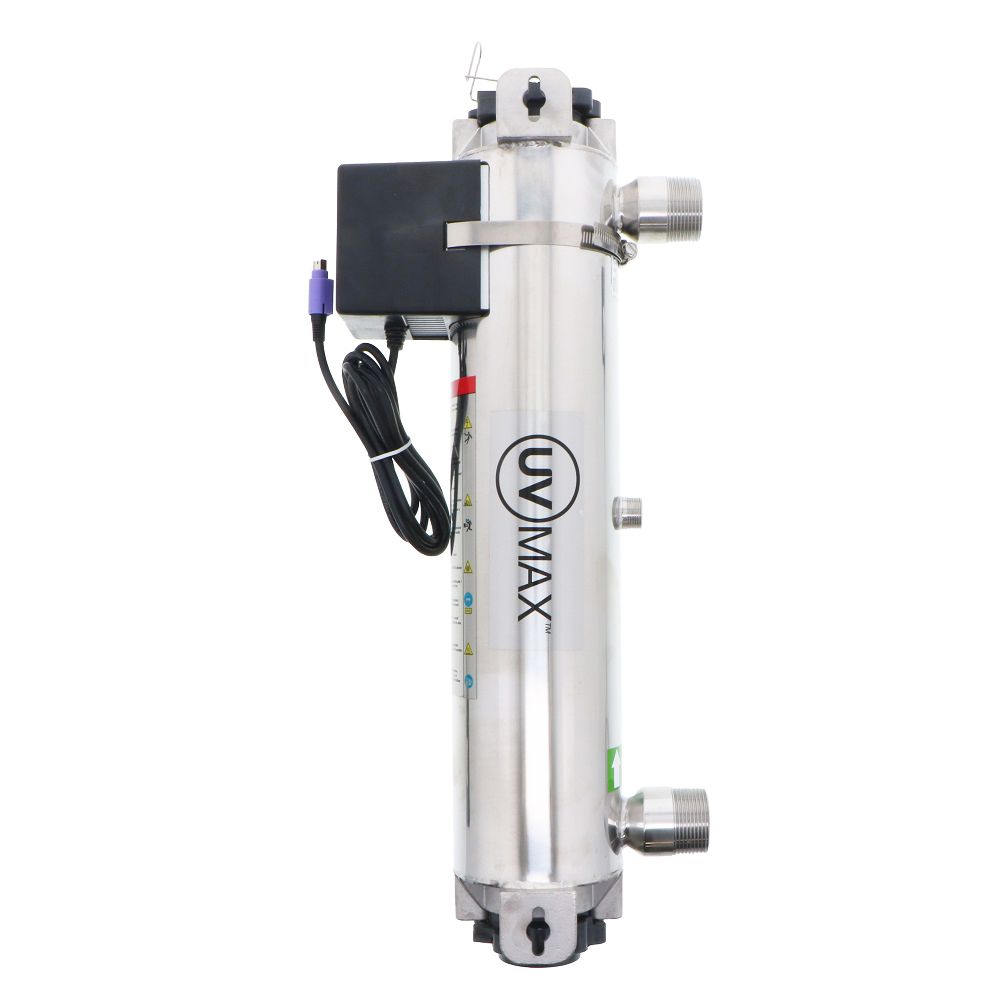

Viqua UVMax G Plus Ultraviolet Water System 19 gpm

The Viqua UVMax G Plus UV System reduces harmful contaminants such as bacteria, virus and microorganisms. Viqua UVMax G Plus is a whole house ultraviolet disinfection water treatment system which offers 19 gpm water flow rate.

Specifications:

Type 316 stainless steel reactor
Viqua UVMax G Plus UV purification water system has color coded plug and play connections

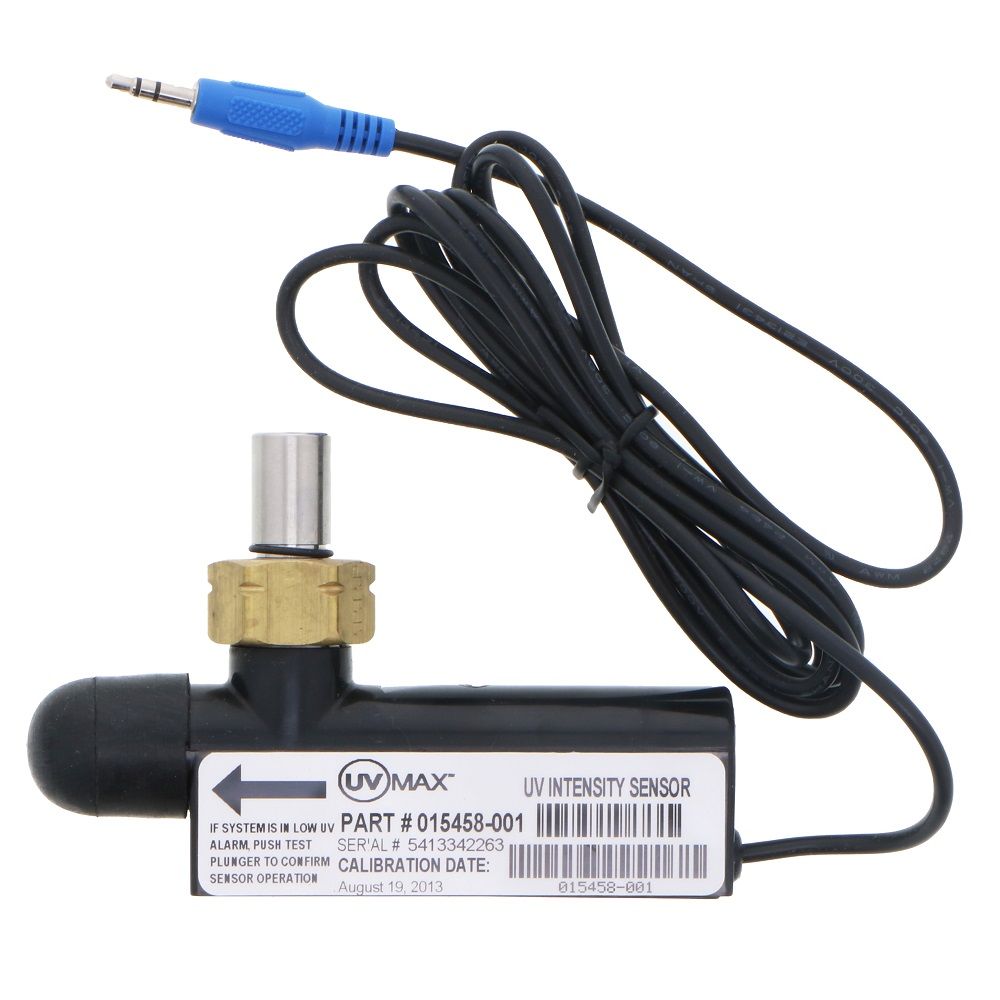

UV intensity monitor with diagnostic test

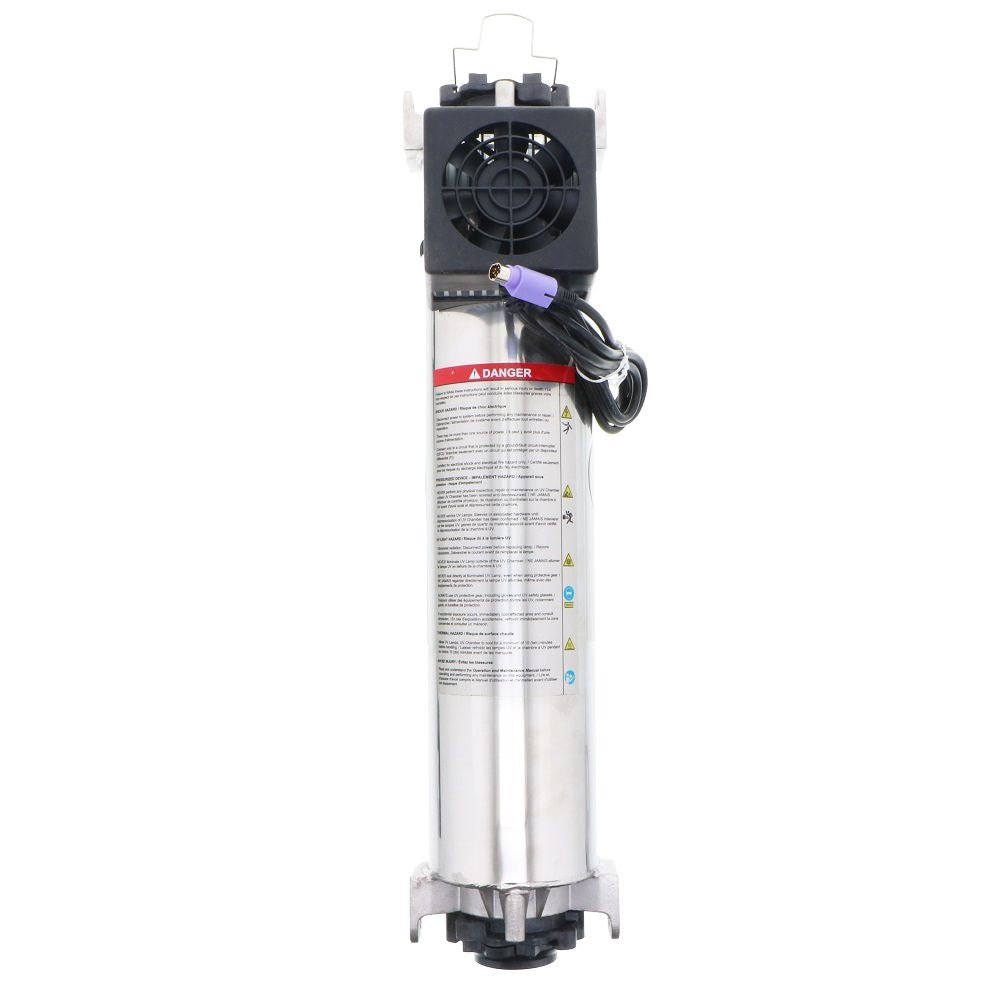

CoolTouch fan
Flow Rate:19 gpm
Inlet/Outlet:Combo 1.25" NPT, 1" MPT
Voltage:120-240V (50-60Hz)
Chamber Material: 316L SST
Power Consumption:120 watts
Chamber Dimensions:21.3" x 3.9"

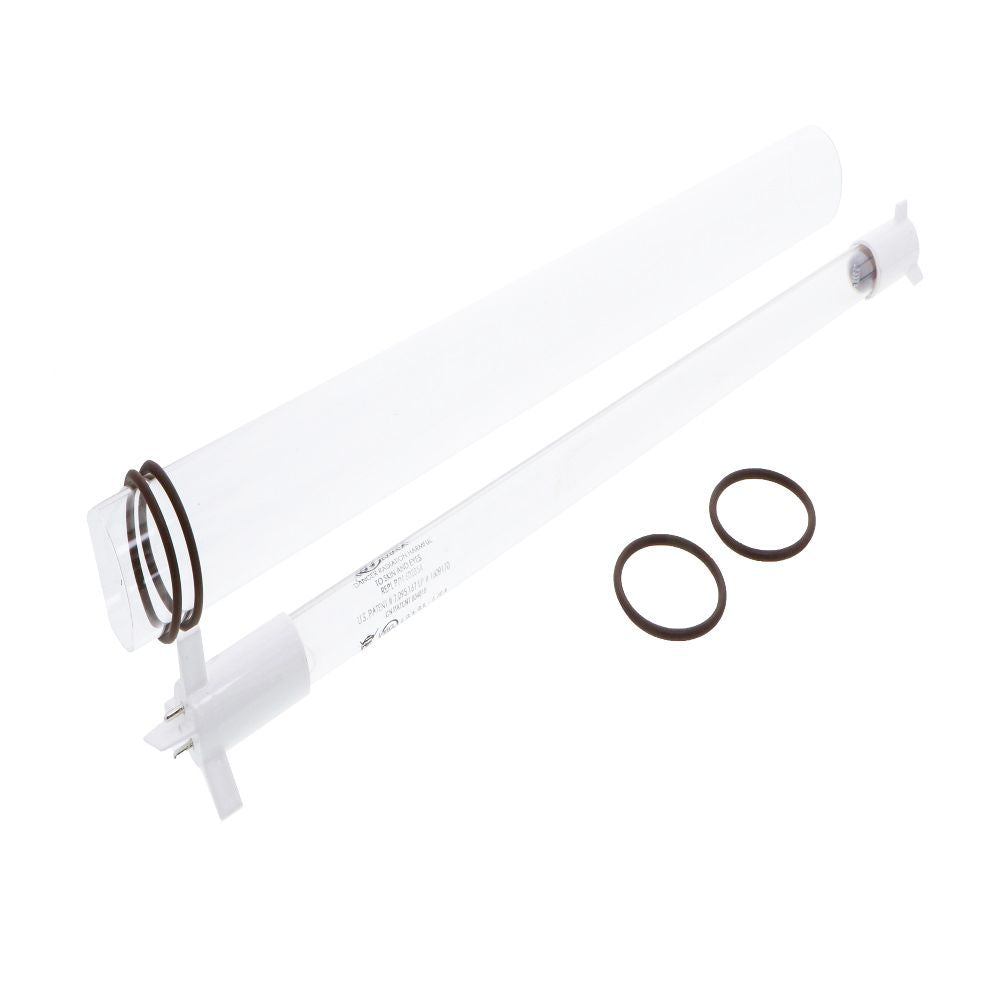

This system is compatible with the 602854 Trojan Lamp and the 602974 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for G Plus includes:

Trojan Lamp (1): 602854

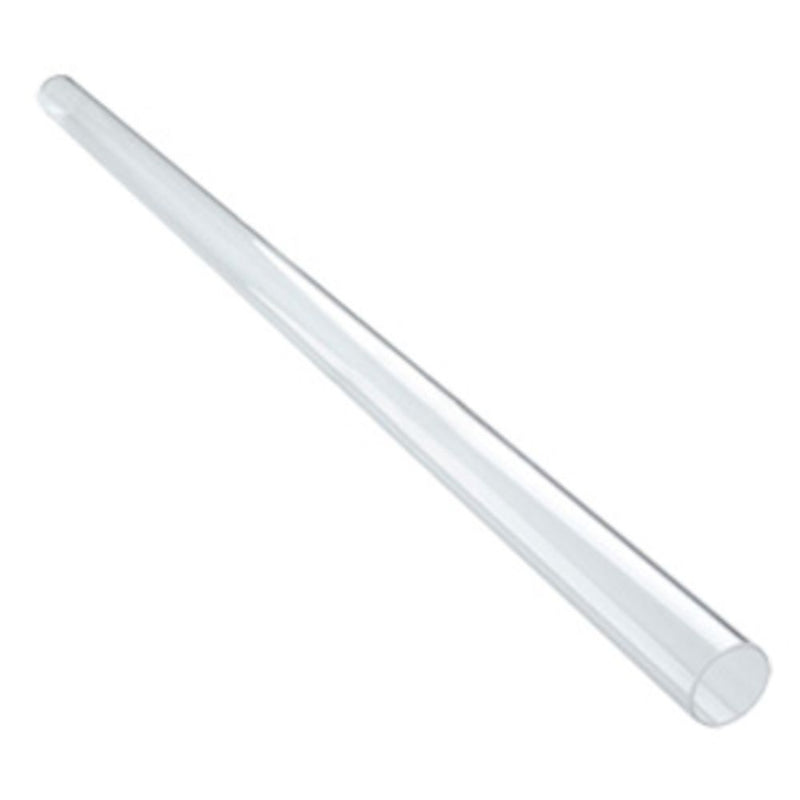

Trojan Quartz Sleeve (1): 602974

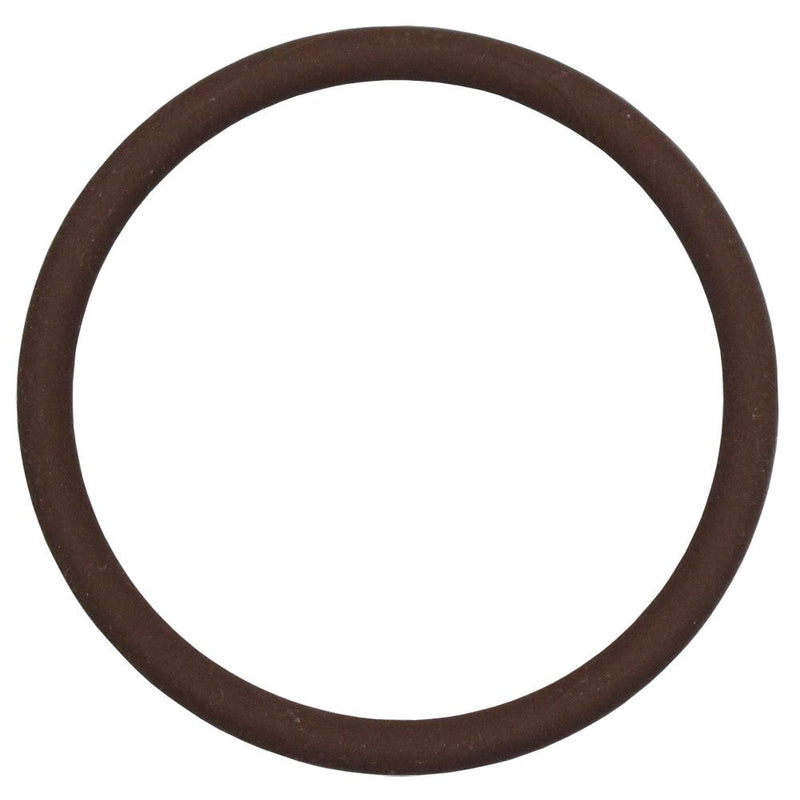

Trojan O-Rings (2): 2233

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-104 °F
Body Material	316 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	10
Outlet Connection	1-1/4" MPT,1" FPT
Power	120 Watts
Size	1-1/4" 1"
System Class	Commercial Systems
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	3.9"
Flow Rate	19 GPM (30mJ/cm2 Dose) 15.1 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Shipping Dimensions
Shipping Length	17 in.
Shipping Width	17 in.
Shipping Height	31 in.
Product Weight & Dimensions

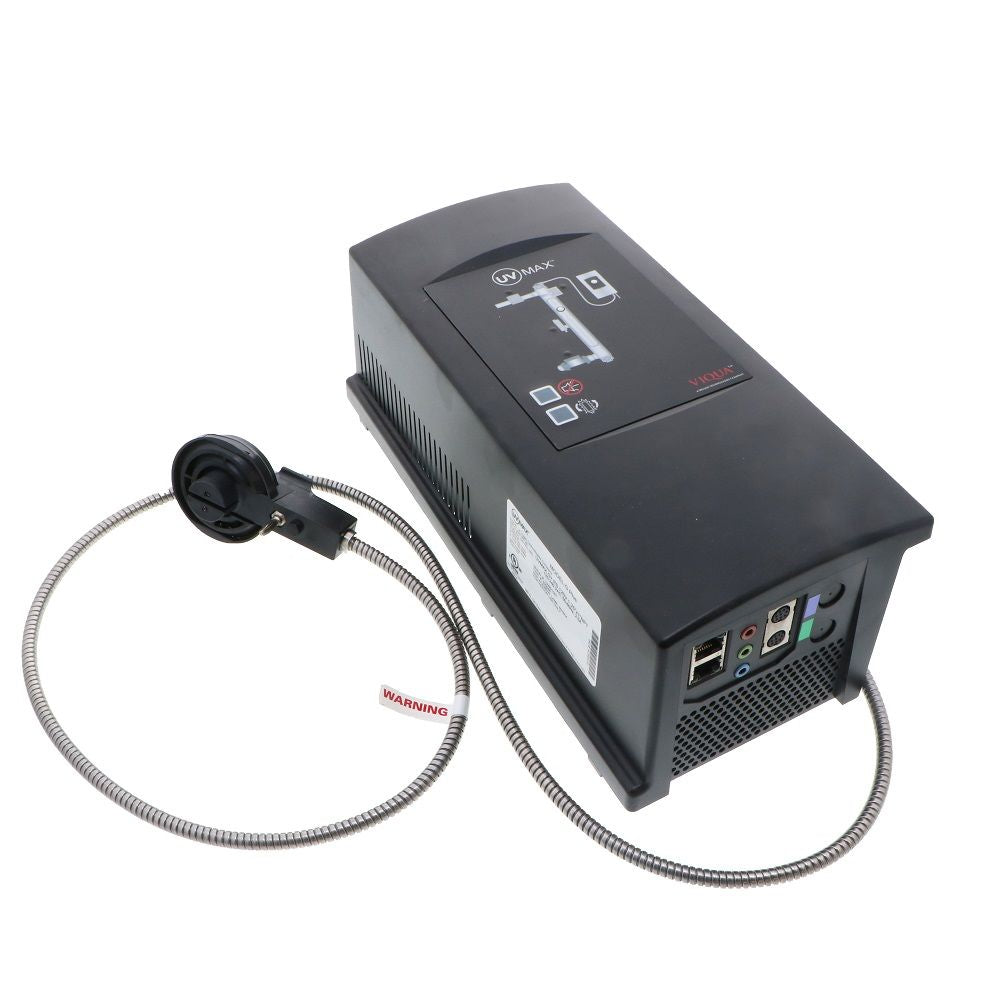

Power Supply Dimensions	13" x 6-1/2"
Product Length	21.3"
Product Weight (lbs)	24.35

Product Details
Ambient Temperature Range	32-104 °F
Body Material	316 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	10
Outlet Connection	1-1/4" MPT,1" FPT
Power	120 Watts
Size	1-1/4" 1"
System Class	Commercial Systems
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	3.9"
Flow Rate	19 GPM (30mJ/cm2 Dose) 15.1 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120 V
Shipping Dimensions
Shipping Length	59 in.
Shipping Width	11.5 in.
Shipping Height	17 in.
Product Weight & Dimensions
Power Supply Dimensions	13" x 6-1/2"
Product Length	21.3"
Product Weight (lbs)	29

Viqua UVMax G Plus Ultraviolet Water System 19 gpm Manual
