Viqua

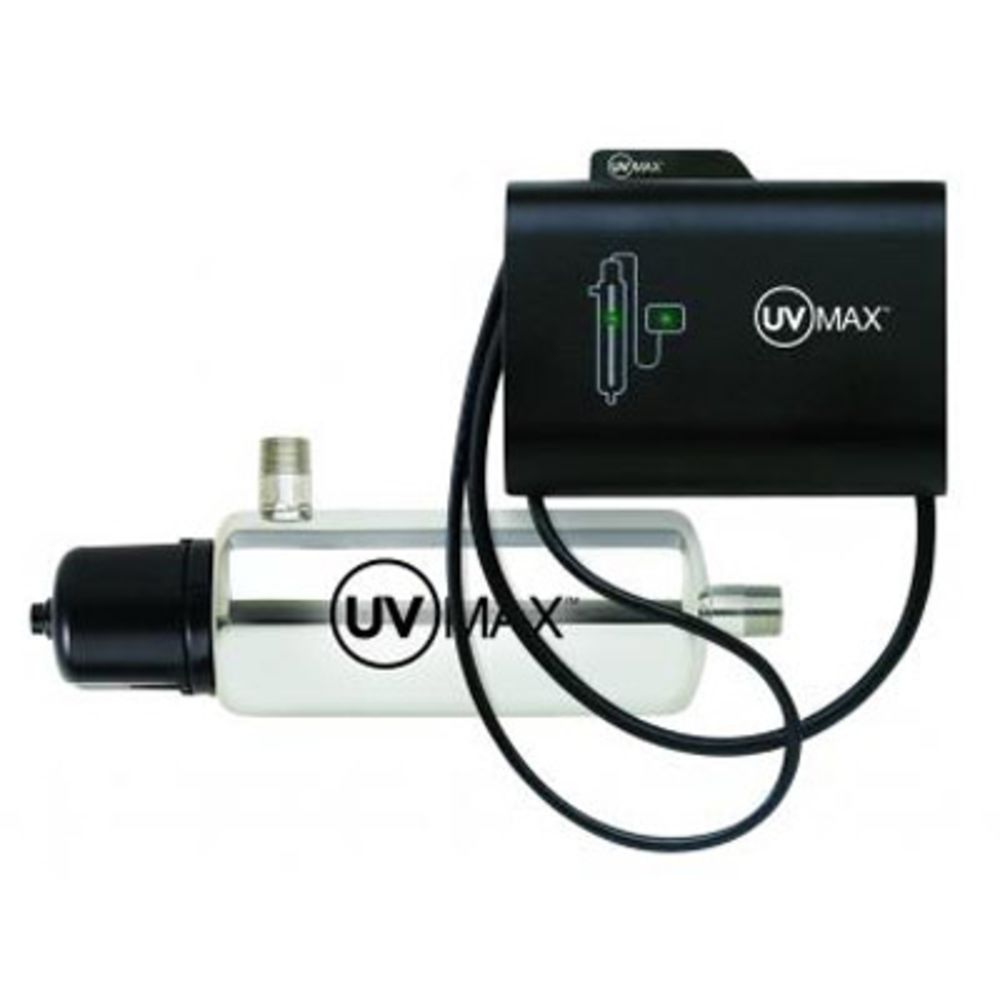

Viqua UVMax B4-V Ultraviolet Water System 4.3 gpm

Part Number: 660037-R

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua SV5Q-PA Silver Series NSF Class B UV System Powered by Sterilight 3.6 gpm...

Install a Viqua UVMax B4-V disinfection water system and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax B4-V is a point-of-use ultraviolet disinfection water treatment system offers a 4.3 gpm water flow rate. The UVMax B4-V Plus compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua's quality and reliability from its 4.3 gpm high-output ultraviolet water purification system the Viqua UVMAX B4-V.

Specifications:
  • Viqua UVMax controller with water-resistant case
  • Indicator lights show the status of each system component
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Environmentally-friendly
  • Full 3 Year Warranty




Weight & Dimensions

Weight (lbs)

9.3

Approx Length (Inches)

14-1/2"

Details

Max Pressure (Psi)

125

Ambient Temperature Range

32-122 °F

Diameter

4"

Flow Rate

4.3 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

36 W

Size

3/4"

Voltage

120 V, 100-240 V

Inlet/Outlet Connection

3/4" FPT, 3/4" MPT

Warranty & Certifications

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors


Viqua

Viqua

Viqua

Viqua

Viqua




Install a Viqua UVMax B4-V disinfection water system and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax B4-V is a point-of-use ultraviolet disinfection water treatment system offers a 4.3 gpm water flow rate. The UVMax B4-V Plus compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua's quality and reliability from its 4.3 gpm high-output ultraviolet water purification system the Viqua UVMAX B4-V.

Specifications:
  • Viqua UVMax controller with water-resistant case
  • Indicator lights show the status of each system component
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Environmentally-friendly
  • Full 3 Year Warranty



NOTE: This item is discontinued. We recommend the Viqua SV5Q-PA Silver Series NSF Class B UV System Powered by Sterilight 3.6 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

9.3

Approx Length (Inches)

14-1/2"

Details

Max Pressure (Psi)

125

Ambient Temperature Range

32-122 °F

Diameter

4"

Flow Rate

4.3 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

36 W

Size

3/4"

Voltage

120 V, 100-240 V

Inlet/Outlet Connection

3/4" FPT, 3/4" MPT

Warranty & Certifications

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
