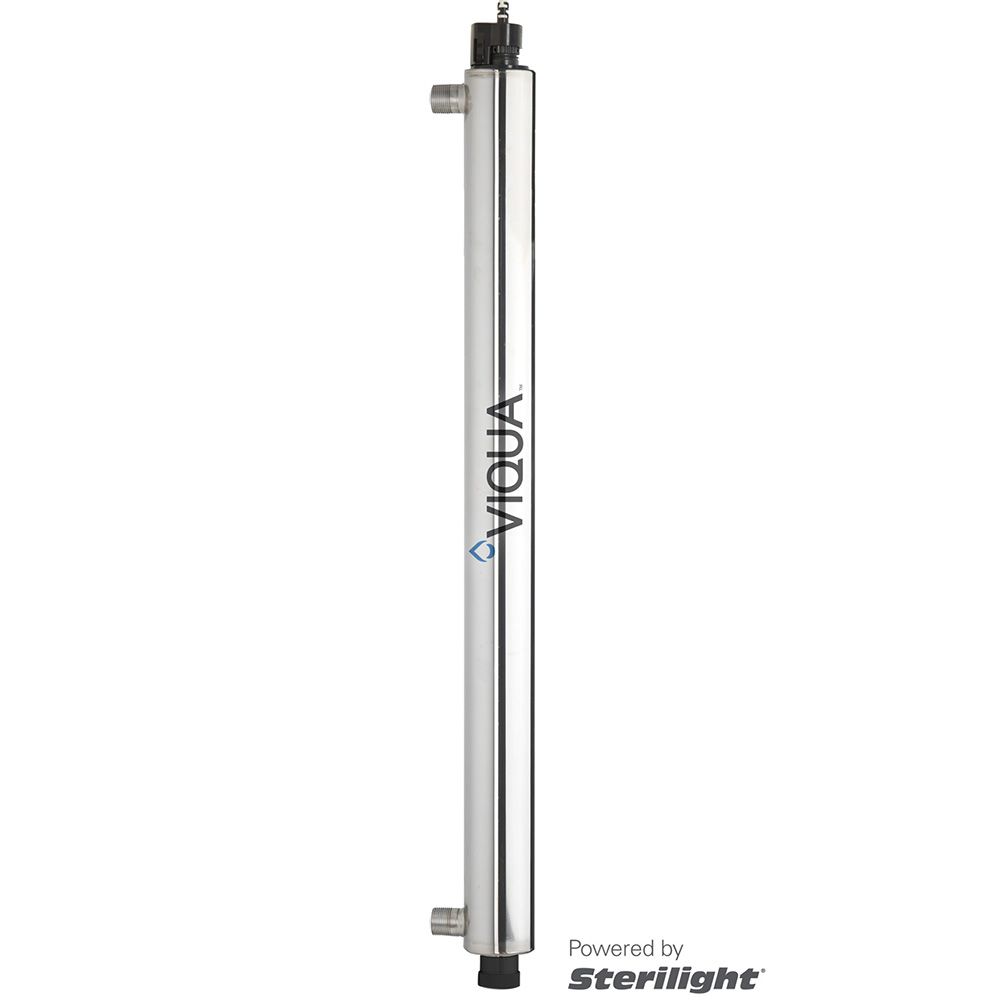

Viqua SV5Q-PA Silver Series NSF Class B UV System Powered by Sterilight 5.2 gpm

Part Number: SV5Q-PA-PFK Alt. Part Number: 660037-R

Viqua SV5Q-PA Silver Series NSF Class B UV System Powered by Sterilight 5.2 gpm

Part Number: SV5Q-PA-PFK Alt. Part Number: 660037-R
Regular price $582.00
Choose:

You May Also Need

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Viqua SV5Q-PA Silver Series NSF Class B UV System is a reliable, economical and chemical-free way to safeguard drinking water in any residential application. This whole-house system is easy to maintain plus has a CSA and CE compliant power supply that is protected from damage and water intrusion. The Viqua SV5Q-PA Silver system has been designed and tested to ensure quality drinking water is at everyone's fingertips.

Features:
  • Class B Certified by NSF
  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye
  • Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification
  • The system is easy to maintain and service

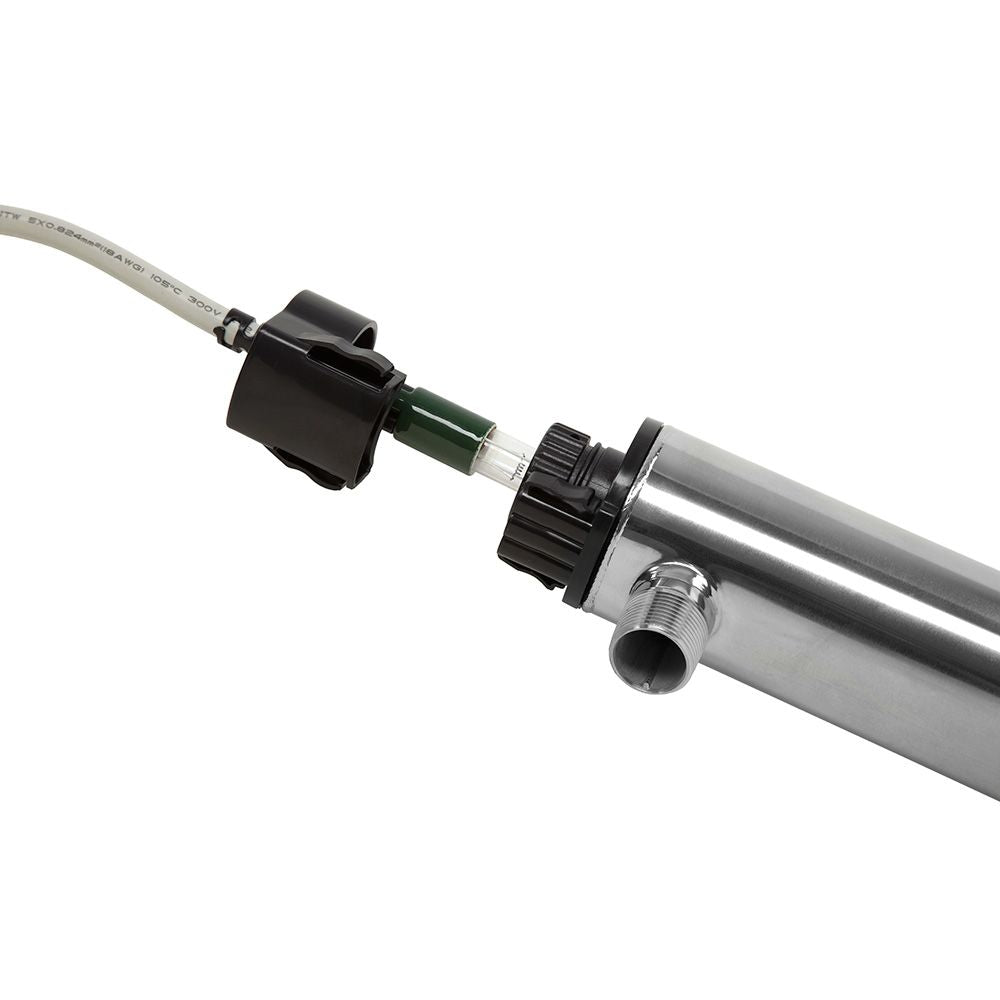

  • The ultraviolet lamp can be changed without interrupting the water flow
  • Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation
  • The controller visually displays the remaining lamp life and will go into alarm if the lamp fails. The D4-V+ systems are equipped with a UV sensor which provides a continuous readout of UV intensity
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.
Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.
Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.

Specifications

    Product Details

    Ambient Temperature Range

    36-104 °F

    Body Material

    304 Stainless Steel

    Features

    Audible Lamp Failure

    Visual Power On

    Frequency Rate

    50/60 Hz

    Inlet Connection

    3/4" MPT

    Max Pressure (Psi)

    125

    Min Pressure (Psi)

    5

    Outlet Connection

    3/4" MPT

    Power

    30 Watts

    Size

    3/4"

    Connection Type

    Male (MPT)

    Contaminants Reduced

    Bacteria

    Heavy Metals

    Cysts

    Diameter

    2-1/2"

    Flow Rate

    5.2 GPM (16mJ/cm2 Dose)

    Type

    Single UV System

    Voltage

    120V

    Warranty & Certifications

    Warranty

    7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components

    Shipping Dimensions

    Shipping Length

    19.75 in.

    Shipping Width

    10 in.

    Shipping Height

    19.5 in.

    Product Weight & Dimensions

    Product Length

    22"

    Product Weight (lbs)

    24

Downloads

Viqua SV5Q-PA Silver Series NSF Class B UV System Powered by Sterilight 5.2 gpm ManualViqua SV5Q-PA Silver Series NSF Class B UV System Powered by Sterilight 5.2 gpm Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Compare Similar Products

A table comparing the facets of 4 products
Facet
Regular price From $505.00

Part #: SV5Q-PA-PFK

Current Product
Regular price $774.00
Very low stock

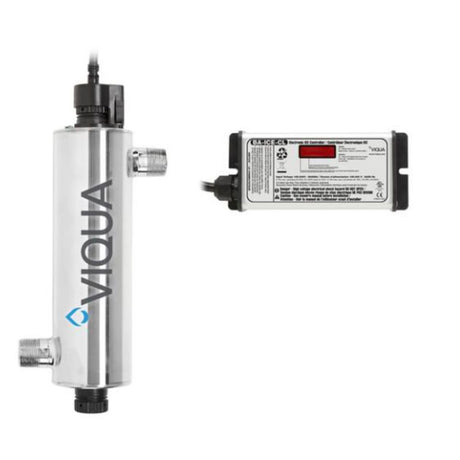

Part #: VH200-V
