Viqua Sterilight SSM-39 Silver Plus UV System 15.1 gpm

Part Number: SSM-39

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm as a...

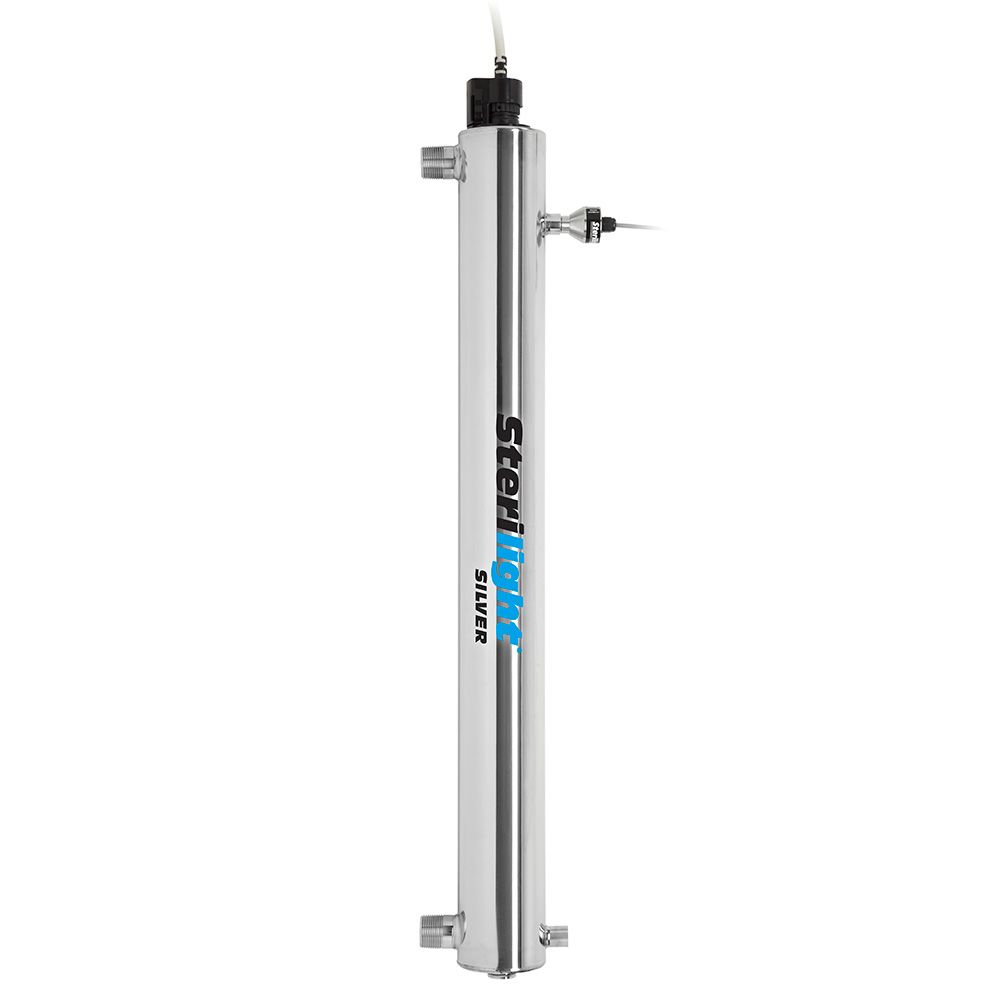

The Viqua Sterilight SSM-39 UV System provides point-of-use disinfection with a flow rate of 15.1 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

 Features:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation
  • 254nm UV intensity monitor allows the SSM-39 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses
  • The SSM-39 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MPT connections
This system is compatible with the S36RL Sterilight Lamp and the QS-012 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SSM-39 includes:
  • Sterilight Lamp (1): S36RL
  • Sterilight Quartz Sleeve (1): QS-012
  • Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.



Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Power

42 W

Size

3/4", 1"

Connection Type

Female (FPT), Male (MPT)

Diameter

3-1/2"

Flow Rate

15.1 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua




The Viqua Sterilight SSM-39 UV System provides point-of-use disinfection with a flow rate of 15.1 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

 Features:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation
  • 254nm UV intensity monitor allows the SSM-39 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses
  • The SSM-39 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MPT connections
This system is compatible with the S36RL Sterilight Lamp and the QS-012 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SSM-39 includes:
  • Sterilight Lamp (1): S36RL
  • Sterilight Quartz Sleeve (1): QS-012
  • Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


NOTE: This item is discontinued. We recommend the Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm as a substitute.

Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Power

42 W

Size

3/4", 1"

Connection Type

Female (FPT), Male (MPT)

Diameter

3-1/2"

Flow Rate

15.1 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
