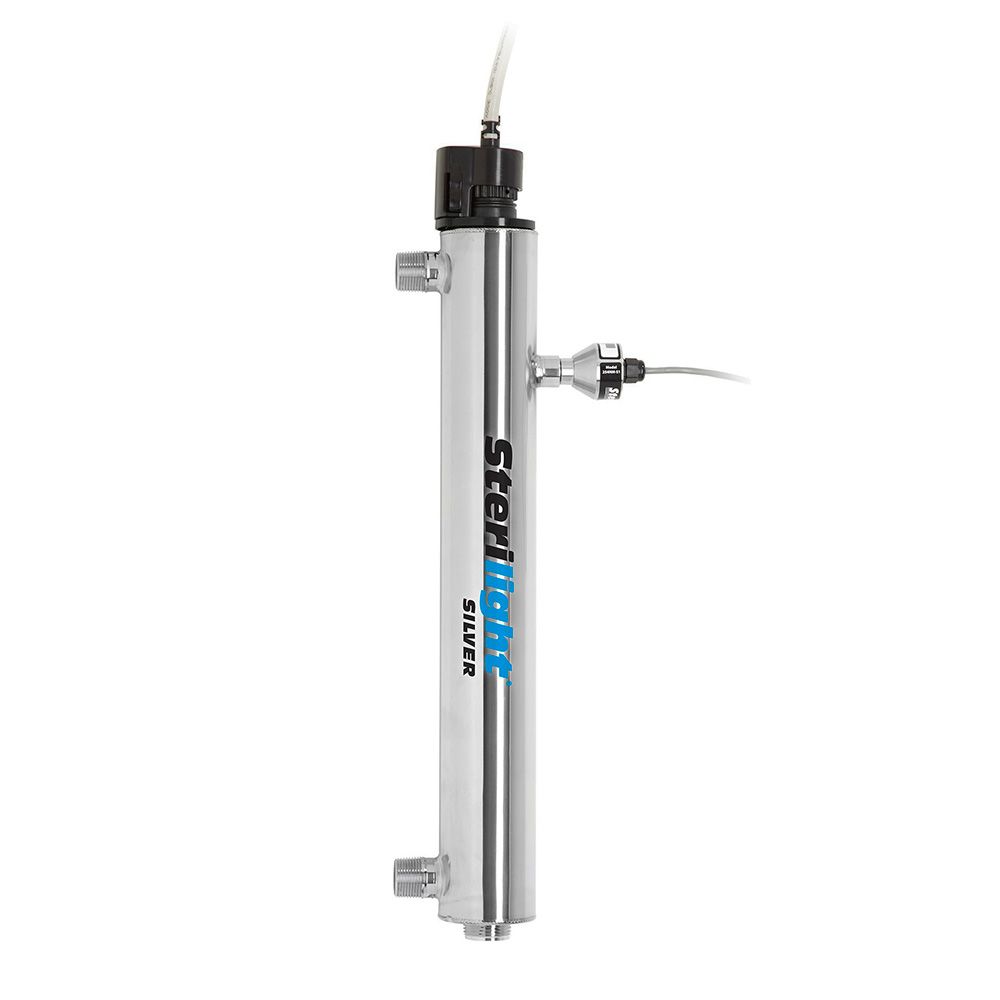

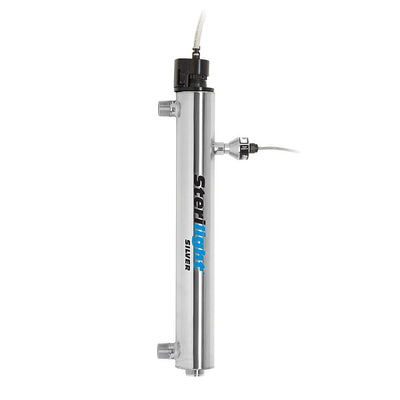

Viqua Sterilight SSM-24 Silver Plus UV System 6.0 gpm

Part Number: SSM-24

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm as a...

The Viqua Sterilight SSM-24 UV System provides point-of-use disinfection with a flow rate of 6.0 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Specifications:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation.
  • 254nm UV intensity monitor allos the SSM-24 to continuously monitor the system and warn you of any changes in water quality.
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.
  • The SSM-24 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MPT connections.
Applications:

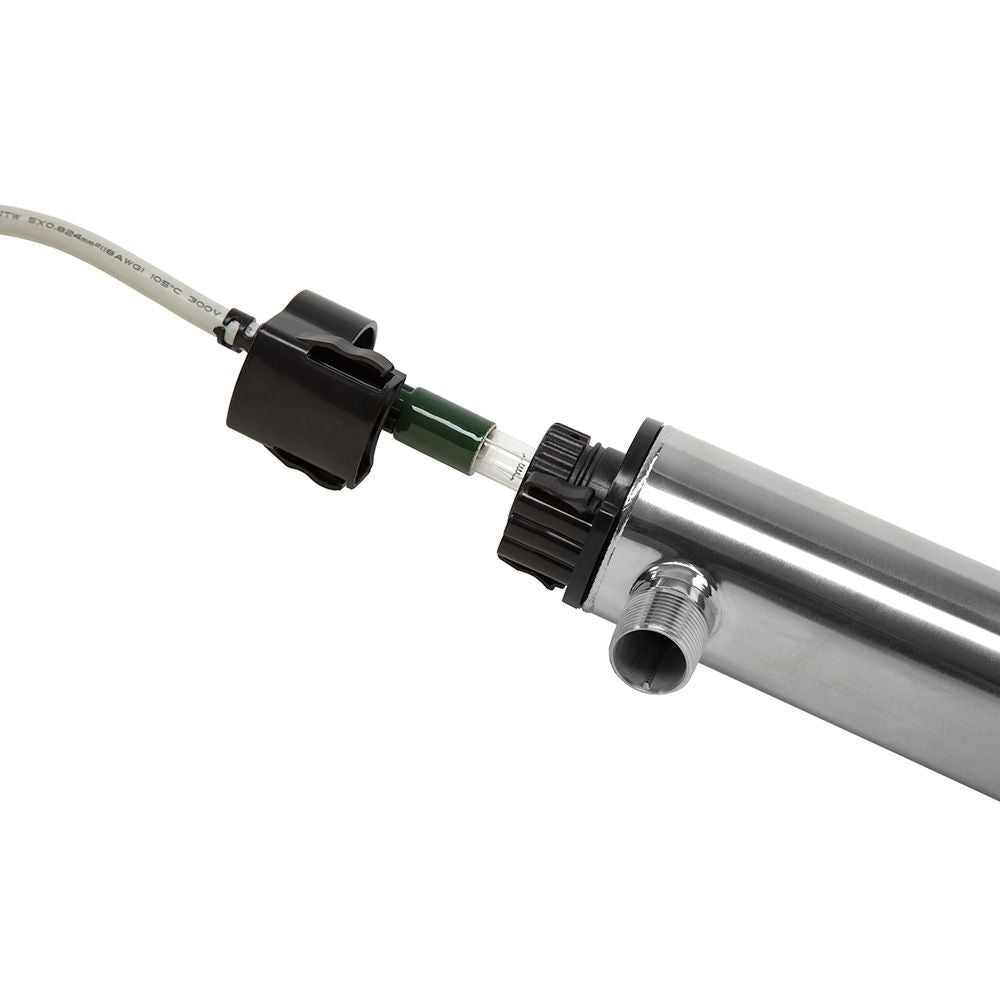

This system is compatible with the S463RL Sterilight Lamp and the QS-463 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SSM-24 includes:
  • Sterilight Lamp (1): S463RL
  • Sterilight Quartz Sleeve (1): QS-463
  • Sterilight O-Rings (2): 410867




Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

2.6"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

6 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

26 W

Size

3/4"

Voltage

120 V

Inlet/Outlet Connection

3/4" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua




The Viqua Sterilight SSM-24 UV System provides point-of-use disinfection with a flow rate of 6.0 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Specifications:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation.
  • 254nm UV intensity monitor allos the SSM-24 to continuously monitor the system and warn you of any changes in water quality.
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.
  • The SSM-24 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MPT connections.
Applications:
This system is compatible with the S463RL Sterilight Lamp and the QS-463 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SSM-24 includes:
  • Sterilight Lamp (1): S463RL
  • Sterilight Quartz Sleeve (1): QS-463
  • Sterilight O-Rings (2): 410867



NOTE: This item is discontinued. We recommend the Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm as a substitute.

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

2.6"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

6 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

26 W

Size

3/4"

Voltage

120 V

Inlet/Outlet Connection

3/4" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
