Viqua

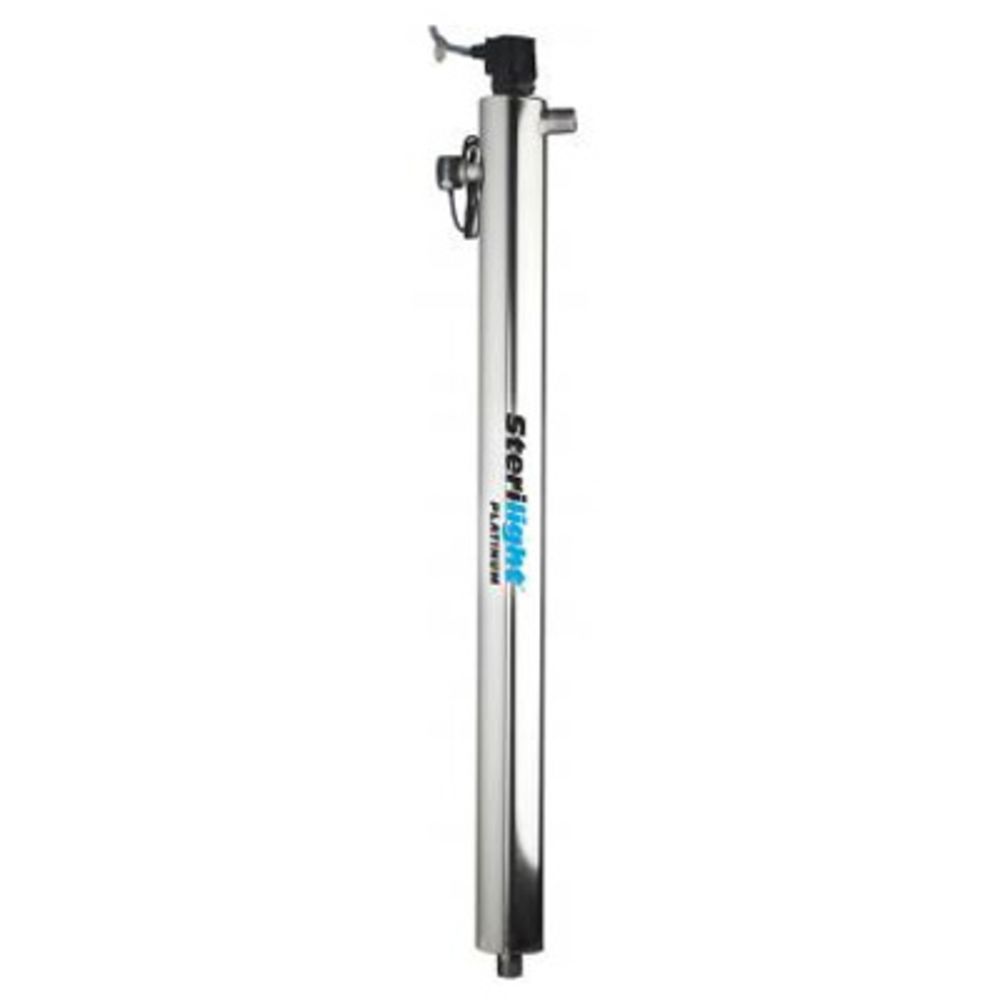

Viqua Sterilight SP950-HO Platinum Series UV Disinfection System 52 gpm
This item is discontinued. We recommend the Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm as a...
Specifications:
- Type 304 stainless steel reactor
- Modular system, based on NSF validated Platinum™
- Includes Platinum™ controller which displays:
- UV intensity with Flow-Pace™ UV intensity monitor
- Remaining lamp life
- Total hours of operation
- 2-stage flow pacing provides:
- Half-power to the lamps when there is no flow
- Full-power when the water is flowing
- Minimal power requirements and reduced heat build-up
- Ideal for whole house applications
- Compact installation footprint
This system is compatible with the S950RL-HO Sterilight Lamp and the QS-950 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SP950-HO includes:
- Sterilight Lamp (1): S950RL-HO
- Sterilight Quartz Sleeve (1): QS-950
- Sterilight O-Ring (1): 410867
Weight & Dimensions
Approx Length (Inches) | 44-1/2" |
Power Supply Dimensions | 11" x 4-1/2" x 2" |
Weight (lbs) | 29 |
Details
Ambient Temperature Range | 36-104 °F |
Features | UV Intensity Monitor |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 1-1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 14.5 |
Power | 110 W |
Size | 1-1/2" |
Connection Type | Male (MPT) |
Diameter | 3-1/2" |
Type | Single UV System |
Voltage | 120 V |
Warranty & Certifications
Certifications | CSA (C US); CE Standards |
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
The Viqua Sterilight SP950-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.
Specifications:
- Type 304 stainless steel reactor
- Modular system, based on NSF validated Platinum™
- Includes Platinum™ controller which displays:
- UV intensity with Flow-Pace™ UV intensity monitor
- Remaining lamp life
- Total hours of operation
- 2-stage flow pacing provides:
- Half-power to the lamps when there is no flow
- Full-power when the water is flowing
- Minimal power requirements and reduced heat build-up
- Ideal for whole house applications
- Compact installation footprint
This system is compatible with the S950RL-HO Sterilight Lamp and the QS-950 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SP950-HO includes:
- Sterilight Lamp (1): S950RL-HO
- Sterilight Quartz Sleeve (1): QS-950
- Sterilight O-Ring (1): 410867
NOTE: This item is discontinued. We recommend the Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm as a substitute.
Weight & Dimensions
Approx Length (Inches) | 44-1/2" |
Power Supply Dimensions | 11" x 4-1/2" x 2" |
Weight (lbs) | 29 |
Details
Ambient Temperature Range | 36-104 °F |
Features | UV Intensity Monitor |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 1-1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 14.5 |
Power | 110 W |
Size | 1-1/2" |
Connection Type | Male (MPT) |
Diameter | 3-1/2" |
Type | Single UV System |
Voltage | 120 V |
Warranty & Certifications
Certifications | CSA (C US); CE Standards |
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
Documentation
