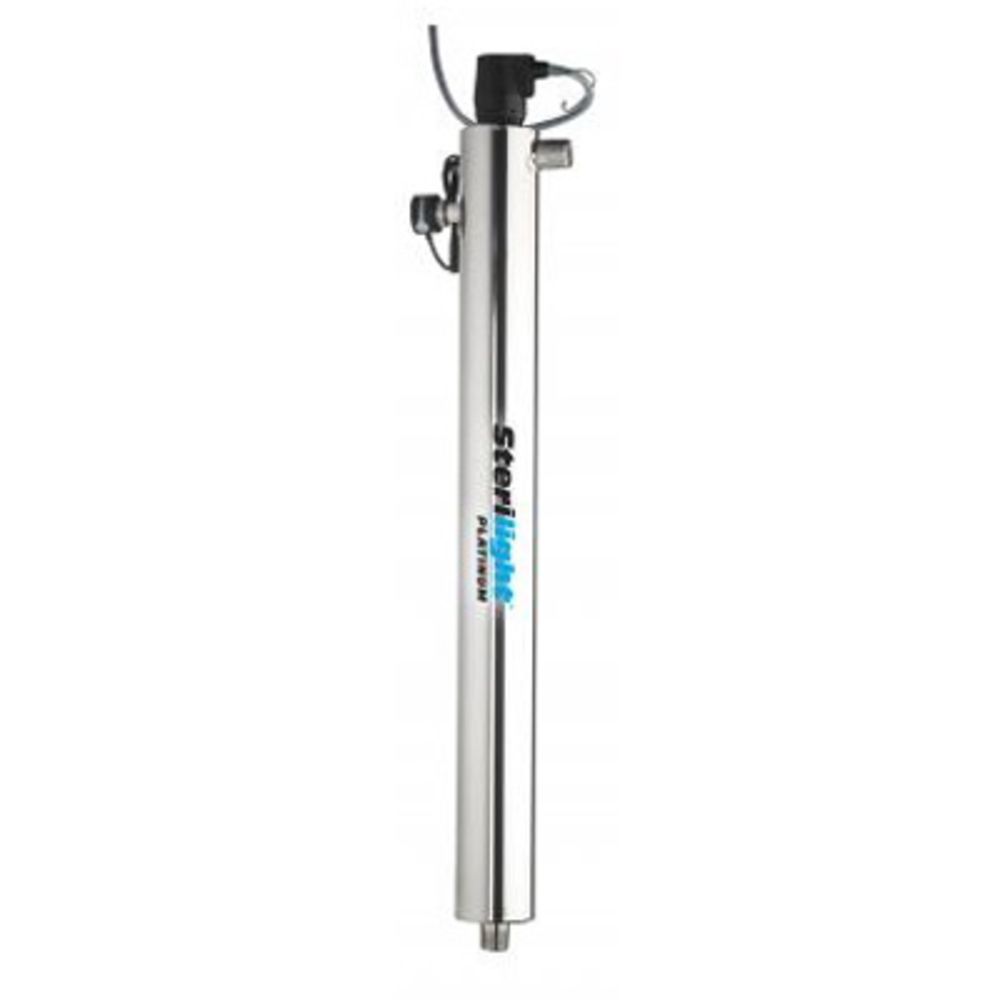

Viqua Sterilight SP740-HO Platinum Series UV Disinfection System 42 gpm

Part Number: SP740-HO

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm as a...

The Viqua Sterilight SP740-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.
Specifications:
  • Modular system, based on NSF validated Platinum™
  • Includes Platinum™ controller which displays:
  • % UV intensity with Flow-Pace™ UV intensity monitor
  • Remaining lamp life
  • Total hours of operation
  • 2-stage flow pacing provides:
  • Half-power to the lamps when there is no flow
  • Full-power when the water is flowing
  • Minimal power requirements and reduced heat build-up
  • Ideal for whole house applications
  • Compact installation footprint
This system is compatible with the S740RL-HO Sterilight Lamp and the QS-740 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SP740-HO includes:
  • Sterilight Lamp (1): S740RL-HO
  • Sterilight Quartz Sleeve (1): QS-740
  • Sterilight O-Ring (1): 410867




Weight & Dimensions

Weight (lbs)

24

Approx Length (Inches)

39.4"

Power Supply Dimensions

11" x 4-1/2" x 2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

42 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

88 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Certifications

CSA (C US), CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua

Viqua




The Viqua Sterilight SP740-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.
Specifications:
  • Modular system, based on NSF validated Platinum™
  • Includes Platinum™ controller which displays:
  • % UV intensity with Flow-Pace™ UV intensity monitor
  • Remaining lamp life
  • Total hours of operation
  • 2-stage flow pacing provides:
  • Half-power to the lamps when there is no flow
  • Full-power when the water is flowing
  • Minimal power requirements and reduced heat build-up
  • Ideal for whole house applications
  • Compact installation footprint
This system is compatible with the S740RL-HO Sterilight Lamp and the QS-740 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SP740-HO includes:
  • Sterilight Lamp (1): S740RL-HO
  • Sterilight Quartz Sleeve (1): QS-740
  • Sterilight O-Ring (1): 410867



NOTE: This item is discontinued. We recommend the Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

24

Approx Length (Inches)

39.4"

Power Supply Dimensions

11" x 4-1/2" x 2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

42 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

88 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Certifications

CSA (C US), CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
