Viqua

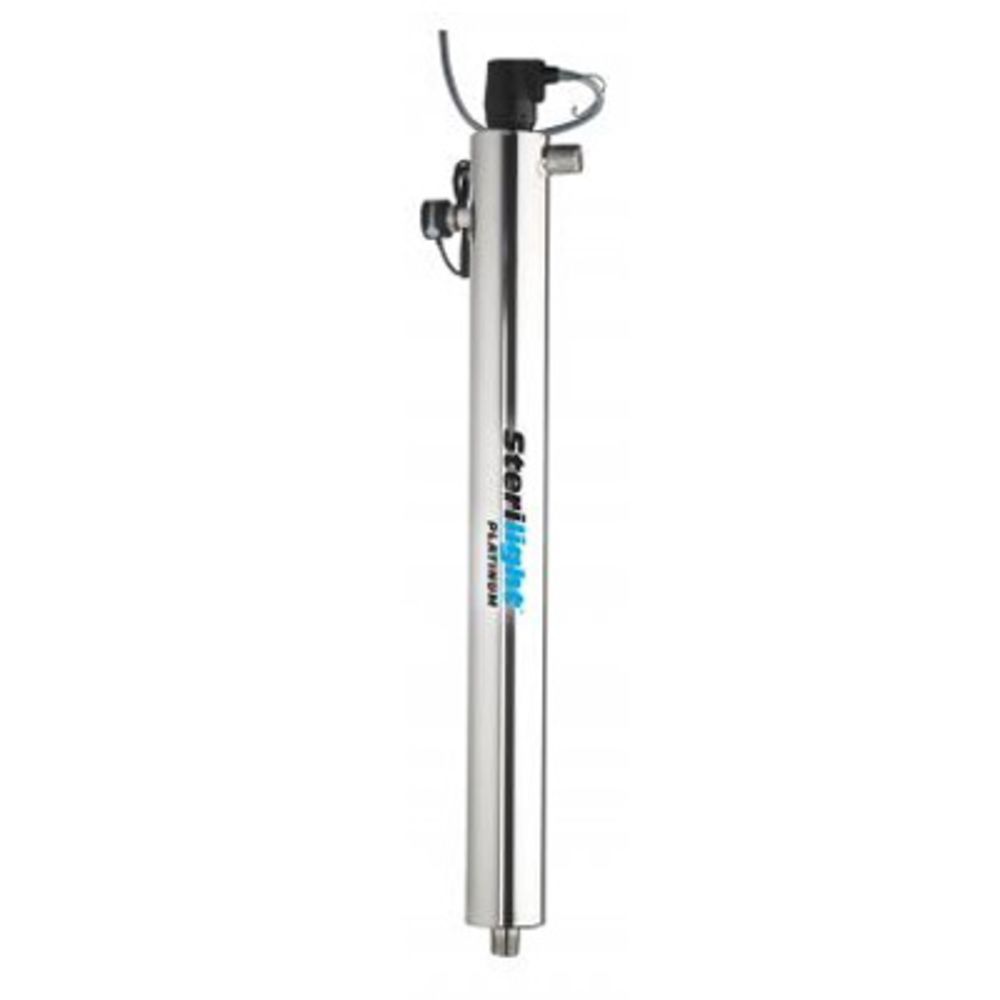

Viqua Sterilight SP600-HO Platinum Series UV Disinfection System 35 gpm

Part Number: SP600-HO

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VP600M Cobalt Series Monitored UV System Powered By Sterilight 30 gpm as a...

The Viqua Sterilight SP600-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.

Specifications:
  • Type 304 stainless steel reactor
  • Modular system, based on NSF validated Platinum™
  • Includes Platinum™ controller which displays:
  • % UV intensity with Flow-Pace™ UV intensity monitor
  • Remaining lamp life
  • Total hours of operation
  • 2-stage flow pacing provides:
  • Half-power to the lamps when there is no flow
  • Full-power when the water is flowing
  • Minimal power requirements and reduced heat build-up
  • Ideal for whole house applications
  • Compact installation footprint




Weight & Dimensions

Weight (lbs)

19

Approx Length (Inches)

30.7"

Power Supply Dimensions

11" x 4-1/2" x 2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

35 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

73 W

Size

1"

Voltage

120 V

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Certifications

CSA (C US), CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua

Viqua

Viqua




The Viqua Sterilight SP600-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.

Specifications:
  • Type 304 stainless steel reactor
  • Modular system, based on NSF validated Platinum™
  • Includes Platinum™ controller which displays:
  • % UV intensity with Flow-Pace™ UV intensity monitor
  • Remaining lamp life
  • Total hours of operation
  • 2-stage flow pacing provides:
  • Half-power to the lamps when there is no flow
  • Full-power when the water is flowing
  • Minimal power requirements and reduced heat build-up
  • Ideal for whole house applications
  • Compact installation footprint



NOTE: This item is discontinued. We recommend the Viqua VP600M Cobalt Series Monitored UV System Powered By Sterilight 30 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

19

Approx Length (Inches)

30.7"

Power Supply Dimensions

11" x 4-1/2" x 2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

35 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

73 W

Size

1"

Voltage

120 V

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Certifications

CSA (C US), CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components

Documentation
