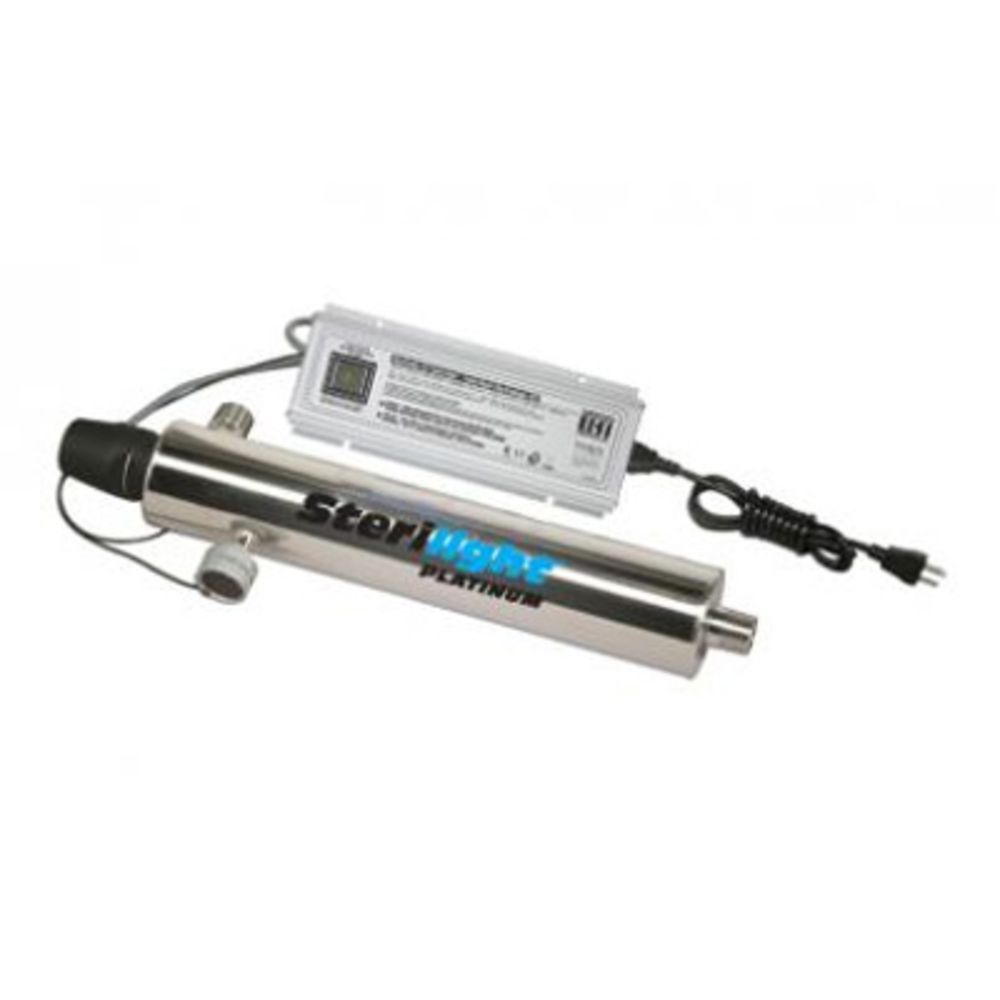

Viqua Sterilight SP320-HO Platinum Series UV Disinfection System 18 gpm

Part Number: SP320-HO

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm as a...

The Viqua Sterilight SP320-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.

Specifications:
  • Type 304 stainless steel reactor
  • Includes Platinum™ controller which displays:
  • % UV intensity with Flow-Pace™ UV intensity monitor
  • Remaining lamp life
  • Total hours of operation
  • 2-stage flow pacing provides:
  • Half-power to the lamps when there is no flow
  • Full-power when the water is flowing
  • Minimal power requirements and reduced heat build-up
  • Ideal for whole house applications
  • Compact installation footprint
This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SP320-HO includes:
  • Sterilight Lamp (1): S320RL-HO
  • Sterilight Quartz Sleeve (1): QS-320
  • Sterilight O-Ring (1): 410867




Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor

Frequency

50/60 Hz

Inlet/Outlet Connection

1" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Number Of Lamps

1

Power

42 W

Size

1"

Connection Type

Male (MPT)

Diameter

3-1/2"

Flow Rate

18 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Certifications

CSA (C US); CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua

Viqua




The Viqua Sterilight SP320-HO Platinum UV System is a modular system, based on the NSF validated Sterilight Platinum. It features a unique 2-stage flow pacing control system to ensure a minimal usage of power, which saves both money and longevity of the system.

Specifications:
  • Type 304 stainless steel reactor
  • Includes Platinum™ controller which displays:
  • % UV intensity with Flow-Pace™ UV intensity monitor
  • Remaining lamp life
  • Total hours of operation
  • 2-stage flow pacing provides:
  • Half-power to the lamps when there is no flow
  • Full-power when the water is flowing
  • Minimal power requirements and reduced heat build-up
  • Ideal for whole house applications
  • Compact installation footprint
This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SP320-HO includes:
  • Sterilight Lamp (1): S320RL-HO
  • Sterilight Quartz Sleeve (1): QS-320
  • Sterilight O-Ring (1): 410867



NOTE: This item is discontinued. We recommend the Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm as a substitute.

Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor

Frequency

50/60 Hz

Inlet/Outlet Connection

1" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Number Of Lamps

1

Power

42 W

Size

1"

Connection Type

Male (MPT)

Diameter

3-1/2"

Flow Rate

18 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Certifications

CSA (C US); CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
