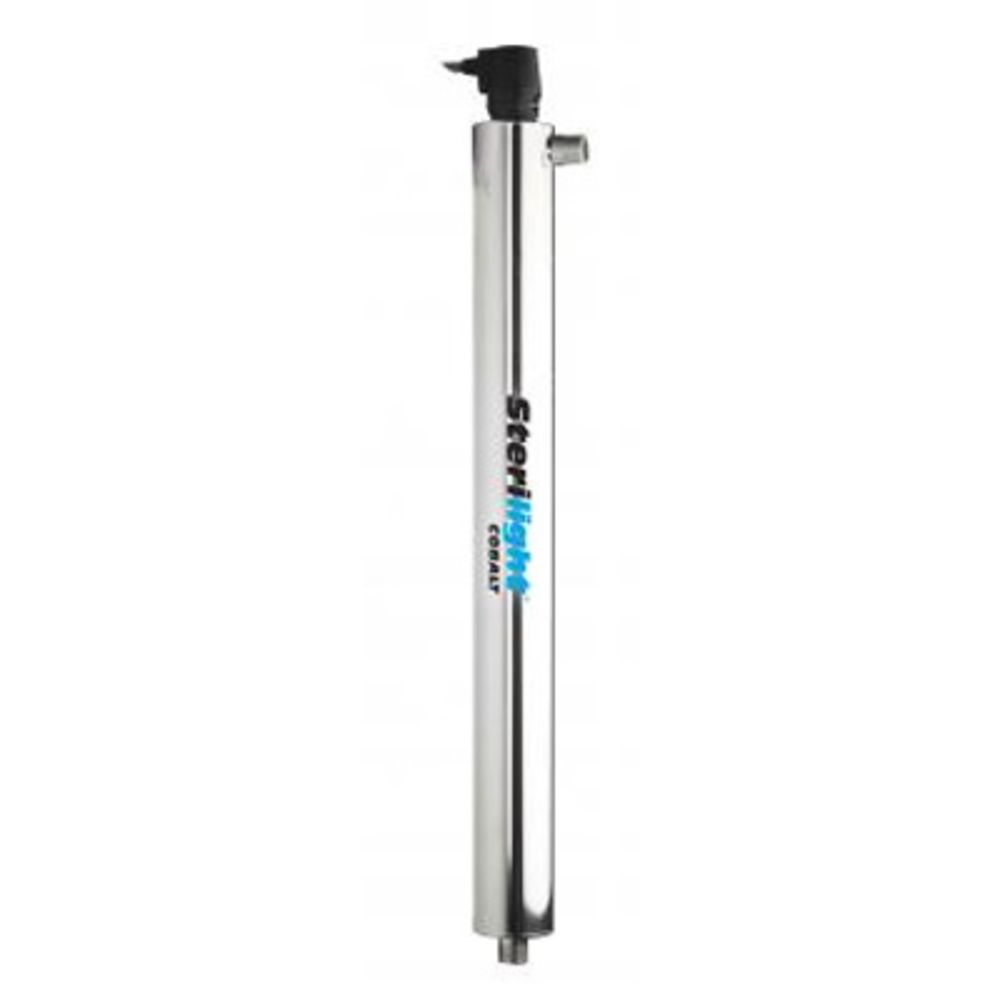

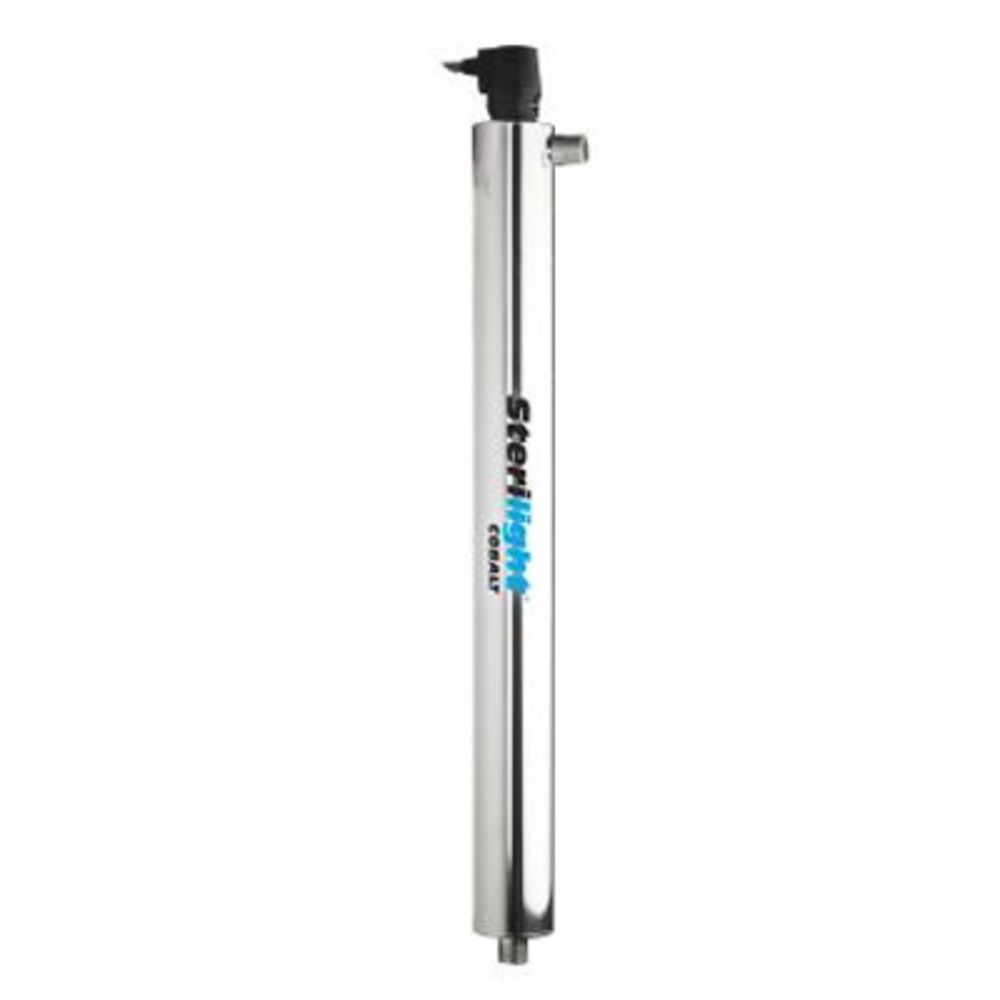

Viqua Sterilight SCV-740 Cobalt Series UV System 15.8 gpm

Part Number: SCV-740

In Stock

out of stock

The Viqua Sterilight SCV-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Specifications:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow
This system is compatible with the S740RL-HO Sterilight Lamp and the QS-740 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SCV-740 includes:
  • Sterilight Lamp (1): S740RL-HO
  • Sterilight Quartz Sleeve (1): QS-740
  • Sterilight O-Ring (1): 410867




Weight & Dimensions

Weight (lbs)

29

Approx Length (Inches)

39.4"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Audible Lamp Failure, Visual Power On

Flow Rate

15.8 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Power

88 W

Size

1-1/2"

Voltage

120 V

Inlet/Outlet Connection

1-1/2" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components




The Viqua Sterilight SCV-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Specifications:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow
This system is compatible with the S740RL-HO Sterilight Lamp and the QS-740 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SCV-740 includes:
  • Sterilight Lamp (1): S740RL-HO
  • Sterilight Quartz Sleeve (1): QS-740
  • Sterilight O-Ring (1): 410867



NOTE: This item is discontinued. We recommend the Viqua E4-V NSF Class B UV System Powered by UVMax 15 gpm - UV System Only as a substitute.

Weight & Dimensions

Weight (lbs)

29

Approx Length (Inches)

39.4"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Audible Lamp Failure, Visual Power On

Flow Rate

15.8 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Power

88 W

Size

1-1/2"

Voltage

120 V

Inlet/Outlet Connection

1-1/2" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
