Viqua

Viqua E4-V NSF Class B UV System Powered by UVMax 15 gpm - UV System Only

Part Number: 660040-R

Alt. Part Number: SCV-600

In Stock

out of stock

In Stock

$999.00

Viqua has discontinued the E4-V and has suggested the SCV-740 as a replacement. The SCV-740 is over $100 less than the E4-V and we are currently running a 15% off promotion* on it! If you are looking for an excellent UV System to replace the discontinued E4-V, than the SCV-740 is for you. You can find it in the accessories.

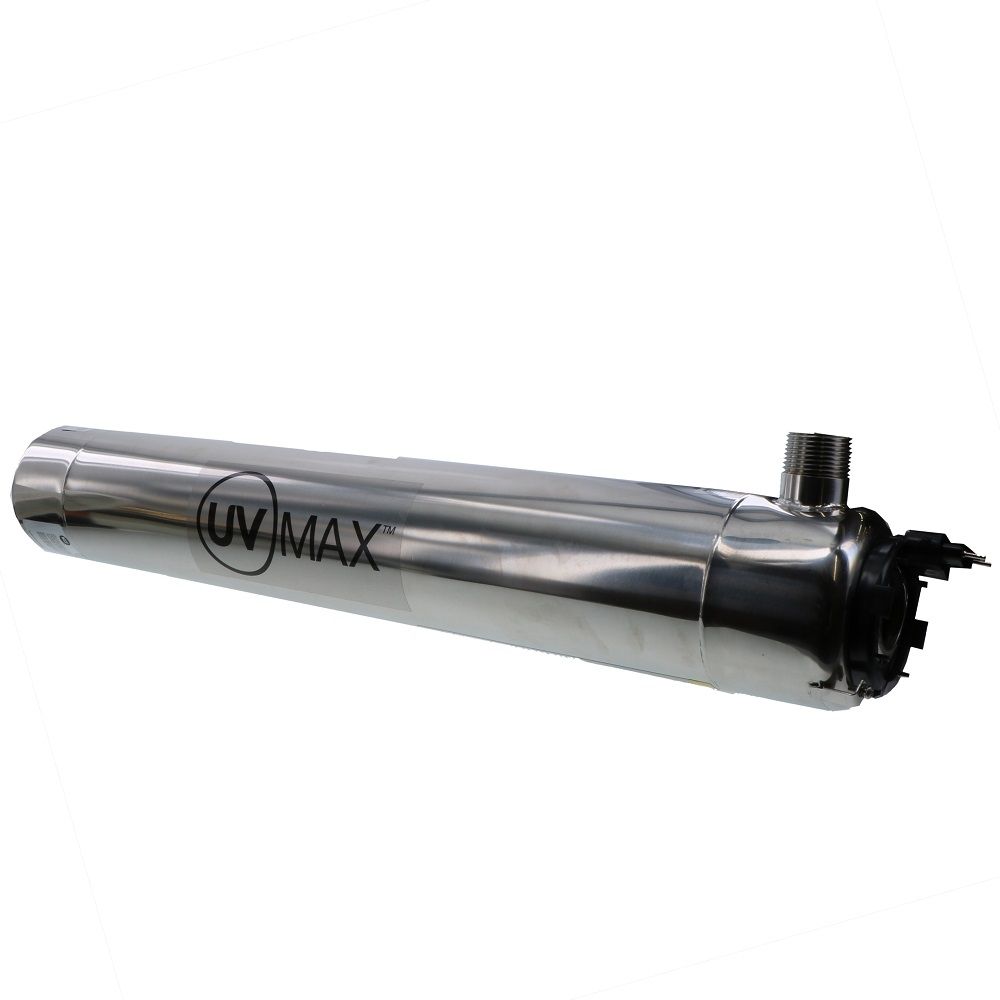

The Viqua E4-V disinfection water system is a whole house (4-7BR) ultraviolet disinfection system designed to remove harmful bacteria, virus, and microorganisms. The Viqua E4-V compact design, simple installation, and low cost of operation is ideal for medium to large size homes. The Viqua E4-V provides quality and reliability from its 15 gpm high-output ultraviolet water purification system.    Features:

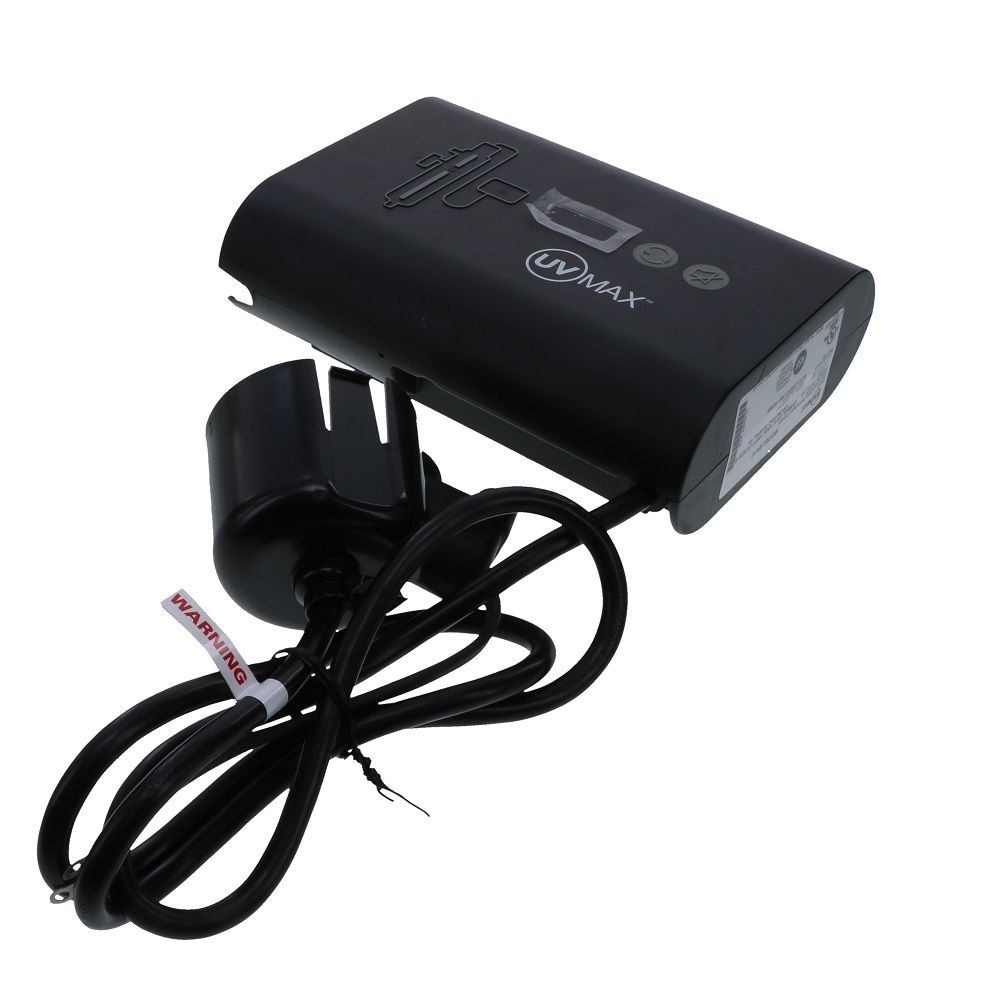

  • Trojan UVMax controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Lamp timer reset button and mute button to silence audio alarm
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Three Year Warranty
  • Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm2) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm2) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
*NOTE: promotion ends 6/30/2016


Weight & Dimensions

Approx Length (Inches)

30 Inches

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Flow Rate

15.8 Gallons Per Minute (16mJ/cm2 Dose)

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 PSI

Power

83 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards; NSF/ANSI Standard 55, Class B

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
