Viqua

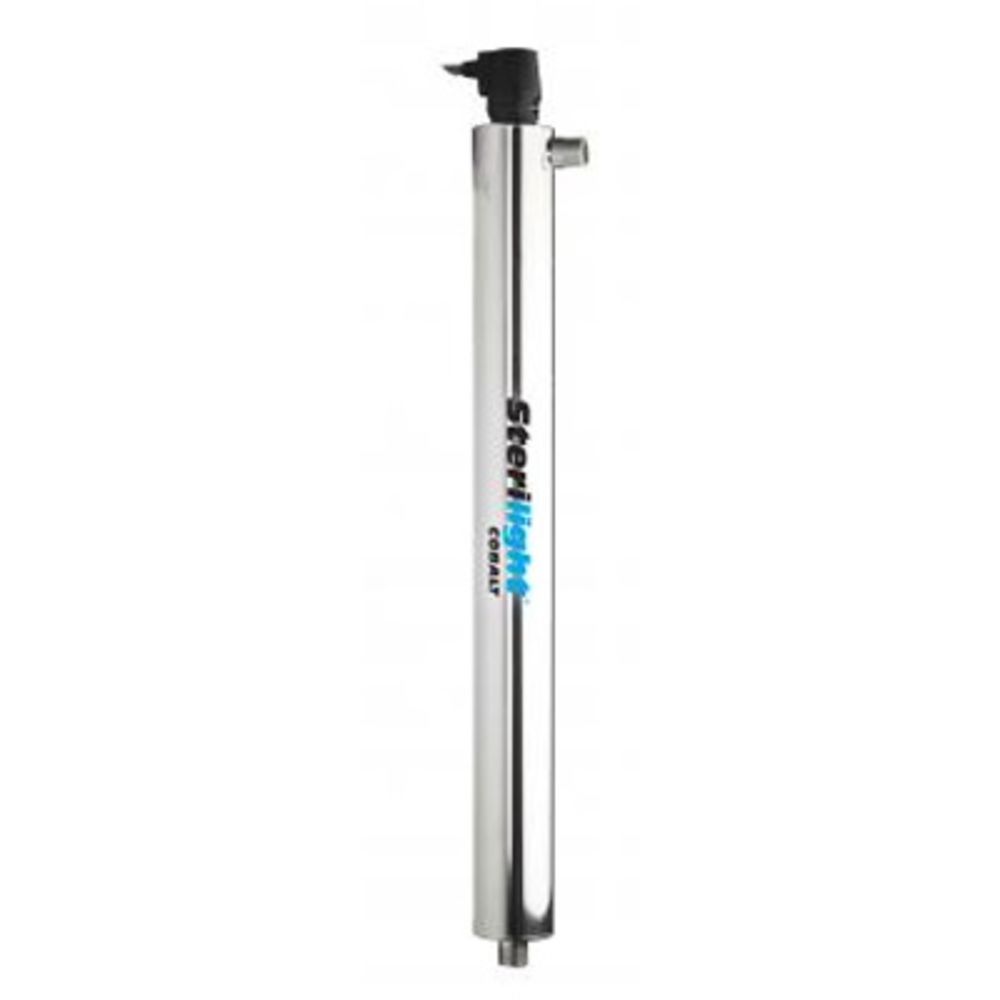

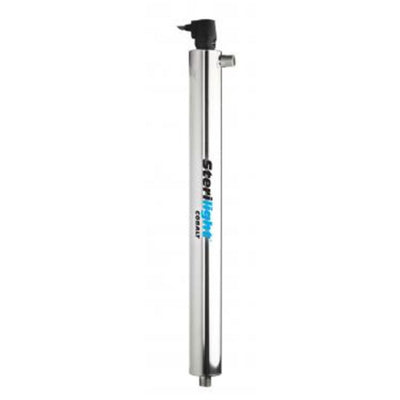

Viqua Sterilight SCM-740 Cobalt Plus System w/UV Monitor 40 gpm

Part Number: SCM-740

In Stock

out of stock

In Stock

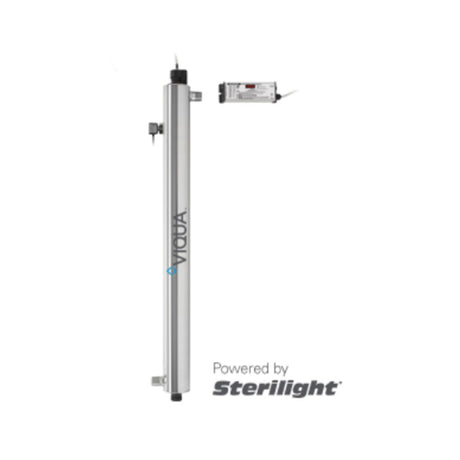

This item is discontinued. We recommend the Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm as a...

The Viqua Sterilight SCM-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow




Weight & Dimensions

Approx Length (Inches)

39.7"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Details

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

40 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Operating Pressure Range

5-125 PSI

Power

88 W

Size

1-1/2"

Voltage

120 V

Inlet/Outlet Connection

1-1/2" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua




The Viqua Sterilight SCM-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow



NOTE: This item is discontinued. We recommend the Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm as a substitute.

Weight & Dimensions

Approx Length (Inches)

39.7"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Details

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

40 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Operating Pressure Range

5-125 PSI

Power

88 W

Size

1-1/2"

Voltage

120 V

Inlet/Outlet Connection

1-1/2" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
