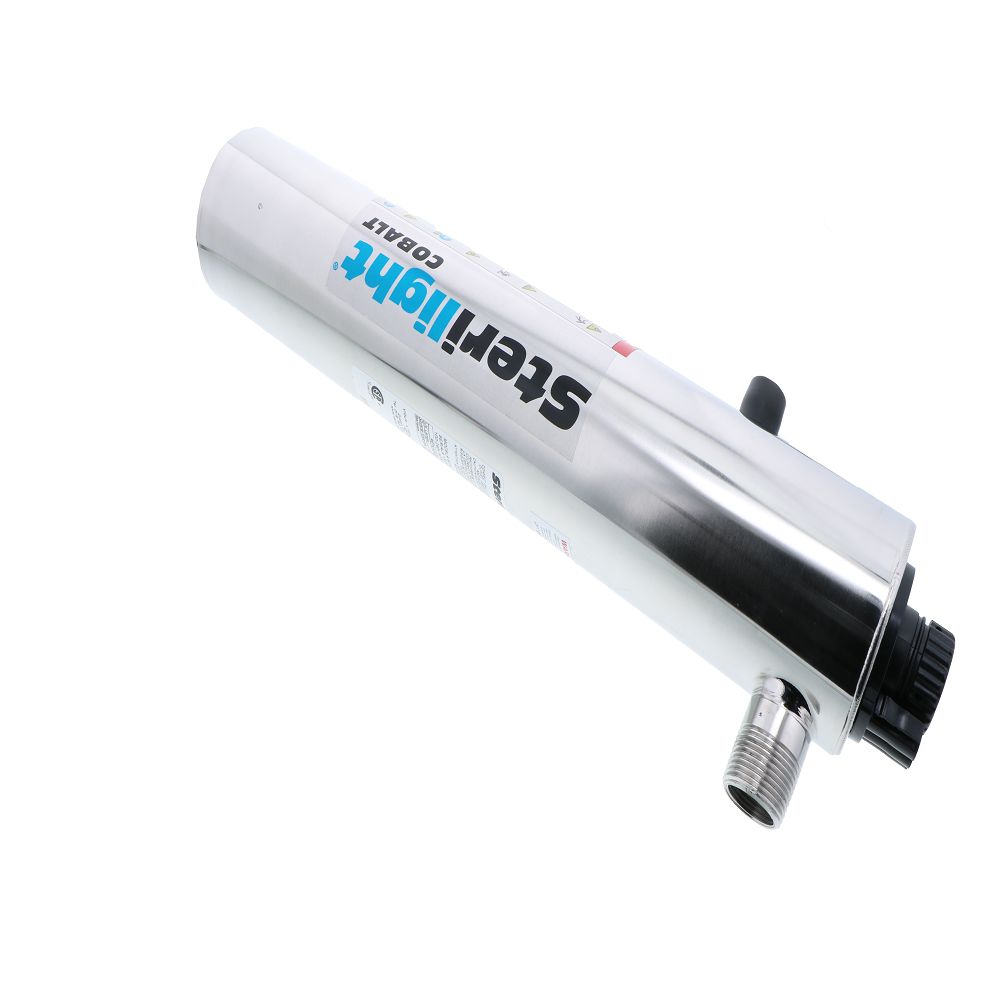

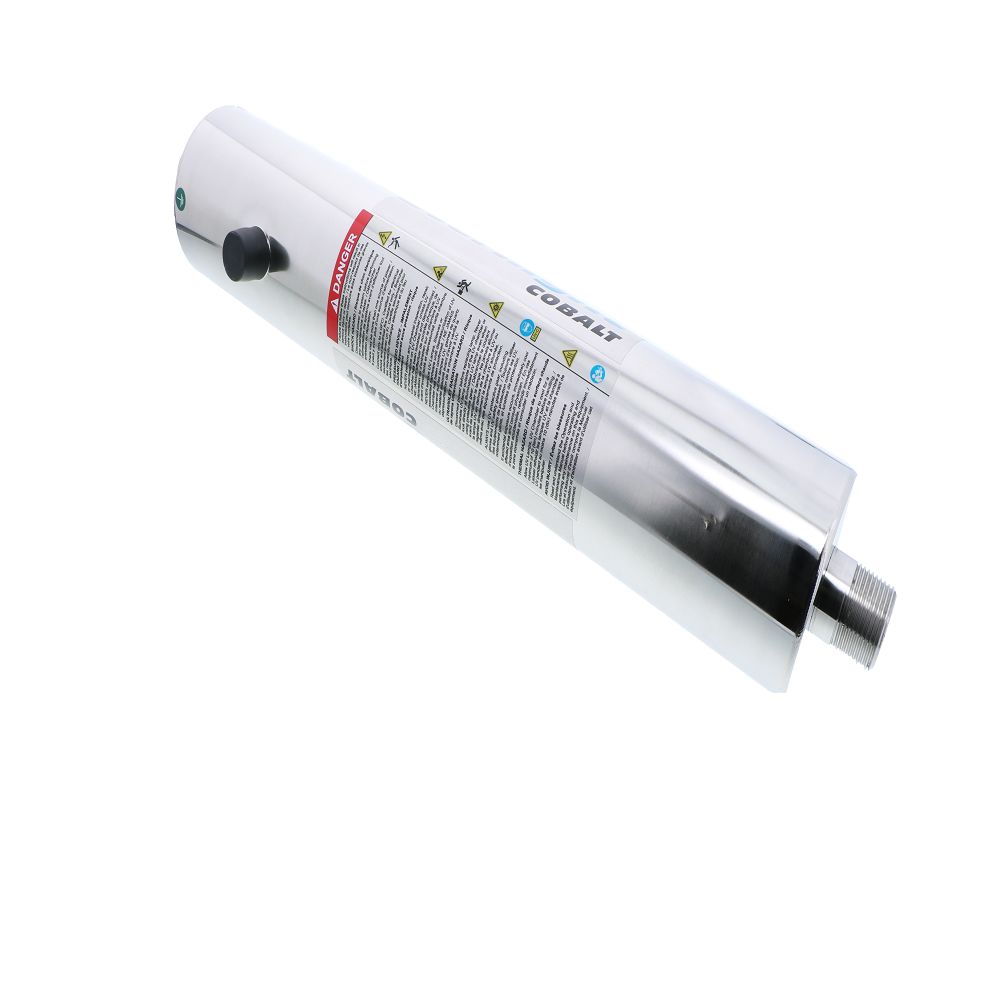

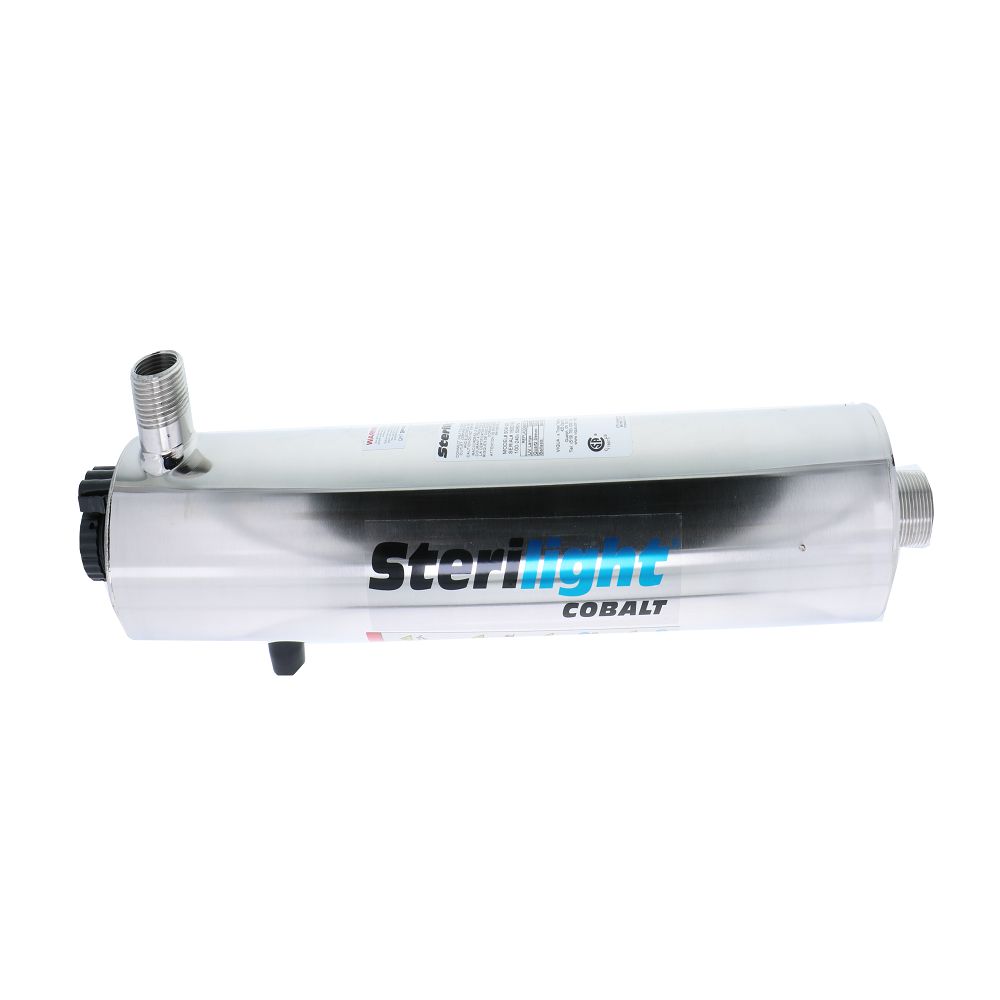

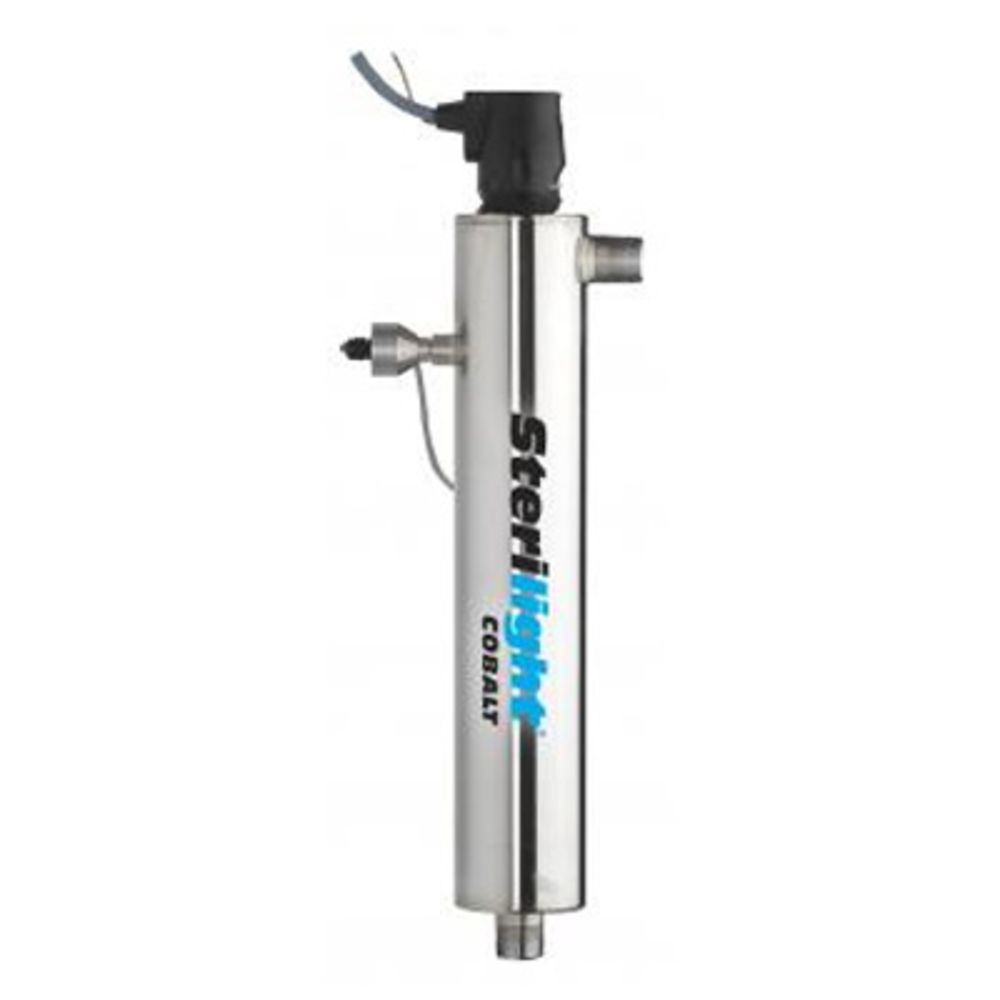

Viqua Sterilight SCM-320 Cobalt Plus System w/UV Monitor 13 gpm

Part Number: SCM-320

In Stock

out of stock

In Stock

$917.15


The Viqua Sterilight SCM-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals

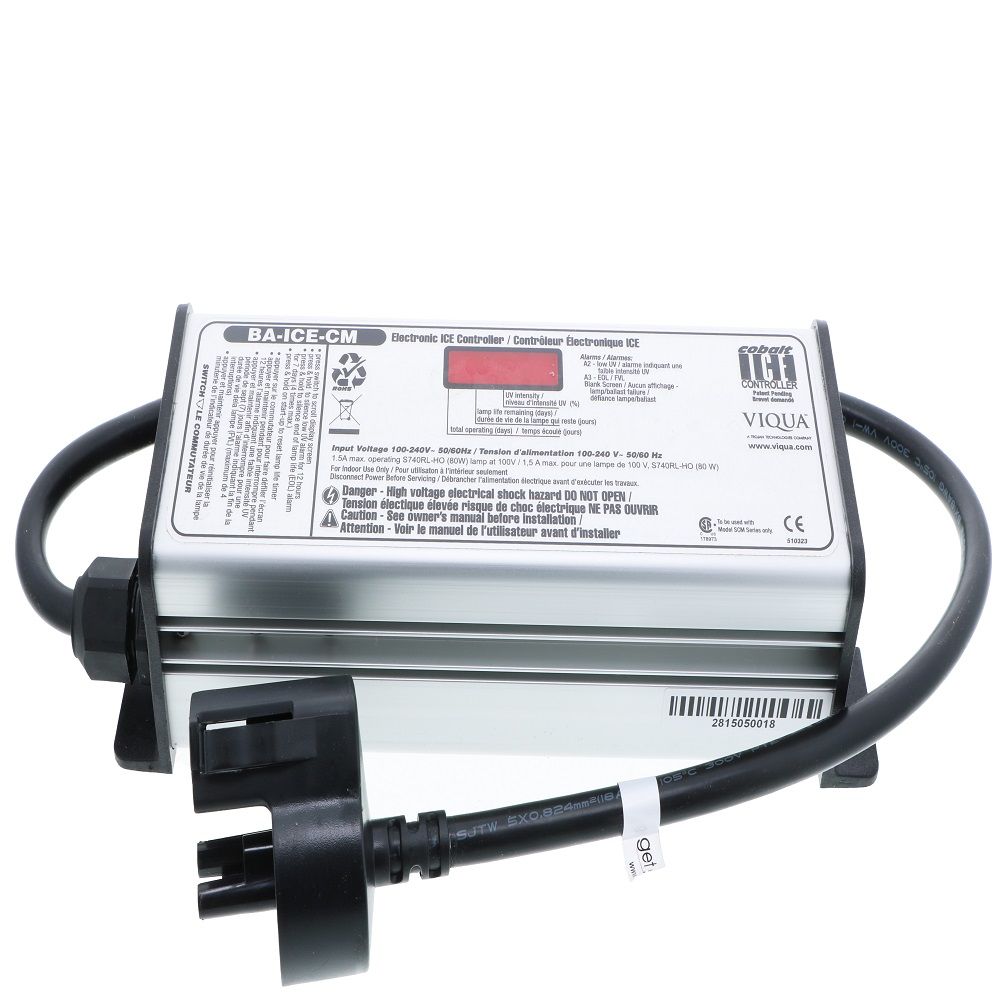

  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow

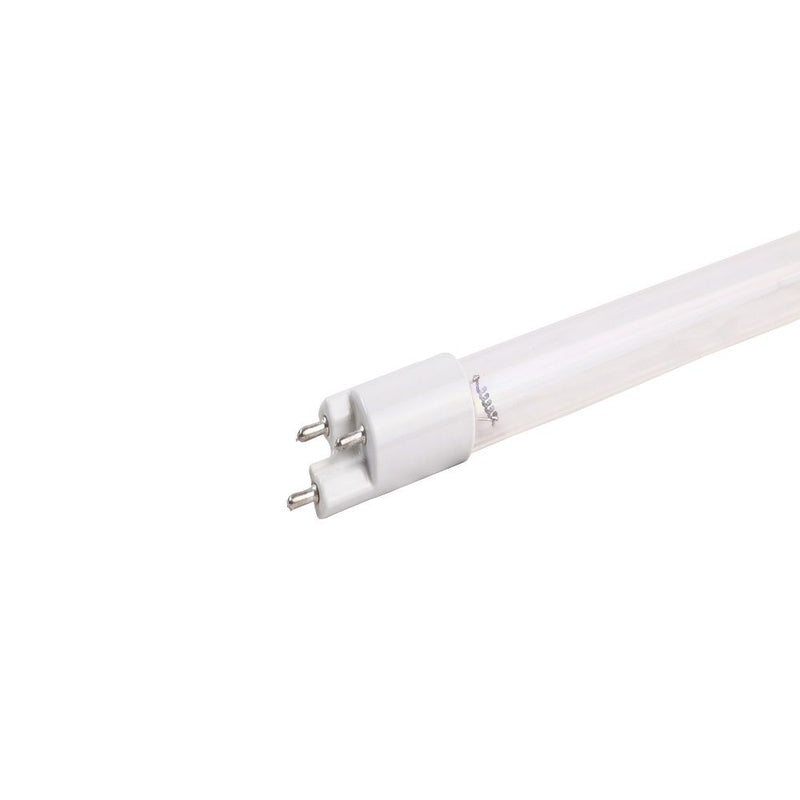

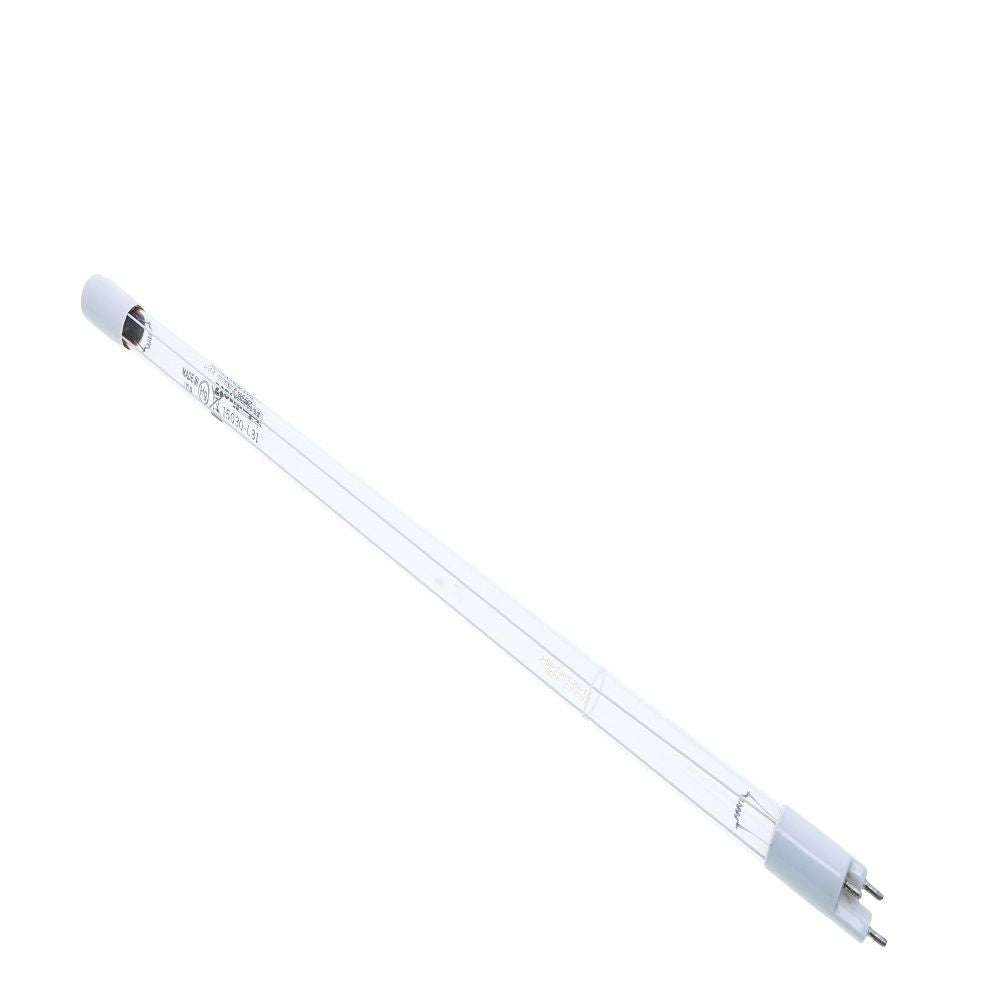

This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SCM-320 includes:
Sterilight Lamp (1): S320RL-HO Sterilight Quartz Sleeve (1): QS-320 Sterilight O-Ring (1): 410867


Weight & Dimensions

Approx Length (Inches)

22.8 Inches

Power Supply Dimensions

9.4"x3.2"x2.5"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On

Flow Rate

13 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

5-125 PSI

Power

42 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
