Viqua

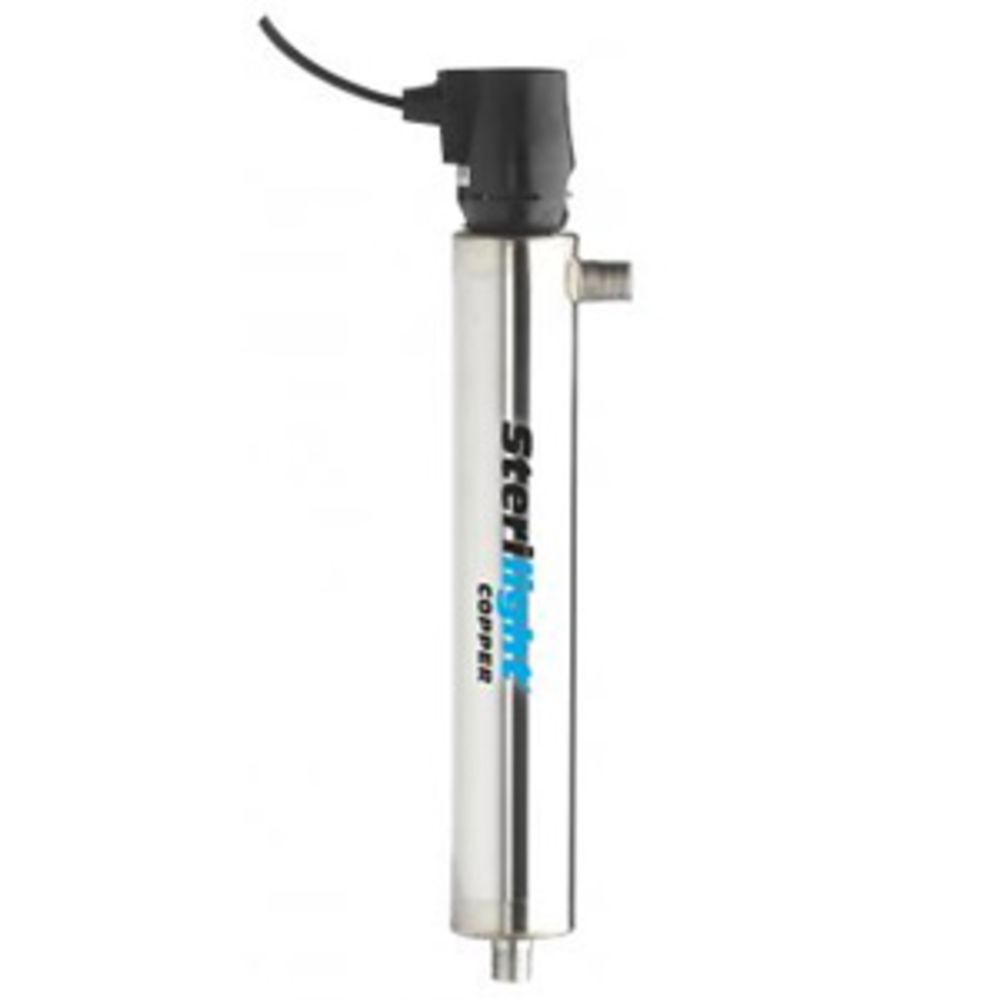

Viqua Sterilight SC4 Copper Series UV System 100-130V

Part Number: SC4

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VT4 Copper Series UV System Powered By Sterilight 3.5 gpm as a substitute....

Consumer Note: The Viqua Sterilight SC4 UV System has been discontinued and the manufacturer has suggested the Viqua VT4 UV System as a replacement.


The Viqua Sterilight SC4 Copper UV System 100-130V is specifically designed for point-of-use applications where microbiological control is required. The SC4 UV System controls bacteria, virus and protozoan cyst all in one complete design.
Specifications:
  • 304 Stainless Steel Reactors
  • Flow Rate: 4 gpm
  • Dimensions: 18.2" x 2.5" Diameter
  • Max Operating Pressure: 125 psi
  • Inlet/Outlet Port Size: 1/2" MPT/ 3/8" FPT
  • Volt: 100-130V/50-60Hz
This simple UV disinfection system has a minimal amount of parts with an integral electronic ballast with a visual alarm (LED). the Copper family of systems is ideal for small POU (point-of-use) applications. The ballast is built into the connector of the system. The UV reactor has an axial flow design and is manufactured in 304 stainless steel with combination ports of 3/8" FPT and 1/2" MPT connections.
This system is compatible with the S330RL Sterilight Lamp and the QS-330D Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC4 includes:
  • Sterilight Lamp (1): S330RL
  • Sterilight Quartz Sleeve (1): QS-330D
  • Sterilight O-Rings (2): 410867




Weight & Dimensions

Weight (lbs)

4.775

Approx Length (Inches)

18.2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Diameter

2-1/2"

Features

Visual Power On

Flow Rate

4 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

19 W

Size

1/2", 3/8"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT, 3/8" FPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 2 yr pro rated on all other components


Viqua

Viqua

Viqua




Consumer Note: The Viqua Sterilight SC4 UV System has been discontinued and the manufacturer has suggested the Viqua VT4 UV System as a replacement.


The Viqua Sterilight SC4 Copper UV System 100-130V is specifically designed for point-of-use applications where microbiological control is required. The SC4 UV System controls bacteria, virus and protozoan cyst all in one complete design.
Specifications:
  • 304 Stainless Steel Reactors
  • Flow Rate: 4 gpm
  • Dimensions: 18.2" x 2.5" Diameter
  • Max Operating Pressure: 125 psi
  • Inlet/Outlet Port Size: 1/2" MPT/ 3/8" FPT
  • Volt: 100-130V/50-60Hz
This simple UV disinfection system has a minimal amount of parts with an integral electronic ballast with a visual alarm (LED). the Copper family of systems is ideal for small POU (point-of-use) applications. The ballast is built into the connector of the system. The UV reactor has an axial flow design and is manufactured in 304 stainless steel with combination ports of 3/8" FPT and 1/2" MPT connections.
This system is compatible with the S330RL Sterilight Lamp and the QS-330D Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC4 includes:
  • Sterilight Lamp (1): S330RL
  • Sterilight Quartz Sleeve (1): QS-330D
  • Sterilight O-Rings (2): 410867



NOTE: This item is discontinued. We recommend the Viqua VT4 Copper Series UV System Powered By Sterilight 3.5 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

4.775

Approx Length (Inches)

18.2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Diameter

2-1/2"

Features

Visual Power On

Flow Rate

4 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

19 W

Size

1/2", 3/8"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT, 3/8" FPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 2 yr pro rated on all other components
