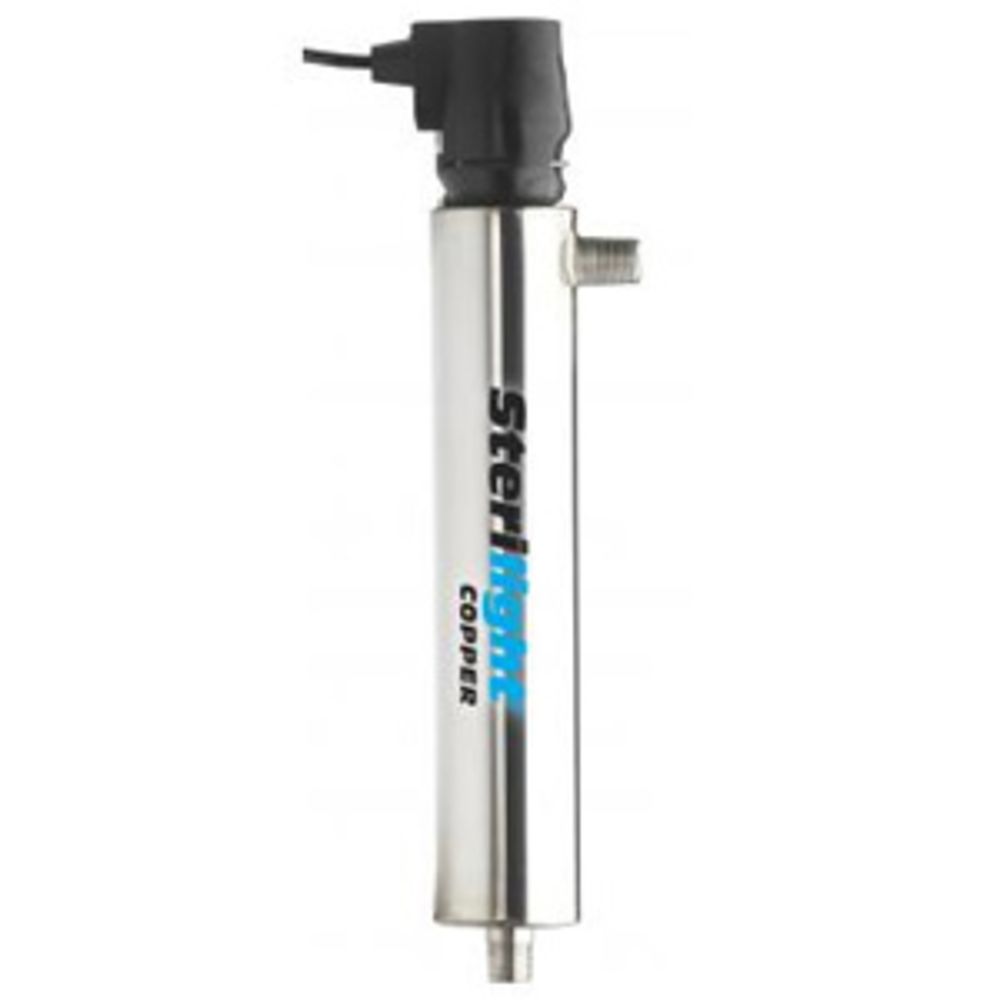

Viqua Sterilight SC2.5 Copper Series UV System 100-130V

Part Number: SC2.5

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua VT4 Copper Series UV System Powered By Sterilight 3.5 gpm as a substitute....

The Viqua Sterilight SC2.5 Copper UV System 100-130V is specifically designed for point-of-use applications where microbiological control is required. The SC2.5 UV System controls bacteria, virus and protozoan cyst all in one complete design.

Specifications:
  • 304 Stainless Steel Reactors
  • Flow Rate: 2.5 gpm
  • Dimensions: 13.5" x 2.5" Diameter
  • Max Operating Pressure: 125 psi
  • Inlet/Outlet Port Size: 1/2" MNPT/ 3/8" FNPT
  • Volts: 100-130V/50-60Hz
This simple UV disinfection system has a minimal amount of parts with an integral electronic ballast with a visual alarm (LED). the Copper family of systems is ideal for small POU (point-of-use) applications. The ballast is built into the connector of the system. The UV reactor has an axial flow design and is manufactured in 304 stainless steel with combination ports of 3/8" FNPT and 1/2" MNPT connections.



Weight & Dimensions

Weight (lbs)

5.5

Approx Length (Inches)

16-1/2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Diameter

2-1/2"

Features

Visual Power On

Flow Rate

2.5 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

16 W

Size

1/2", 3/8"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT, 3/8" FPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 2 yr pro rated on all other components


Viqua

Viqua

Viqua




The Viqua Sterilight SC2.5 Copper UV System 100-130V is specifically designed for point-of-use applications where microbiological control is required. The SC2.5 UV System controls bacteria, virus and protozoan cyst all in one complete design.

Specifications:
  • 304 Stainless Steel Reactors
  • Flow Rate: 2.5 gpm
  • Dimensions: 13.5" x 2.5" Diameter
  • Max Operating Pressure: 125 psi
  • Inlet/Outlet Port Size: 1/2" MNPT/ 3/8" FNPT
  • Volts: 100-130V/50-60Hz
This simple UV disinfection system has a minimal amount of parts with an integral electronic ballast with a visual alarm (LED). the Copper family of systems is ideal for small POU (point-of-use) applications. The ballast is built into the connector of the system. The UV reactor has an axial flow design and is manufactured in 304 stainless steel with combination ports of 3/8" FNPT and 1/2" MNPT connections.


NOTE: This item is discontinued. We recommend the Viqua VT4 Copper Series UV System Powered By Sterilight 3.5 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

5.5

Approx Length (Inches)

16-1/2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Diameter

2-1/2"

Features

Visual Power On

Flow Rate

2.5 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

16 W

Size

1/2", 3/8"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT, 3/8" FPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 2 yr pro rated on all other components
