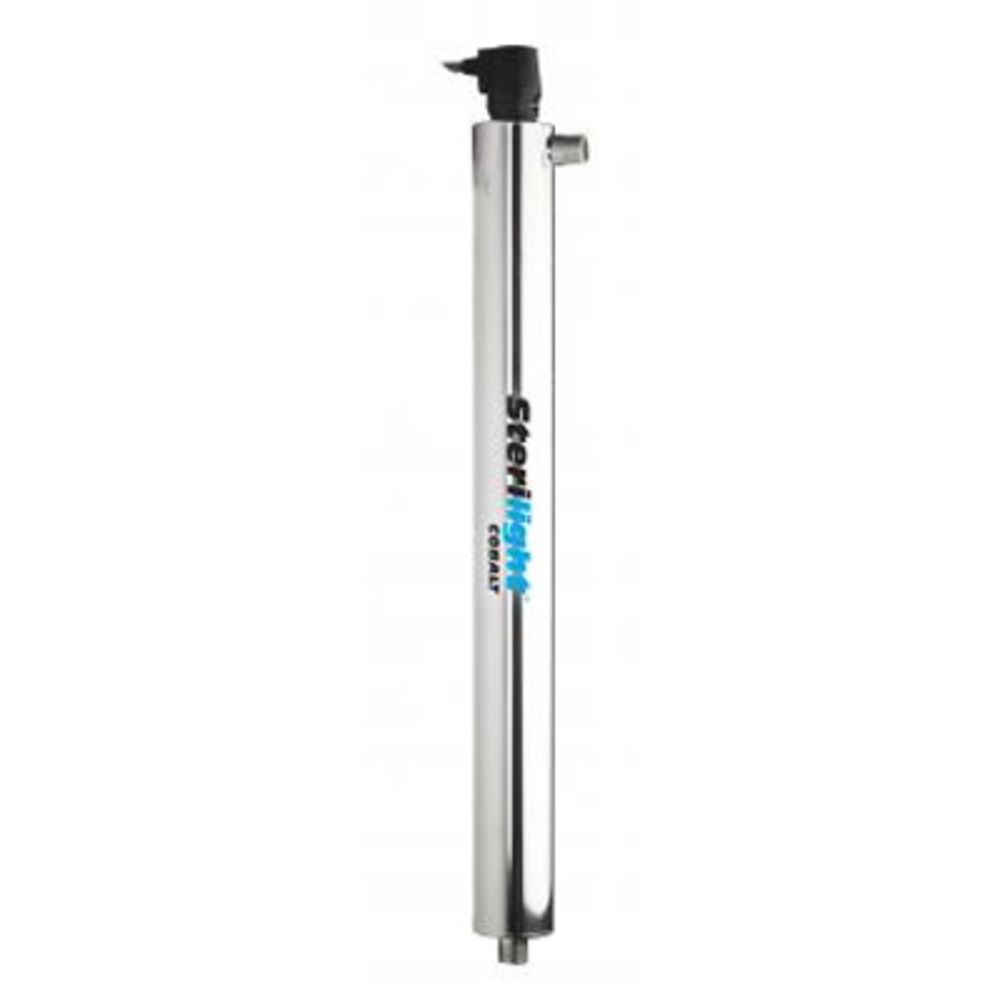

Viqua Sterilight SC-740 Cobalt Series UV System 40 gpm

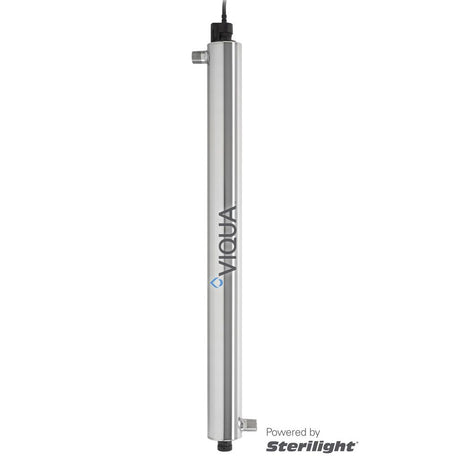

This item is discontinued. We recommend the Viqua VP950 Cobalt Series UV System Powered By Sterilight 46 gpm as a substitute....
Features:
- Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
- 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
- Cobalt ICE controller provides constant output current and a universal power input.
- Controller alerts user with alarm if UV lamp fails.
- Sealed case on the controller helps to prevent damage from accidental intrusion
- Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
- Compact design reduces installation time and takes less space
- Lamp can be changed without interruption water flow
Weight & Dimensions
Approx Length (Inches) | 39.4" |
Power Supply Dimensions | 9.4"x3.2"x2-1/2" |
Weight (lbs) | 24 |
Details
Ambient Temperature Range | 36-104 °F |
Features | Audible Lamp Failure, Visual Power On |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 1-1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Power | 88 W |
Size | 1-1/2" |
Connection Type | Male (MPT) |
Diameter | 3-1/2" |
Flow Rate | 40 GPM (30mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
Warranty & Certifications
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
The Viqua Sterilight SC-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.
Features:
- Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
- 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
- Cobalt ICE controller provides constant output current and a universal power input.
- Controller alerts user with alarm if UV lamp fails.
- Sealed case on the controller helps to prevent damage from accidental intrusion
- Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
- Compact design reduces installation time and takes less space
- Lamp can be changed without interruption water flow
NOTE: This item is discontinued. We recommend the Viqua VP950 Cobalt Series UV System Powered By Sterilight 46 gpm as a substitute.
Weight & Dimensions
Approx Length (Inches) | 39.4" |
Power Supply Dimensions | 9.4"x3.2"x2-1/2" |
Weight (lbs) | 24 |
Details
Ambient Temperature Range | 36-104 °F |
Features | Audible Lamp Failure, Visual Power On |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 1-1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Power | 88 W |
Size | 1-1/2" |
Connection Type | Male (MPT) |
Diameter | 3-1/2" |
Flow Rate | 40 GPM (30mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
Warranty & Certifications
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
