Viqua

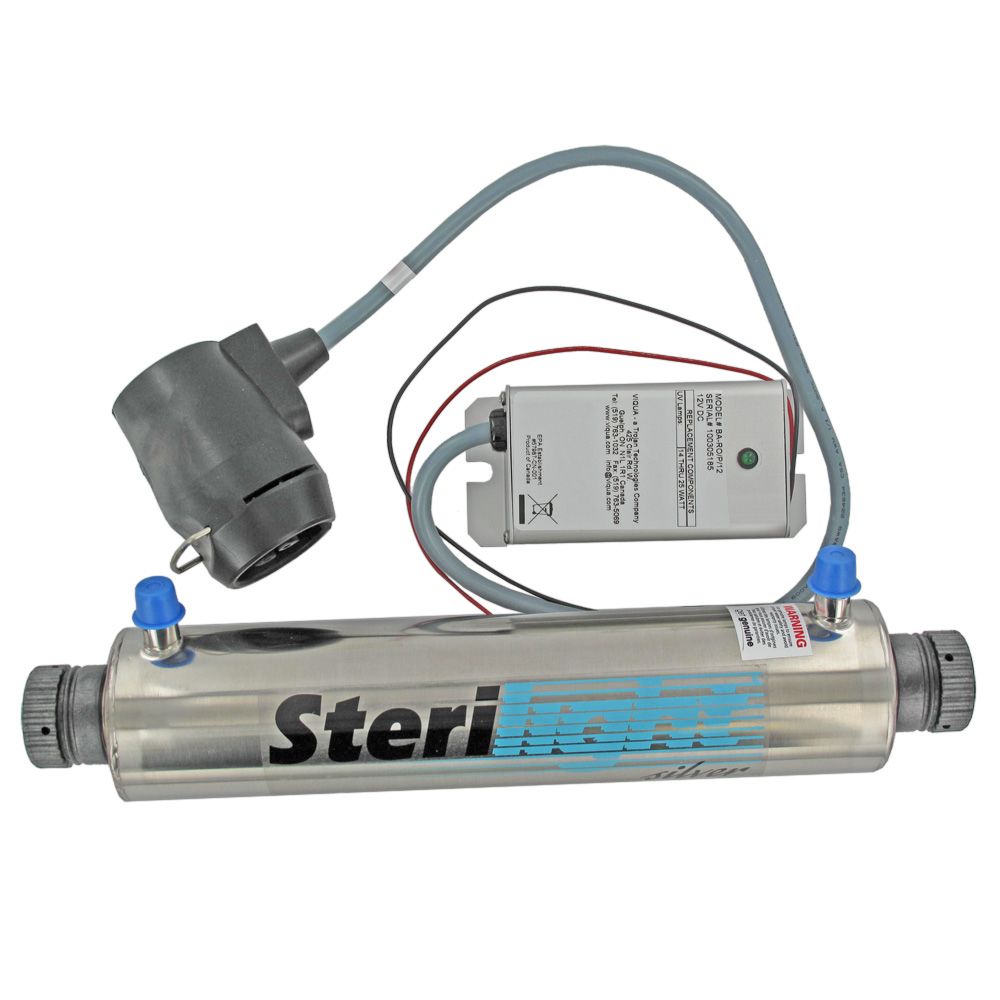

Viqua Sterilight S1Q-P/12VDC UV System 2 gpm

Part Number: S1Q-P/12VDC

Alt. Part Number: S1Q-PA/12VDC

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua S2Q-P/12VDC Silver Series UV System Powered by Sterilight 3 gpm as a substitute....

The Viqua Sterilight S1Q-P/12VDC Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.

Features:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator.
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications.
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency.
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow.
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design.
  • Natures way to protect your water without the addition of harmful chemicals.
  • Easy servicing - no need to disconnect water flow to change UV lamp.
  • Seven year warranty on reactor chamber for unparalleled protection.
  • Includes mounting clamp.
  • CSA and CE compliant.




Weight & Dimensions

Approx Length (Inches)

15"

Power Supply Dimensions

7.3"x3.2"x2-1/2"

Weight (lbs)

6

Details

Ambient Temperature Range

36-104 °F

Diameter

2-1/2"

Features

Visual Power On

Flow Rate

1.5 GPM (30mJ/cm2 Dose); 2 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Size

1/4"

Voltage

12 VDC

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua




The Viqua Sterilight S1Q-P/12VDC Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.

Features:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator.
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications.
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency.
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow.
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design.
  • Natures way to protect your water without the addition of harmful chemicals.
  • Easy servicing - no need to disconnect water flow to change UV lamp.
  • Seven year warranty on reactor chamber for unparalleled protection.
  • Includes mounting clamp.
  • CSA and CE compliant.



NOTE: This item is discontinued. We recommend the Viqua S2Q-P/12VDC Silver Series UV System Powered by Sterilight 3 gpm as a substitute.

Weight & Dimensions

Approx Length (Inches)

15"

Power Supply Dimensions

7.3"x3.2"x2-1/2"

Weight (lbs)

6

Details

Ambient Temperature Range

36-104 °F

Diameter

2-1/2"

Features

Visual Power On

Flow Rate

1.5 GPM (30mJ/cm2 Dose); 2 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Size

1/4"

Voltage

12 VDC

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
