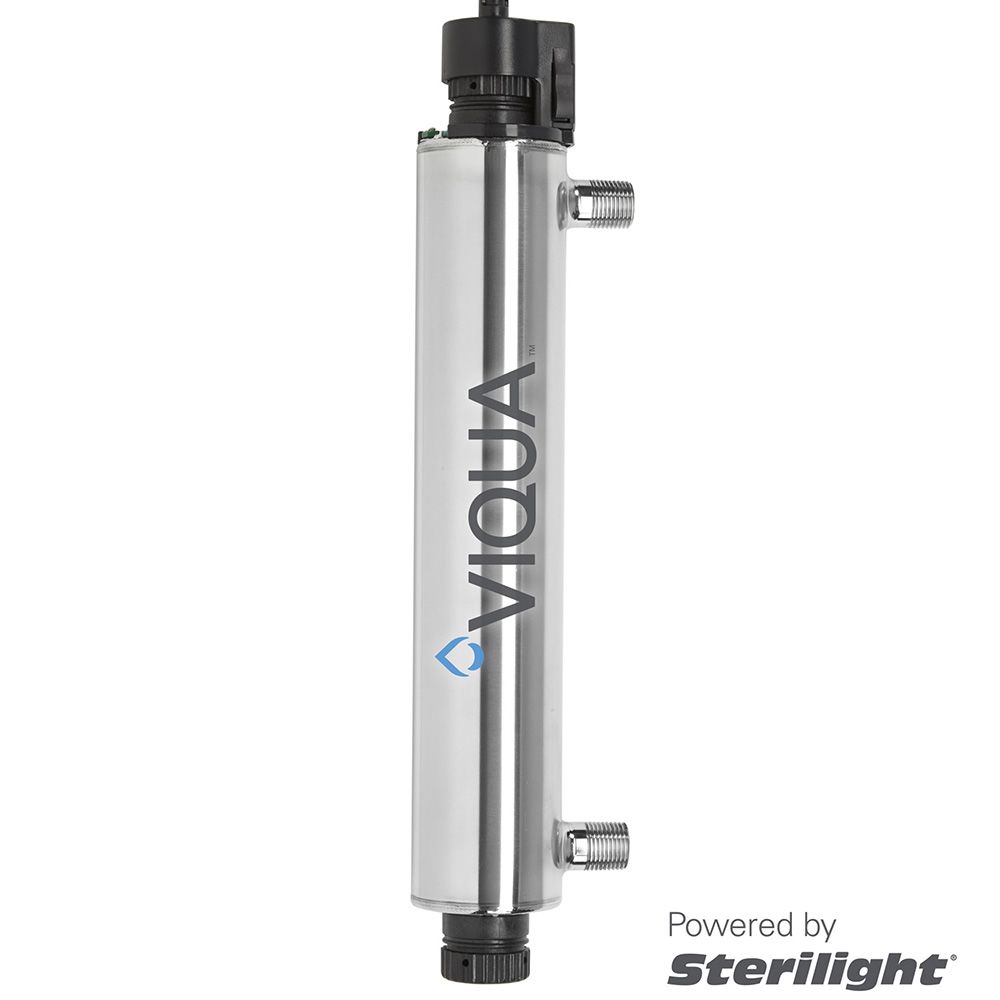

Viqua S2Q-P/12VDC Silver Series UV System Powered by Sterilight 3 gpm

Part Number: S2Q-P/12VDC

Alt. Part Number: S2Q-PA/12VDC, S1Q-P/12VDC

In Stock

out of stock

In Stock

$319.00


The Viqua S2Q-P/12VDC Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.

Specifications:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant
This system is compatible with the S330RL Sterilight Lamp and the QS-330Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S2Q includes:
  • Sterilight Lamp (1): S330RL
  • Sterilight Quartz Sleeve (1): QS-330
  • Sterilight O-Rings (2): 410867


Weight & Dimensions

Approx Length (Inches)

17 Inches

Power Supply Dimensions

7.3"x3.2"x2.5"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches

Features

Visual Power On

Flow Rate

2.9 Gallons Per Minute (30mJ/cm2 Dose)

Inlet/Outlet Size

1/2" MPT

Number Of Lamps

1

Operating Pressure Range

5-125 PSI

Power

22 Watts

Type

UVC

Voltage

12 VDC

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua





The Viqua S2Q-P/12VDC Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.

Specifications:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant
This system is compatible with the S330RL Sterilight Lamp and the QS-330Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S2Q includes:
  • Sterilight Lamp (1): S330RL
  • Sterilight Quartz Sleeve (1): QS-330
  • Sterilight O-Rings (2): 410867

Weight & Dimensions

Approx Length (Inches)

17 Inches

Power Supply Dimensions

7.3"x3.2"x2.5"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches

Features

Visual Power On

Flow Rate

2.9 Gallons Per Minute (30mJ/cm2 Dose)

Inlet/Outlet Size

1/2" MPT

Number Of Lamps

1

Operating Pressure Range

5-125 PSI

Power

22 Watts

Type

UVC

Voltage

12 VDC

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
