Viqua

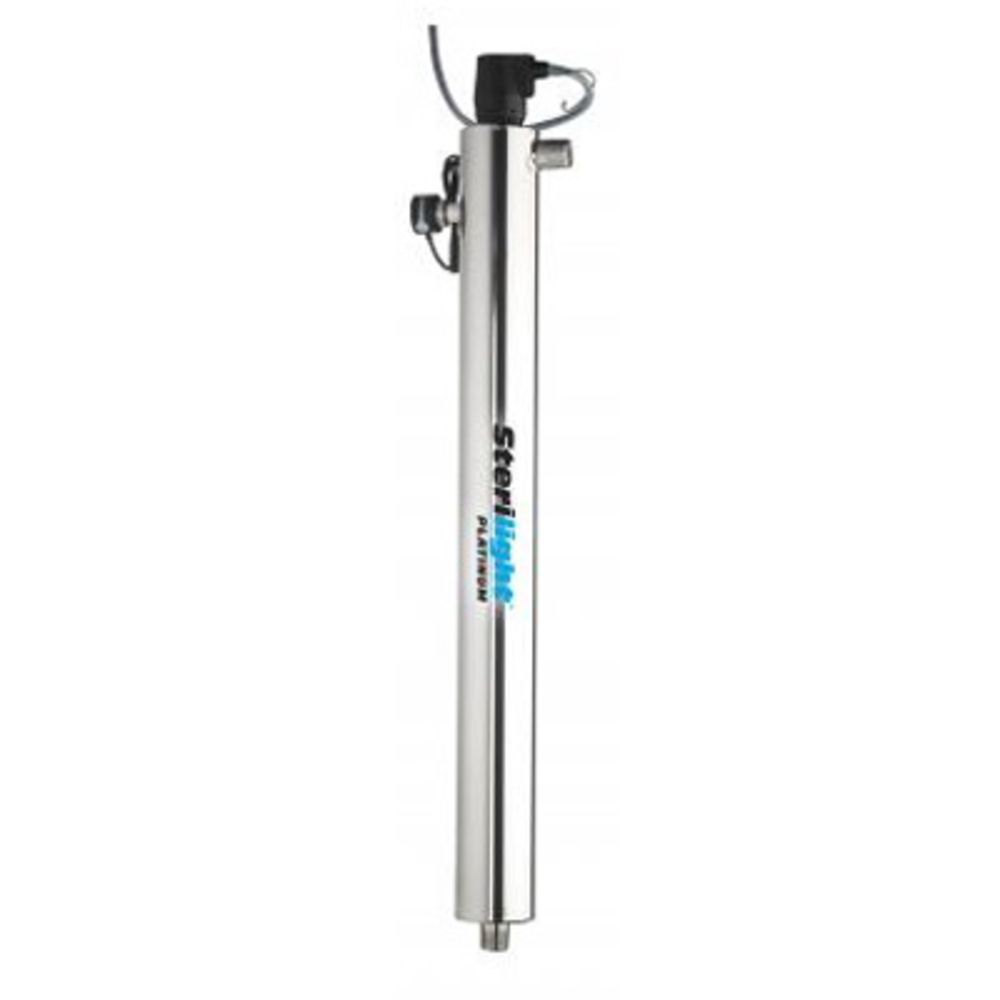

Viqua Sterilight Platinum SPV-740 UV System 11.2 gpm

Part Number: SPV-740

Alt. Part Number: SPV-12, 8787

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Viqua Pro10 NSF Class A Monitored UV System Powered by UVMax 10 gpm as...

The Viqua Sterilight Platinum SPV-740 UV System removes the risk of illness caused by microbial contamination, making water safe for a variety of applications including pharmaceutical, restaurant, laboratory and agriculture uses.

Features:
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products.
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow.
  • Features Platinum™ controller coupled with Flow-Pace™ UV intensity monitor.
  • Provides half-power to the lamps when no water is flowing and full-power when the water is running.
  • Seven year warranty on reactor chamber for unparalleled protection.
  • 316L stainless steel reactor chamber and flow restrictors.
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.
Water Quality Guidelines:
  • Iron: < 0.3 ppm
  • Hardness: < 7 gpg
  • Turbidity: <1 NTU
  • Manganese: <0.05 ppm
  • Tannins: < 0.1 ppm
  • UV Transmittance: > 75%
Note: The Viqua Sterilight Platinum SPV-740 UV Water Purifcation System replaces the older SPV-12 system.



Weight & Dimensions

Approx Length (Inches)

39.4"

Power Supply Dimensions

10-3/4"x4-1/2"x2"

Weight (lbs)

24

Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Power

88 W

Size

3/4", 1"

Connection Type

Female (FPT), Male (MPT)

Diameter

3-1/2"

Flow Rate

11.2 GPM (40mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Certifications

CSA (C US); CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua

Viqua




The Viqua Sterilight Platinum SPV-740 UV System removes the risk of illness caused by microbial contamination, making water safe for a variety of applications including pharmaceutical, restaurant, laboratory and agriculture uses.

Features:
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products.
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow.
  • Features Platinum™ controller coupled with Flow-Pace™ UV intensity monitor.
  • Provides half-power to the lamps when no water is flowing and full-power when the water is running.
  • Seven year warranty on reactor chamber for unparalleled protection.
  • 316L stainless steel reactor chamber and flow restrictors.
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.
Water Quality Guidelines:
  • Iron: < 0.3 ppm
  • Hardness: < 7 gpg
  • Turbidity: <1 NTU
  • Manganese: <0.05 ppm
  • Tannins: < 0.1 ppm
  • UV Transmittance: > 75%
Note: The Viqua Sterilight Platinum SPV-740 UV Water Purifcation System replaces the older SPV-12 system.


NOTE: This item is discontinued. We recommend the Viqua Pro10 NSF Class A Monitored UV System Powered by UVMax 10 gpm as a substitute.

Weight & Dimensions

Approx Length (Inches)

39.4"

Power Supply Dimensions

10-3/4"x4-1/2"x2"

Weight (lbs)

24

Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Power

88 W

Size

3/4", 1"

Connection Type

Female (FPT), Male (MPT)

Diameter

3-1/2"

Flow Rate

11.2 GPM (40mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Certifications

CSA (C US); CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components

Documentation
Viqua
Viqua
Viqua
