Viqua

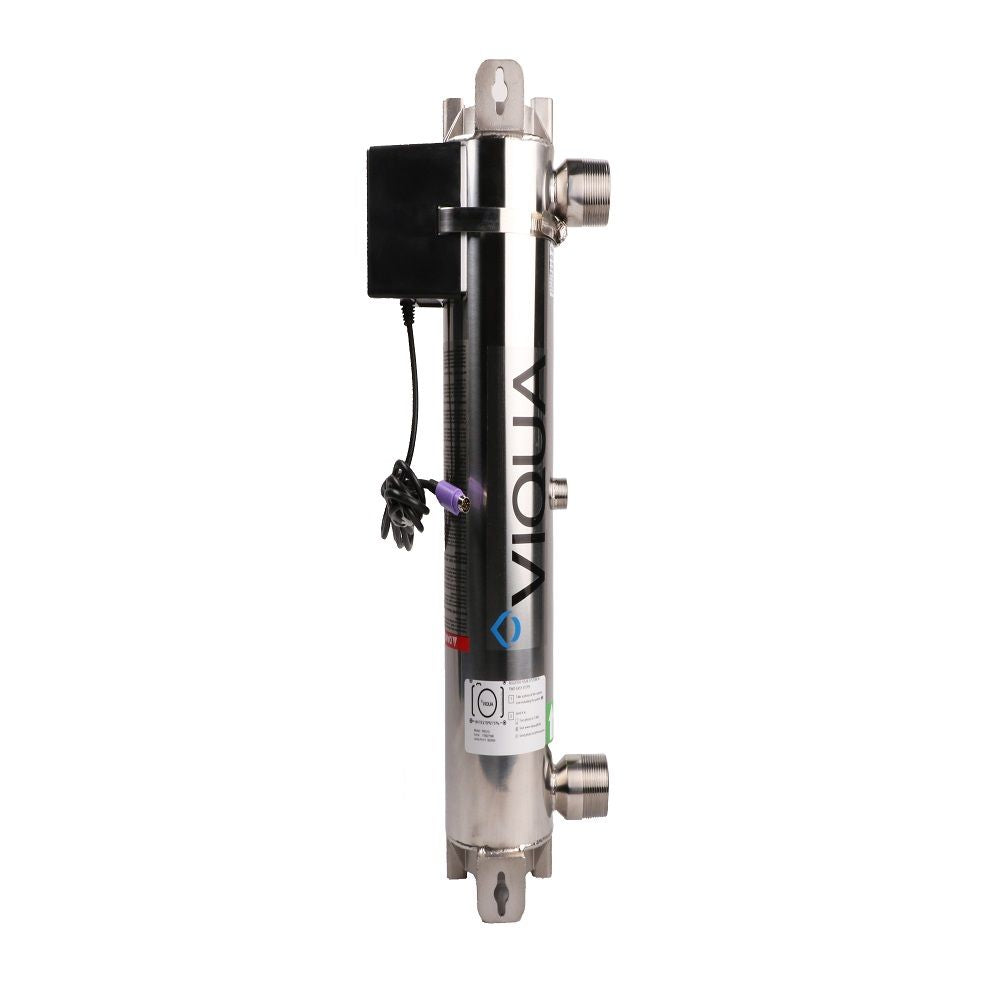

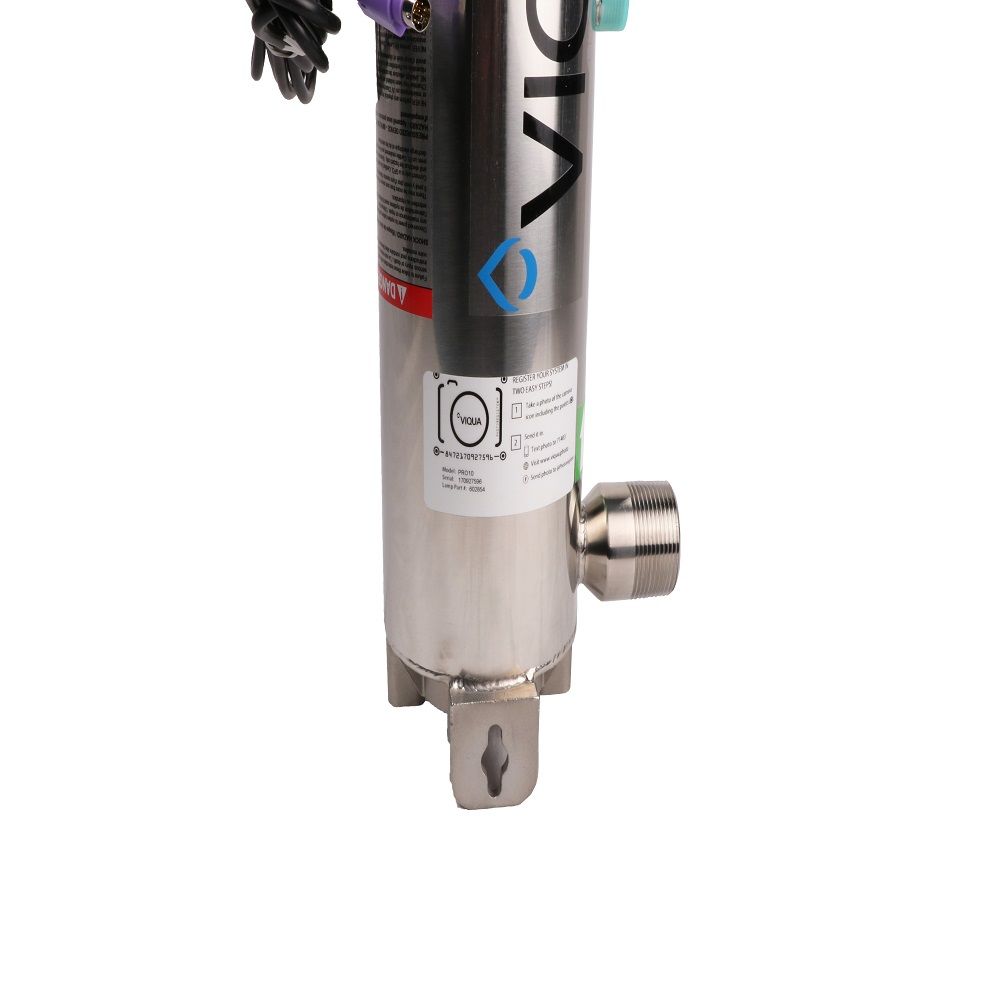

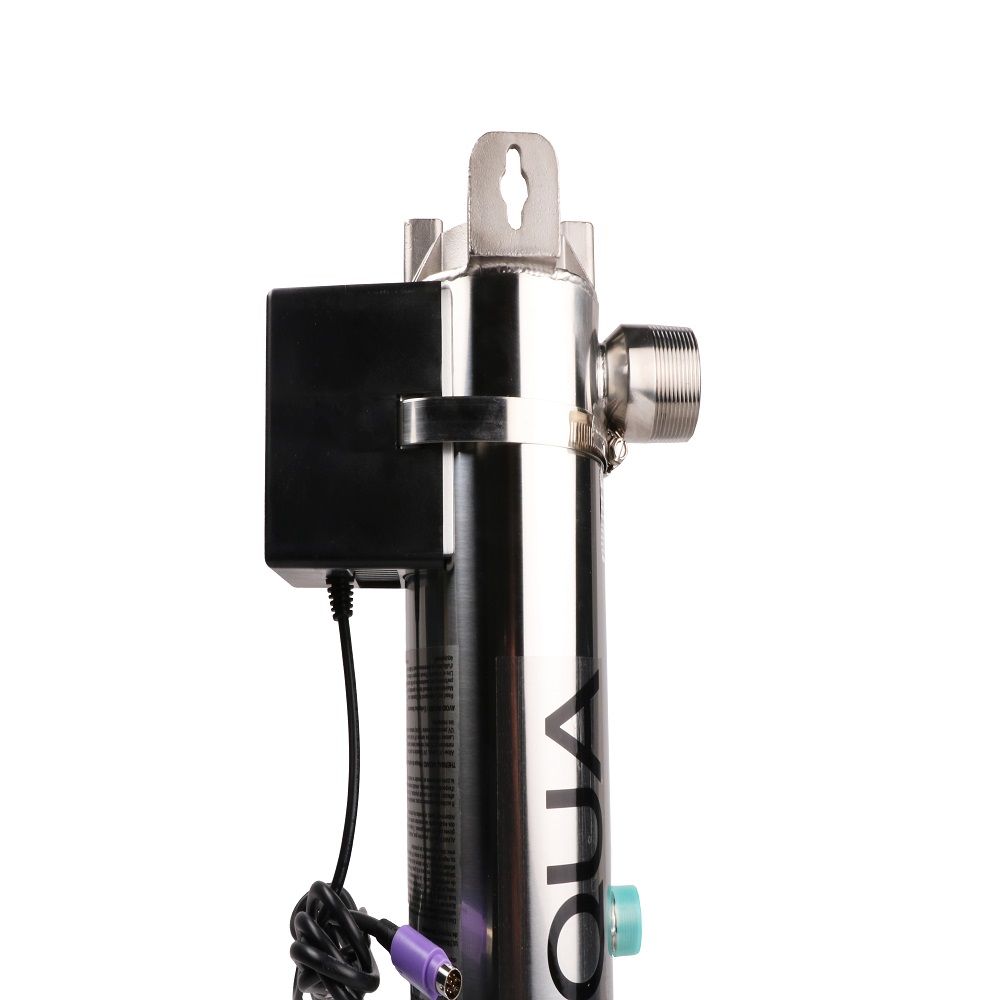

Viqua Pro10 NSF Class A Monitored UV System Powered by UVMax 10 gpm

Part Number: 650647

Alt. Part Number: SPV-740

In Stock

out of stock

In Stock

$1,925.00


The Viqua Pro10 UV System Powered by UVMax offers a compact design incorporating plug and play connections, a sophisticated UV monitor, and a revolutionary flow restrictor. An optional solenoid valve kit can be added to all Viqua Pro10 UV systems, which is equipped with a manual override to make shocking the water lines easy. This system is great for residential and light commercial applications that need Class A NSF certification.

Specifications:
  • Reactor Construction: 316 Stainless steel
  • Connections: Color coded
  • UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
  • UV monitor has self-diagnostic testing
  • Solenoid Valve Kit w/ manual override for shocking the water lines is also available
  • CoolTouch fan included
  • Flow-Restrictor included
  • NSF/ANSI Standard 55 Class A
  • Full 5 year warranty
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602854 Trojan Lamp and the 602974 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for Pro10 includes:

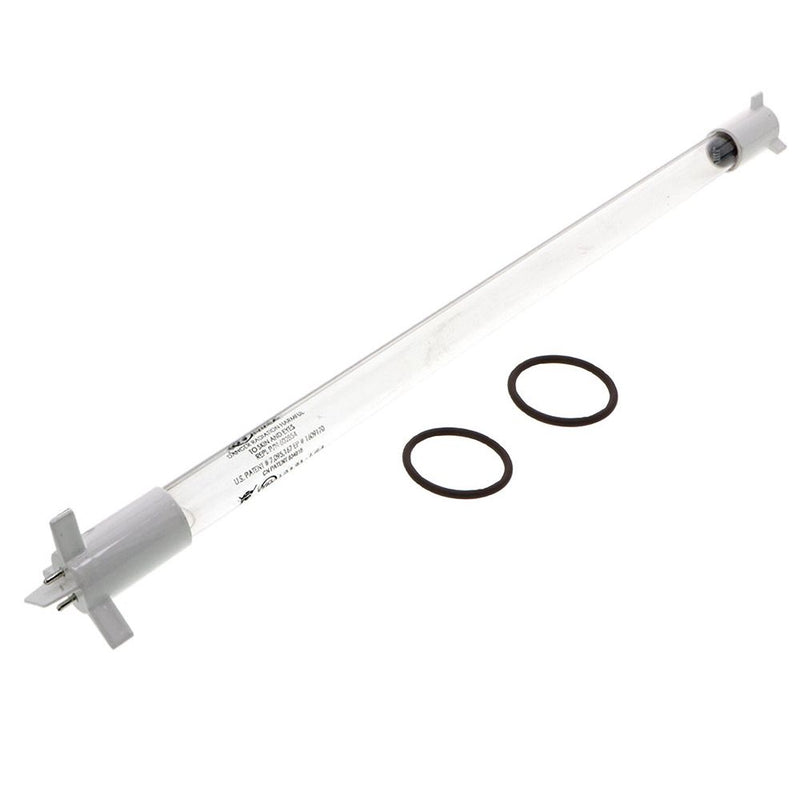

  • Trojan Lamp (1): 602854

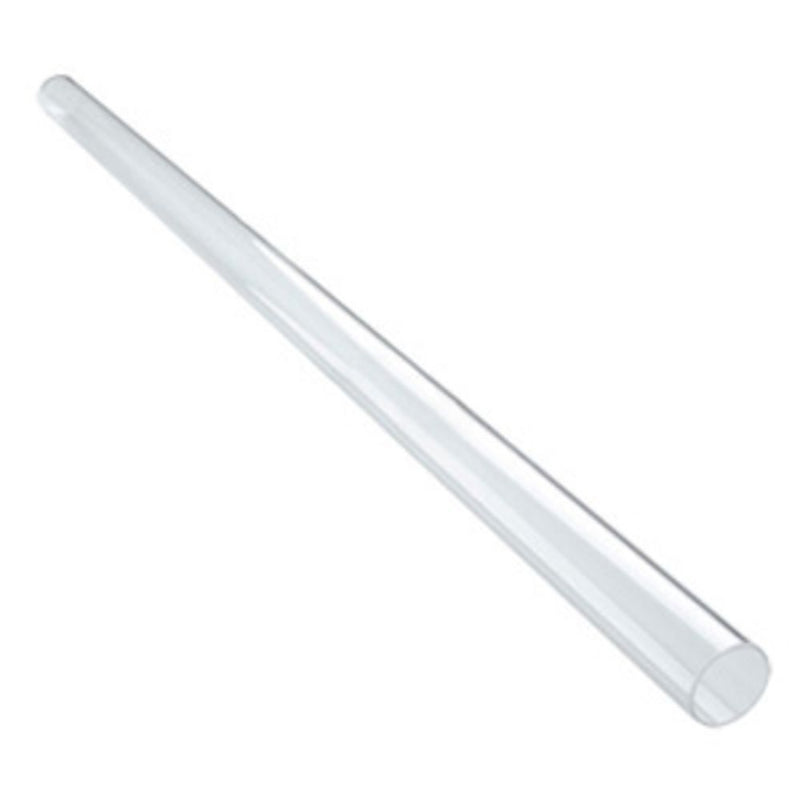

  • Trojan Quartz Sleeve (1): 602974

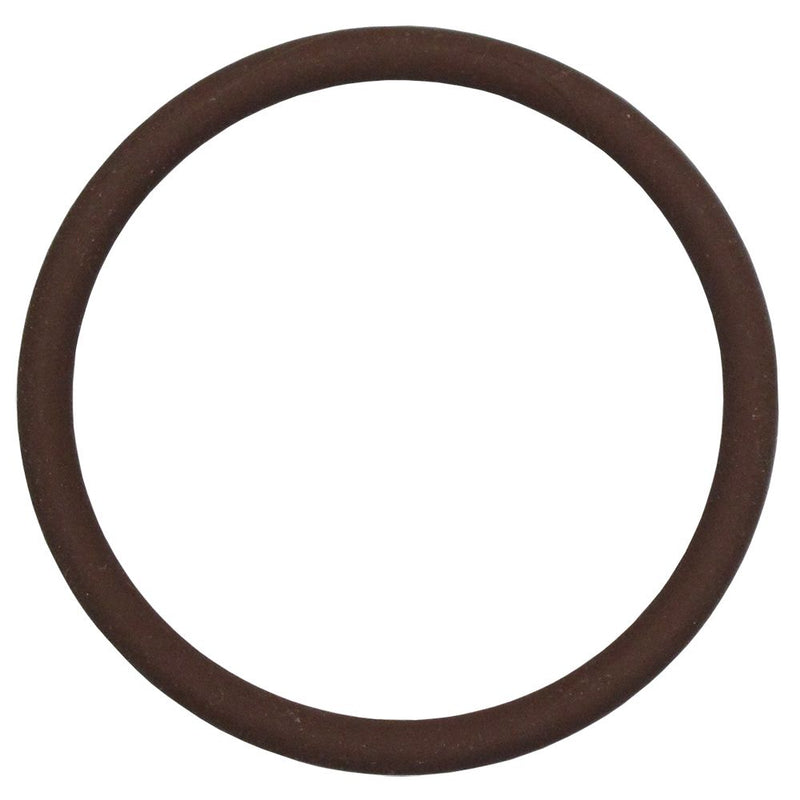

  • Trojan O-Rings (2): 2233


Weight & Dimensions

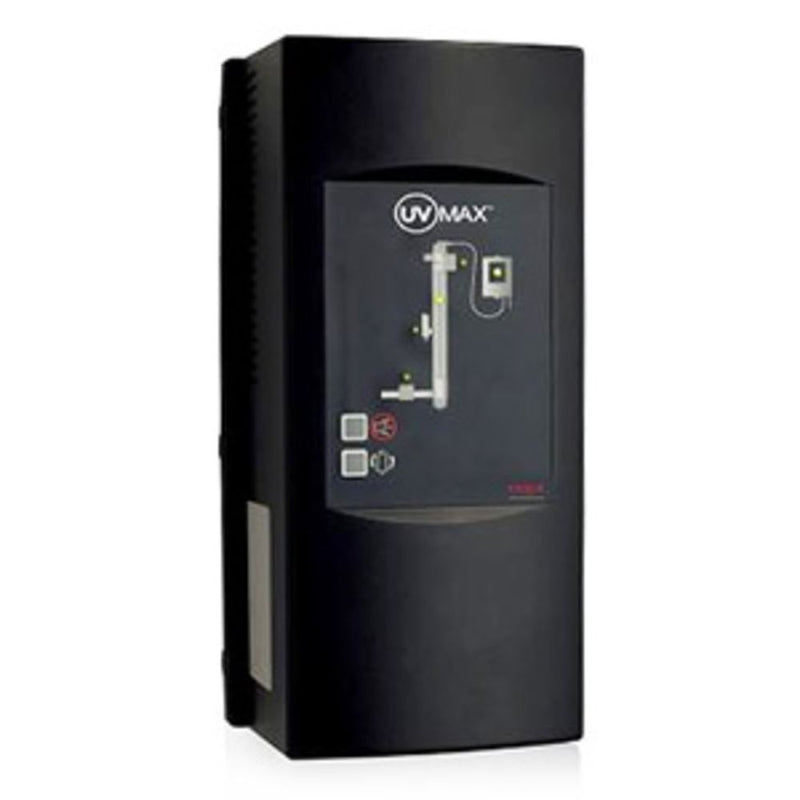

Power Supply Dimensions

13" x 6.5"

Details

Body Material

316 Stainless Steel Reactor

Features

UV Intensity Monitor; Audible Lamp Failure

Flow Rate

10 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1-1/4" MPT, 1" FPT Combo

Number Of Lamps

1

Operating Pressure Range

15-100 PSI

Type

UVC

Voltage

120 V

Installation

Vertical

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class A; CE Standards


Viqua





The Viqua Pro10 UV System Powered by UVMax offers a compact design incorporating plug and play connections, a sophisticated UV monitor, and a revolutionary flow restrictor. An optional solenoid valve kit can be added to all Viqua Pro10 UV systems, which is equipped with a manual override to make shocking the water lines easy. This system is great for residential and light commercial applications that need Class A NSF certification.

Specifications:
  • Reactor Construction: 316 Stainless steel
  • Connections: Color coded
  • UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
  • UV monitor has self-diagnostic testing
  • Solenoid Valve Kit w/ manual override for shocking the water lines is also available
  • CoolTouch fan included
  • Flow-Restrictor included
  • NSF/ANSI Standard 55 Class A
  • Full 5 year warranty
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602854 Trojan Lamp and the 602974 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for Pro10 includes:
  • Trojan Lamp (1): 602854
  • Trojan Quartz Sleeve (1): 602974
  • Trojan O-Rings (2): 2233

Weight & Dimensions

Power Supply Dimensions

13" x 6.5"

Details

Body Material

316 Stainless Steel Reactor

Features

UV Intensity Monitor; Audible Lamp Failure

Flow Rate

10 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1-1/4" MPT, 1" FPT Combo

Number Of Lamps

1

Operating Pressure Range

15-100 PSI

Type

UVC

Voltage

120 V

Installation

Vertical

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class A; CE Standards
