Viqua

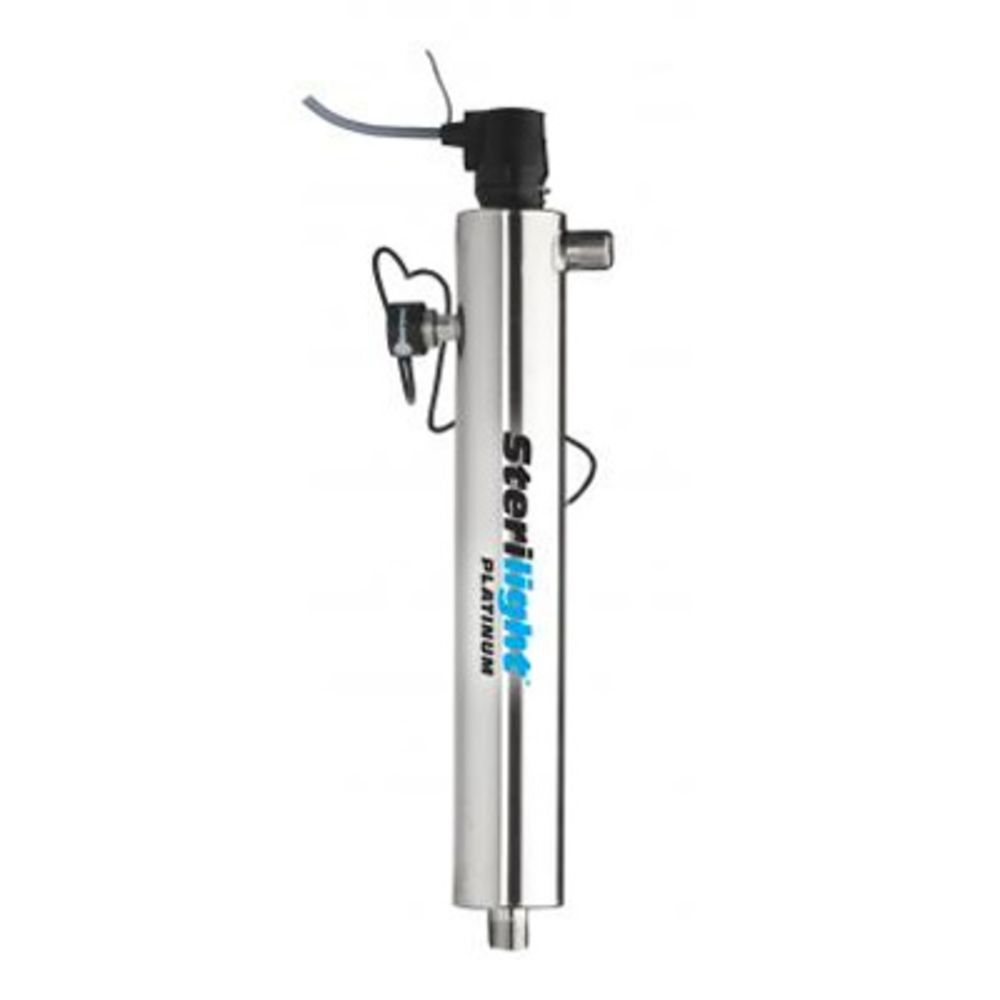

Viqua Sterilight Platinum SPV-410 UV System 5.9 gpm - UV System Only

Part Number: SPV-410

Alt. Part Number: SPV-6, 8785

In Stock

out of stock

In Stock

$1,248.65

Consumer Note: The Viqua Sterilight SPV-410 UV System has been discontinued and the manufacturer has suggested the NSF Class A Viqua Pro10 UV System as a replacement.

The Viqua Sterilight Platinum SPV-410 UV System removes the risk of illness caused by microbial contamination, making water safe for a variety of applications including pharmaceutical, restaurant, laboratory and agriculture uses.

Specifications:
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow
  • Features Platinum™ controller coupled with Flow-Pace™ UV intensity monitor
  • Provides half-power to the lamps when no water is flowing and full-power when the water is running
  • Seven year warranty on reactor chamber for unparalleled protection
  • 316L stainless steel reactor chamber and flow restrictors
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications
This system is compatible with the S410RL-HO Sterilight Lamp and the QS-410 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SPV-410 includes:
  • Sterilight Lamp (1): S410RL-HO
  • Sterilight Quartz Sleeve (1): QS-410
  • Sterilight O-Ring (1): 410867
Water Quality Guidelines:
  • Iron: < 0.3 ppm
  • Manganese: <0.05 ppm
  • Hardness: < 7 gpg
  • Tannins: < 0.1 ppm
  • Turbidity: <1 NTU
  • UV Transmittance: > 75%




Weight & Dimensions

Weight (lbs)

17

Approx Length (Inches)

26.4"

Power Supply Dimensions

10-3/4"x4-1/2"x2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Body Material

316 Stainless Steel

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

5.9 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

52 W

Size

3/4", 1"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua

Viqua




Consumer Note: The Viqua Sterilight SPV-410 UV System has been discontinued and the manufacturer has suggested the NSF Class A Viqua Pro10 UV System as a replacement.

The Viqua Sterilight Platinum SPV-410 UV System removes the risk of illness caused by microbial contamination, making water safe for a variety of applications including pharmaceutical, restaurant, laboratory and agriculture uses.

Specifications:
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow
  • Features Platinum™ controller coupled with Flow-Pace™ UV intensity monitor
  • Provides half-power to the lamps when no water is flowing and full-power when the water is running
  • Seven year warranty on reactor chamber for unparalleled protection
  • 316L stainless steel reactor chamber and flow restrictors
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications
This system is compatible with the S410RL-HO Sterilight Lamp and the QS-410 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SPV-410 includes:
  • Sterilight Lamp (1): S410RL-HO
  • Sterilight Quartz Sleeve (1): QS-410
  • Sterilight O-Ring (1): 410867
Water Quality Guidelines:
  • Iron: < 0.3 ppm
  • Manganese: <0.05 ppm
  • Hardness: < 7 gpg
  • Tannins: < 0.1 ppm
  • Turbidity: <1 NTU
  • UV Transmittance: > 75%



Weight & Dimensions

Weight (lbs)

17

Approx Length (Inches)

26.4"

Power Supply Dimensions

10-3/4"x4-1/2"x2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Body Material

316 Stainless Steel

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

5.9 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

52 W

Size

3/4", 1"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
