Viqua

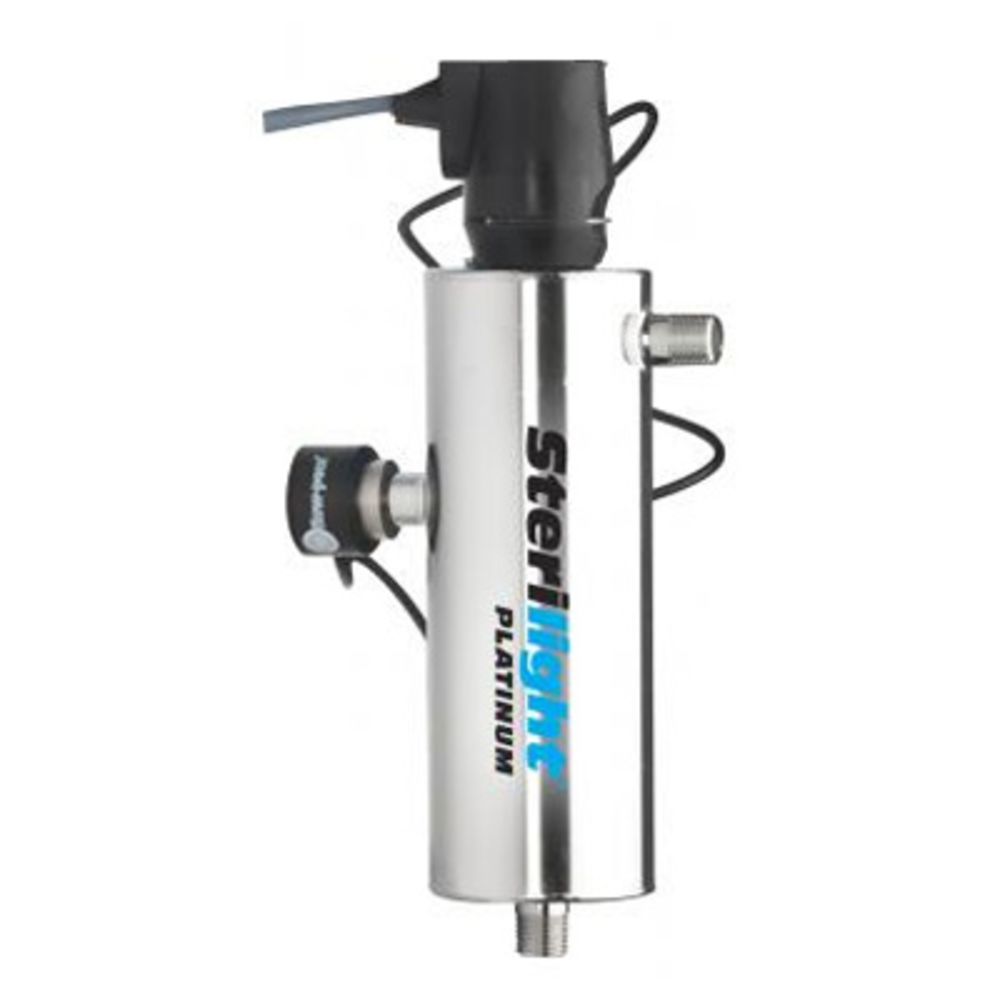

Viqua Sterilight Platinum SPV-200 UV System 2.6 gpm

Part Number: SPV-200

Alt. Part Number: SPV-2.5, 8784

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The Viqua Sterilight Platinum SPV-200 UV System removes the risk of illness caused by microbial contamination, making water safe for a variety of applications including pharmaceutical, restaurant, laboratory and agriculture uses.

Specifications:
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products.
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow.
  • Features Platinum™ controller coupled with Flow-Pace™ UV intensity monitor.
  • Provides half-power to the lamps when no water is flowing and full-power when the water is running.
  • Seven year warranty on reactor chamber for unparalleled protection.
  • 316L stainless steel reactor chamber and flow restrictors.
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.
This system is compatible with the S200RL-HO Sterilight Lamp and the QS-200 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SPV-200 includes:
  • Sterilight Lamp (1): S200RL-HO
  • Sterilight Quartz Sleeve (1): QS-200
  • Sterilight O-Ring (1): 410867
Water Quality Guidelines:
  • Iron: < 0.3 ppm
  • Manganese: <0.05 ppm
  • Hardness: < 7 gpg
  • Turbidity: <1 NTU
  • Tannins: <0.1 ppm
  • UV Transmittance: > 75%
Note: The Sterilight Platinum SPV-200 UV Water Purification System replaces the older SPV-2.5 system.



Weight & Dimensions

Weight (lbs)

10.1

Approx Length (Inches)

17.8"

Power Supply Dimensions

10-3/4"x4-1/2"x2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

2.6 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Power

35 W

Size

1/2"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Certifications

CSA (C US), CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua

Viqua




The Viqua Sterilight Platinum SPV-200 UV System removes the risk of illness caused by microbial contamination, making water safe for a variety of applications including pharmaceutical, restaurant, laboratory and agriculture uses.

Specifications:
  • Quick, simple, inexpensive and environmentally friendly, UV water purification adds nothing to your water, creating no disinfection by-products.
  • > 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow.
  • Features Platinum™ controller coupled with Flow-Pace™ UV intensity monitor.
  • Provides half-power to the lamps when no water is flowing and full-power when the water is running.
  • Seven year warranty on reactor chamber for unparalleled protection.
  • 316L stainless steel reactor chamber and flow restrictors.
  • Applications include private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.
This system is compatible with the S200RL-HO Sterilight Lamp and the QS-200 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SPV-200 includes:
  • Sterilight Lamp (1): S200RL-HO
  • Sterilight Quartz Sleeve (1): QS-200
  • Sterilight O-Ring (1): 410867
Water Quality Guidelines:
  • Iron: < 0.3 ppm
  • Manganese: <0.05 ppm
  • Hardness: < 7 gpg
  • Turbidity: <1 NTU
  • Tannins: <0.1 ppm
  • UV Transmittance: > 75%
Note: The Sterilight Platinum SPV-200 UV Water Purification System replaces the older SPV-2.5 system.


NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

10.1

Approx Length (Inches)

17.8"

Power Supply Dimensions

10-3/4"x4-1/2"x2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

14.5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor

Flow Rate

2.6 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Power

35 W

Size

1/2"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Certifications

CSA (C US), CE Standards

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
