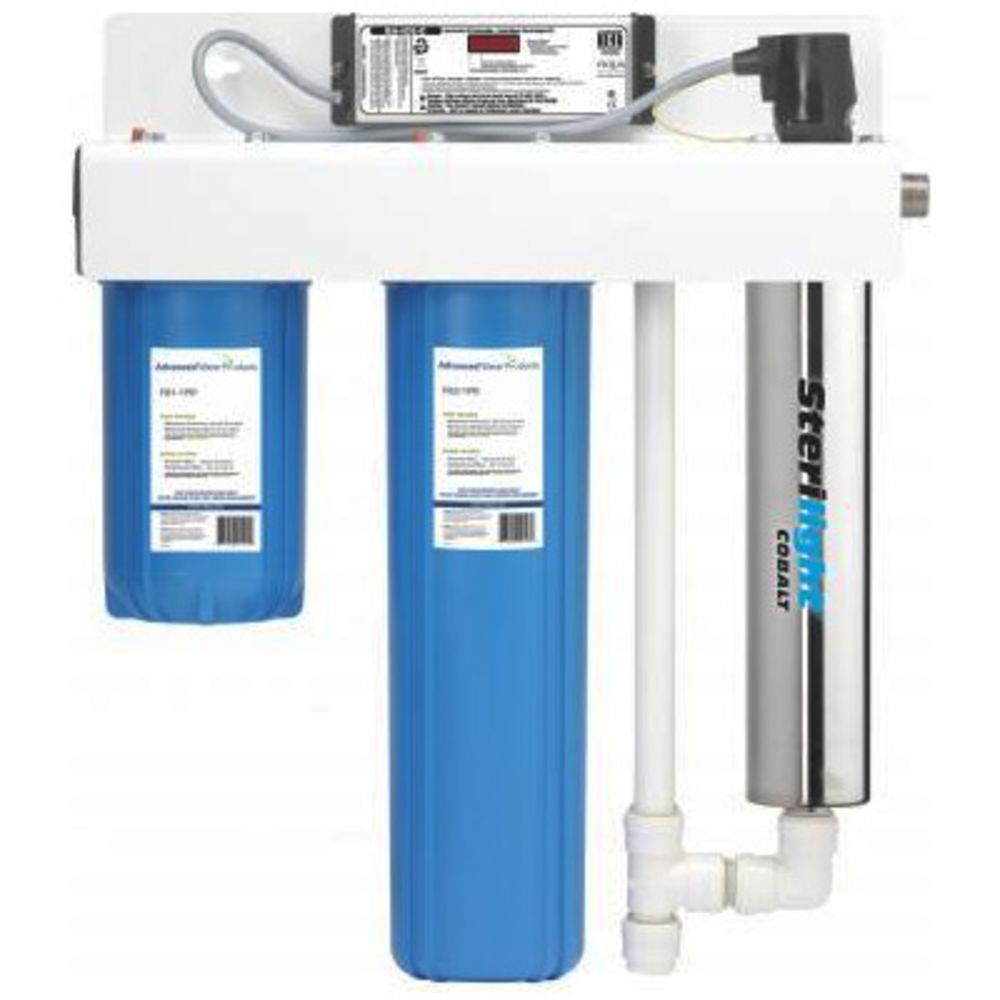

Viqua Sterilight Cobalt Plus SCM320-DWS12 Drinking Water System 13 gpm w/ UV Intensity Monitor

Part Number: SCM320-DWS12
Your price:
similar items
The Viqua Sterilight Cobalt™ SCM320-DWS12 system provides a point-of-entry water treatment system with both disinfection and filtration. The SCM320-DWS12 is ideal for POE applications such as a whole home or cottage that require a high flow rate.

The new Cobalt Plus Controller provides constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying % UV output, remaining lamp life and total days of operation. It also features the addition of a discrete 254 nm UV sensor and the capability of adding an optional solenoid shutoff valve.

Features:
  • Includes a 1" FNPT inlet connection and a unique combination port (3/4" FNPT & 1" MNPT) on the outlet connection.
  • This compact unit incorporates Sterilight's Cobalt™ disinfection system and two filter housings, all on the same installation bracket.
  • Provides point-of-entry disinfection with a flow rate of 8 gpm (30.3 lpm) at a 30 mJ/cm² dose (6 gpm (22.7 lpm) if a dose of 40 mJ/cm² is required.)
  • This modular system is ideal for any application requiring a high flow rate in a compact space.
  • Packaged in a water-tight case and come fully CSA and CE compliant.
  • Manufactured with a polished, 304 stainless steel axial flow reactor.
  • Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor
  • Overmoulded connector can be removed without any additional tools.


This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC320-DWS12 includes:
  • Sterilight Lamp (1): S320RL-HO
  • Sterilight Quartz Sleeve (1): QS-320
  • Sterilight O-Ring (1): 410867
NOTE: This system is sold without filter cartridges. One of the two filter housings can be used for a 10" BB 5 micron sediment reduction, while the second can hold a 20" BB carbon filter for taste and odor reduction. The filtration portion of the SC320-DWS12 preceeds the disinfection unit.
