Viqua SHF-180 HF Series UV System Powered by Sterilight 210 gpm

Part Number: SHF-180

In Stock

out of stock

In Stock

$8,985.00

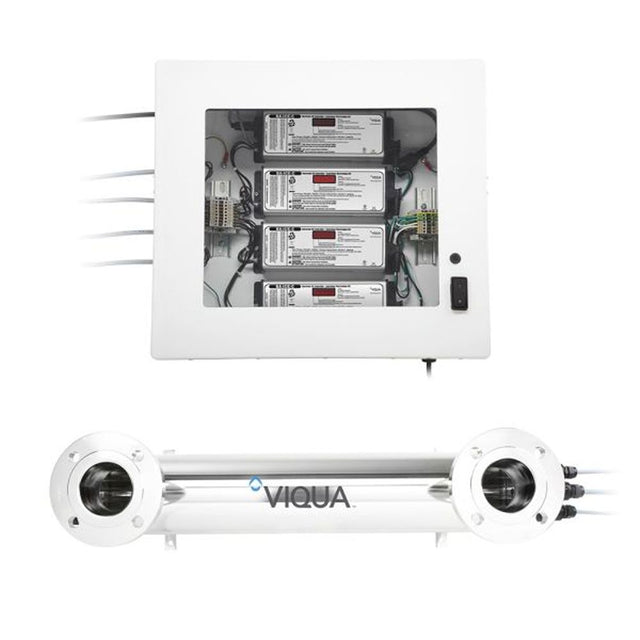

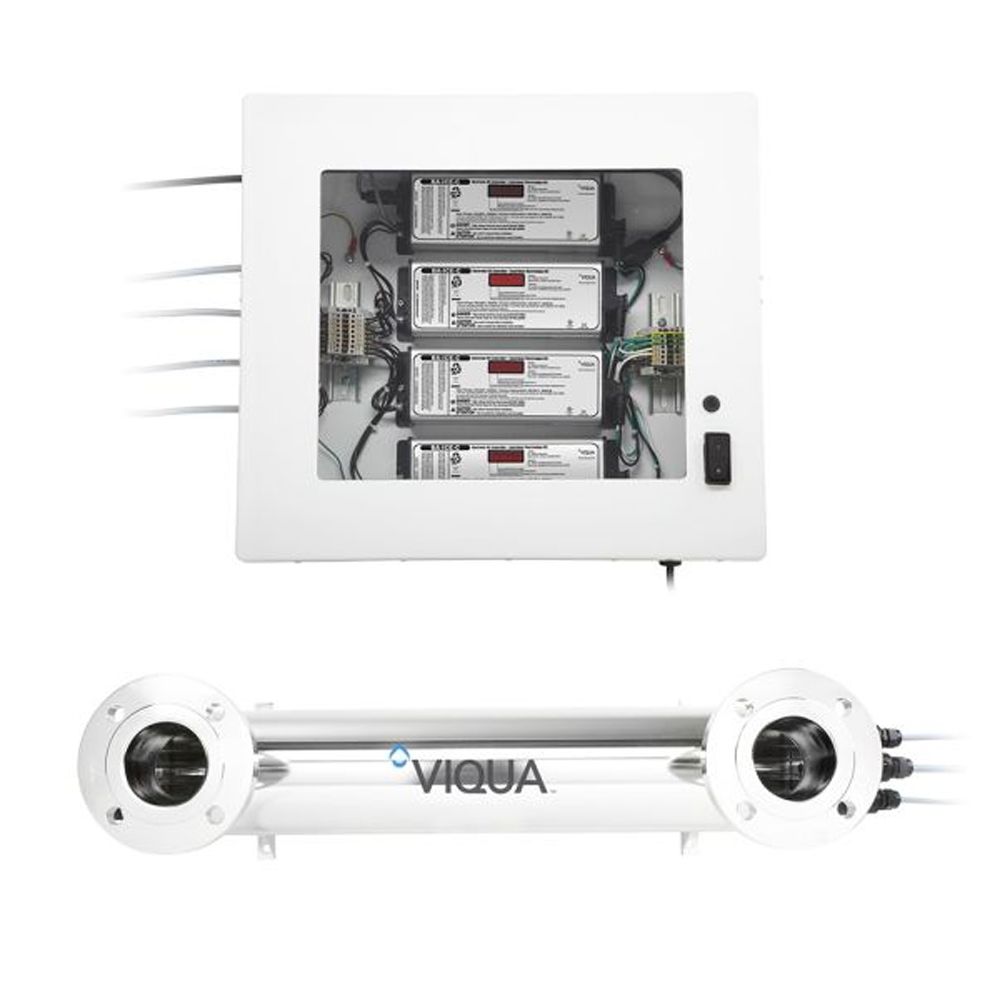

The Viqua SHF-180 HF Series High Flow UV System is designed to disinfect water at a high flow rate. The SHF-180 is manufactured with a high-quality stainless steel chamber and houses four UV lamps, which maintain consistent power output for the lamp life of 9000 hours. HF Series Systems come complete with a separate control panel with power isolation. It is ideal for commercial applications and has a digital countdown timer as well as an audio cue when the lamp needs to be changed.

Specifications:
  • Flow Rate: 210 gpm
  • Reactor Dimensions: 42.25" x 6" x 14"
  • Controller Dimensions: 17.5" x 19.55" x 8.14"
  • Separate control panel with power isolation
  • Houses 4 lamps
  • Lamp replacement reminder
  • Visual "Power-On"
  • Chamber constructed of 316SS
Notes:

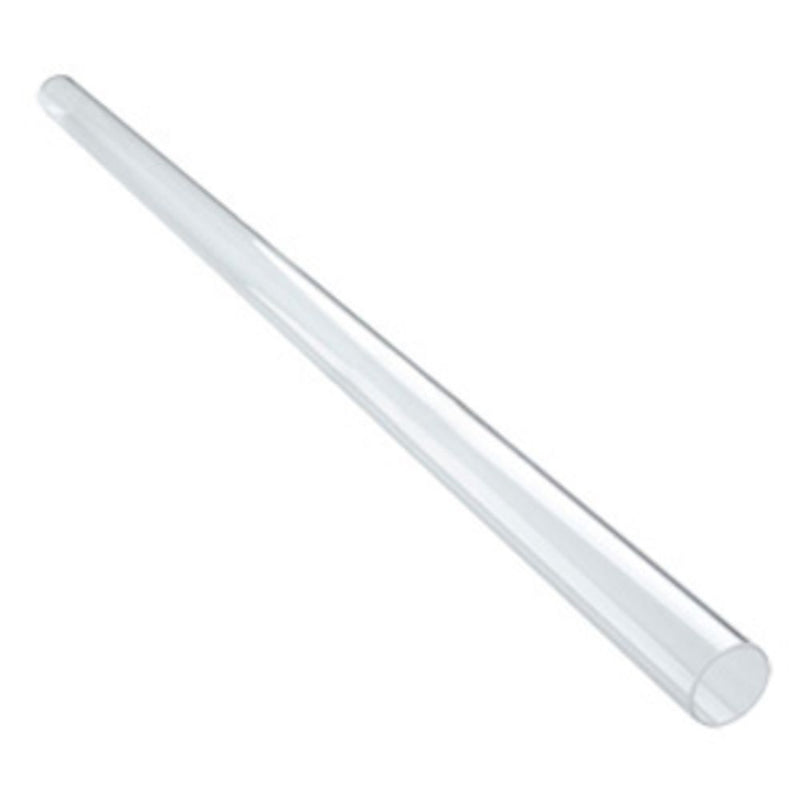

* For any necessary replacements parts, this system is compatible with the SHO950/4C-RL Sterilight Lamp, the QS-950 Sterilight Quartz Sleeve and the 410867 Sterilight O-Ring.
* 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.



Details

Max Pressure (Psi)

125

Ambient Temperature Range

36-104 °F

Body Material

316 Stainless Steel

Features

Audible Lamp Failure, Visual Power On

Flow Rate

340 GPM (16mJ/cm2 Dose), 183 GPM (30mJ/cm2 Dose), 137 GPM (40mJ/cm2 Dose)

Number Of Lamps

4

Power

400 W

Size

3"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3" Flange


Viqua

Viqua




The Viqua SHF-180 HF Series High Flow UV System is designed to disinfect water at a high flow rate. The SHF-180 is manufactured with a high-quality stainless steel chamber and houses four UV lamps, which maintain consistent power output for the lamp life of 9000 hours. HF Series Systems come complete with a separate control panel with power isolation. It is ideal for commercial applications and has a digital countdown timer as well as an audio cue when the lamp needs to be changed.

Specifications:
  • Flow Rate: 210 gpm
  • Reactor Dimensions: 42.25" x 6" x 14"
  • Controller Dimensions: 17.5" x 19.55" x 8.14"
  • Separate control panel with power isolation
  • Houses 4 lamps
  • Lamp replacement reminder
  • Visual "Power-On"
  • Chamber constructed of 316SS
Notes:
* For any necessary replacements parts, this system is compatible with the SHO950/4C-RL Sterilight Lamp, the QS-950 Sterilight Quartz Sleeve and the 410867 Sterilight O-Ring.
* 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Details

Max Pressure (Psi)

125

Ambient Temperature Range

36-104 °F

Body Material

316 Stainless Steel

Features

Audible Lamp Failure, Visual Power On

Flow Rate

340 GPM (16mJ/cm2 Dose), 183 GPM (30mJ/cm2 Dose), 137 GPM (40mJ/cm2 Dose)

Number Of Lamps

4

Power

400 W

Size

3"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3" Flange
