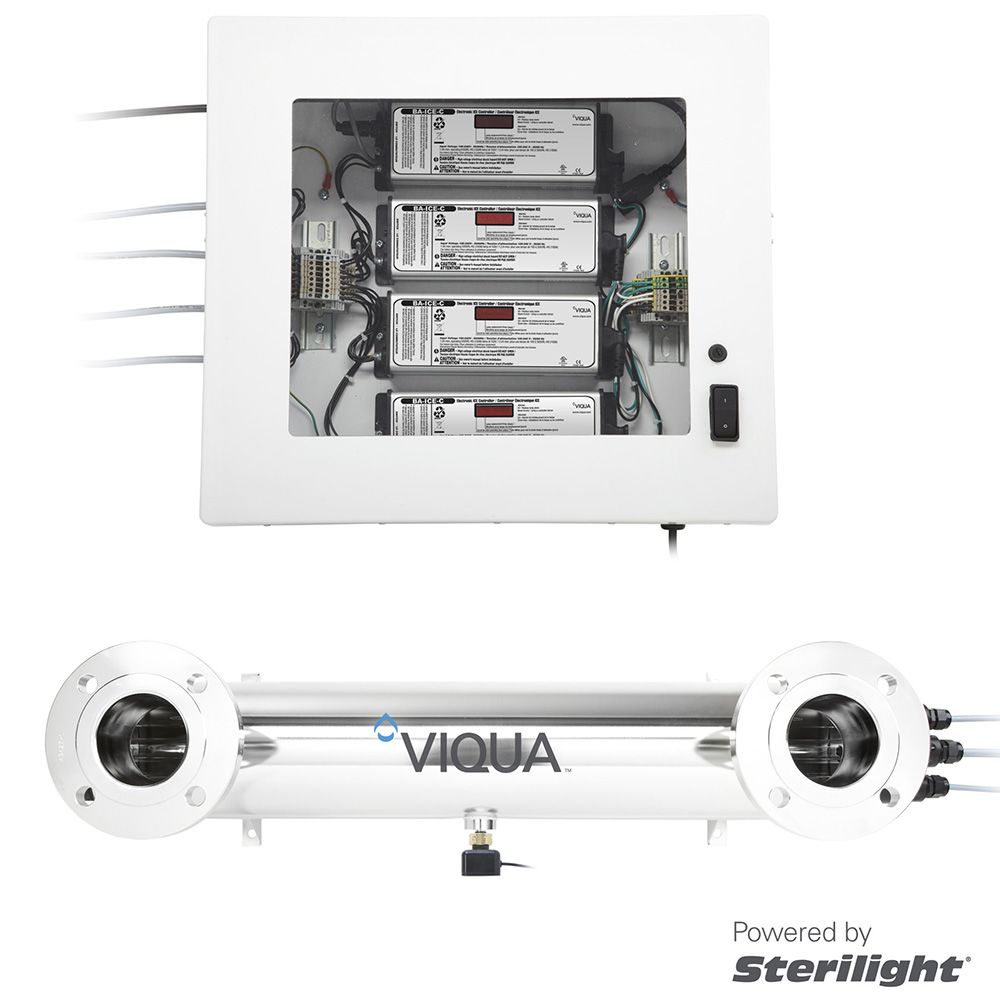

Viqua SHFM-180 HF Series High Flow Monitored UV System Powered by Sterilight 183 gpm

Part Number: SHFM-180

In Stock

out of stock

In Stock

$8,049.00


The Viqua SHFM-180 HF Series High Flow Monitored UV System is designed to disinfect water at an 183 gpm flow rate. The SHFM-180 is manufactured with a high-quality stainless steel chamber and houses four UV lamps. HF Series Systems come complete with a separate control panel with power isolation. SHFM models also come with a 254nm UV intensity sensor.

Features:
  • Flow Rate: 183 gpm
  • Reactor Dimensions: 42.25" x 6" x 14"
  • Controller Dimensions: 17.5" x 19.55" x 8.14"
  • Separate control panel with power isolation
  • Houses 4 lamps
  • UV intensity sensor
  • Lamp replacement reminder
  • Visual "Power-On"
  • Chamber constructed of 316SS
NOTE: For any necessary replacements parts, this system is compatible with the SHO950/4C-RL Sterilight Lamp, the QS-950 Sterilight Quartz Sleeve and the 410867 Sterilight O-Ring.

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Dimensions

42.25" x 6" x 14"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

316 Stainless Steel

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

343 GPM (16mJ/cm2 Dose), 183 GPM (30mJ/cm2 Dose), 137 GPM (40mJ/cm2 Dose)

Number Of Lamps

4

Power

440 Watts

Size

3"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3" | Flange


Viqua





The Viqua SHFM-180 HF Series High Flow Monitored UV System is designed to disinfect water at an 183 gpm flow rate. The SHFM-180 is manufactured with a high-quality stainless steel chamber and houses four UV lamps. HF Series Systems come complete with a separate control panel with power isolation. SHFM models also come with a 254nm UV intensity sensor.

Features:
  • Flow Rate: 183 gpm
  • Reactor Dimensions: 42.25" x 6" x 14"
  • Controller Dimensions: 17.5" x 19.55" x 8.14"
  • Separate control panel with power isolation
  • Houses 4 lamps
  • UV intensity sensor
  • Lamp replacement reminder
  • Visual "Power-On"
  • Chamber constructed of 316SS
NOTE: For any necessary replacements parts, this system is compatible with the SHO950/4C-RL Sterilight Lamp, the QS-950 Sterilight Quartz Sleeve and the 410867 Sterilight O-Ring.

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Weight & Dimensions

Dimensions

42.25" x 6" x 14"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

316 Stainless Steel

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

343 GPM (16mJ/cm2 Dose), 183 GPM (30mJ/cm2 Dose), 137 GPM (40mJ/cm2 Dose)

Number Of Lamps

4

Power

440 Watts

Size

3"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3" | Flange
