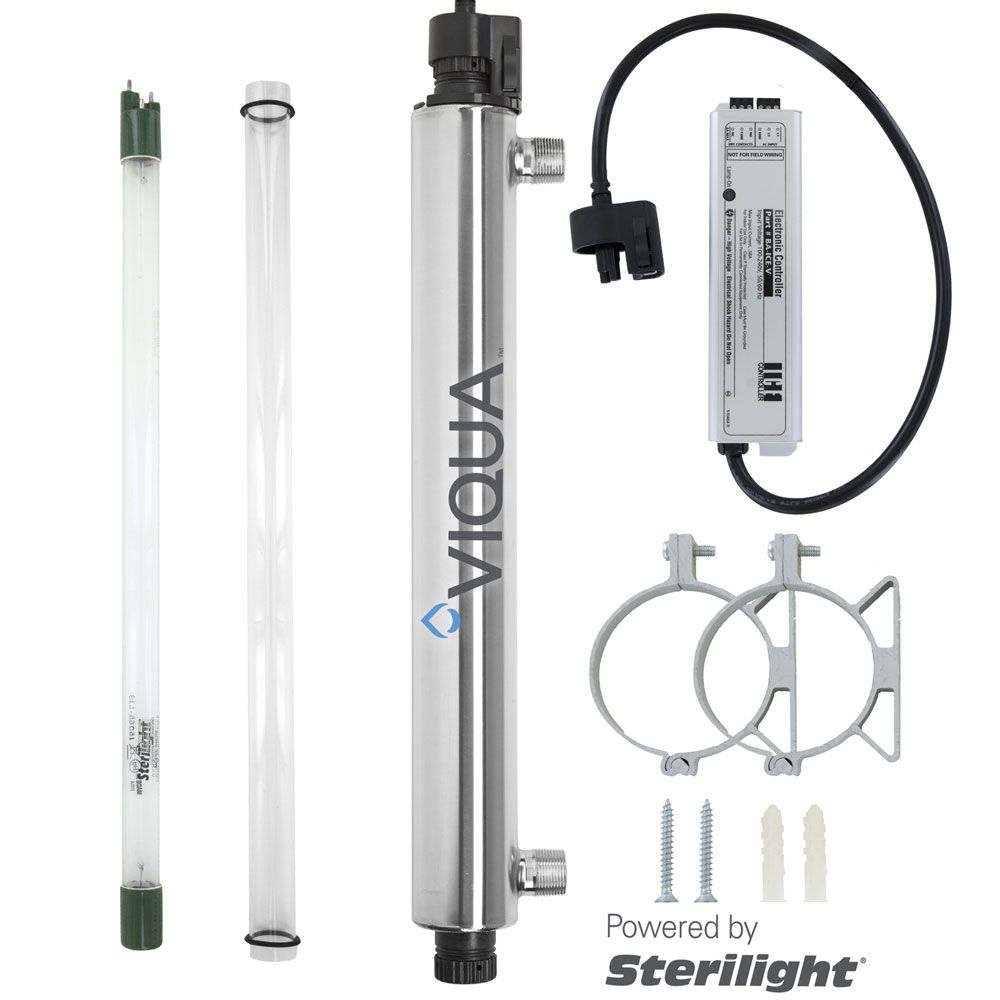

The Viqua S5Q-PV Silver Series UV System has been specifically designed for the unique requirements found in OEM applications of vending machines and dispensing equipment. It features convenient screw terminal connections for both input power and dry contacts, NO or NC.

Features:

• This UV systems is for vending applications and uses Electronic ballast (BA-ICS-V) featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
• Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
• Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
• 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
• Hard glass, low pressure mercury vapour lamps with high isolation pin design
• Natures way to protect your water without the addition of harmful chemicals
• Easy servicing - no need to disconnect water flow to change UV lamp
• Seven year warranty on reactor chamber for unparalleled protection
• Includes mounting clamp
• CSA and CE compliant

This system is compatible with the S463RL Sterilight Lamp and the QS-463 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S5Q-PV includes:

• Sterilight Lamp (1): S463RL
• Sterilight Quartz Sleeve (1): QS-463
• Sterilight O-Rings (2): 410867
