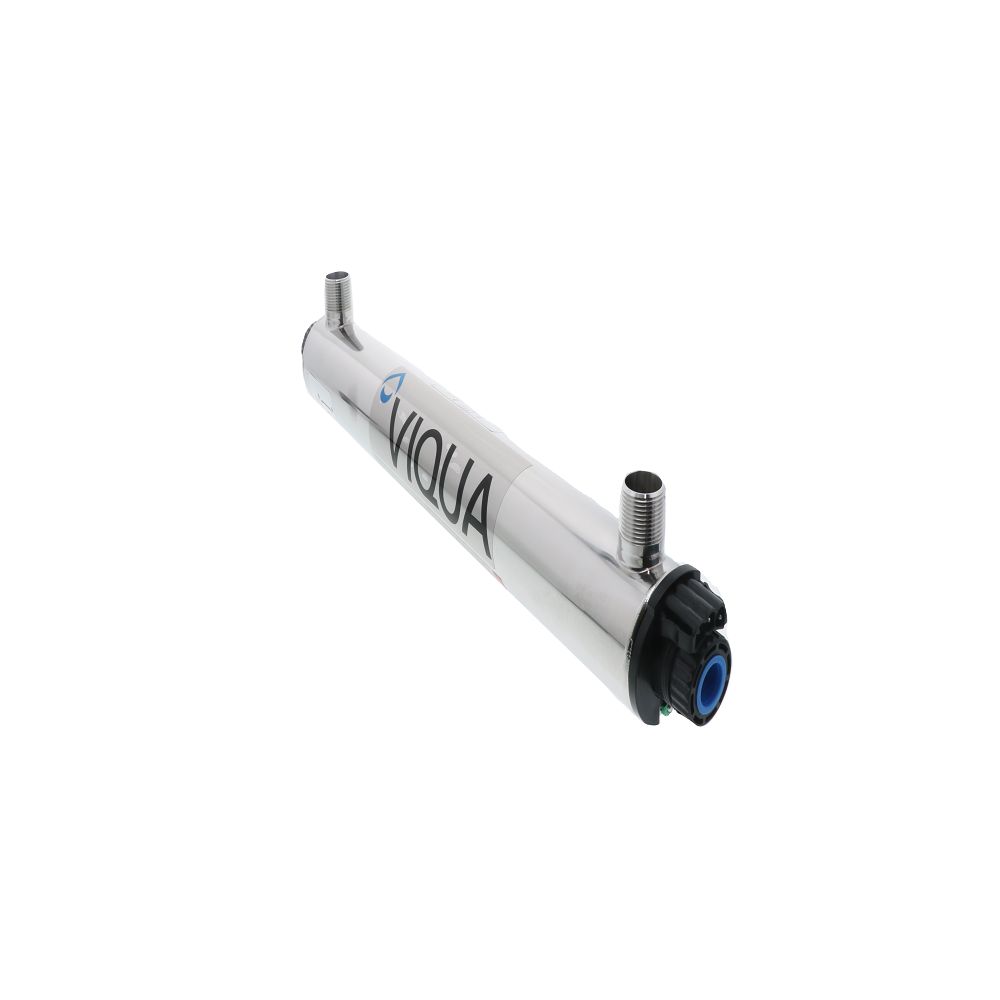

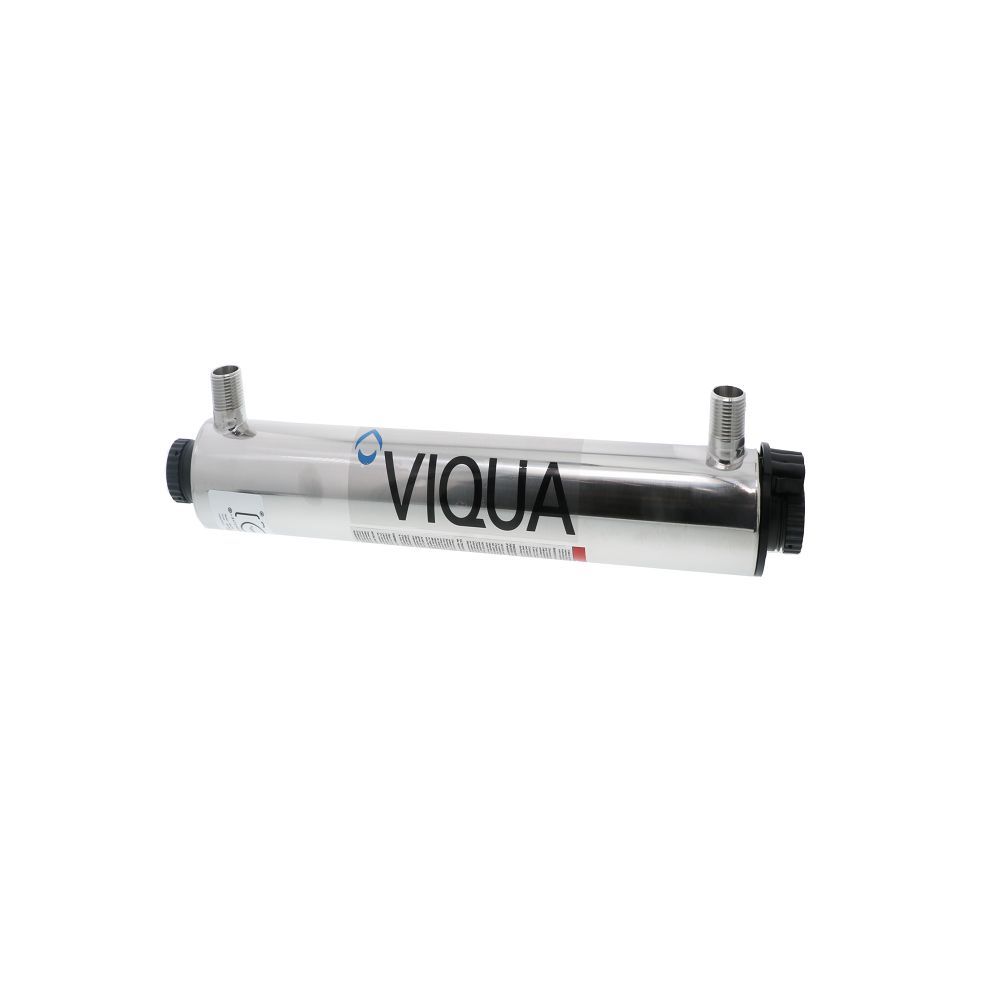

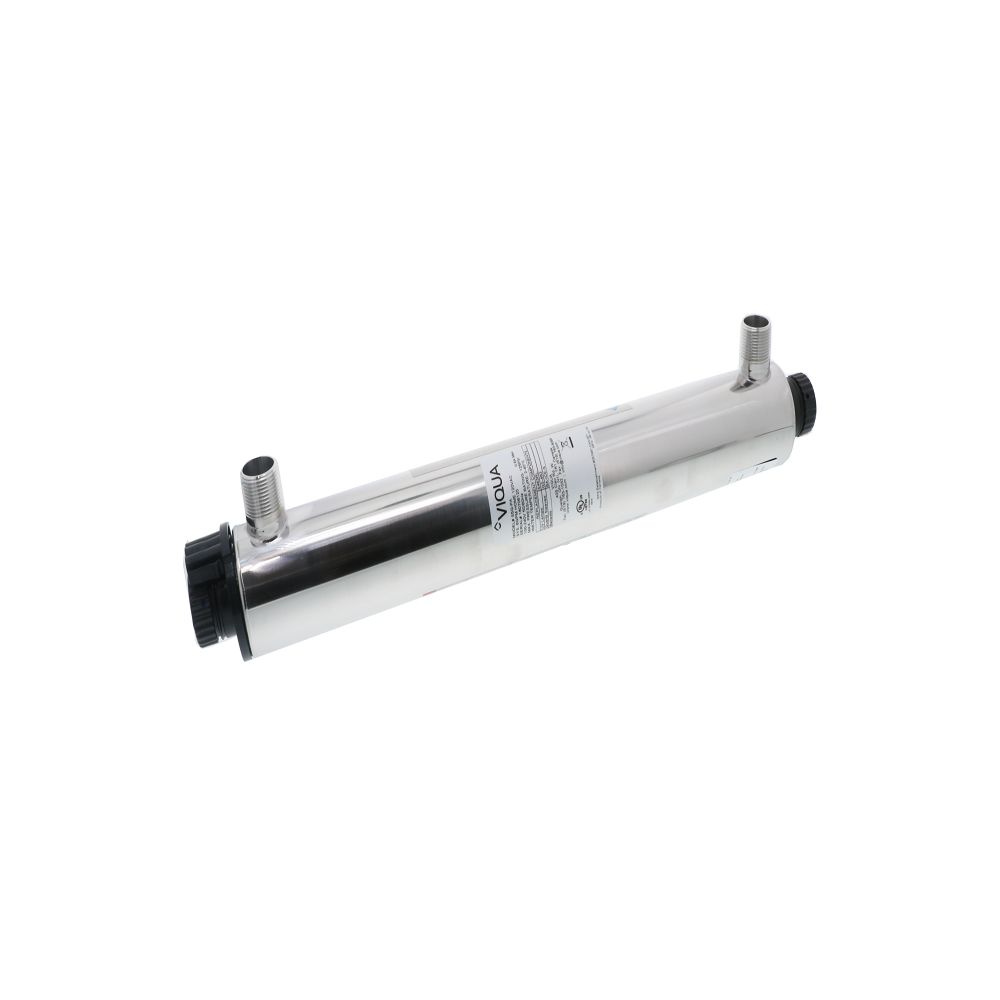

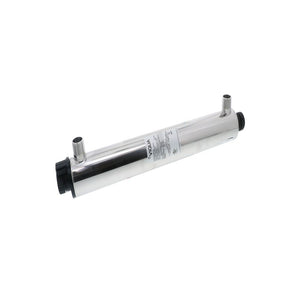

Viqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm

5.0
(4 reviews)
Part Number: S5Q-PA Alt. Part Number: EV997005, EV997006
Sold Out

Viqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm

5.0
(4 reviews)
Part Number: S5Q-PA Alt. Part Number: EV997005, EV997006
MSRP: $433.43
Regular price $420.00
Choose:

This item is discontinued. We recommend the Viqua VH150 Whole Home UV Water Disinfection System as a substitute.

You May Also Need

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Viqua S5Q-PA is the most popular and cost effective UV disinfection system. This low maintenance system is powered by the Sterilight Silver Series. The S5Q-PA is recommended for flow rates up to 6 gpm making it ideal for use in a smaller home or cottage. Whether you are on municipal or private well water, the Viqua S5Q-PA Whole-House UV Disinfection System will be perfect for reducing harmful bacteria, viruses and microorganisms such as Giardia, Cryptosporidium, and E.Coli.

Applications:
  • The Electronic ICE Ballast for this unit is the BA-ICE-S and features open loop current control (patent pending) and quick-lock molded lamp connector. It also includes an audible alarm & power-on indicator.
  • The Compact Design of this system makes installation quick and easy, and incorporates 304 stainless steel reactor chambers, which are brilliantly polished for laboratory or medical applications.
The Viqua S5Q-PA System is compatible with our S463-QL Replacement Lamp Combo Kit . To ensure ongoing disinfection of your water, UV lamps need to be replaced annually with VIQUA factory-supplied replacements. At Fresh Water Systems, we only carry genuine Viqua replacement lamps and quartz sleeves.
The combo kit for the S5Q-PA includes:
  • (1) Sterilight Lamp: S463RL
  • (1) Sterilight Quartz Sleeve: QS-463
  • (2) Sterilight O-Rings: 410867
Includes Open End Quartz Sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency, as well as hard glass, low pressure Mercury Vapor Lamps with high isolation pin design.

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Specifications

    Product Details

    Ambient Temperature Range

    36-104 °F

    Body Material

    304 Stainless Steel

    Features

    Visual Power On

    Frequency Rate

    50/60 Hz

    Inlet Connection

    3/4" MPT

    Max Pressure (Psi)

    125

    Min Pressure (Psi)

    5

    Outlet Connection

    3/4" MPT

    Power

    30 Watts

    Size

    3/4"

    Connection Type

    Male (MPT)

    Contaminants Reduced

    Bacteria

    Cysts

    Diameter

    2-1/2"

    Flow Rate

    6 GPM

    Type

    Single UV System

    Voltage

    120V

    Warranty & Certifications

    Warranty

    7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components

    Shipping Dimensions

    Shipping Length

    21 in.

    Shipping Width

    6.75 in.

    Shipping Height

    6.75 in.

    Product Weight & Dimensions

    Product Height

    6.75 in.

    Product Length

    21 in.

    Product Width

    6.75 in.

    Product Weight (lbs)

    6.35

Downloads

Viqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm ManualViqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm ManualViqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm ManualViqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm Manual

Reviews (4)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Compare Similar Products

A table comparing the facets of 4 products
Facet
Viqua S5Q-PA Silver Series UV System Powered by Sterilight 6 gpm
Sold Out
5.0
Regular price From $420.00
Sold out

Part #: S5Q-PA

Current Product
Regular price $483.66
Very low stock

Part #: PSUV-6C

View details
Price
Price
Regular price From $420.00
Regular price $483.66
Part #
Part # - PSUV-6C
Description

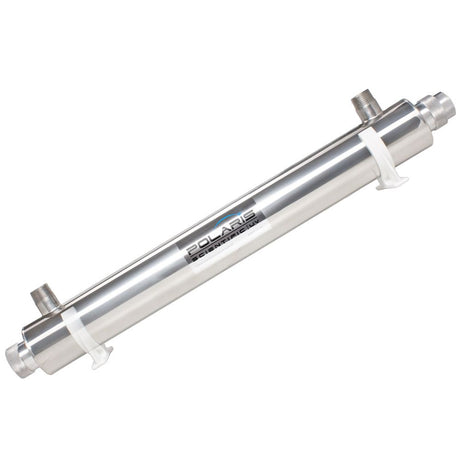

Description The Viqua S5Q-PA is the most popular and cost effective UV disinfection system. This low maintenance system is powered by the Sterilight Silver Series. The... The Polaris UVA-6C Ultraviolet Disinfection System features a polished 304 stainless steel reactor chamber making it suitable laboratory or medical use as well as residential...
