Atlantic Ultraviolet Corporation

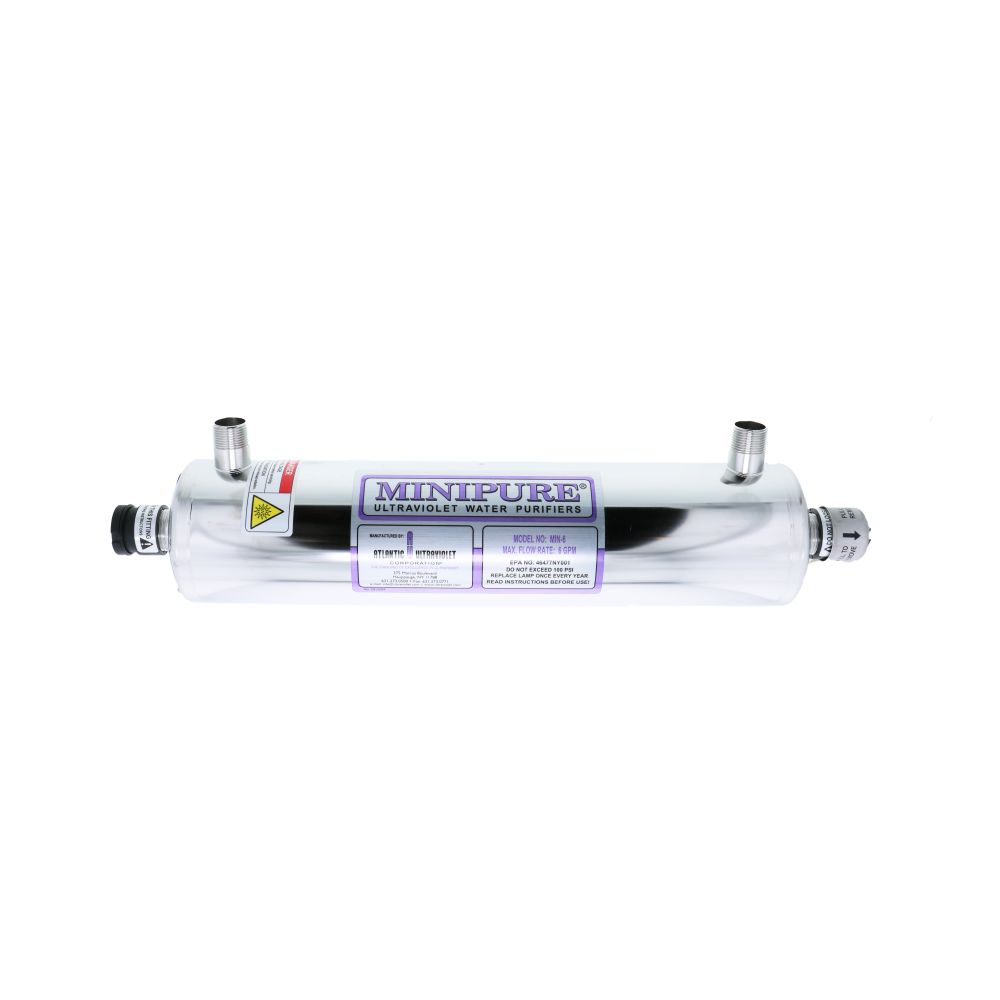

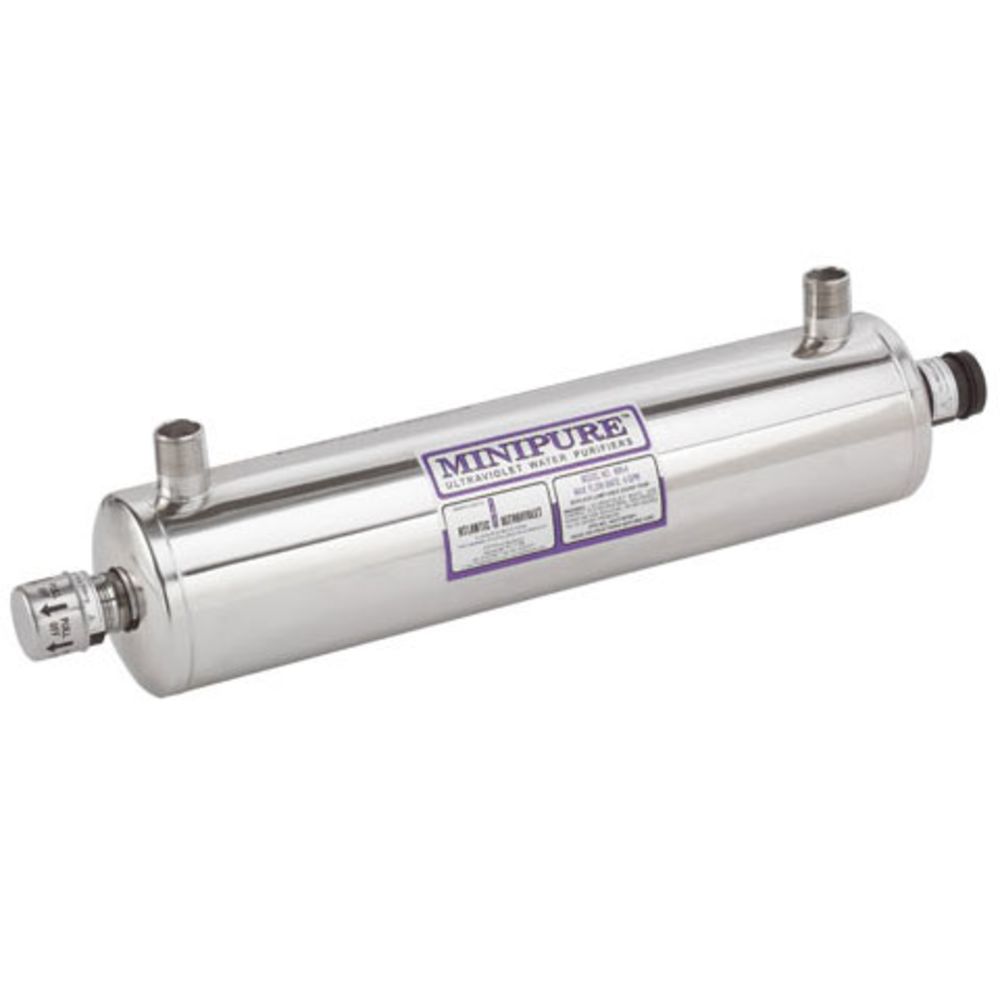

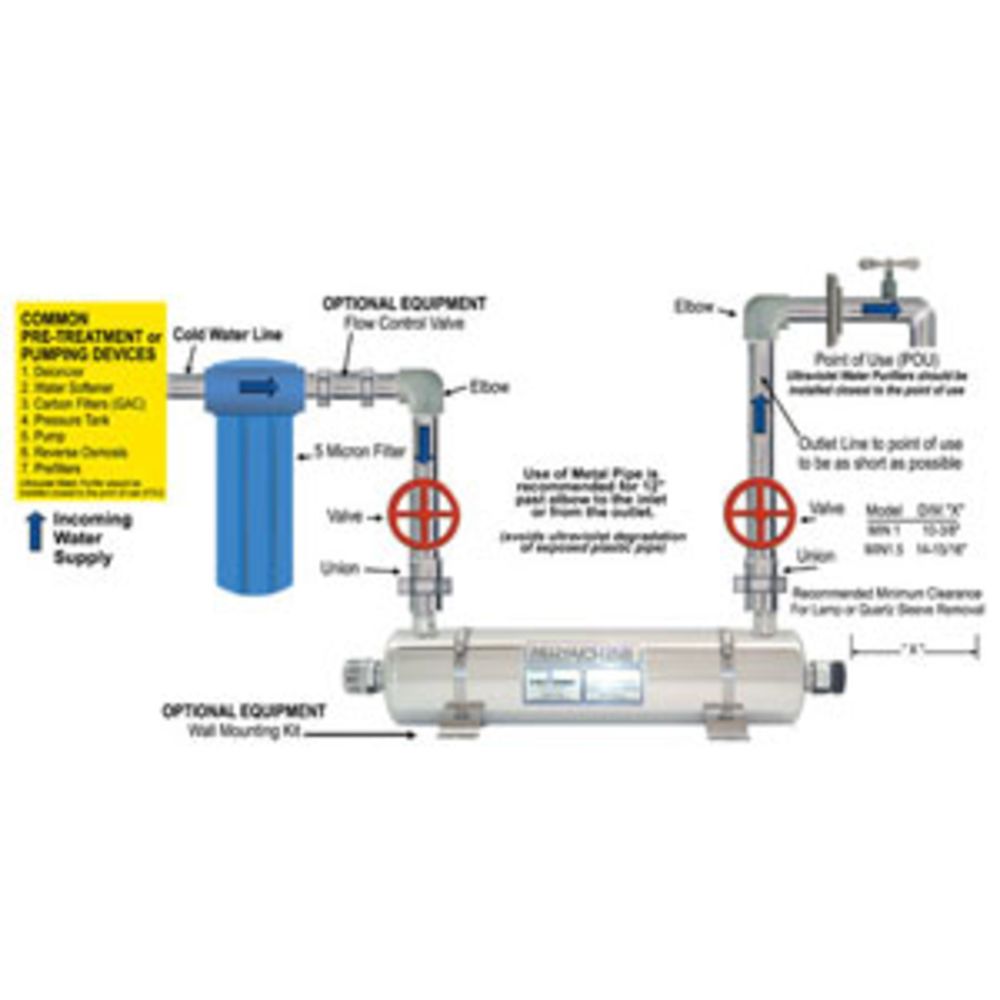

MiniPure MIN-6, 6 gpm, Ultraviolet Water Purifier

Part Number: MIN-6

In Stock

out of stock

In Stock

$438.90

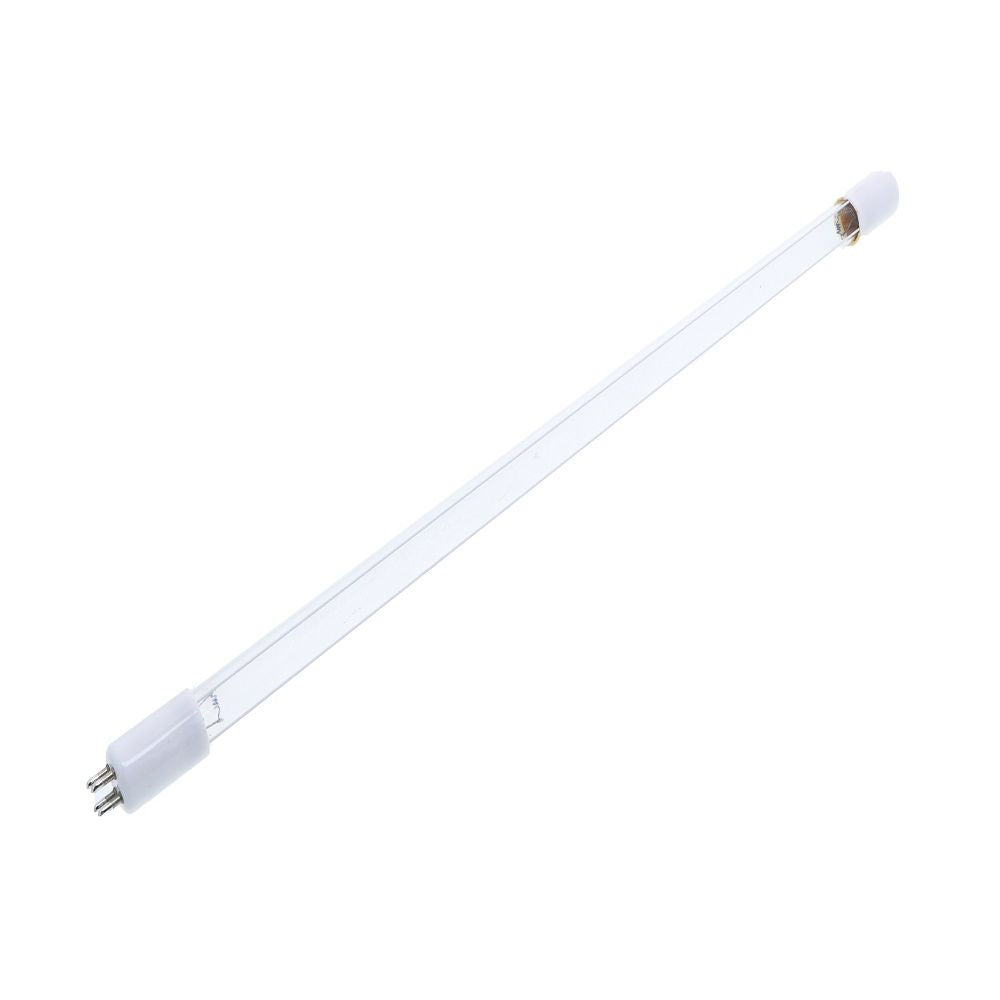

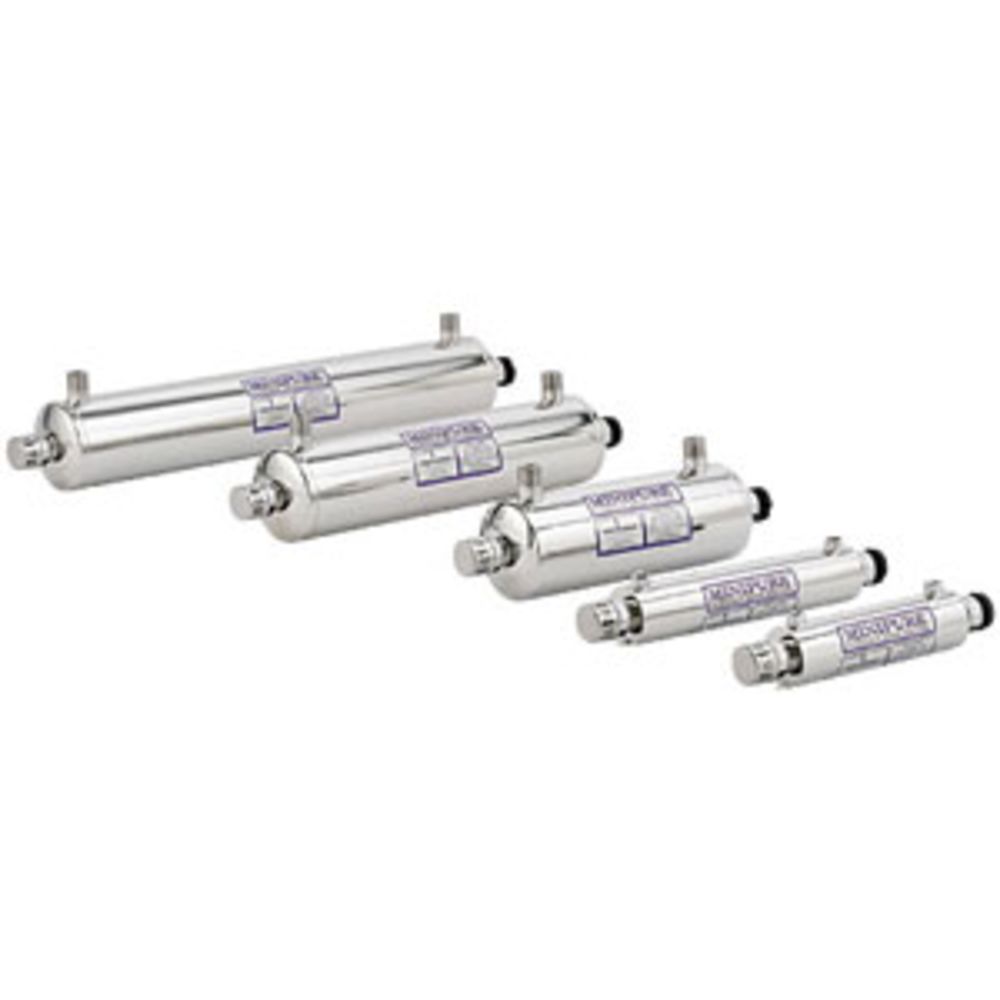

The MiniPure series from Atlantic UV utilizes germicidal ultraviolet lamps that produce short-wave radiation that is lethal to  bacteria, viruses and other microorganisms present in water. With ultraviolet disinfection there is no chlorine taste or corrosion problems, as well as no danger of overdosing with no addition of chemicals. MiniPure Ultraviolet Water Purifiers are the ideal solution for an ever growing range of water treatment applications.

Features:

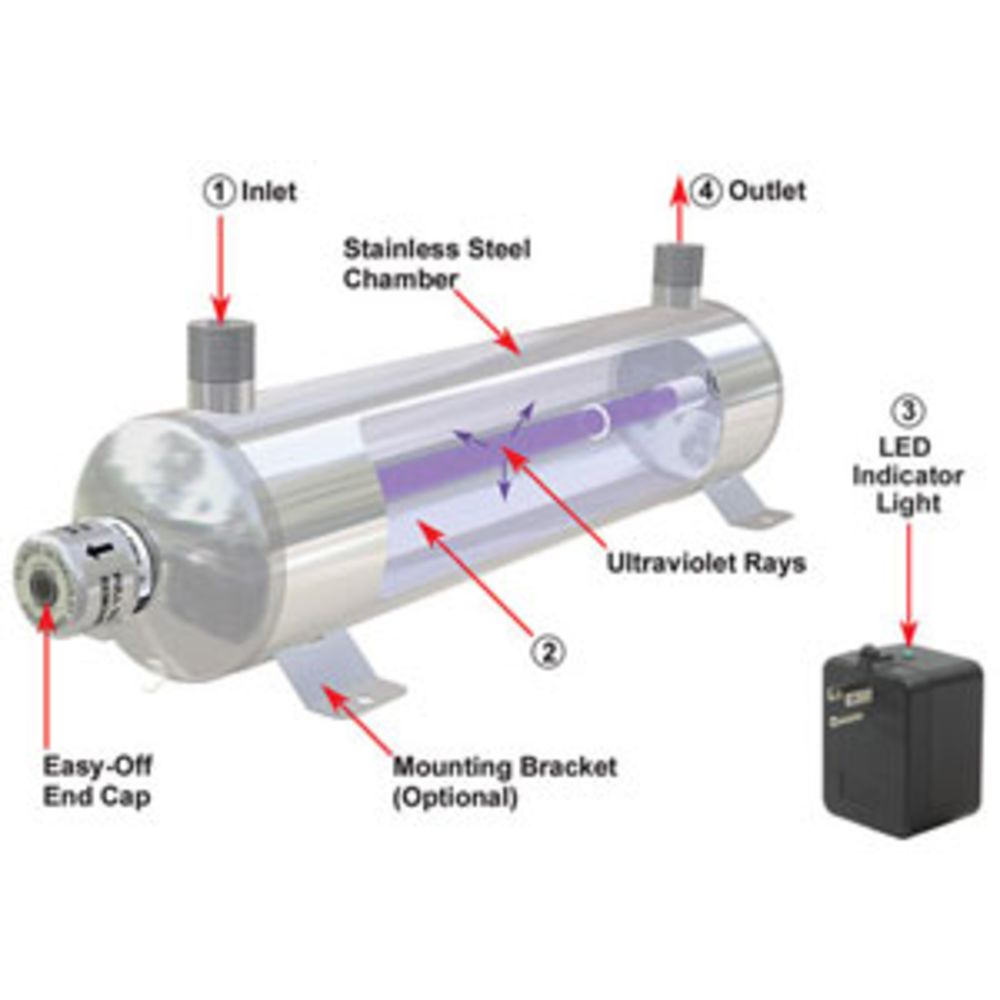

  • Quick Lamp Change - Exclusive Easy-Off™ Retainer Cap enables effortless lamp replacement without shut down of water pressure or drainage of tank. No tools required.
  • Stainless Steel Construction - 304 SS Electropolished

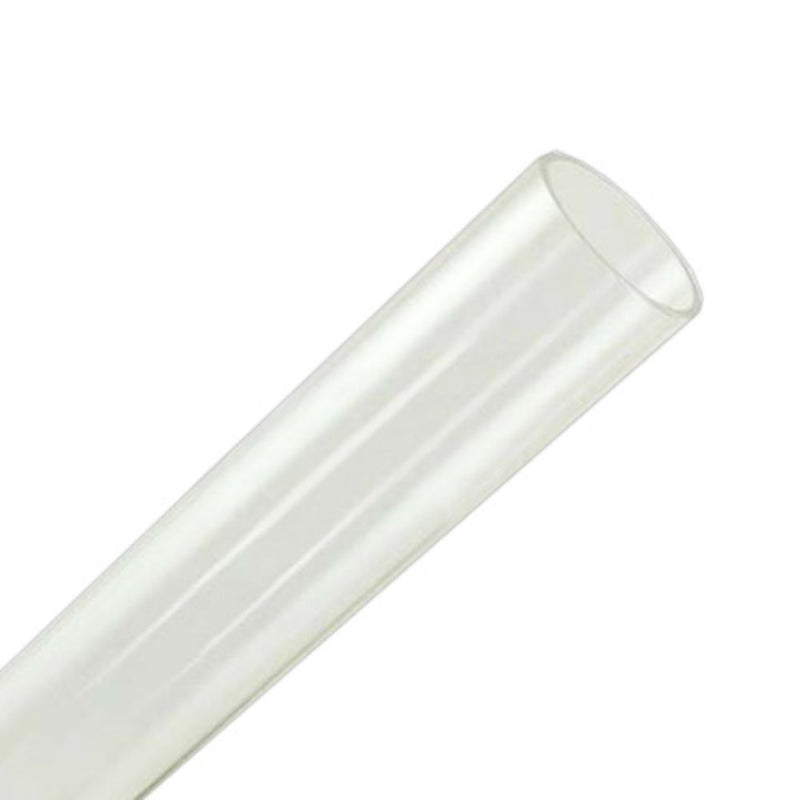

  • Fused Quartz Sleeve - Insures optimum lamp output at normal potable water temperatures.

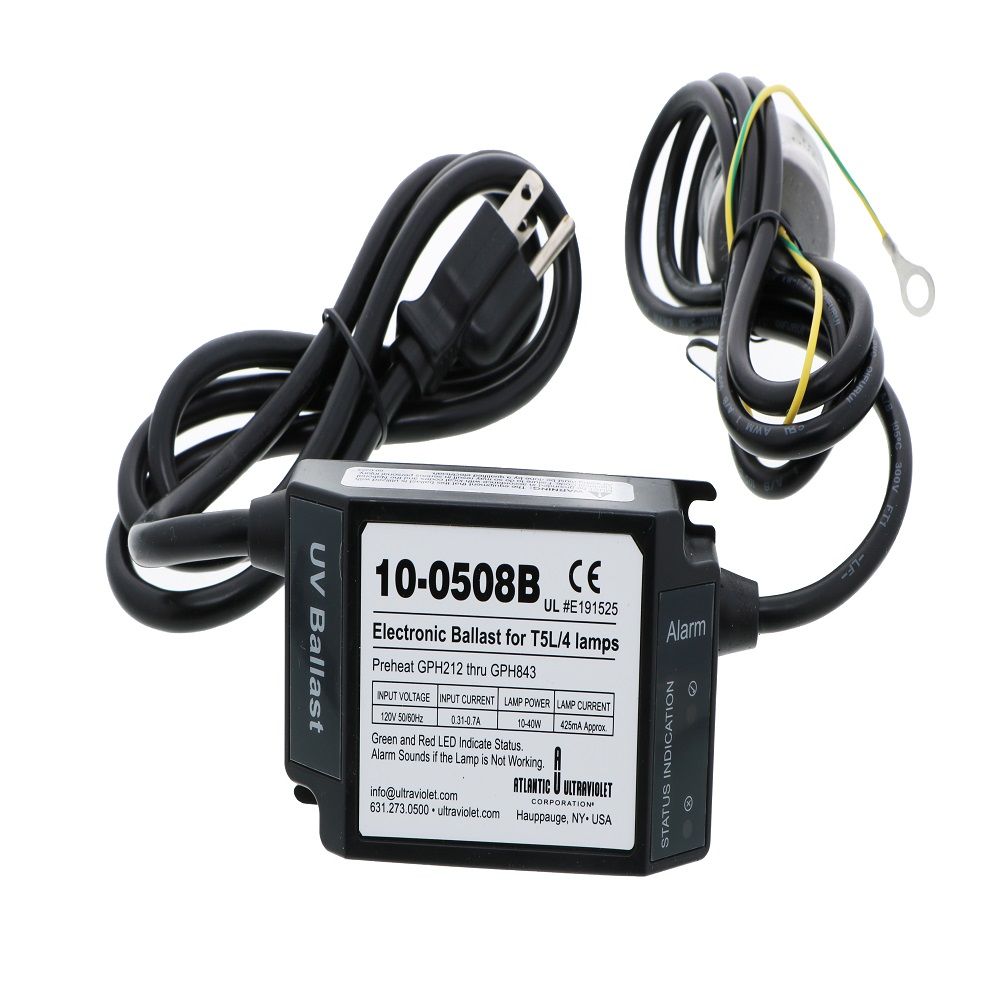

  • Indicator Light - LED on transformer provides visual indication of germicidial lamp operation.
  • Origin: Assembled in USA
  • Warranty - 6 years UV chamber, 3 years Ballast, 1 year Lamp and Quartz Sleeve


Weight & Dimensions

Approx Length (Inches)

22-1/4 Inches

Details

Ambient Temperature Range

35 - 104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4-1/4 Inches

Flow Rate

6 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

5-100 PSI

Power

24 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Warranty

1 year


MiniPure

MiniPure

MiniPure





The MiniPure series from Atlantic UV utilizes germicidal ultraviolet lamps that produce short-wave radiation that is lethal to  bacteria, viruses and other microorganisms present in water. With ultraviolet disinfection there is no chlorine taste or corrosion problems, as well as no danger of overdosing with no addition of chemicals. MiniPure Ultraviolet Water Purifiers are the ideal solution for an ever growing range of water treatment applications.

Features:
  • Quick Lamp Change - Exclusive Easy-Off™ Retainer Cap enables effortless lamp replacement without shut down of water pressure or drainage of tank. No tools required.
  • Stainless Steel Construction - 304 SS Electropolished
  • Fused Quartz Sleeve - Insures optimum lamp output at normal potable water temperatures.
  • Indicator Light - LED on transformer provides visual indication of germicidial lamp operation.
  • Origin: Assembled in USA
  • Warranty - 6 years UV chamber, 3 years Ballast, 1 year Lamp and Quartz Sleeve

Weight & Dimensions

Approx Length (Inches)

22-1/4 Inches

Details

Ambient Temperature Range

35 - 104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4-1/4 Inches

Flow Rate

6 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" MPT

Number Of Lamps

1

Operating Pressure Range

5-100 PSI

Power

24 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Warranty

1 year
