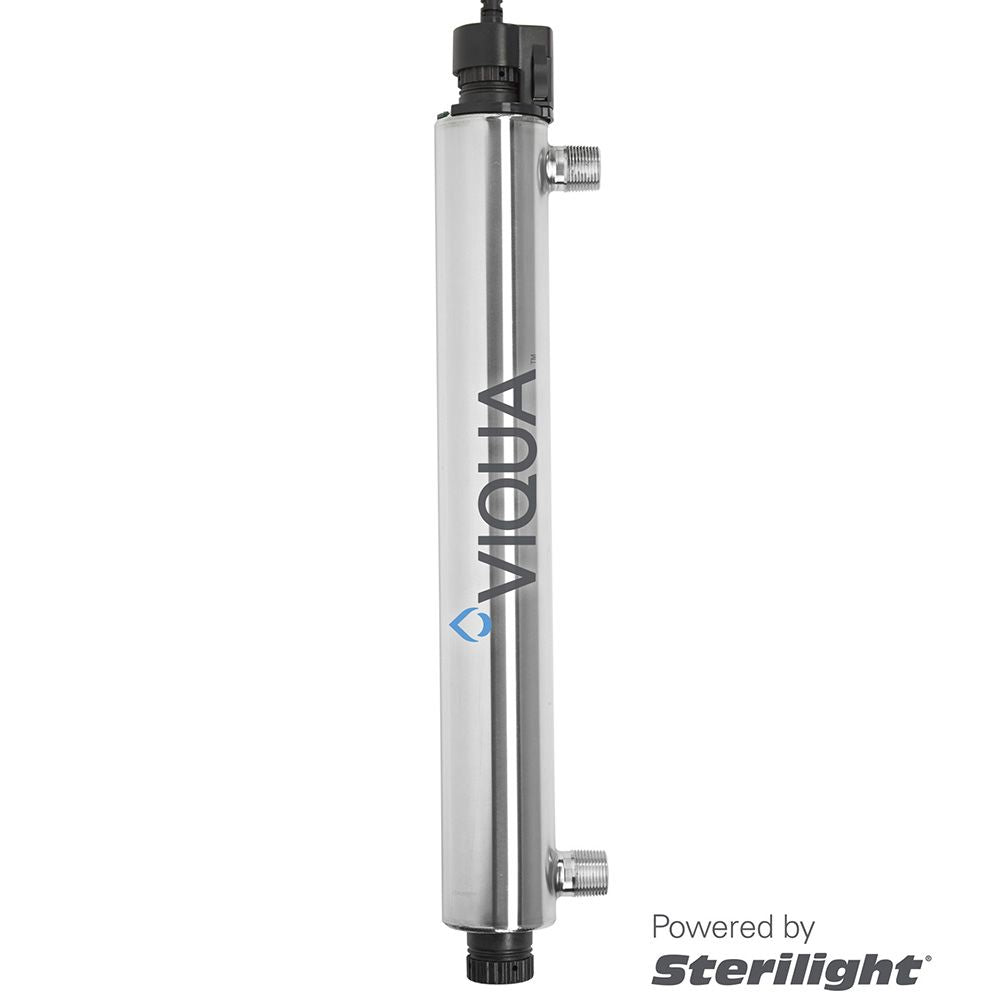

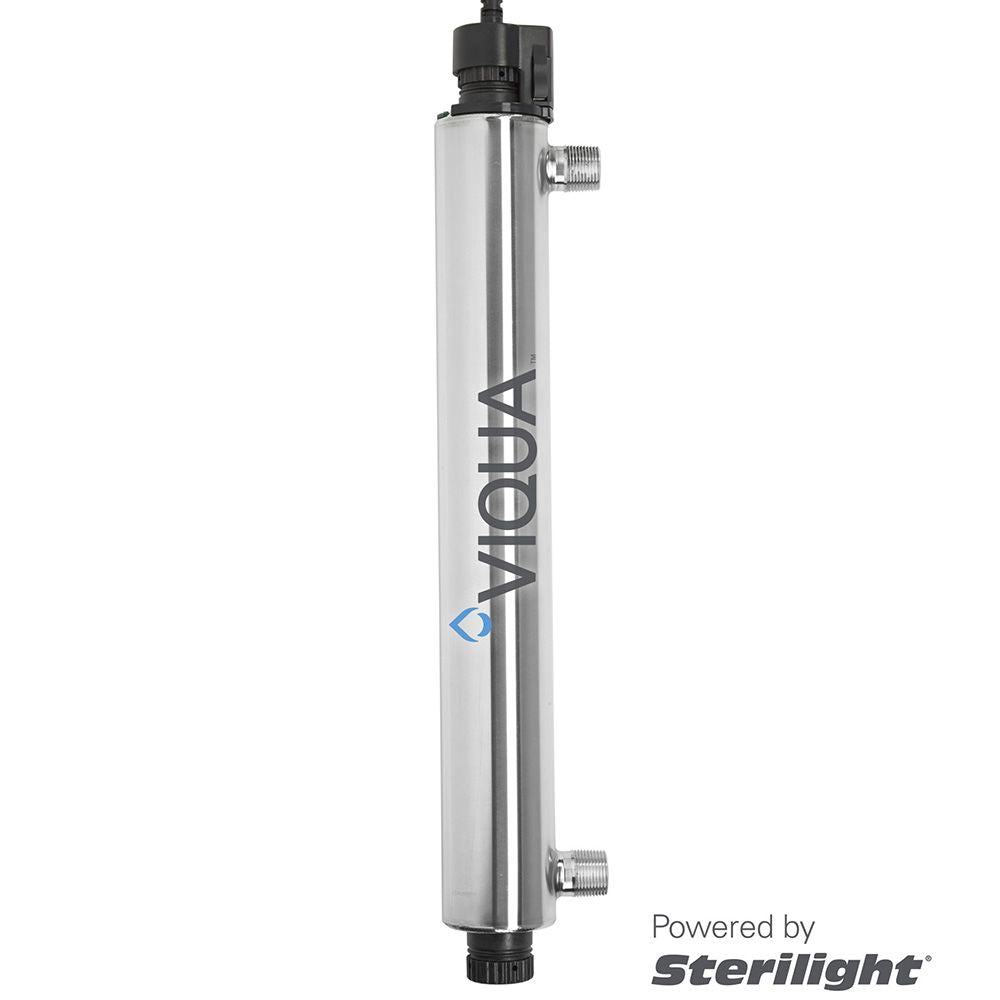

Viqua S5Q-P/12VDC Silver Series UV System Powered by Sterilight 6 gpm
Part Number: S5Q-P/12VDC
Alt. Part Number: S5Q-PA/12VDC
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
- Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
- Open-end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
- Hard glass, low-pressure mercury vapour lamps with high isolation pin design
- Natures way to protect your water without the addition of harmful chemicals
- Easy servicing - no need to disconnect water flow to change UV lamp
- Seven-year warranty on reactor chamber for unparalleled protection
- Includes mounting clamp

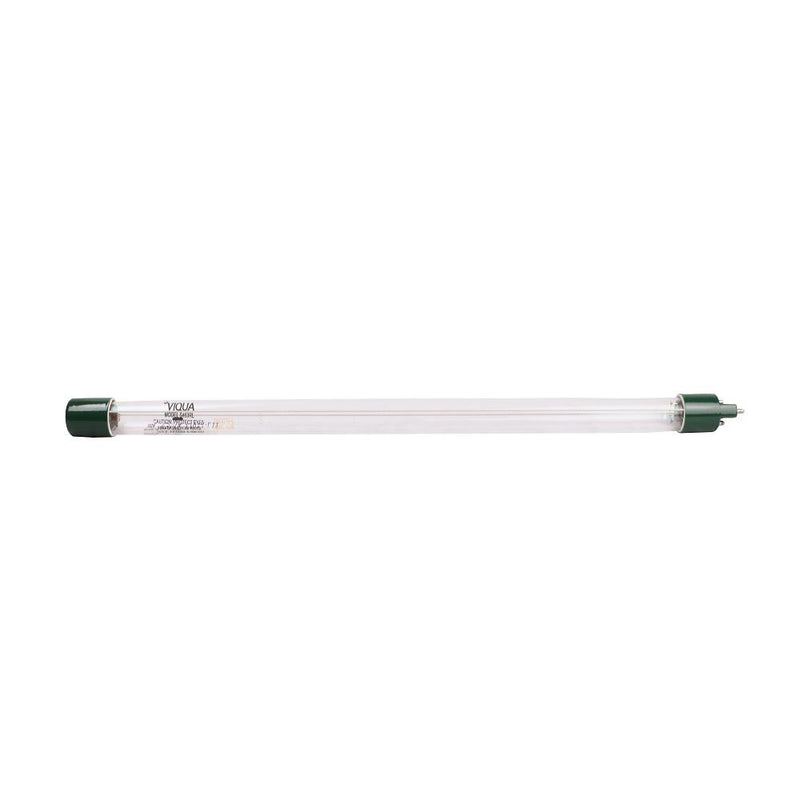

This system is compatible with the S463RL Sterilight Lamp and the QS-463 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S5Q includes:Sterilight Lamp (1): S463RLSterilight Quartz Sleeve (1): QS-463Sterilight O-Rings (2): 410867
Product Details | |
---|---|
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Features | Visual Power On |
Frequency Rate | 50/60 Hz |
Inlet Connection | 3/4" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Number Of Lamps | 1 |
Outlet Connection | 3/4" MPT |
Power | 30 Watts |
Size | 3/4" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 2-1/2" |
Flow Rate | 6.0 GPM (30mJ/cm2 Dose) 4.5 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 12 VDC |
Warranty & Certifications | |
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
Shipping Dimensions | |
Shipping Length | 22 in. |
Shipping Width | 10 in. |
Shipping Height | 9 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 7.3"x3.2"x2-1/2" |
Product Length | 21" |
Product Weight (lbs) | 6.375 |
Features:
- Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
- Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
- Open-end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
- Hard glass, low-pressure mercury vapour lamps with high isolation pin design
- Natures way to protect your water without the addition of harmful chemicals
- Easy servicing - no need to disconnect water flow to change UV lamp
- Seven-year warranty on reactor chamber for unparalleled protection
- Includes mounting clamp
This system is compatible with the S463RL Sterilight Lamp and the QS-463 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S5Q includes:Sterilight Lamp (1): S463RLSterilight Quartz Sleeve (1): QS-463Sterilight O-Rings (2): 410867
Product Details | |
---|---|
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Features | Visual Power On |
Frequency Rate | 50/60 Hz |
Inlet Connection | 3/4" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Number Of Lamps | 1 |
Outlet Connection | 3/4" MPT |
Power | 30 Watts |
Size | 3/4" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 2-1/2" |
Flow Rate | 6.0 GPM (30mJ/cm2 Dose) 4.5 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 12 VDC |
Warranty & Certifications | |
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
Shipping Dimensions | |
Shipping Length | 22 in. |
Shipping Width | 10 in. |
Shipping Height | 9 in. |
Product Weight & Dimensions | |
Power Supply Dimensions | 7.3"x3.2"x2-1/2" |
Product Length | 21" |
Product Weight (lbs) | 6.375 |
