Viqua

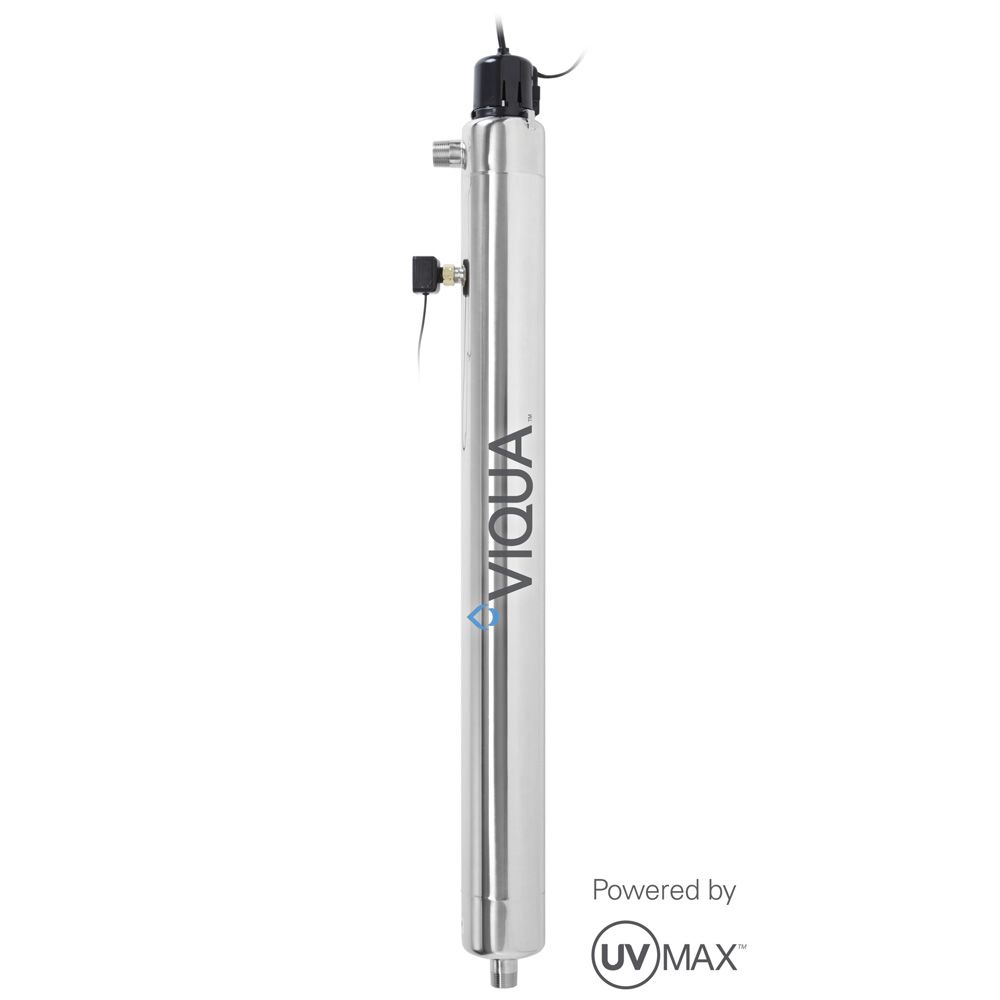

Viqua E4-50 Plus Monitored UV System Powered by UVMax 9 gpm

Part Number: 650638-R

In Stock

out of stock

In Stock

$1,299.00


The Viqua E4-50 Plus Ultraviolet System is designed to reduce harmful bacteria, viruses, and microorganisms. The Viqua E4-50 Plus is redesigned, making it more compact and easier to install. The E40-50 Plus is designed for applications where water quality conditions result in less than ideal UV transmissions. The Viqua E4-50+ effectively disinfects water with UVT values as low as 50% at recommended flow rates up to 9 gpm.

Features:
  • UV intensity monitor with diagnostic test
  • Disinfects water with UVT as low as 50%

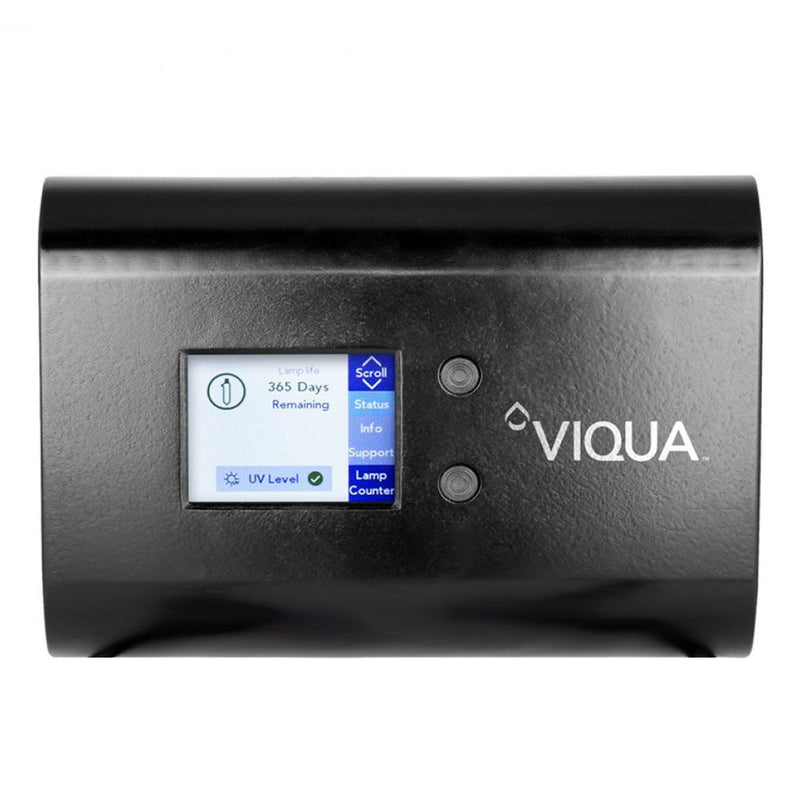

  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Lamp timer reset button and mute button to silence audio alarm
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
This system is compatible with the 602806 Trojan Lamp and the 602733 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for E4-50 Plus includes:

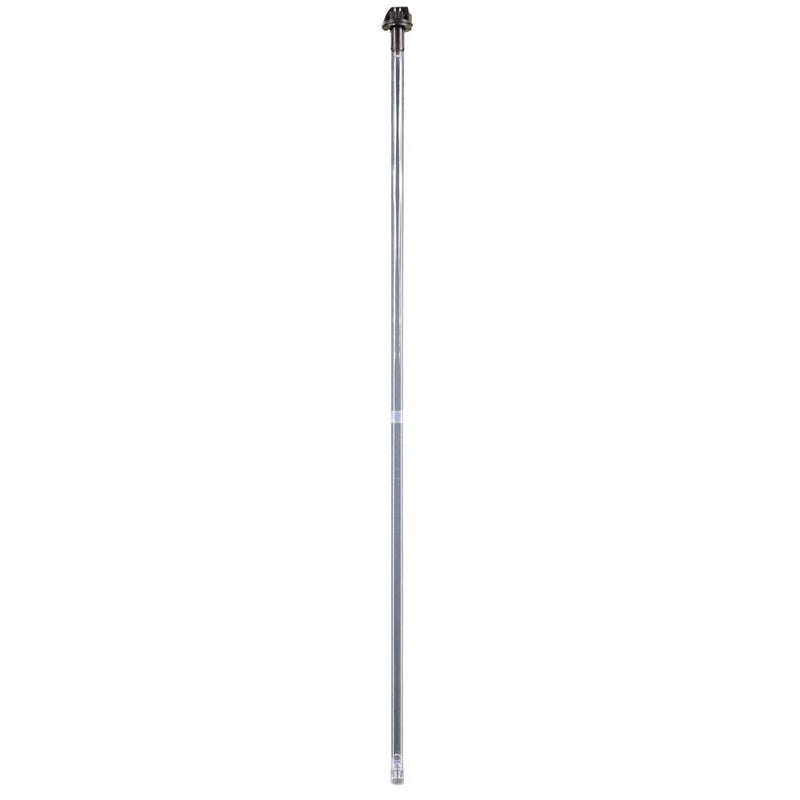

  • Trojan Lamp (1): 602806

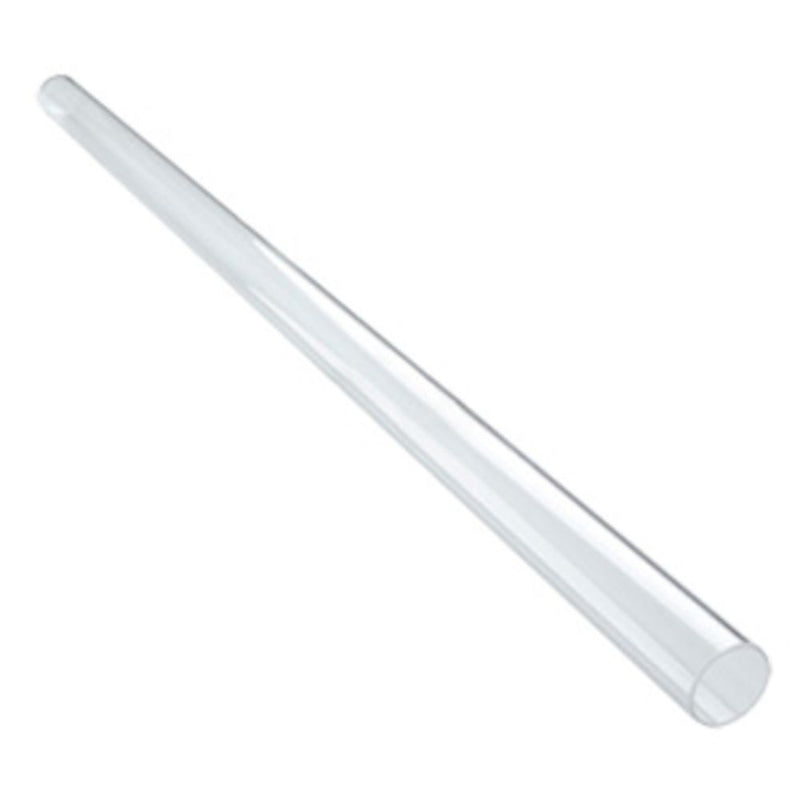

  • Trojan Quartz Sleeve (1): 602733

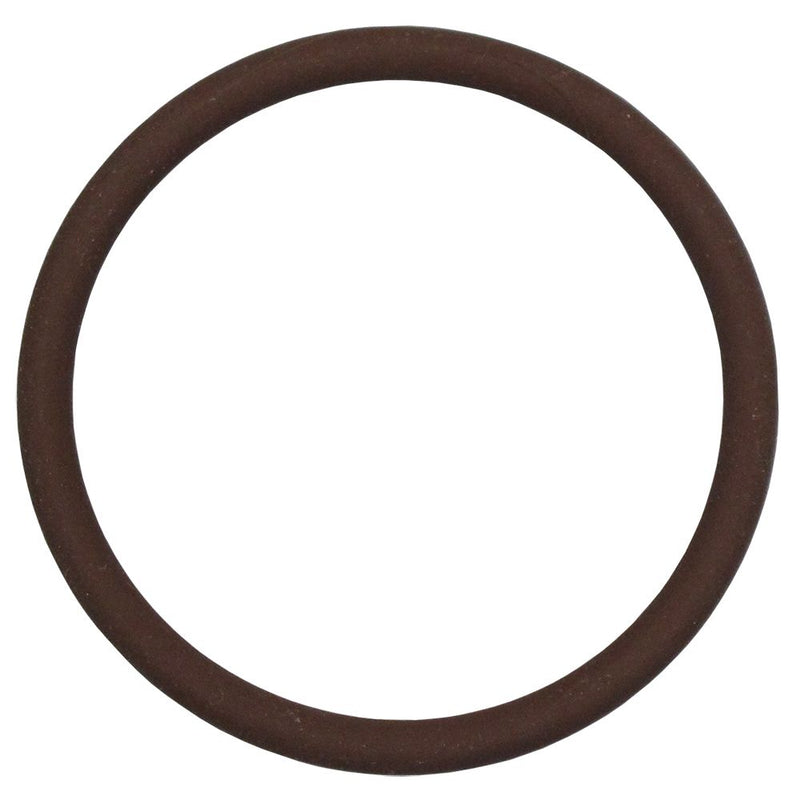

  • Trojan O-Rings (2): 2045
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

30 Inches

Power Supply Dimensions

8.5"x6"

Details

Ambient Temperature Range

32-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On; Solenoid Valve; Lamp Timer; Flow Pacing - Sensor; Flow Restrictor

Flow Rate

16 @ 50% UVT Gallons Per Minute (16mJ/cm2 Dose); 9 @ 50% UVT Gallons Per Minute (30mJ/cm2 Dose); 7 @ 50% UVT Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

83 Watts

Type

UVC

Voltage

100-240 V


Viqua

Viqua





The Viqua E4-50 Plus Ultraviolet System is designed to reduce harmful bacteria, viruses, and microorganisms. The Viqua E4-50 Plus is redesigned, making it more compact and easier to install. The E40-50 Plus is designed for applications where water quality conditions result in less than ideal UV transmissions. The Viqua E4-50+ effectively disinfects water with UVT values as low as 50% at recommended flow rates up to 9 gpm.

Features:
  • UV intensity monitor with diagnostic test
  • Disinfects water with UVT as low as 50%
  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Lamp timer reset button and mute button to silence audio alarm
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
This system is compatible with the 602806 Trojan Lamp and the 602733 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for E4-50 Plus includes:
  • Trojan Lamp (1): 602806
  • Trojan Quartz Sleeve (1): 602733
  • Trojan O-Rings (2): 2045
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Weight & Dimensions

Approx Length (Inches)

30 Inches

Power Supply Dimensions

8.5"x6"

Details

Ambient Temperature Range

32-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On; Solenoid Valve; Lamp Timer; Flow Pacing - Sensor; Flow Restrictor

Flow Rate

16 @ 50% UVT Gallons Per Minute (16mJ/cm2 Dose); 9 @ 50% UVT Gallons Per Minute (30mJ/cm2 Dose); 7 @ 50% UVT Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

83 Watts

Type

UVC

Voltage

100-240 V
