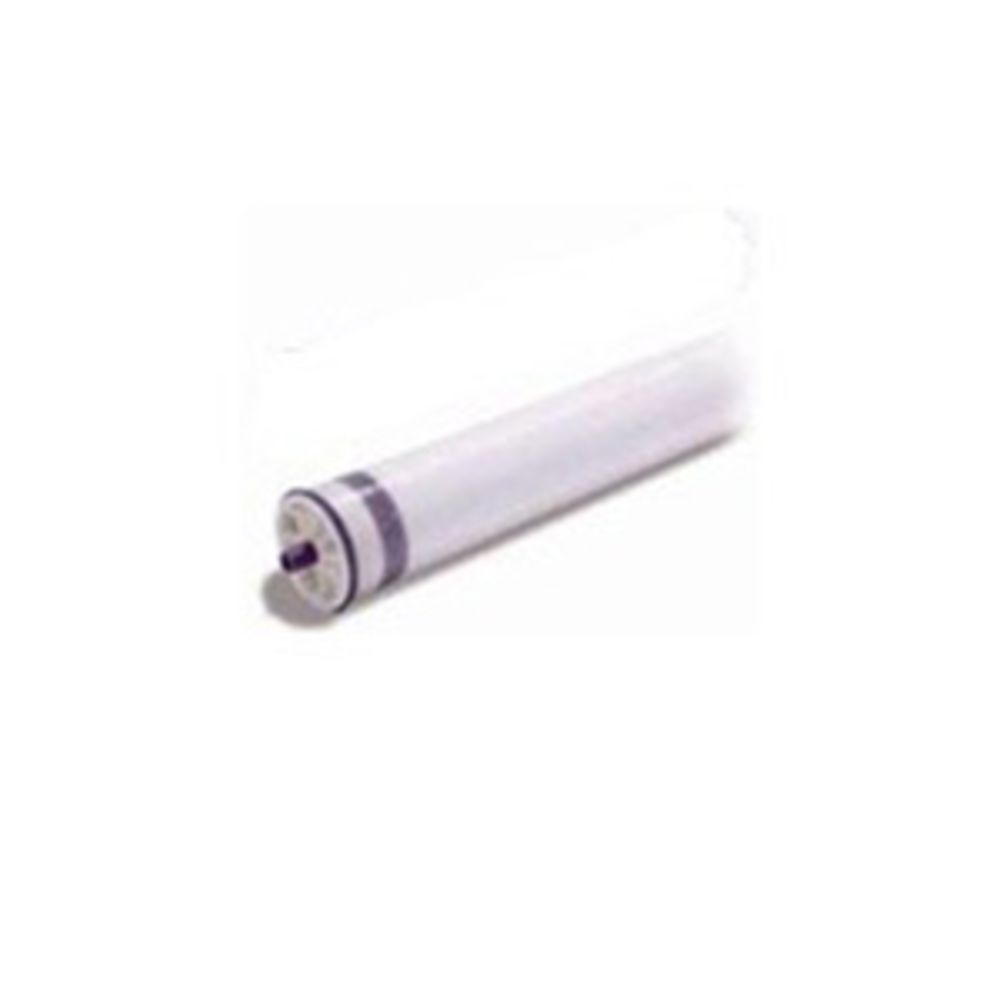

Veolia Osmonics Desal AK8040F-400 RO Membrane Element 10500 GPD LP-DRY

The Veolia Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Flim Reverse Osmosis Membrane Element
10500 Gallons Per Day
Dimensions: 4" x 40"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 100 PSIG

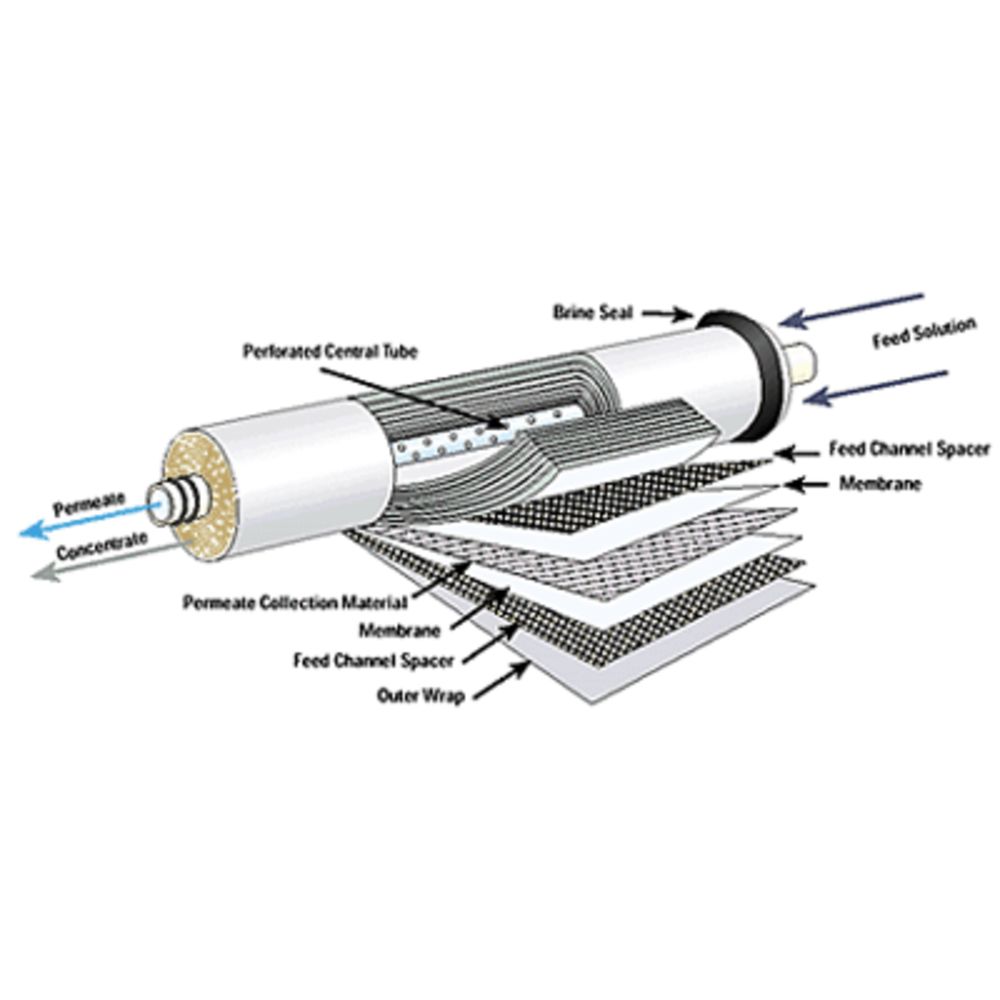

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	400 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-11.5
Feed Spacer Thickness	27 mil
Feed Water Temperature	77°F
Inlet Pressure	110 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Thin Film Membrane
Max Feed Silt Density Index	<3 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	400psi
Max Temp (°F)	122 °F
Minimum Salt Rejection Cl- (%)	0.98
Permeate Flow Rate	10,500 gpd (39.7)
Ph Range	4-11
Recovery Rate	0.15
Cartridge Style	Drop-in
Diameter	7.88"
Product Weight & Dimensions
Product Weight (lbs)	15
