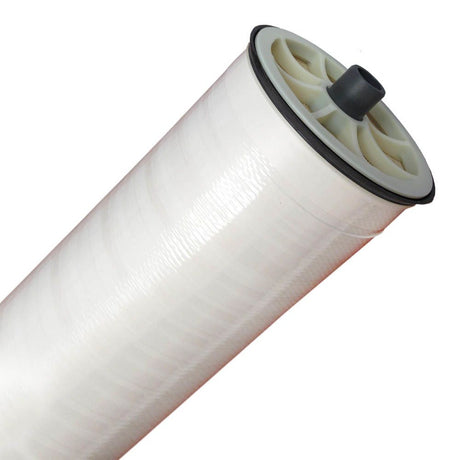

Toray TML20D-400 10500 gpd Low Fouling Membrane 8 x 40

Part Number: TML20D-400

In Stock

out of stock

In Stock

$578.50

The Toray TML20D-400 10500 gpd Low Fouling Membrane is designed to be used on water sources with high fouling potential such as water containing organics or bacteria. They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Feed Spacer: 34 mil
  • Permeate Flow Rate: 10500 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 225 psi
  • Dimensions: 8" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water
NOTE: When used to replace a Koch TFC 8040 FR 400 or TFC 8040 FR 400 34 membrane, the Toray TML20D-400 flow will be short by approximately 800 gpd.


Compatible with:
CSM MembranesRE8040 FEN, RE8040 FEN34, RE8040 FL, RE8040 FLR
Filmtec MembranesBW30FR-400/34i, BW30FR-400
Hydranautics MembranesCPA3, LFC3-LD
Koch Membrane SystemsTFC 8040 FR 375, TFC 8040 FR 400, TFC 8040 FR 400 34

Weight & Dimensions

Approx Length (Inches)

40"

Weight (lbs)

36

Details

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Feed Spacer Thickness

34 mil

Inlet Pressure

225 PSI

Material Of Construction

Cross-Linked Polyamide

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

113

Membrane Type

Spiral Wound

Permeate Tube Diameter

1-1/8"

Ph Range

2-11

Sanitation And Sterilization

Hydrogen Peroxide @ 0.2% and 77° F (25°C), Formaldehyde at 0.5 - 3%

Contaminants Reduced

Bacteria

Diameter

8"

Flow Rate

10,500 GPD

Origin

USA


Toray

Toray

Toray

Toray




The Toray TML20D-400 10500 gpd Low Fouling Membrane is designed to be used on water sources with high fouling potential such as water containing organics or bacteria. They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Feed Spacer: 34 mil
  • Permeate Flow Rate: 10500 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 225 psi
  • Dimensions: 8" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water
NOTE: When used to replace a Koch TFC 8040 FR 400 or TFC 8040 FR 400 34 membrane, the Toray TML20D-400 flow will be short by approximately 800 gpd.


Compatible with:
CSM MembranesRE8040 FEN, RE8040 FEN34, RE8040 FL, RE8040 FLR
Filmtec MembranesBW30FR-400/34i, BW30FR-400
Hydranautics MembranesCPA3, LFC3-LD
Koch Membrane SystemsTFC 8040 FR 375, TFC 8040 FR 400, TFC 8040 FR 400 34

Weight & Dimensions

Approx Length (Inches)

40"

Weight (lbs)

36

Details

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Feed Spacer Thickness

34 mil

Inlet Pressure

225 PSI

Material Of Construction

Cross-Linked Polyamide

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

113

Membrane Type

Spiral Wound

Permeate Tube Diameter

1-1/8"

Ph Range

2-11

Sanitation And Sterilization

Hydrogen Peroxide @ 0.2% and 77° F (25°C), Formaldehyde at 0.5 - 3%

Contaminants Reduced

Bacteria

Diameter

8"

Flow Rate

10,500 GPD

Origin

USA
