Veolia Osmonics Desal AG4040FM 2200 GPD RO Membrane Element Fiberglass

Name: Veolia Osmonics Desal AG4040FM 2200 GPD RO Membrane Element Fiberglass
Brand: Veolia
SKU: 3032513
Price: 291.16 USD
Availability: InStock

Part Number: 3032513 Alt. Part Number: AG4040FM, 1206761

1 2

Veolia

Veolia Osmonics Desal AG4040FM 2200 GPD RO Membrane Element Fiberglass

Part Number: 3032513 Alt. Part Number: AG4040FM, 1206761

$291.16

Product not eligible for free shipping

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Veolia Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Flim Reverse Osmosis Membrane Element
2200 Gallons Per Day
Dimensions: 4" x 40"
Male End Connections
Fiberglass Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

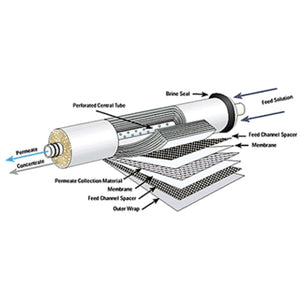

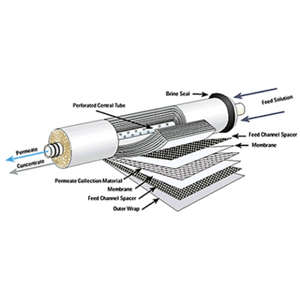

Element Membrane Diagram (not the encapsulated model):

Specifications

Product Details
Active Area

85 sq. ft.
Average Nacl Rejection

99
Chlorine Tolerance

1,000 ppm-hrs
Cleaning Ph Range

2-11.5
Direction

Outside - In
Feed Water Temperature

77°F
Feed Water

Brackish Water
Inlet Pressure

225 PSI
Max Feed Silt Density Index

<5 Silt Density Index
Max Feed Water Turbidity

<1 Nephelometric Turbidity Units
Max Pressure Drop

12 PSI Differential
Membrane Type

Reverse Osmosis
Permeate Flow Rate

2,200 gpd (8.3)
Permeate Tube Diameter

0.75 in
Recovery Rate

0.15
Shipping Dimensions
Shipping Length

43.5
Shipping Width

5.25
Shipping Height

5.25

Downloads

Veolia Osmonics Desal AG4040FM 2200 GPD RO Membrane Element Fiberglass Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

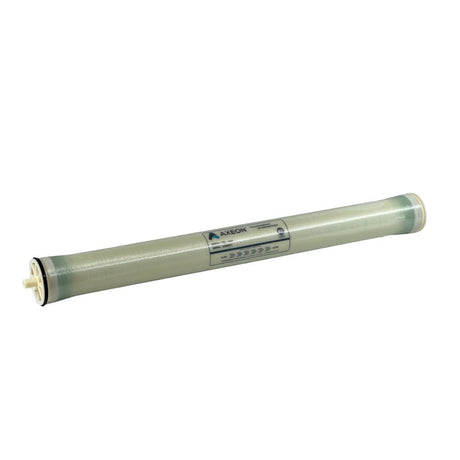

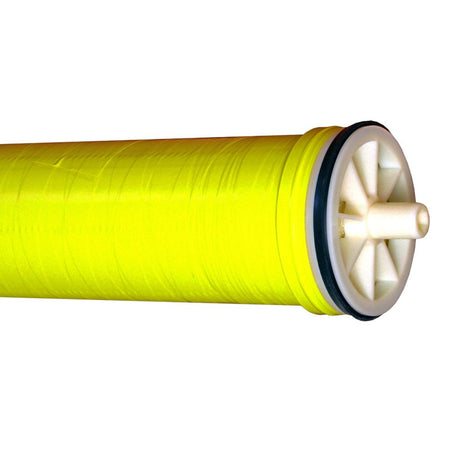

Facet	Veolia Veolia Osmonics Desal AG4040FM 2200 GPD RO Membrane Element Fiberglass Regular price $291.16 Backordered Part #: 3032513 Current Product	AXEON AXEON RE1-4040 2000 GPD RO Membrane Element Regular price $280.75 Part #: 211689 View details	Filmtec Filmtec TW30-4040 Tap Water 2400 GPD RO Membrane Element 5.0 Regular price $285.27 Part #: TW30-4040 View details
