Specifications:
- 1/2" Male Compression Connection
- 1/2" Female Compression Connection
- 3/8" OD JG Connection
- Polypropylene Body
- Polysulfone Shaft
- EPDM O-Rings
- Stainless Steel Gripper
- 145 Max. Working Pressure @ 68° F
- 58 Max. Working Pressure @ 140° F
- Made with same quality materials required by NSF-61

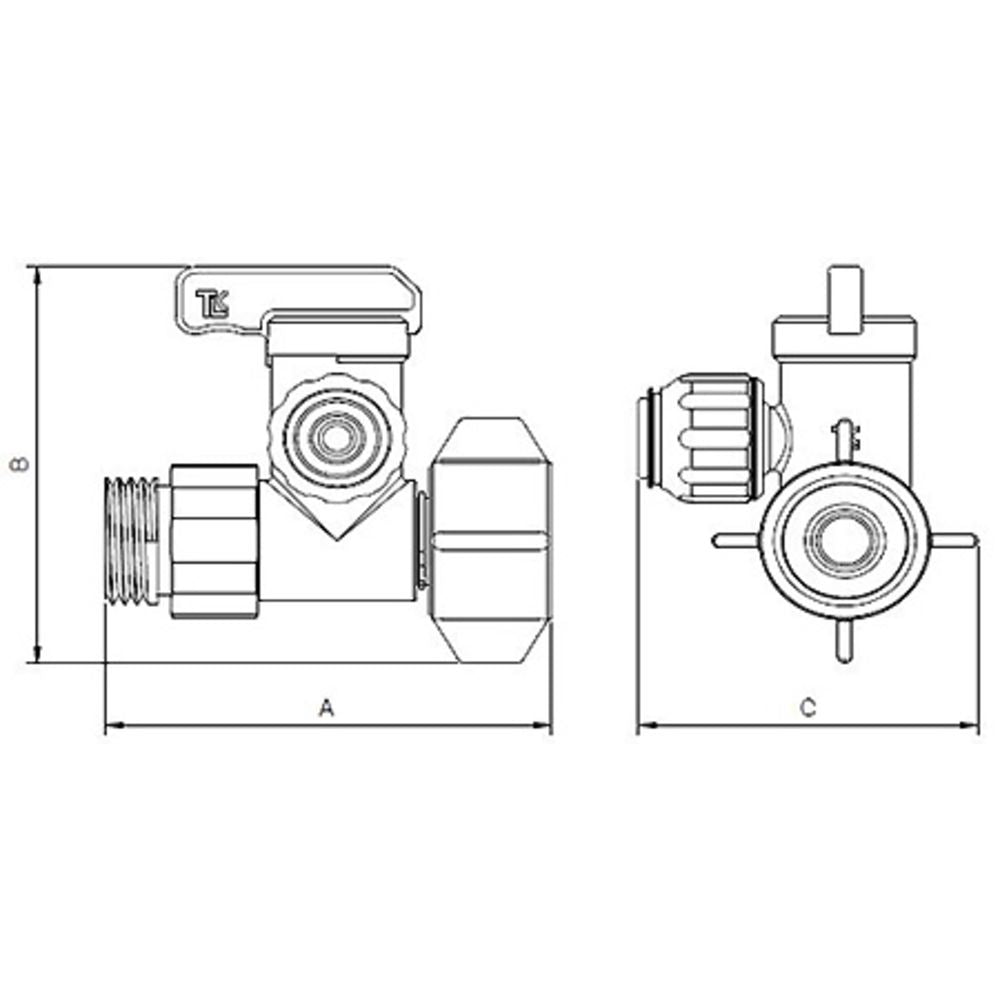

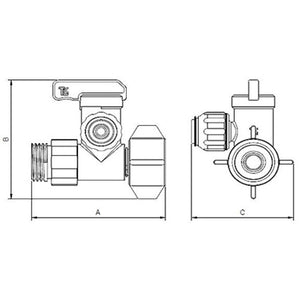

| Part# |
A |
B |
C |
| AVA-6714 |
2-11/16" |
2-9/16" |
2-1/8" |
Weight & Dimensions
Box Dimensions | 7.5x11x6.125 |
Case Dimensions | 12x15.5x13.5 |
Weight (lbs) | 0.2 |
Details
Application | Water Supply |
Body Material | Polypropylene |
Color / Finish | White |
Inlet/Outlet Connection | 1/2" FPT; 1/2" MPT |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 58 |
Min Temp (°F) | 68 |
O-Rings | EPDM |
Push-In Size | 3/8" OD |
Size | 1/2" |
Warranty & Certifications
Certifications | NSF-61 |
